Home / Products / FTTH ODN Solution / Fiber Optic Splice Closure / Dome Type / FCST012253 1-6 In-Out Port Fiber Optical Splice Closure Pole Mounting

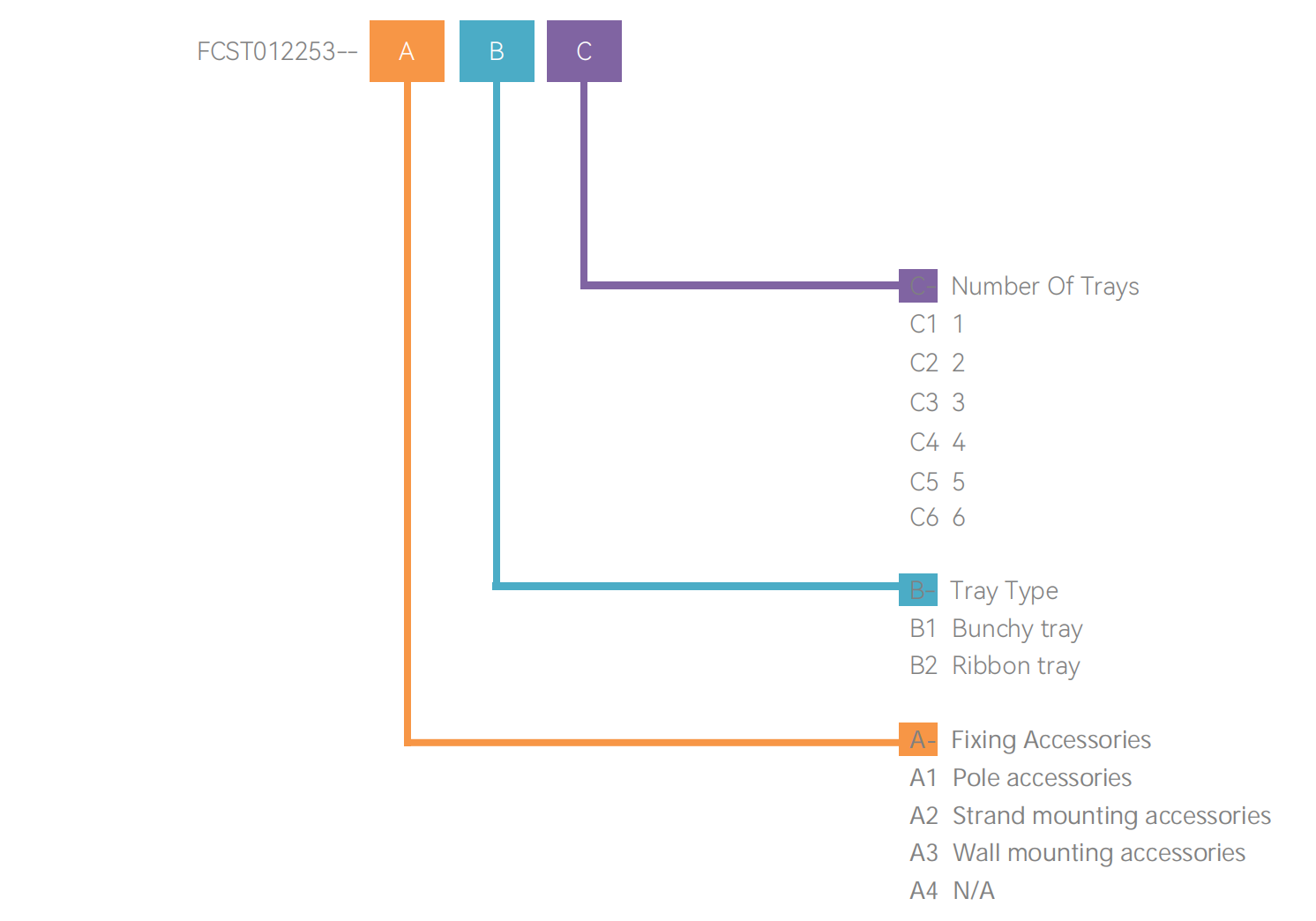

Model:
FCST012253
Brand:
FCST
Code:
FCST012253
MOQ:
200

Product Description

Product Overview

FCST012253 Fiber Optic Splice Closure is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment

Product Advantages

The base is sealed using gel technology.
Uncut or expressed loose tubes can be stored in storage baskets.
Closure can be used in aerial, pedestal and underground environments.
Compatible with most common cable types: e.g. loose tube, central core, slotted core , ribbon fiber.

Product Specification

Construction	Description
Max. Capacity	Bunchy: 24-144 Cores \| Ribbon: 864 Cores
Material	Dome Base: PP \| Tray: ABS \| Metal parts:Stainless steel
Dimensions	*514mm φ324mm丨16.864in * φ12.756in**
Inlets/Outlets	1/6
Installation	Pole mounting \| Underground mounting \| Strand mounting \| Wall-mounting
Operating Temperature	-40℃~+70℃
Diameter Of Fiber Cable	φ8-φ20mm
Sealing Mode	Mechanical seal
Number Of Trays	6
Capacity Of Tray	24F
Packaging	*1PCS/CNT 6KGS0.053CBM(320310525mm*)
