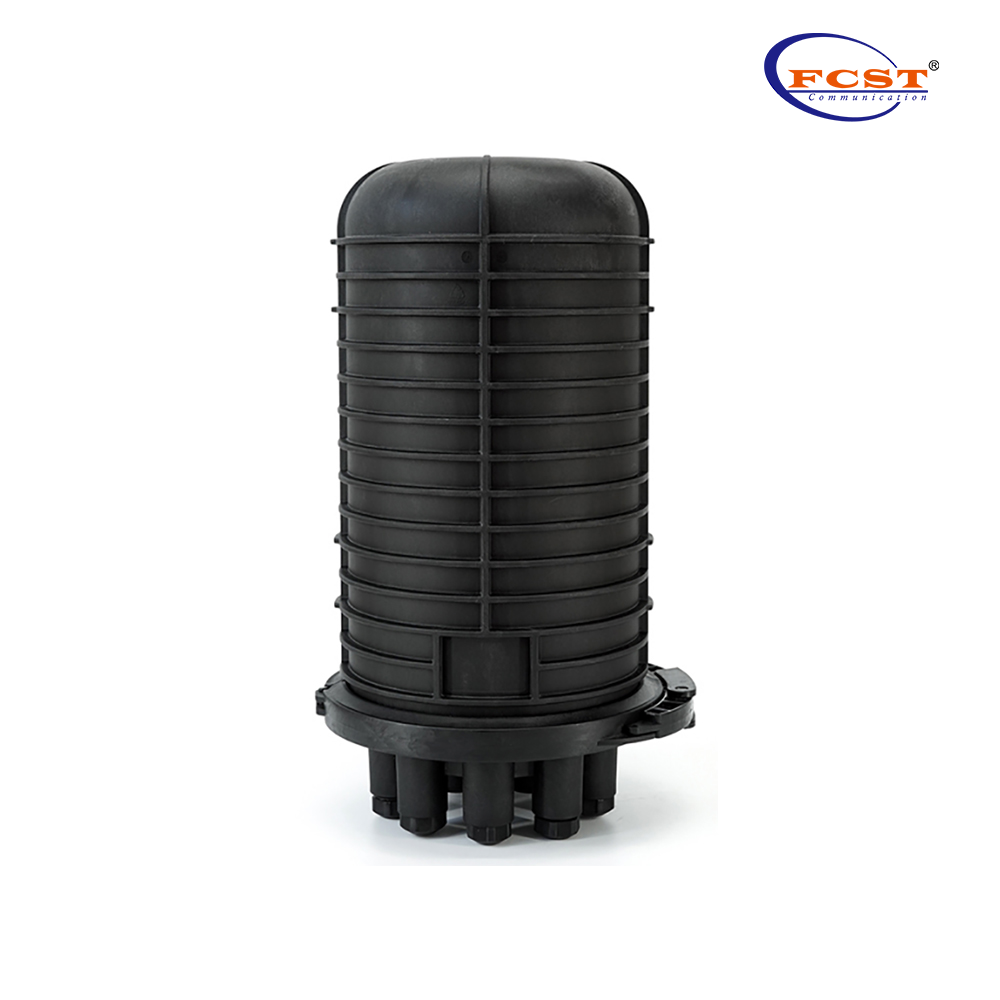

FCST012136 Fiber Optic Splice Closure

5 0 Reviews
FCST012136 Fiber Optic Splice Closure type of FOSC is designed for connection and protection of fiber cables. This model has one uncut port, seven branch ports, two drop cable ports. It can be used for different applications of optical fiber cable splicing & branching and is suitable for aerial, pipe-lined, manhole and direct buried applications. It applies to any sort of cables(loose tube, skeleton, ribbon etc.)
Availability:
Quantity:
  • FCST012136
  • FCST
  • FCST012136

Product Overview

FCST012136 Fiber Optic Splice Closure type of FOSC is designed for connection and protection of fiber cables. This model has one uncut port, seven branch ports, two drop cable ports. It can be used for different applications of optical fiber cable splicing & branching and is suitable for aerial, pipe-lined, manhole and direct buried applications. It applies to any sort of cables(loose tube, skeleton, ribbon etc.)

Product Advantages

Cable diameter: 1 Uncut port support φ10~22mm cable; 7 branch ports support φ8~18mm cable; 2 drop ports support φ2*3mm soft cable

Capacity: It can install 60 pieces of 6-core fiber trays or 30 pieces of 12-core fiber trays, with the maximum capacity of 360 cores;

Installation method: Suitable for direct buried, aerial, pole,pipeline,manhole, etc.

Sealing: Mechanical seal is adopted for box body and cable mouth, with protection grade of IP68.

Provide logo customization service.

Product Specifications

Construction

Description

Max. Capacity

Single:360Cores

Material

PP+GF

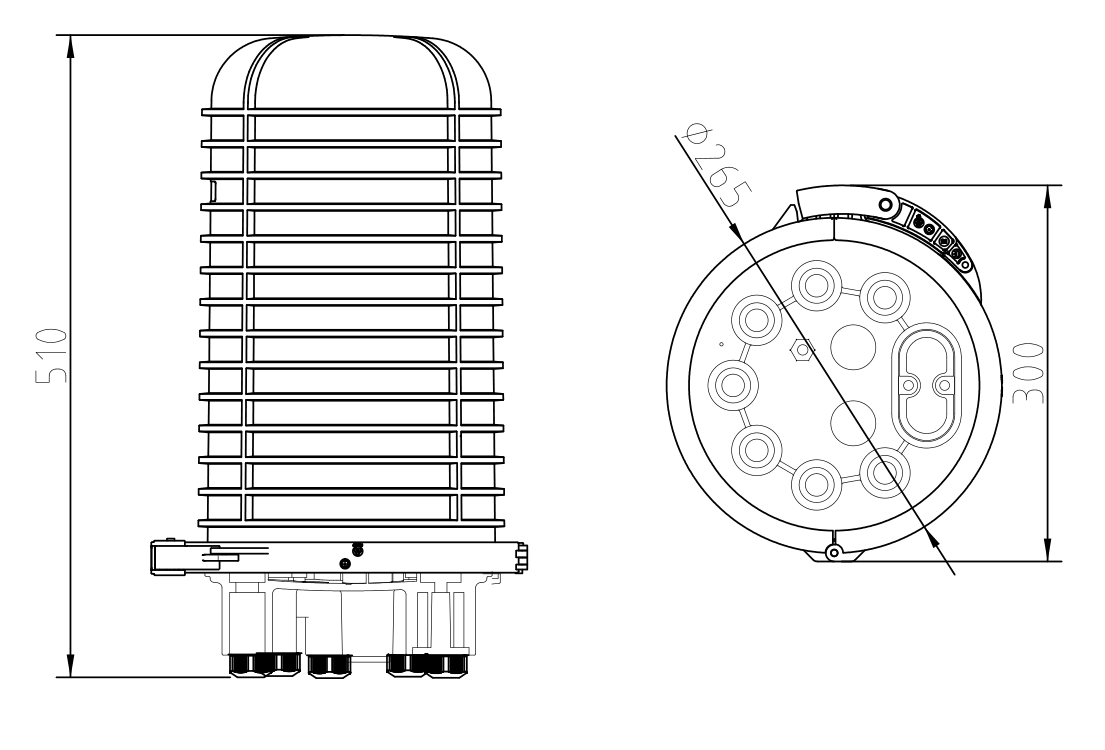

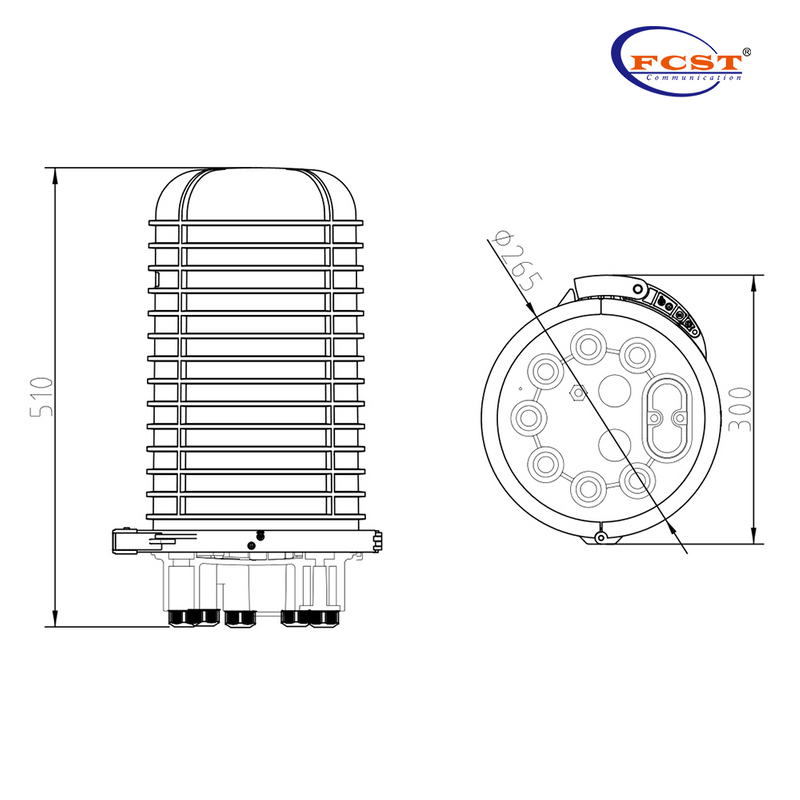

Dimension (mm)

510×φ300

Inlets/Outlets

10

Installation

Directly buried, Aerial, Pipeline, Pole, Manhole, etc

Net Weightg

2500

Protection Level

IP68

Diameter Of Fiber Cable

1*Oval  port: Φ1022mm;

7*Round port : Φ818mm;

2* drop cable: Φ2*3mm

Sealing Mode

Mechanical

Number Of Trays

6F: 60pcs

12F: 30pcs

Capacity Of Tray

6/12F

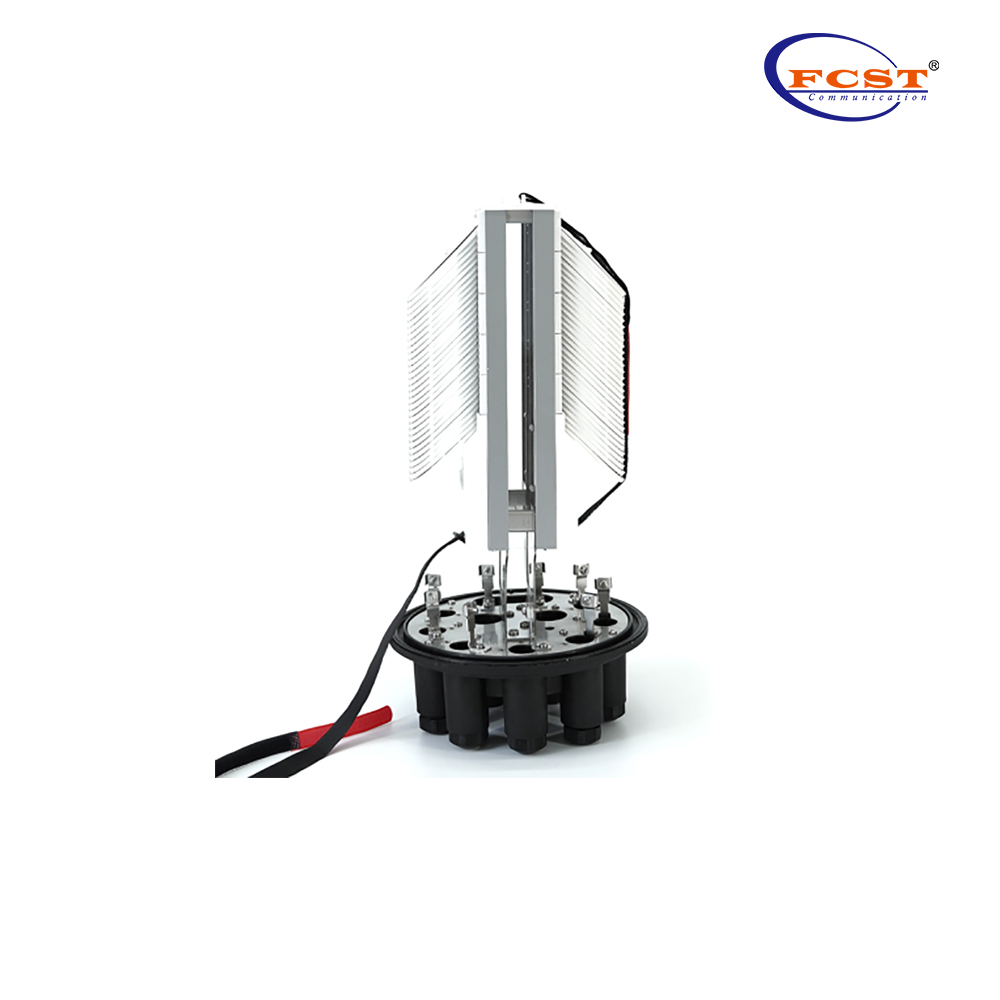

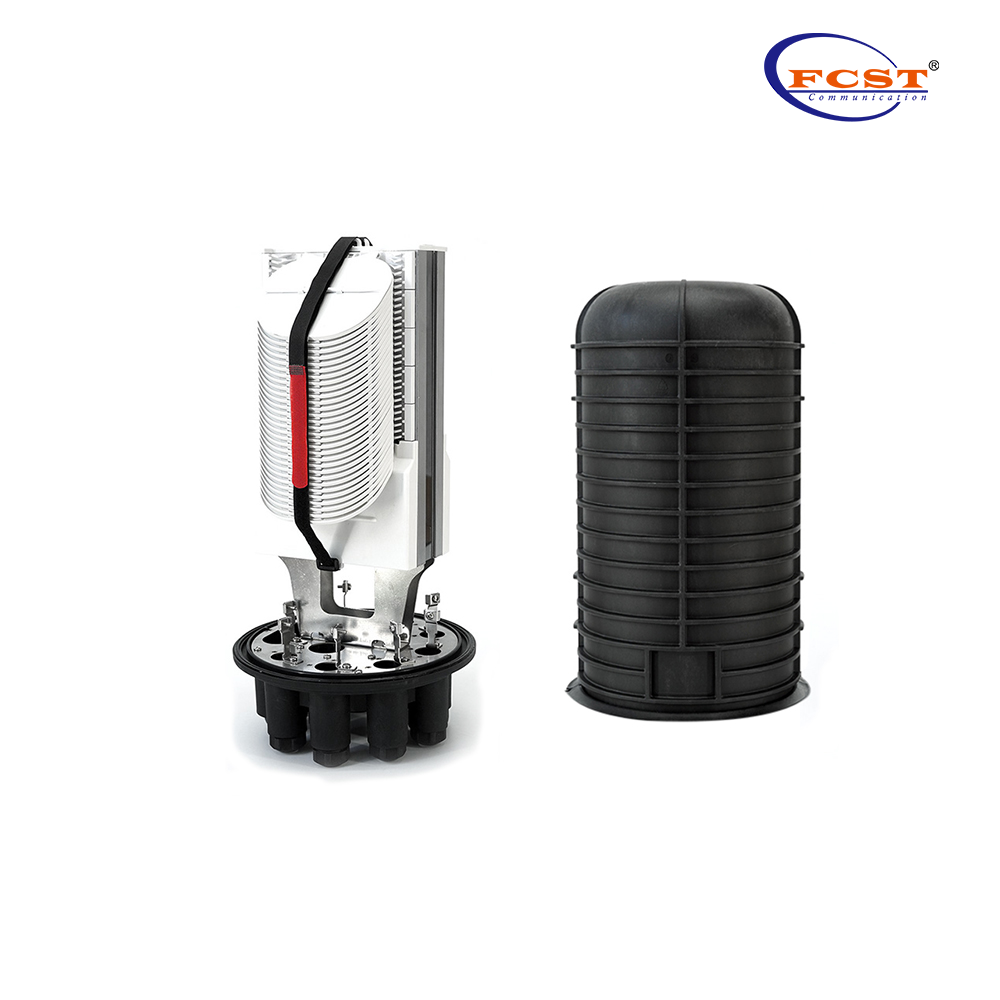

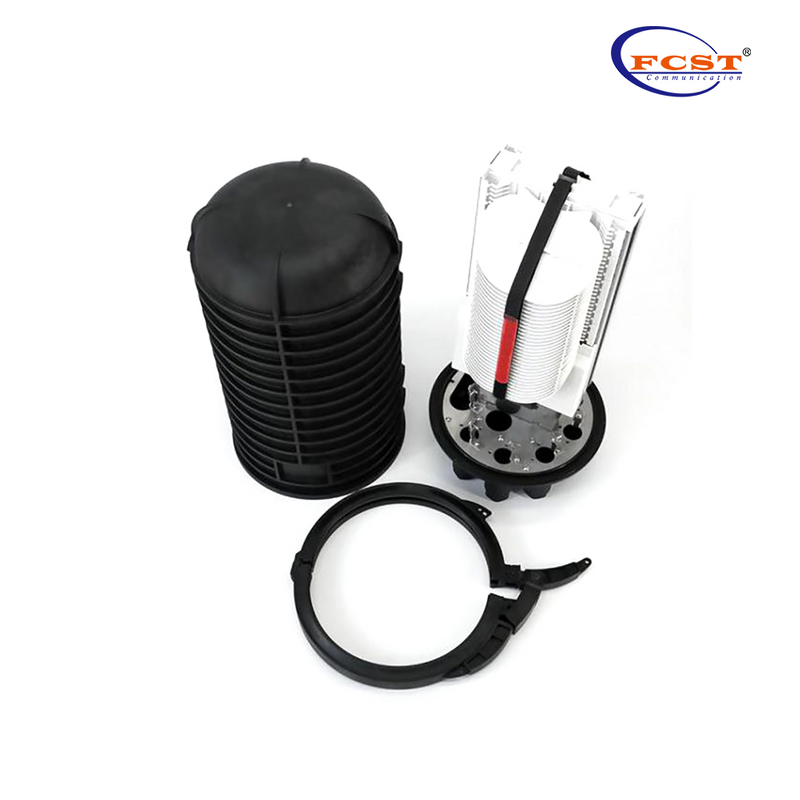

Product Structure

FCST012136 Fiber Optic Splice Closure (6)

Accessory List

Standard accessories   (Pictures for reference only)

FCST012136 Fiber Optic Splice Closure (10)

FCST012136 Fiber Optic Splice Closure (11)

FCST012136 Fiber Optic Splice Closure (7)

Optional accessory (Pictures for reference only)

FCST012136 Fiber Optic Splice Closure (12)

FCST012136 Fiber Optic Splice Closure (9)

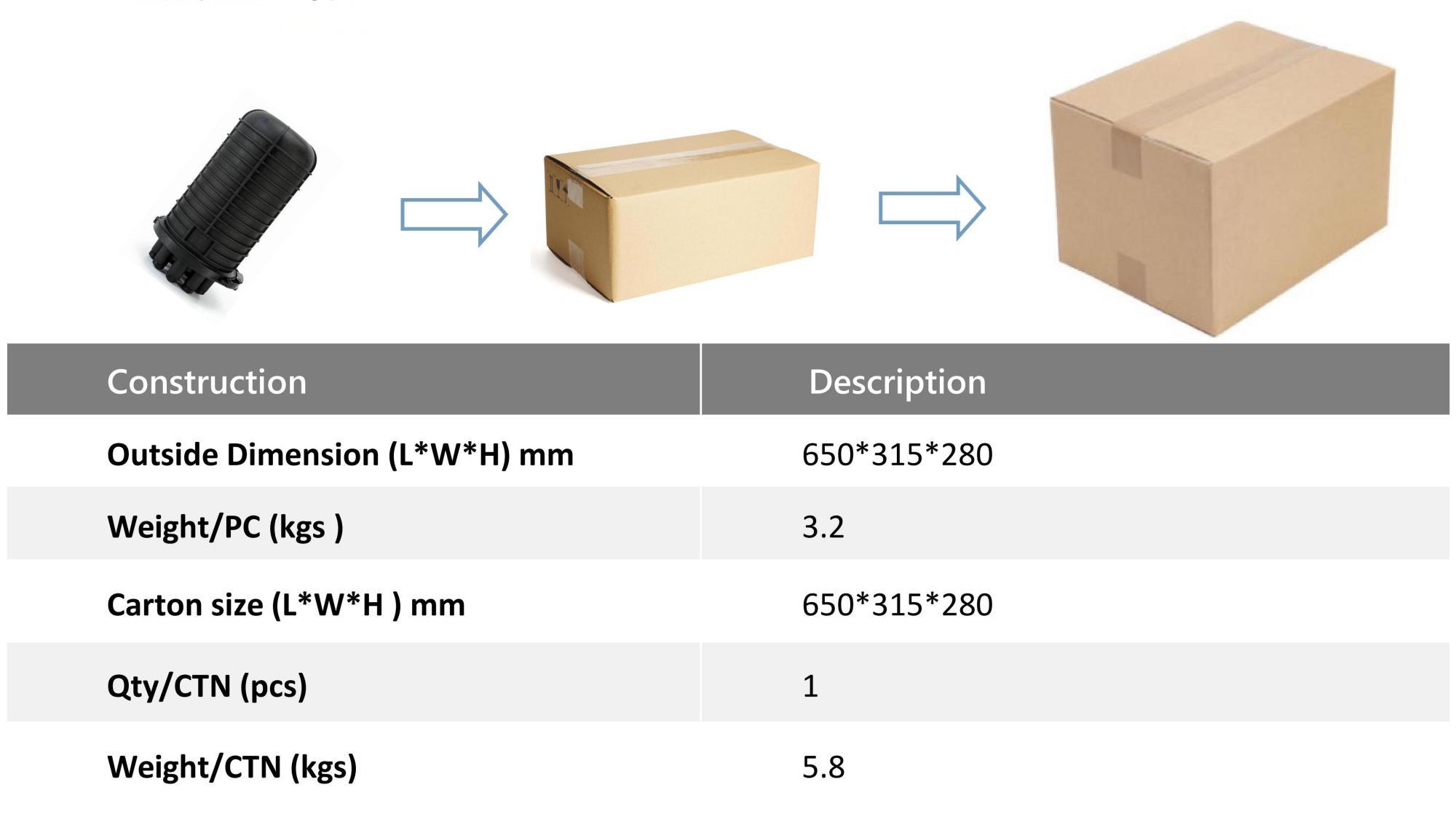

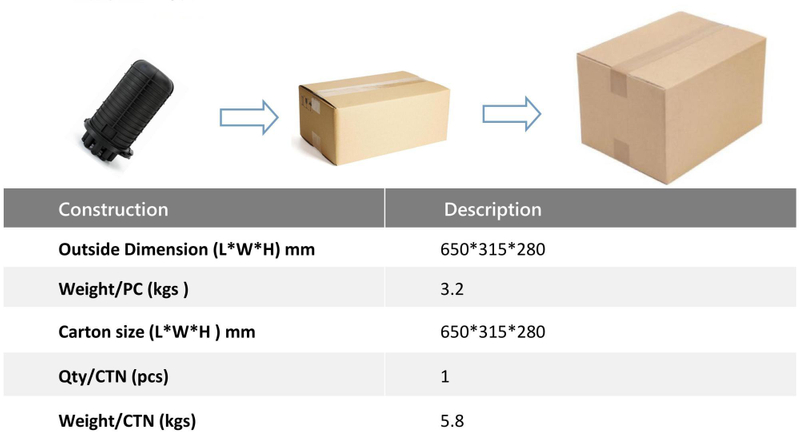

Packing Information

FCST012136 Fiber Optic Splice Closure (8)

Construction

Description

Outside DimensionL*W*Hmm

650*315*280

Weight/PCkgs

3.2

Carton sizeL*W*Hmm

650*315*280

Qty/CTNpcs

1

Weight/CTNkgs

5.8

Design And Customization Services

Provide service with whole process from blueprint to product to the customer.

Meet customers requirement to customize logo in suitable place for existing product.

Meet customers requirement to make reasonable modify and customization for existing product.

Provide free design according to the requirement of customer after signed cooperative agreement.
