FCST01133
FCST
FCST01133

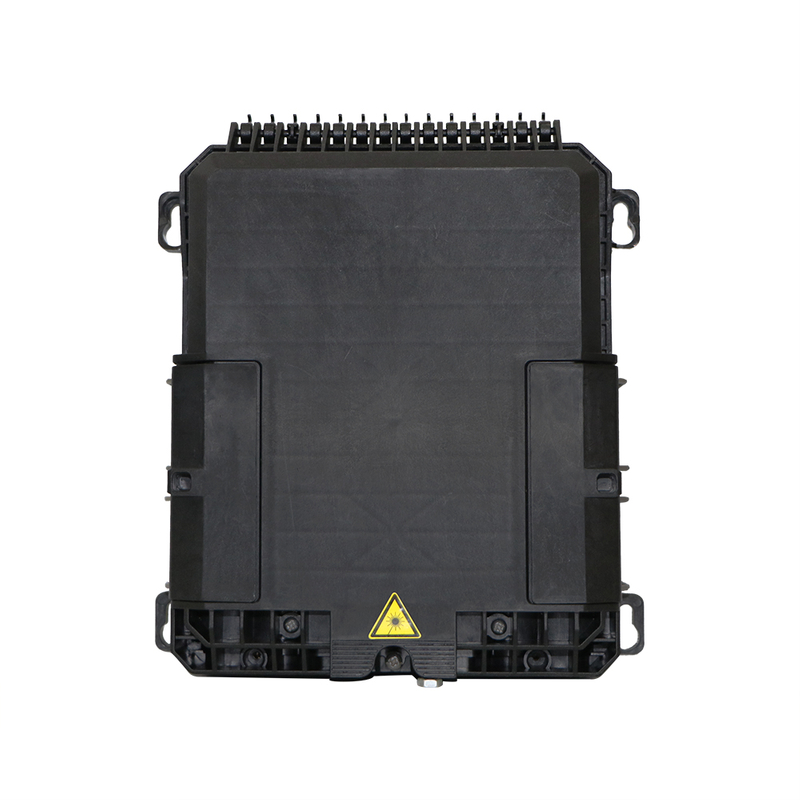

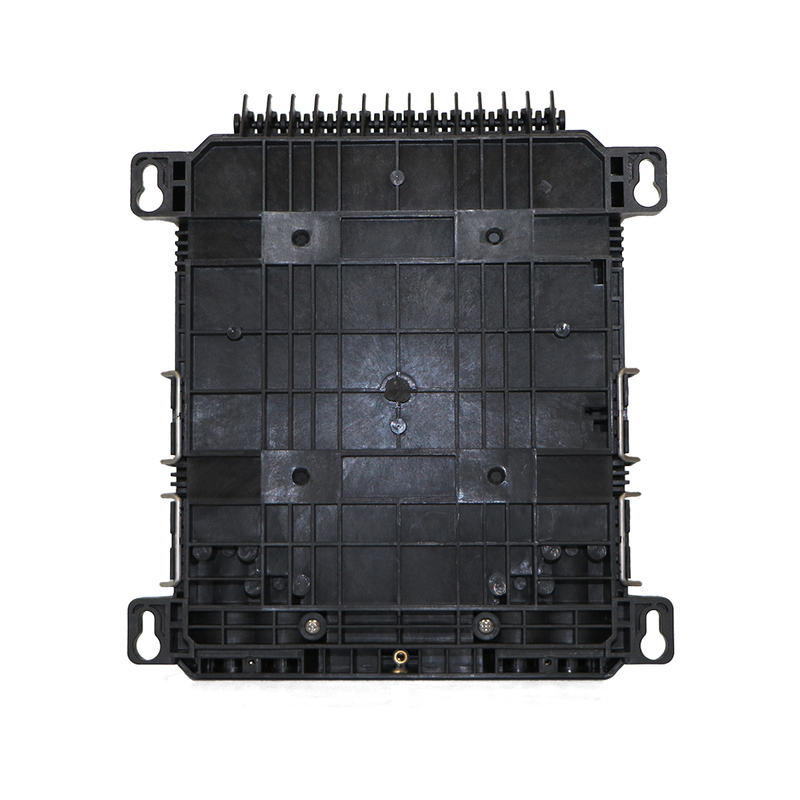

Product Overview
FCST01133 Fiber Optical Splice Closure is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for FTTx network building.
Product Advantages
lSplice closures fiber routing is reasonable.
lSuitable for indoor or outdoor ,wall-mounted , pole installation.
lcable sealing terminations use gel-sealing technology instead of Plain rubber seal.
lClamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
lBuilt-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
lCable splice closure is made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance, sturdiness and durability.
Product Specifications
Construction | Description |
Capacity | 8Fibers |
Material | PP |
Dimension W*H*D(mm) | FCST01133-A:266*237*75 FCST01133-C:268*237*75.5 |
Inlets/Outlets | 4/8 |
Installation | Pole-mounting/Wall-mounted |
Optional Accessories | Pigtail，Adapter |
Protection Level | IP67 |
Input Cable Method | Cutting |
PLC Splitter Available | Yes |
Net Weight（g） | 1280 |
PLC Splitter Type | Tube splitter |

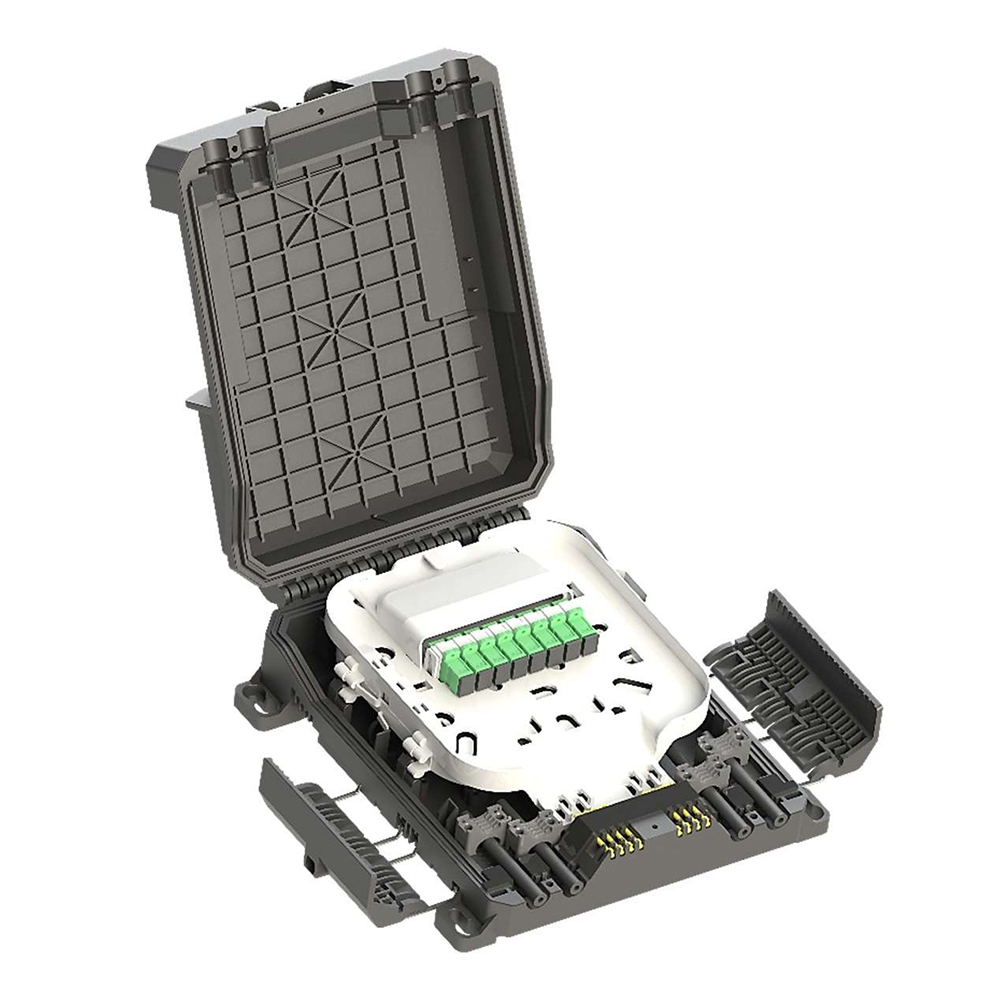

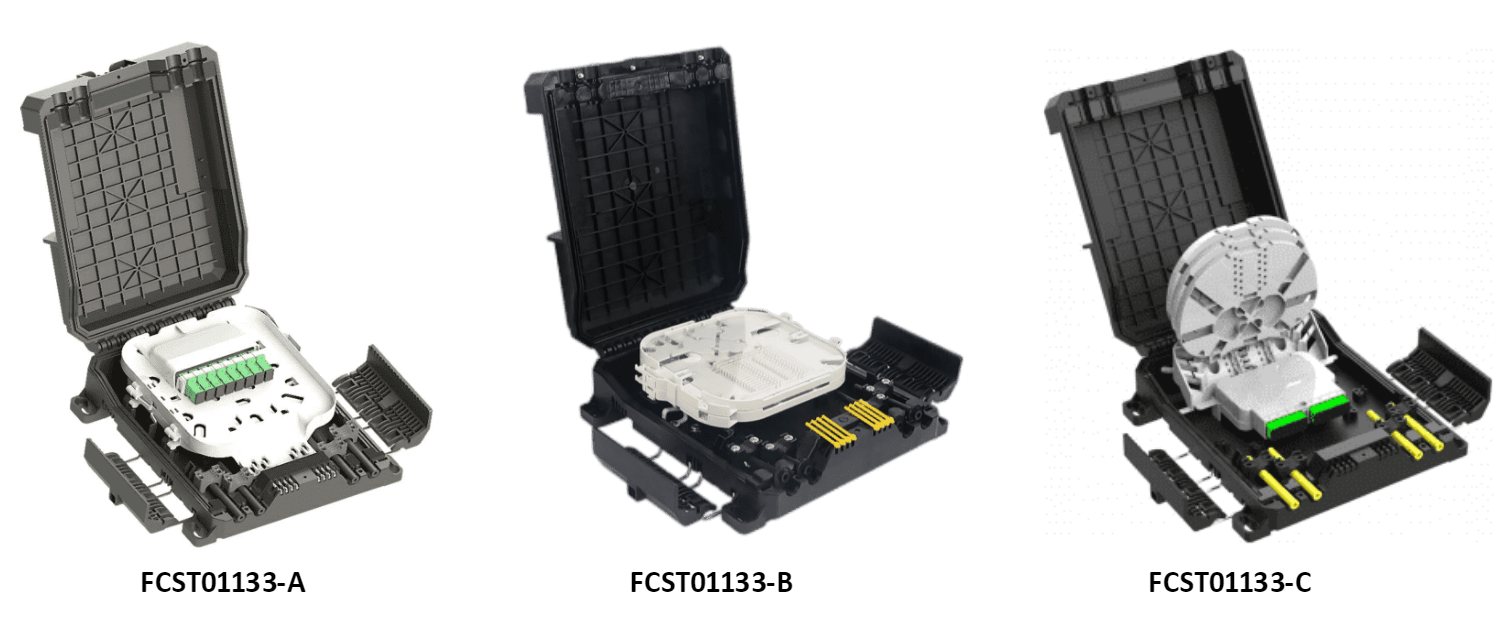

Product Structure

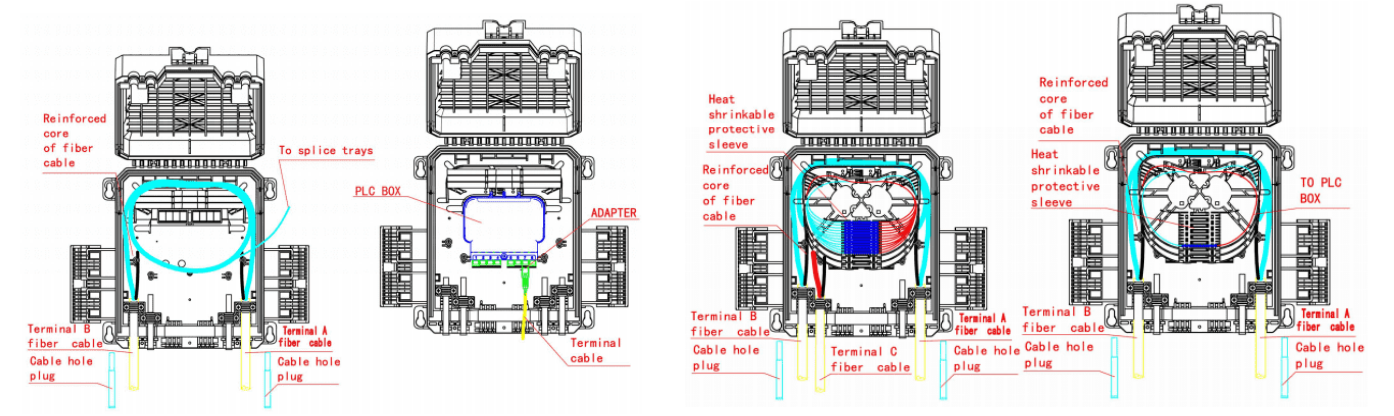

Fiber Routing Diagram
Fiber Routing Diagram

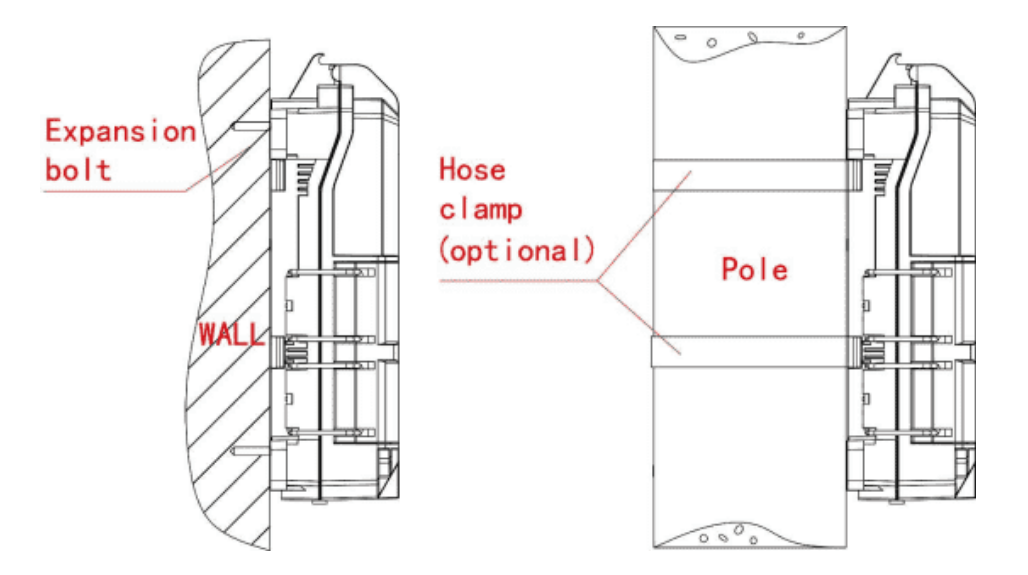

Wall-mounted installation

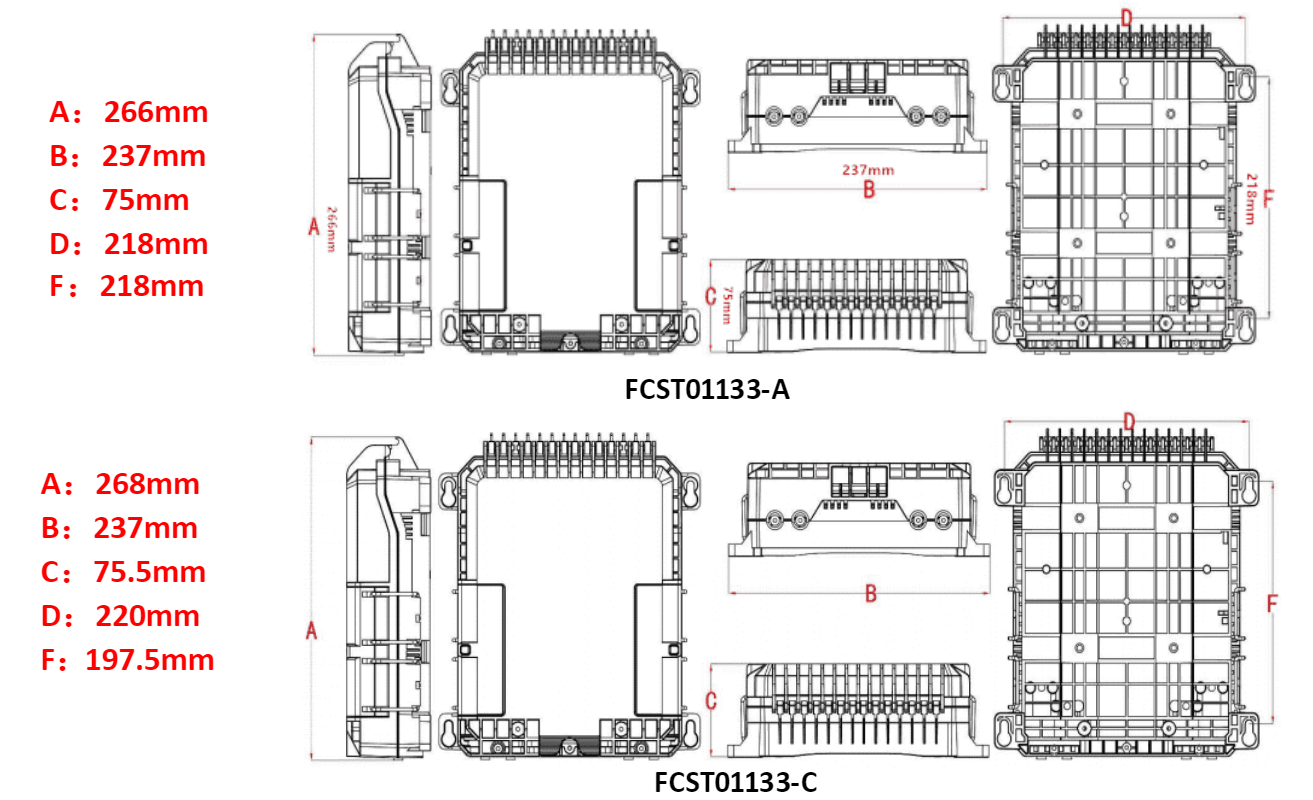

Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten.
Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole, as below.
Packing Information
Construction | Description |
Outside Dimension(L*W*H)mm | 270*248*100 |
Weight/PC(kgs) | 1.51 |
Carton size(L*W*H)mm | 580*520*330 |
Qty/CTN(pcs) | 12 |
Weight/CTN(kgs) | 19.12 |
Design And Customization Services
lProvide service with whole process from blueprint to product to the customer.
lMeet customer’s requirement to customize logo in suitable place for existing product.
lMeet customer’s requirement to make reasonable modify and customization for existing product.
lProvide free design according to the requirement of customer after signed cooperative agreement.
