FCST-MB121.6kHz
FCST
FCST-MB121.6kHz
10000

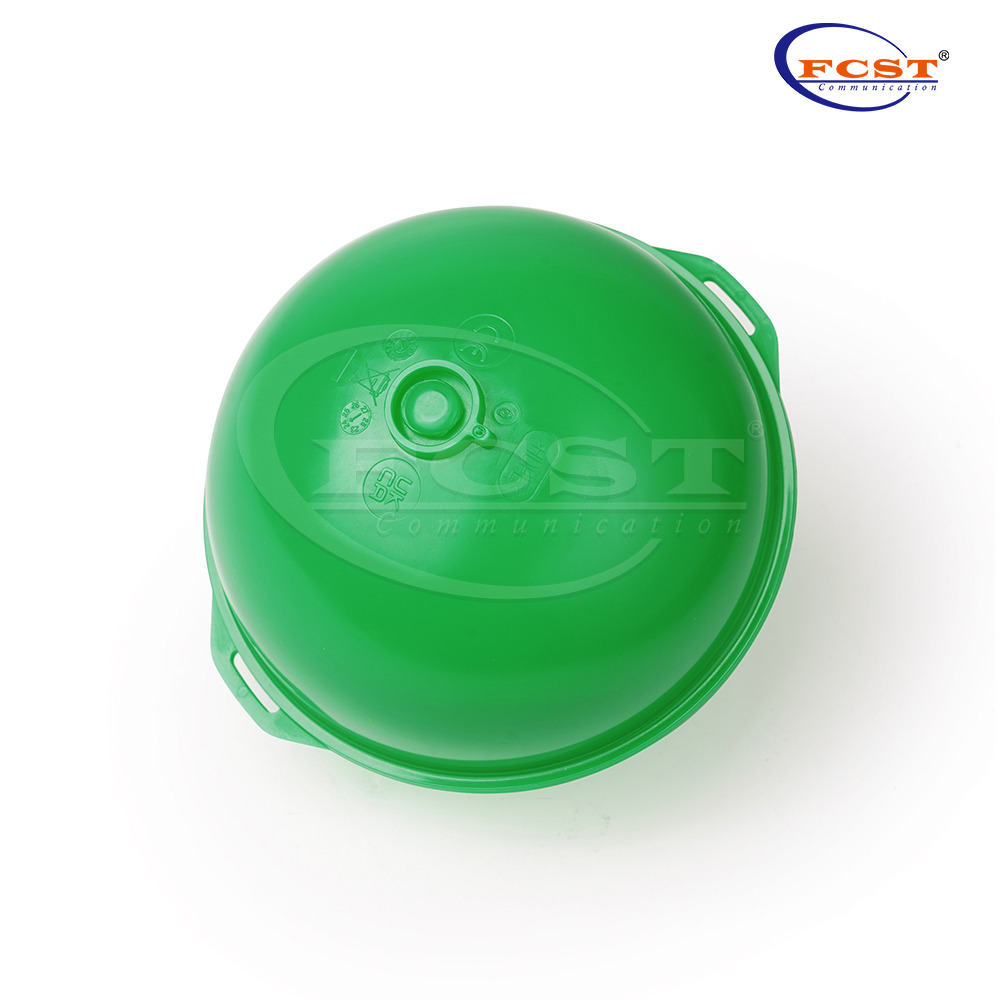

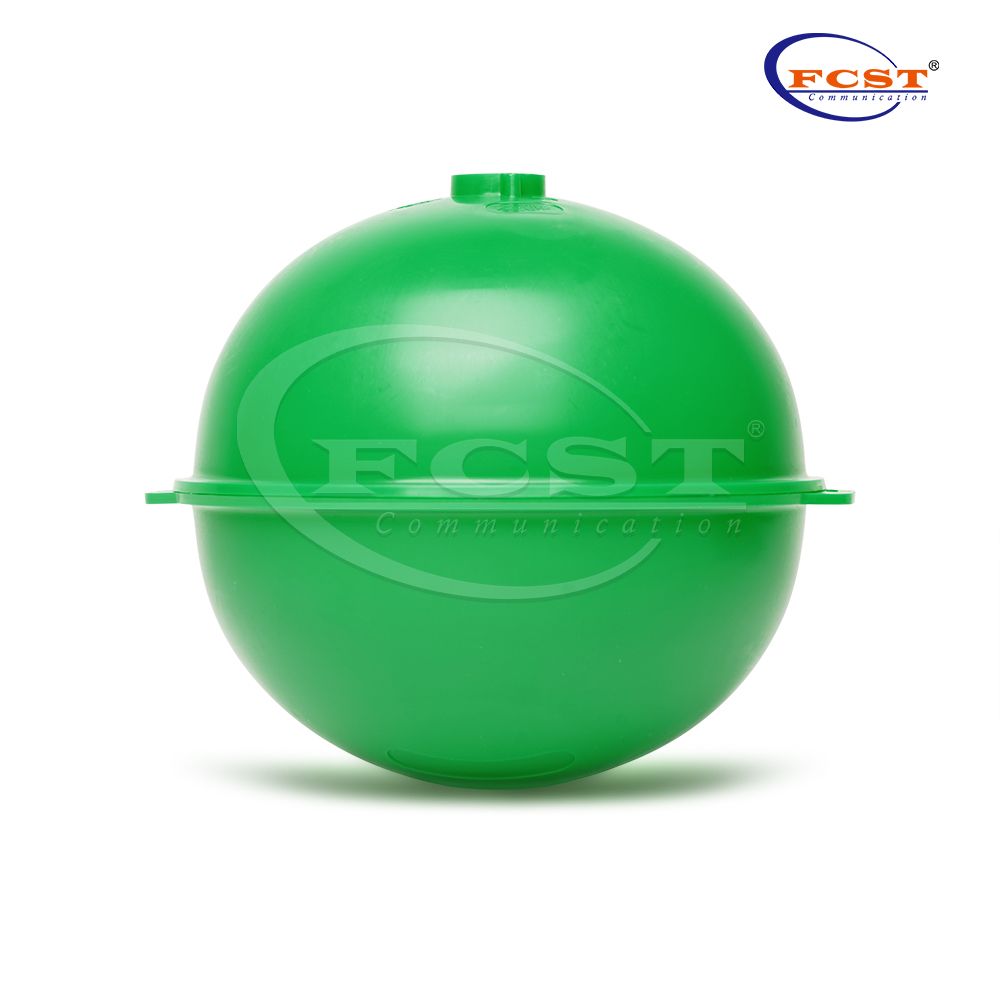

Product Overview

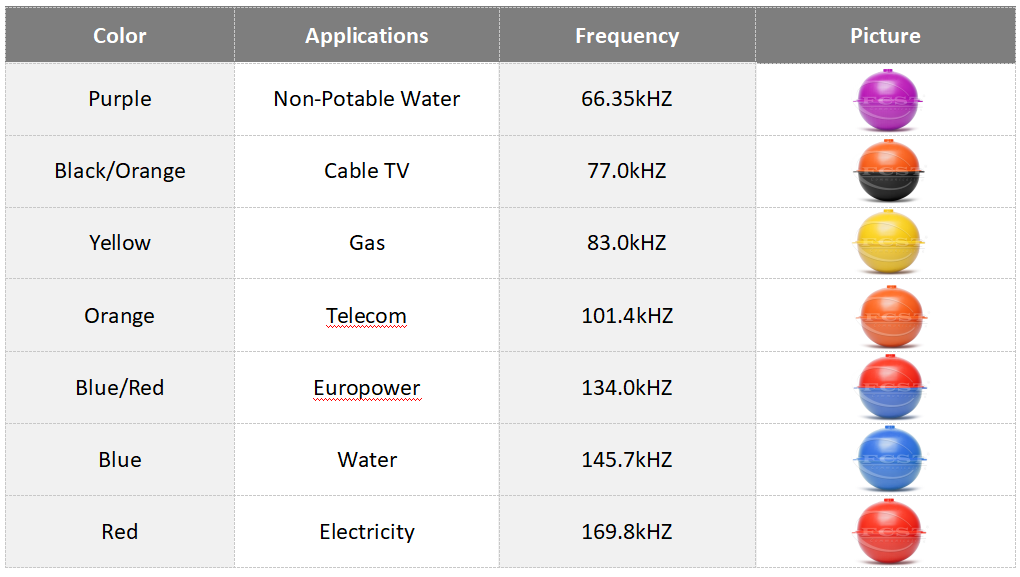

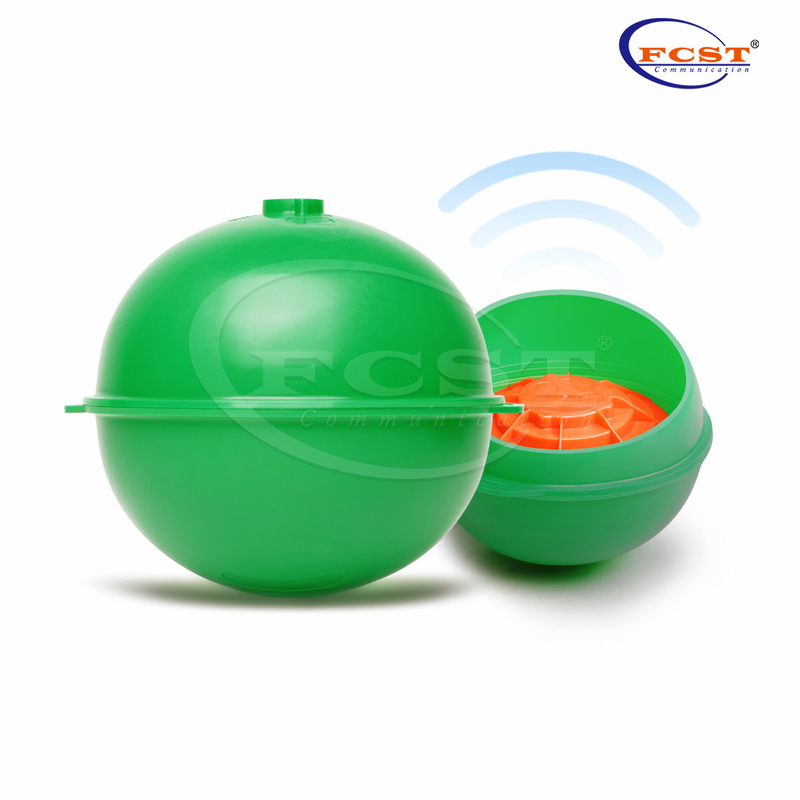

The FCST-MB121.6kHz Marker Ball uses HDPE packaging and has the characteristics of chemical corrosion resistance and pressure resistance. It supports multiple industry applications and multiple working frequency options, such as: Sanitary (121.6kHz) etc.
Product Advantages
No harmful fluid inside.
Detection range up to <1.5m.
High location precision marker ball.

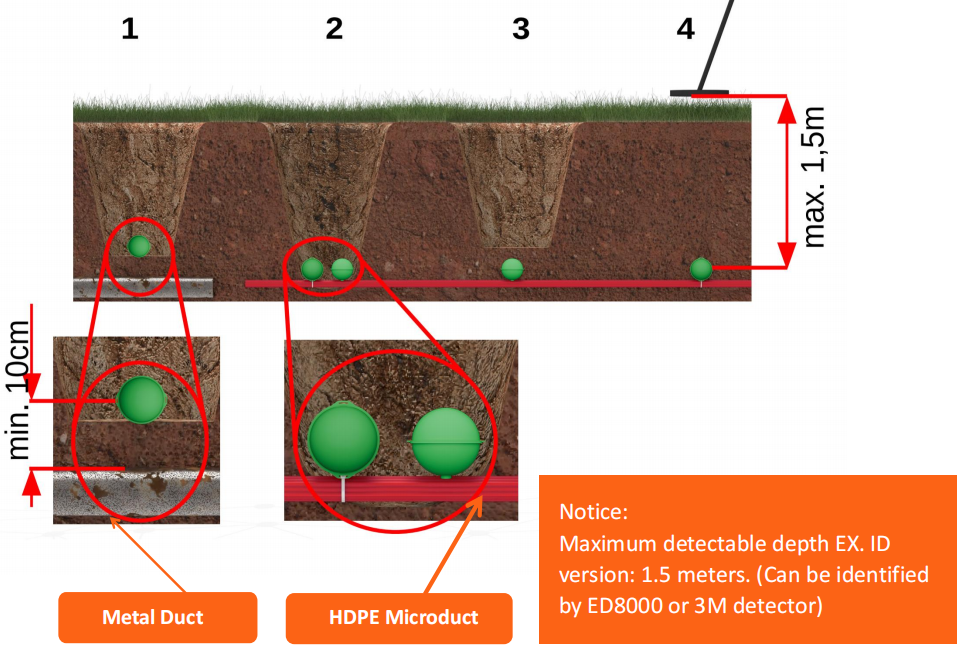

For manholes or direct buried installation.
Self orientation RF reflector ensures best detection range and accuracy.
The induction coil is suspended on the built-in antifreeze and can be kept horizontally upward.
Product Specifications
Construction | Description |
Product Type | EX.ID version |
Frequency | 121.6kHZ |
Identification Depth | 1.5m |

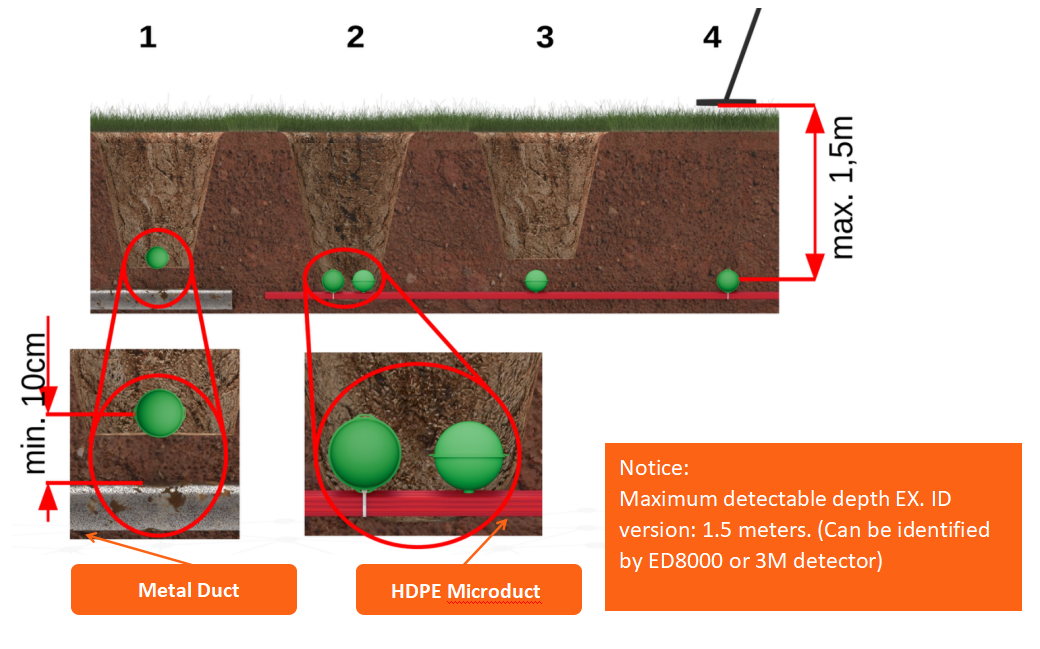

Maximum Detectable Depth | 1.5 m (EX.ID version) |
Service life | 50 years |
Diameter | Φ120mm丨4.724in |
Height | 115mm丨4.528in |
Material | HDPE |
Weight | 0.4kg(±20g) |
Protection Level | IP68 |
Storage Temperature | -40℃ to +70 ℃ |
| Operating Temperature | -40℃ to +60 ℃ |
| Marker Ball Distance | Maximum distance 50m |
Drop Test | Can withstand a 1.5m drop to the concrete floor |
Stress Resistance | Withstands 400Kg pressure, the ball has no permanent damage, no cracks and leaks, and no damage to its electronic tag function |
Detector Compatibility | ED8000 or other detectors with the same frequency (for example: 3M Dynatel series) can read |

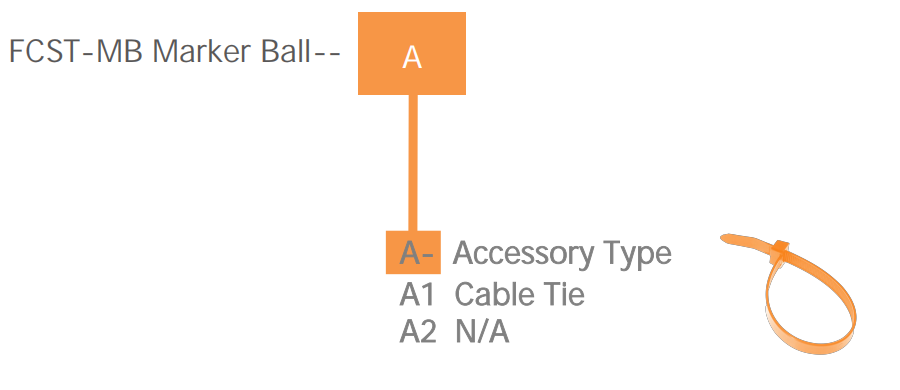

Ordering Information
Product Applications
Product Overview
The FCST-MB121.6kHz Marker Ball uses HDPE packaging and has the characteristics of chemical corrosion resistance and pressure resistance. It supports multiple industry applications and multiple working frequency options, such as: Sanitary (121.6kHz) etc.
Product Advantages
No harmful fluid inside.
Detection range up to <1.5m.
High location precision marker ball.

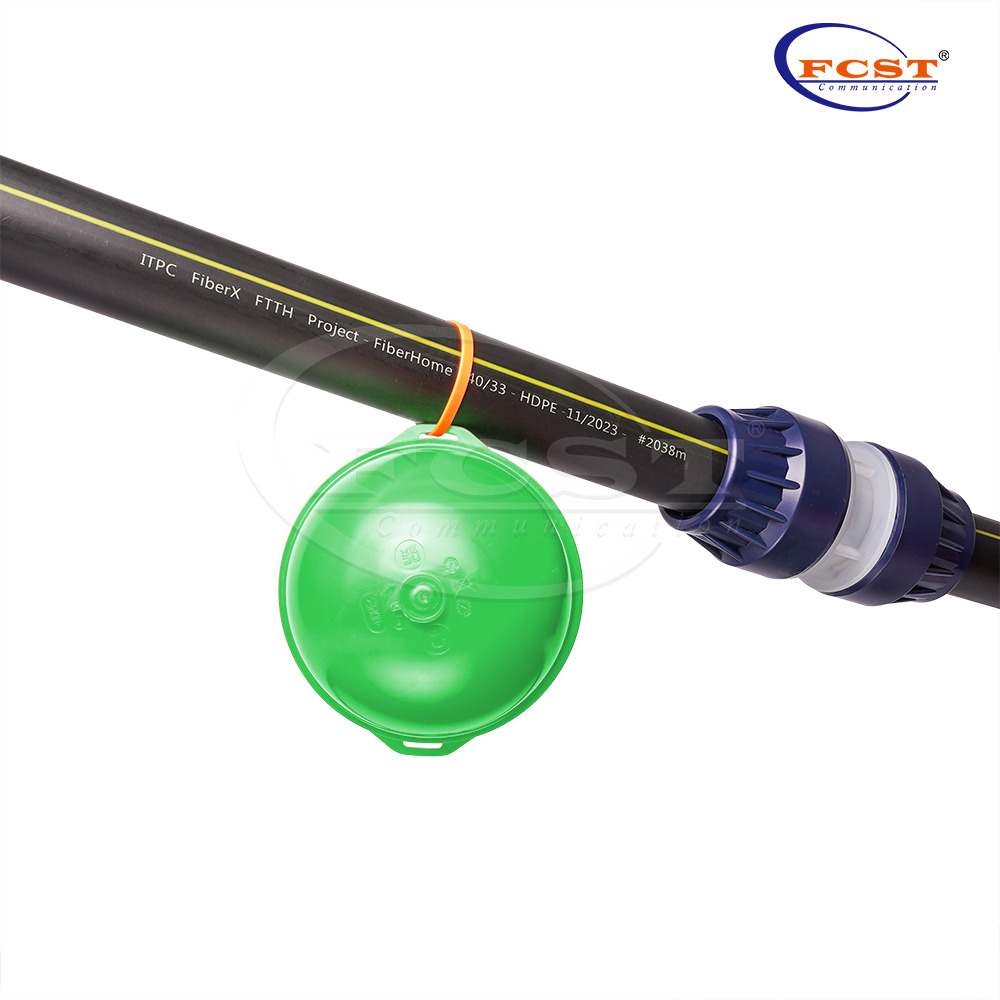

For manholes or direct buried installation.
