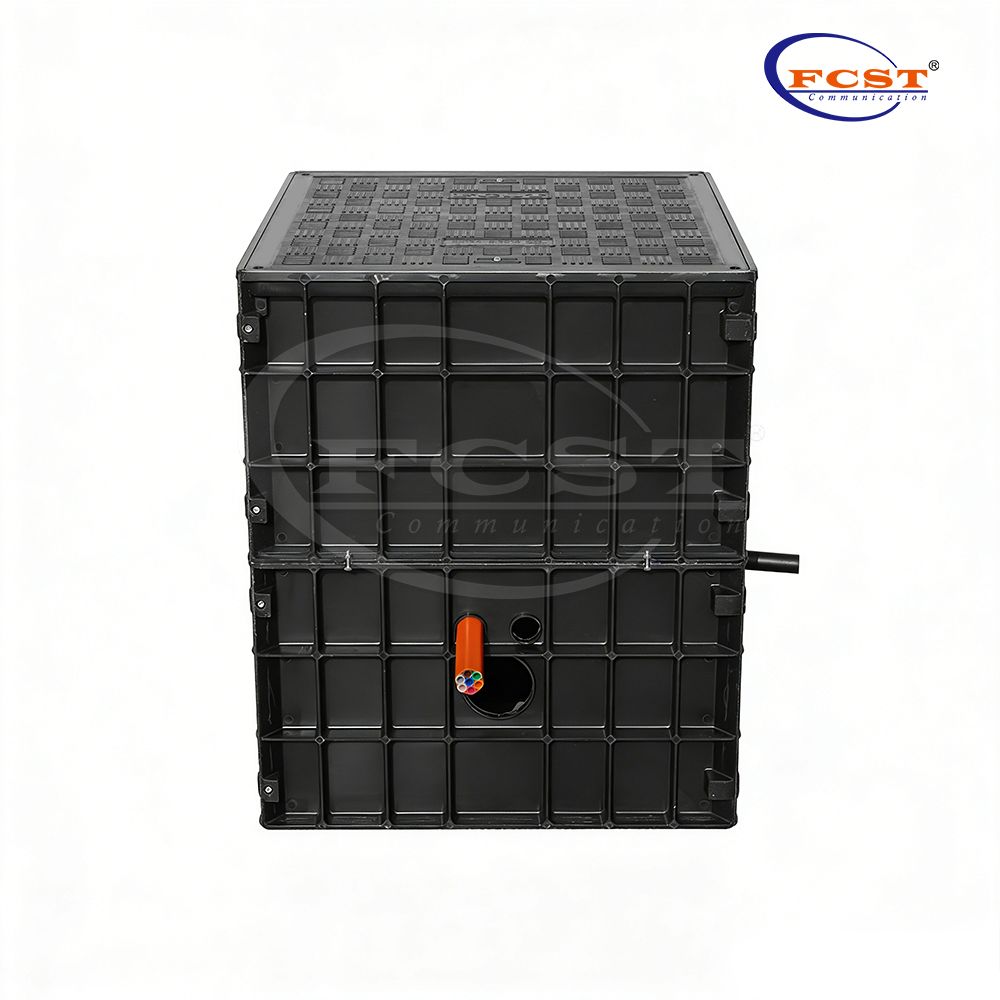

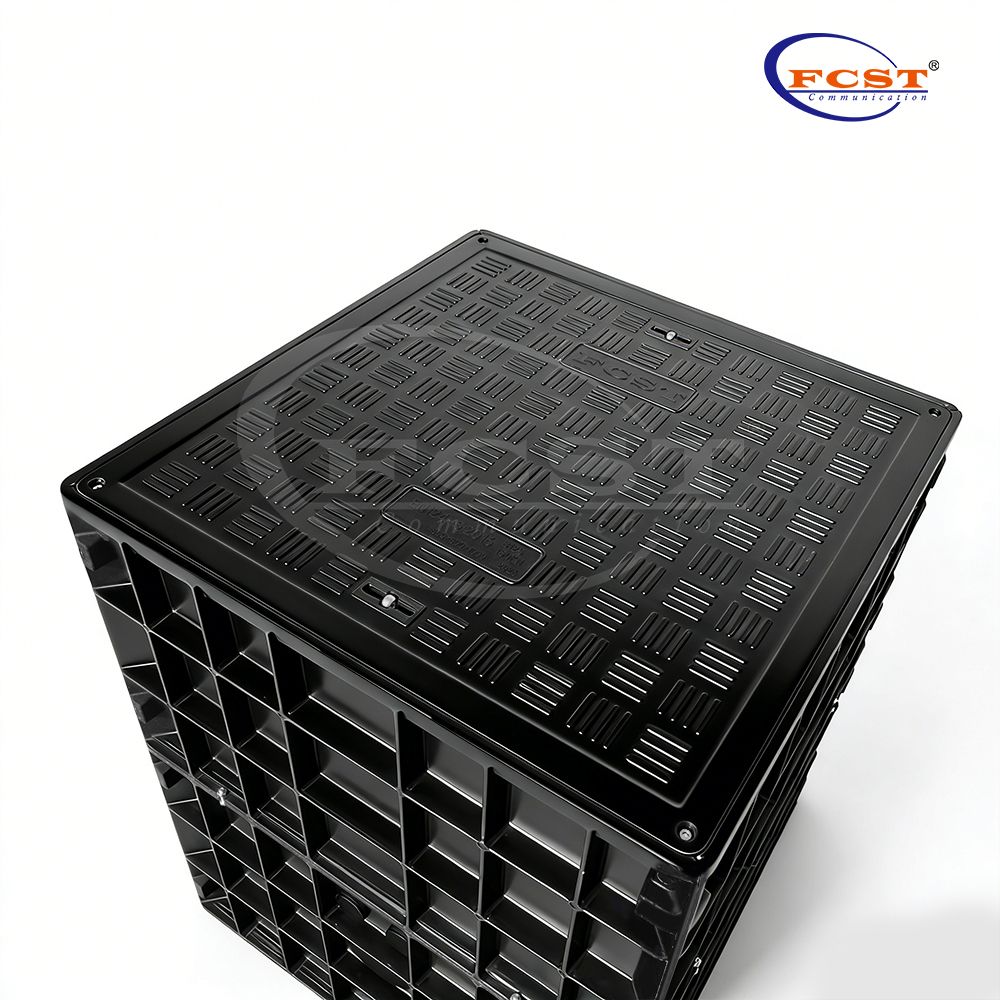

FCST-TH-SMC14 High Quality SMC Tier22 Telecom Manhole Chamber

Product Overview

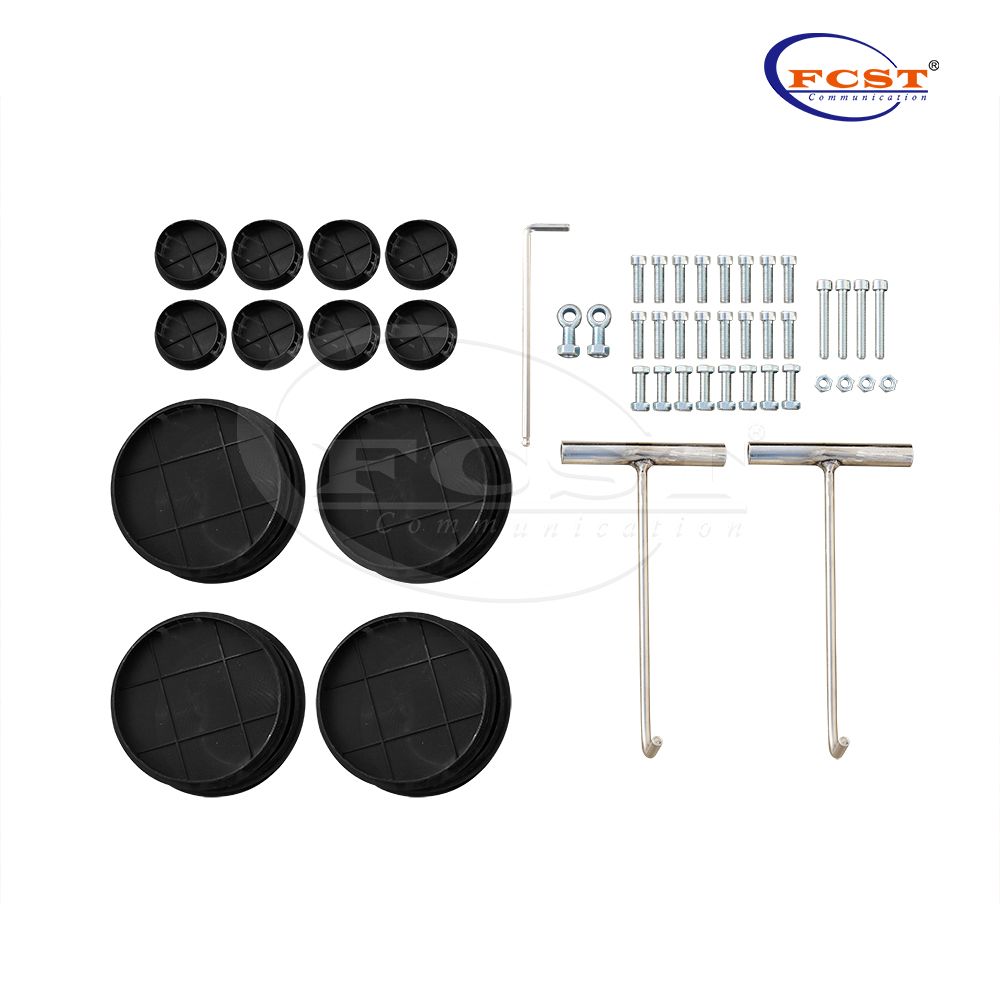

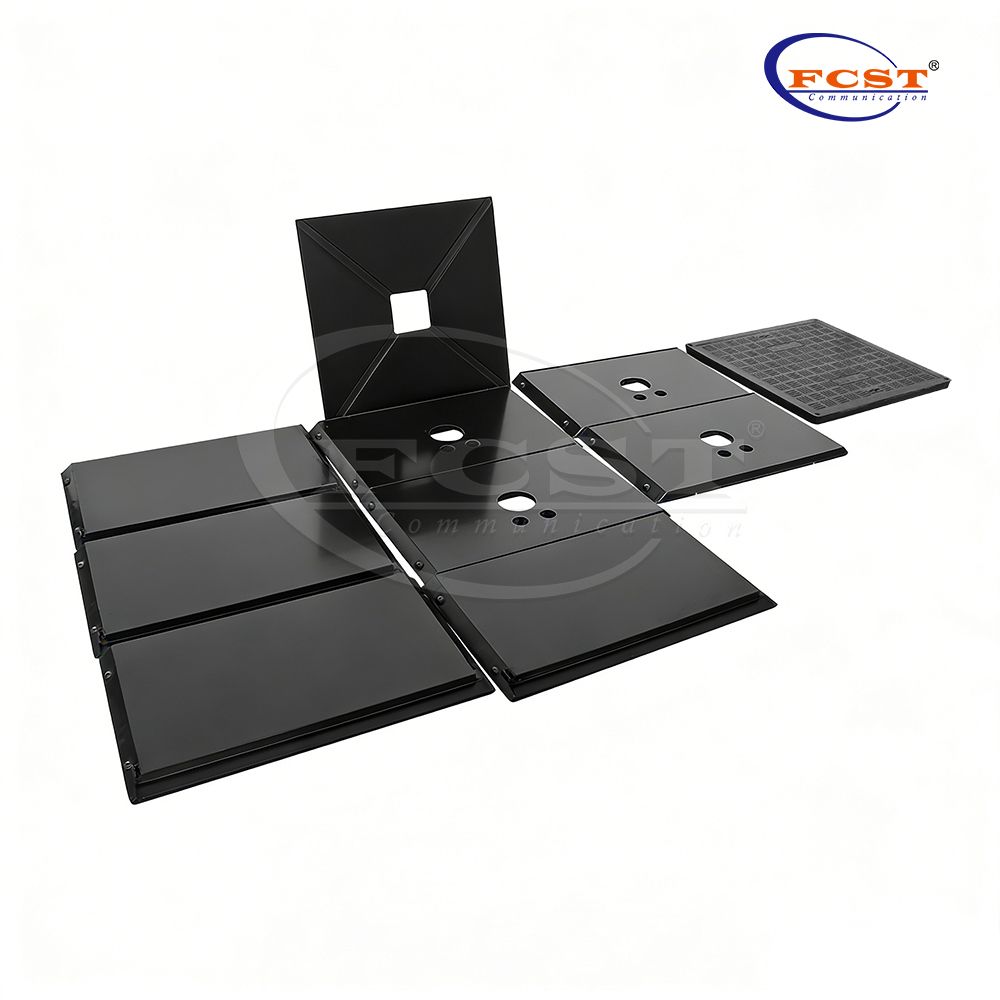

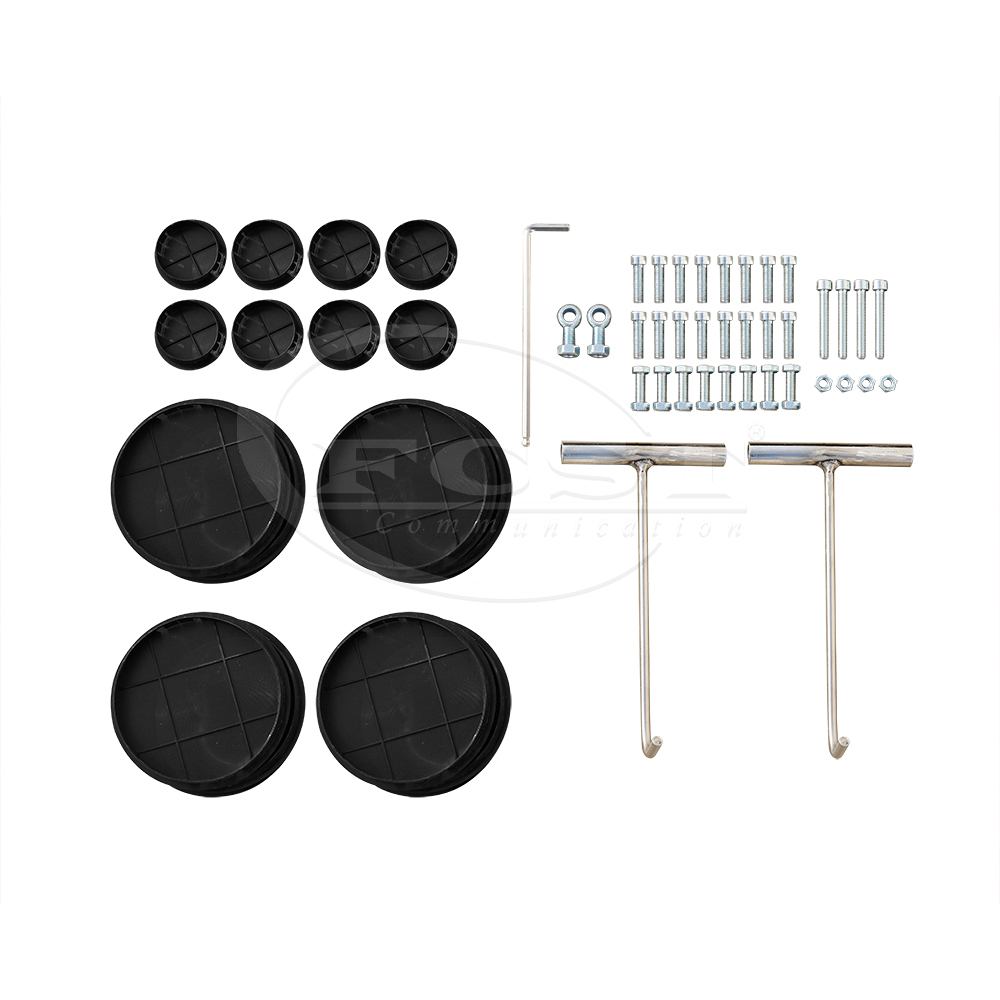

FCST-TH-SMC14 Telecom Manhole Chamber is meticulously engineered to offer comprehensive protection, storage,equipment installation, and maintenance solutions for the underground placement of optical fiber splice closures and cable products.   The bottom is equipped with a base plate with drainage holes. Each side of the lower plate has one 125mm and two 50mm pre-drilled holes, each with a cap. Pre-drilled holes are compatible with other pipe diameter ranges and can be drilled on-site.

Product Advantages

• Service life can reach 30 years.

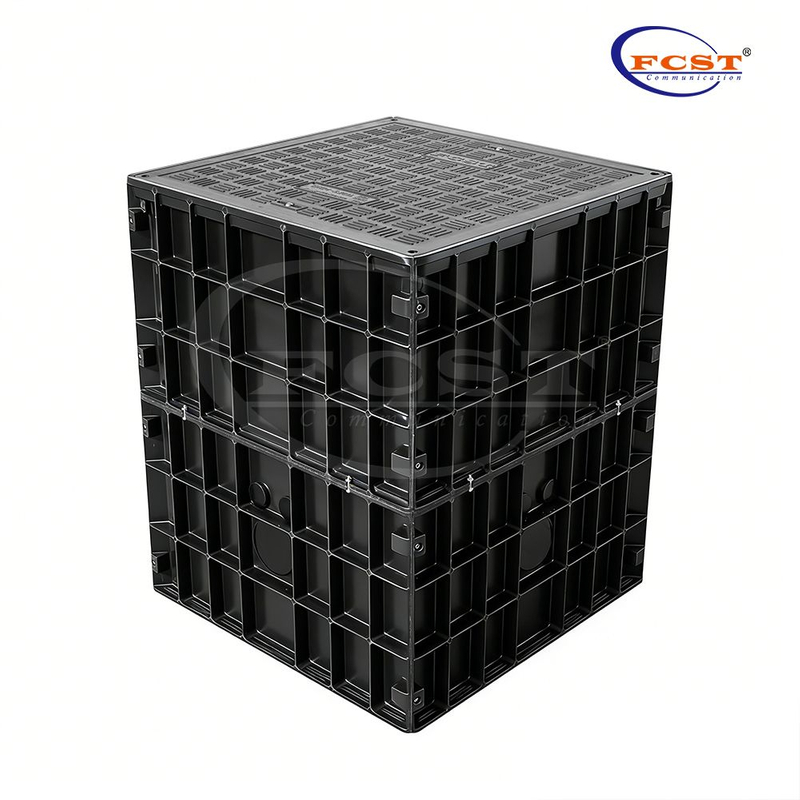

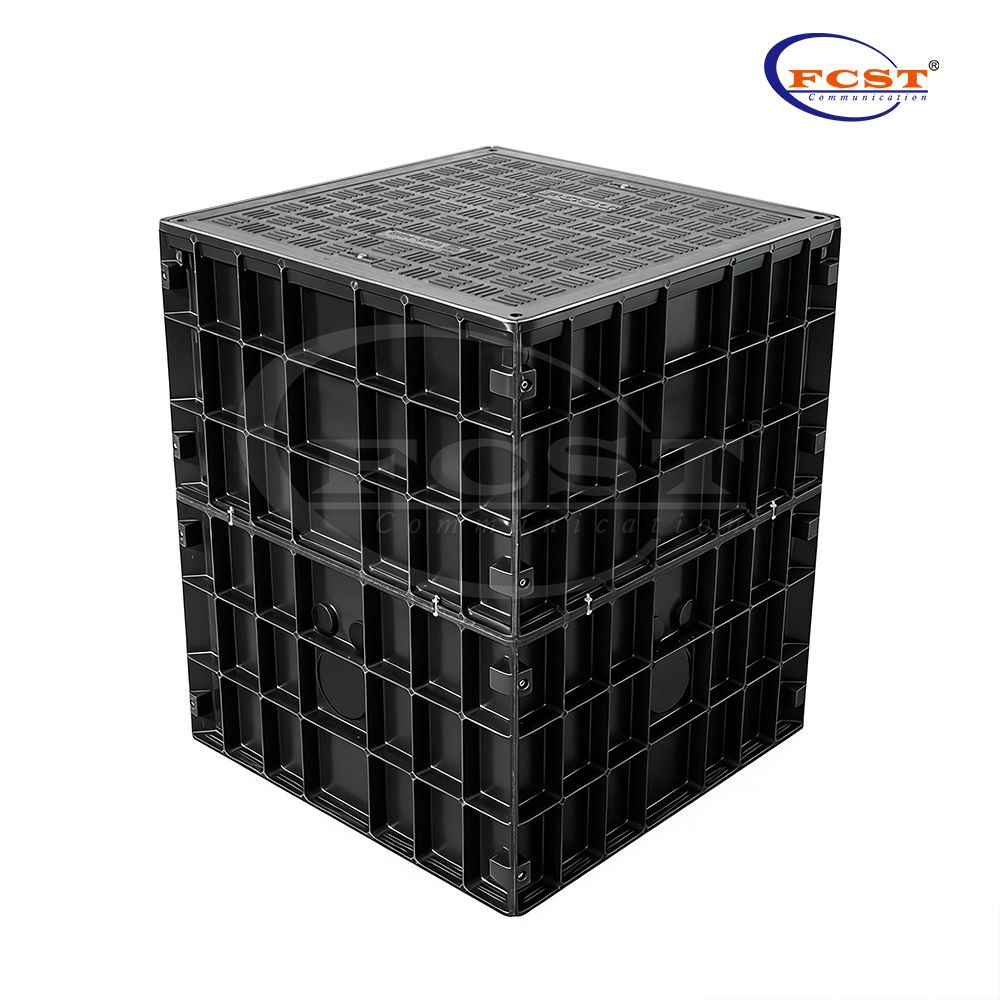

• Depth can be stacked according to requirements.

• Lightweight design using SMC composite materials.

• Internal Dimensions: 800*800*1020mm (31"x31"x40.16")

• Prefabricated structures reduce on-site installation costs by 80%.

• Complies with ANSI/SCTE 77 2017 and EN124 Standard .(Tier22/B125)

• Transverse and vertical cross stiffeners are arranged around the outer side of  the shaft, also be closely combined with the rammed soil layer. It is not easy to move and loosen after rolling.

Why FCST-TH-SMC14 Passes the Toughest Tests

• ✅ 50% Higher Load Capacity
  Tested at 150.1 kN – 50% above the ANSI/SCTE Tier 22 standard requirement.

• ✅ Zero Cracks, Zero Bending
  Post-test inspection confirmed flat, smooth surfaces on cover and sidewalls.

• ✅ Three Critical Tests Passed
  Cover vertical load, vertical sidewall load, and lateral sidewall pressure – all verified.

• ✅ SGS-Aligned Procedures
  Strict three-step stress test protocol followed, matching SGS laboratory standards.

• ✅ Built for 30-Year Service Life
  Designed for direct burial, underground telecom, and harsh infrastructure environments.

• ✅ Certified to International Standards
  Compliant with ANSI/SCTE 77 2017 and EN124 (Tier 22 / B125) .

Product Specifications

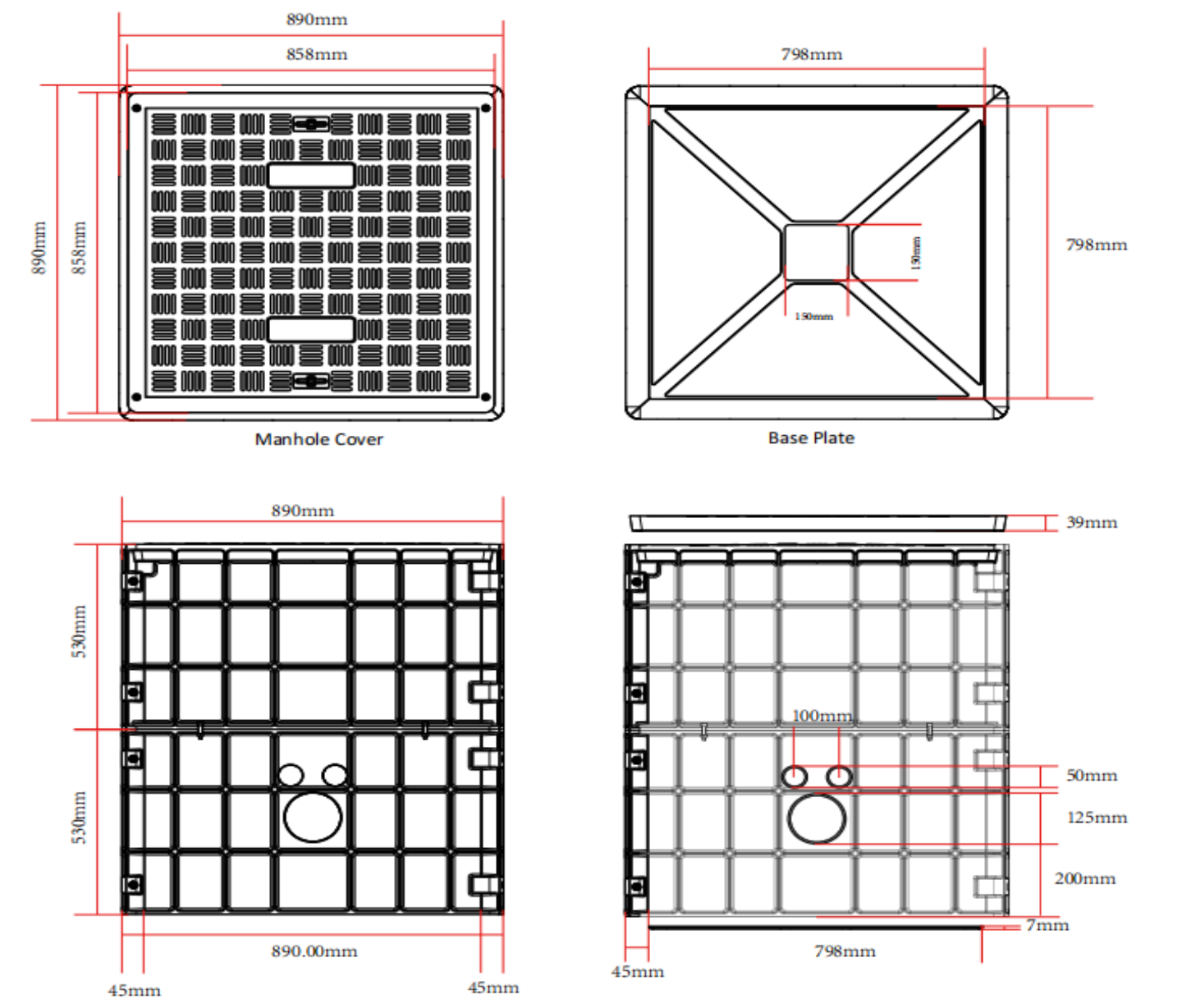

Product Size

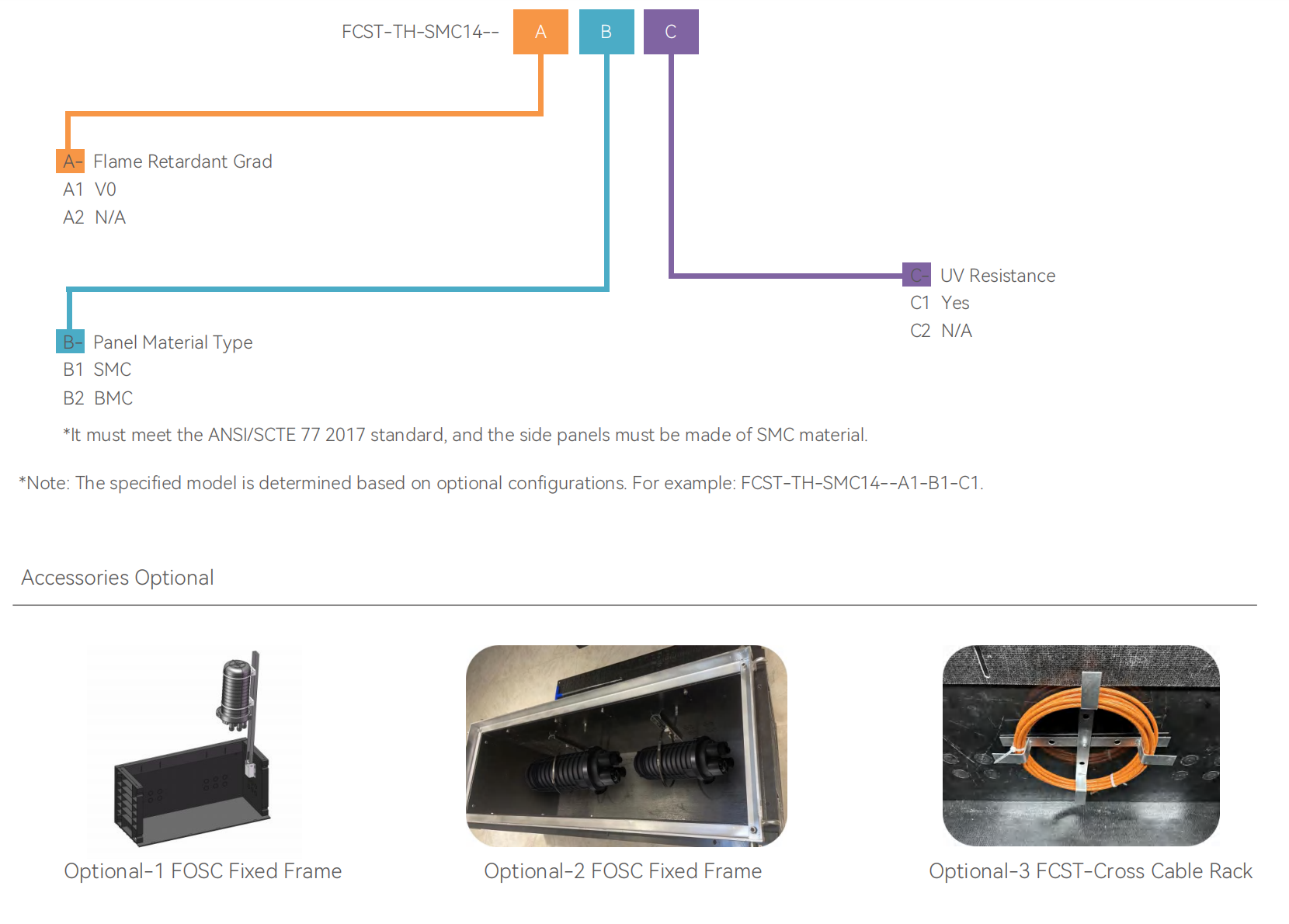

Ordering Information

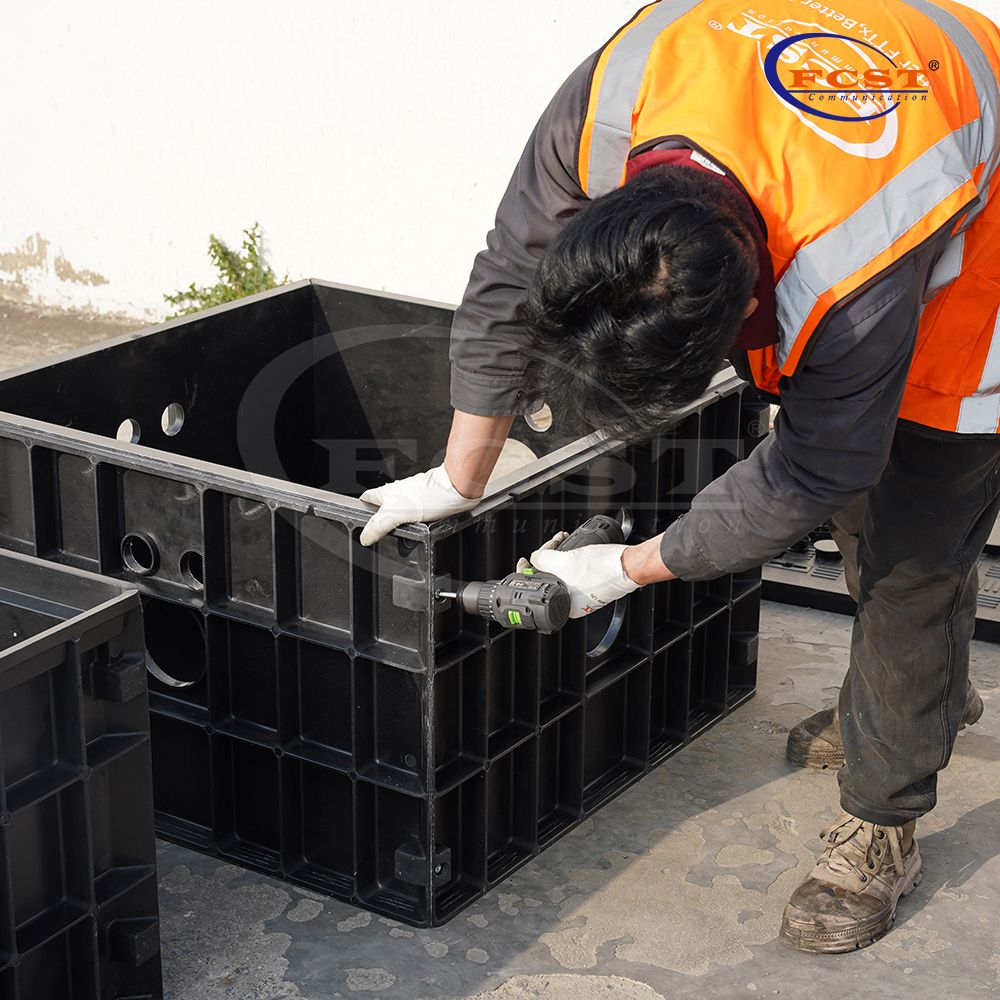

Note：The practical application of this Composite Manhole Chamber, covering many fields such as municipal administration, electric power,electricity, water , road administration,and drainage. On each side of the product. The size of the drill hole can be adjusted at the construction site according to the actual size of the HDPE Silicon Pipe/HDPE  Micro-duct.

FAQ

1.When Should I Use a Manhole Instead of a Junction Box?

The choice depends on cable size, installation depth, and maintenance requirements.

Use a Junction Box When:

• The installation is relatively shallow.

• It serves as a cable pulling point or small splice location.

• All maintenance can be performed from ground level.

Use a Manhole When:

• Large trunk cables are installed underground.

• The network requires frequent inspections or maintenance.

• Technicians need physical access to the enclosure.

Engineering Tip:
Many utility standards require manholes at major cable intersections, directional changes, or long conduit runs to reduce cable pulling tension and simplify maintenance.

2.What Load Ratings Do Your Composite Manholes Meet?

Our products are tested in accordance with BS EN 124 and relevant international standards.

Available load classes include:

3. What tests do manhole inspection chamber undergo before leaving the factory?

1.Material sampling inspection.

2.Dimensional measurements.

3.Appearance flatness inspection.

4.Load-bearing stress test.

5.Trial installation.

4.How Are Products Packaged for International Shipping?

We typically recommend disassembling the plates of each part and placing them on trays, which can be packaged together based on the same size components, or according to a set of telecom manholes.
