FCST012238
FCST
FCST012238
Product Overview

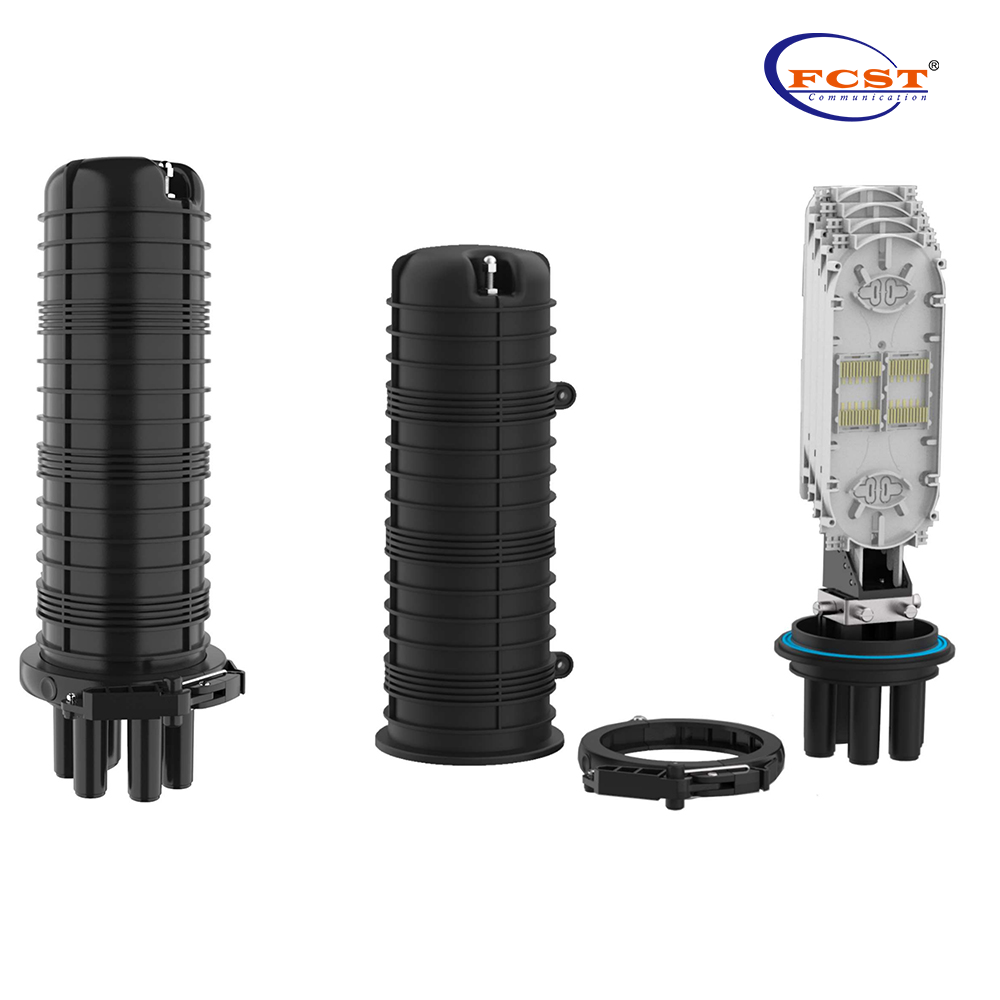

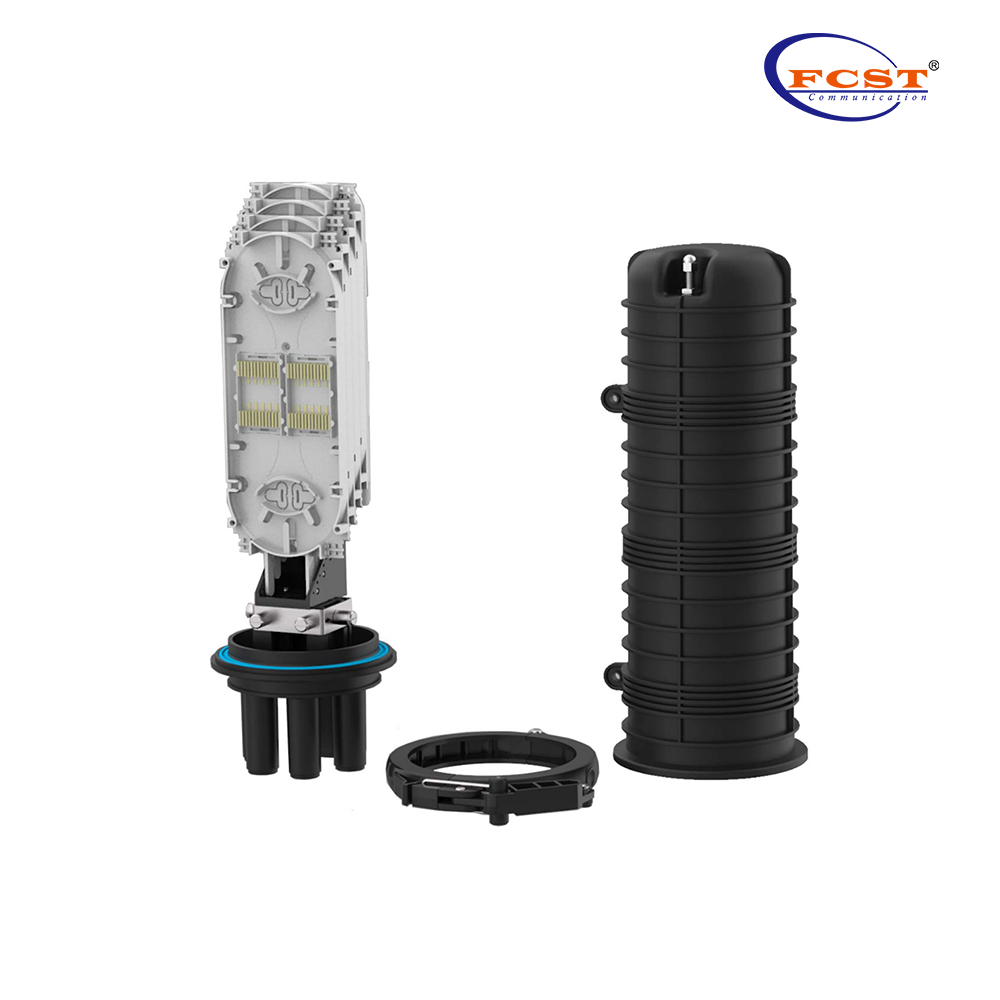

FCST012238 Fiber Optic Splice Closure is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.
Product Advantages
l Protection grade: IP68.
l Easy operation for spare cable with enough space.
l Could be installed with 4 trays,24F/per tray in max.

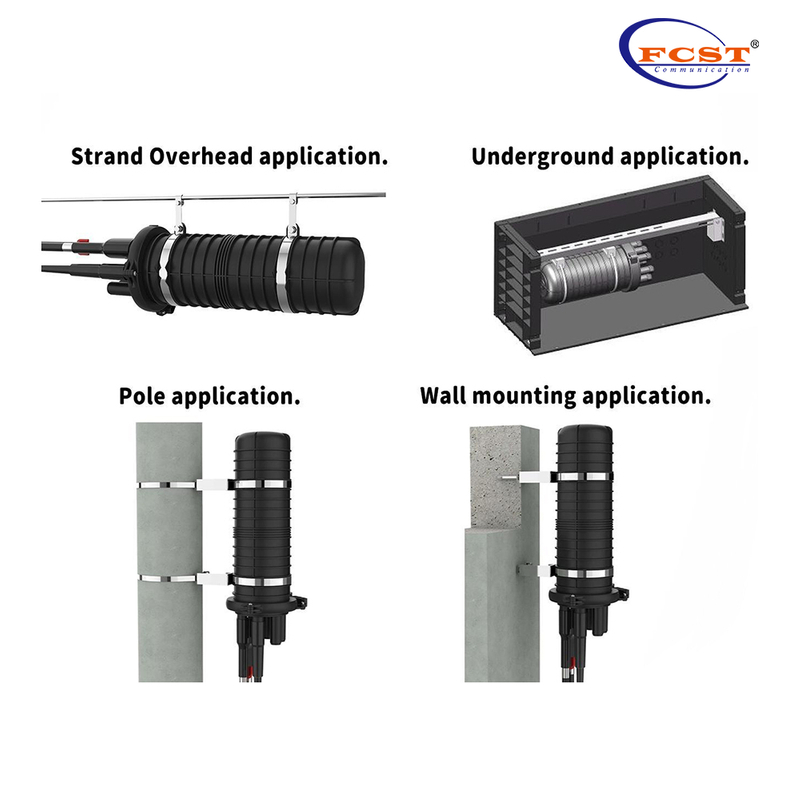

l Installation:Aerial, wall, pole, underground, pipeline etc.

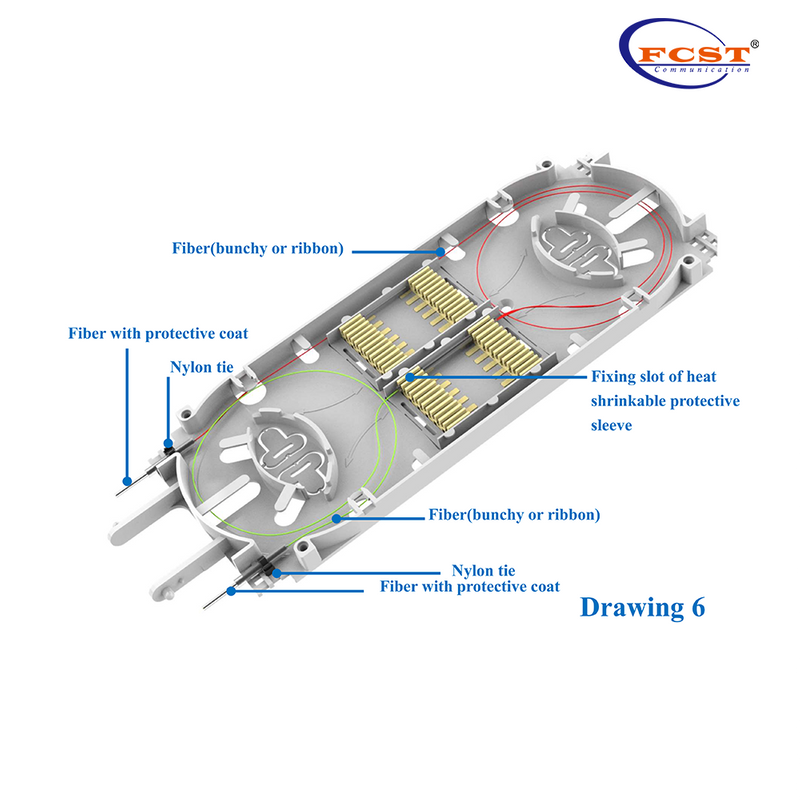

l Splice trays are all tightly fixed by black buckle when splicing.
Product Specifications
Construction | Description |
Max. Capacity | Bunchy:24-96 (cores) Ribbon: up to384 (cores) |
Material | PP |
Dimension (mm) | 472*Φ193 |
Inlets/Outlets | 1/4 |
Installation | Aerial, wall, pole, underground, pipeline etc |
Weight（g） | 3000-3600 |
Diameter Of Cable(mm) | Φ8mm～Φ20mm |
Sealing Mode | Heat Shrinkseal |
Number Of Trays | 4 |
Capacity Of Tray | 24F |
Use Action

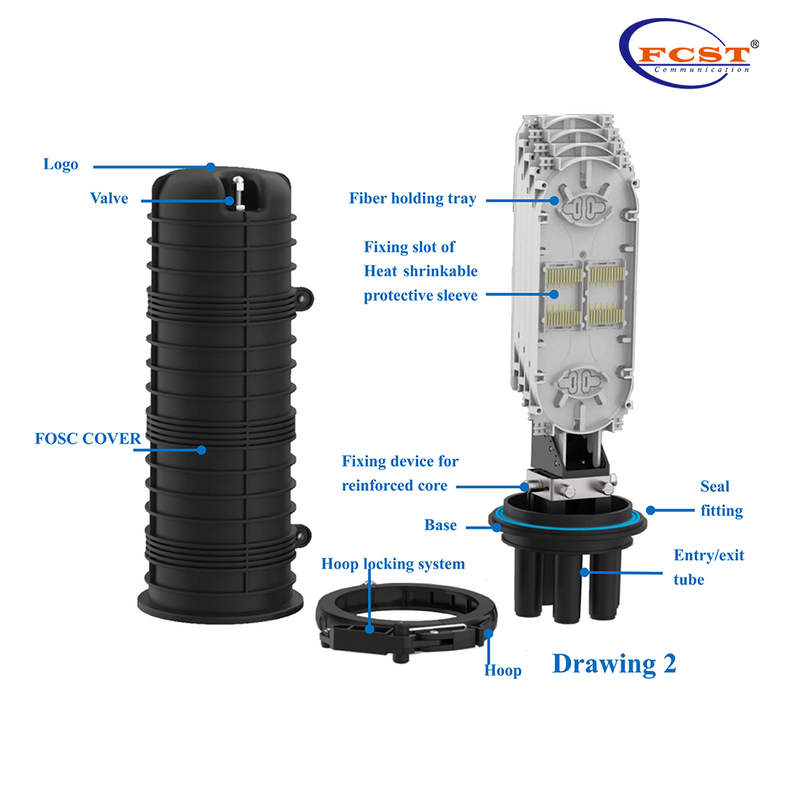

Demount hoop fixing bolt and pull hoop locking system out, then proceed in demounting the hoop.Pull the FOSC cover upwards out, installation could begin.

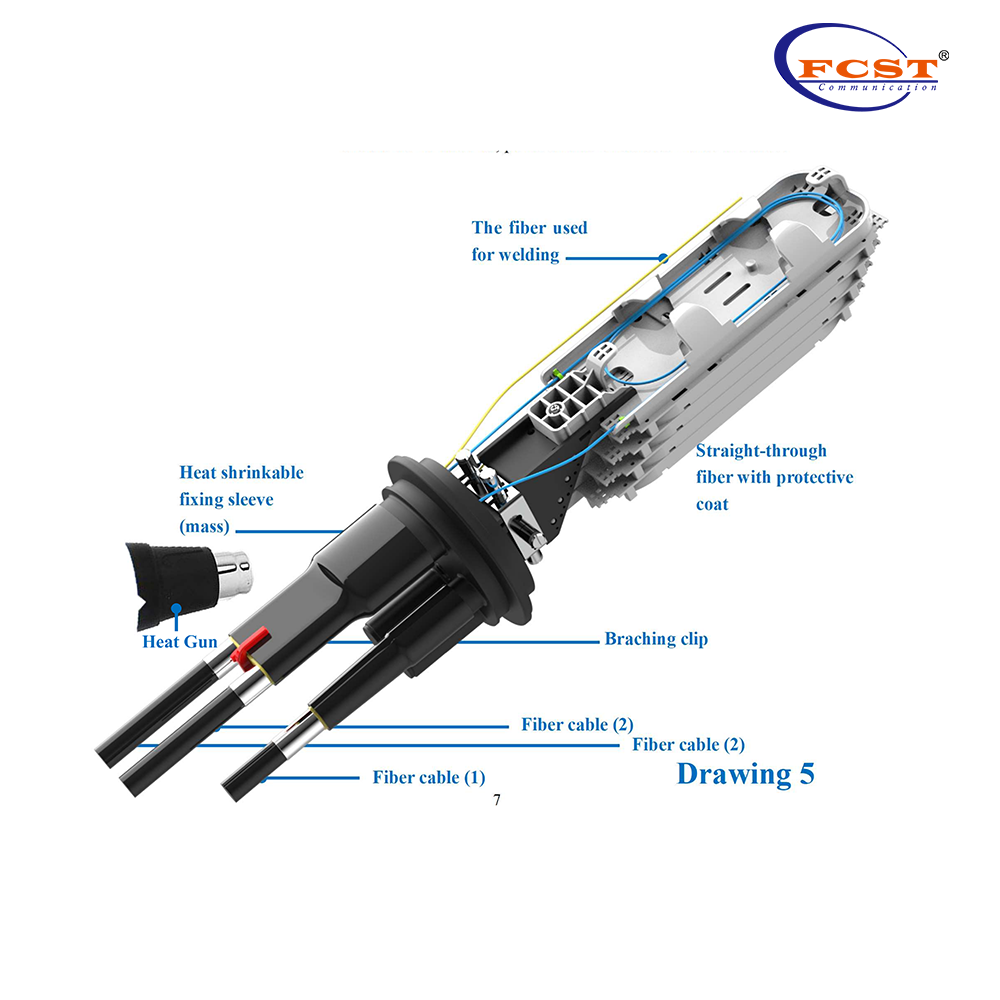

Installation
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
