MikroJet06
Product Overview

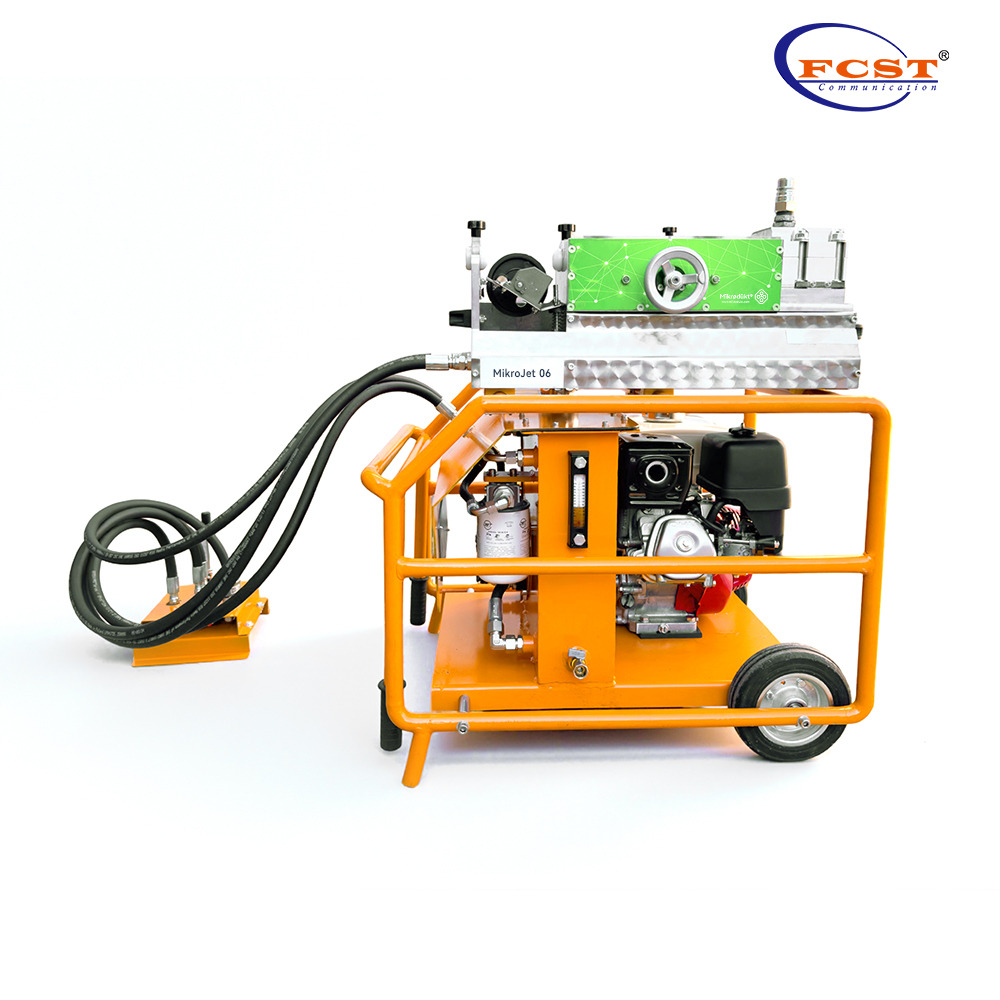

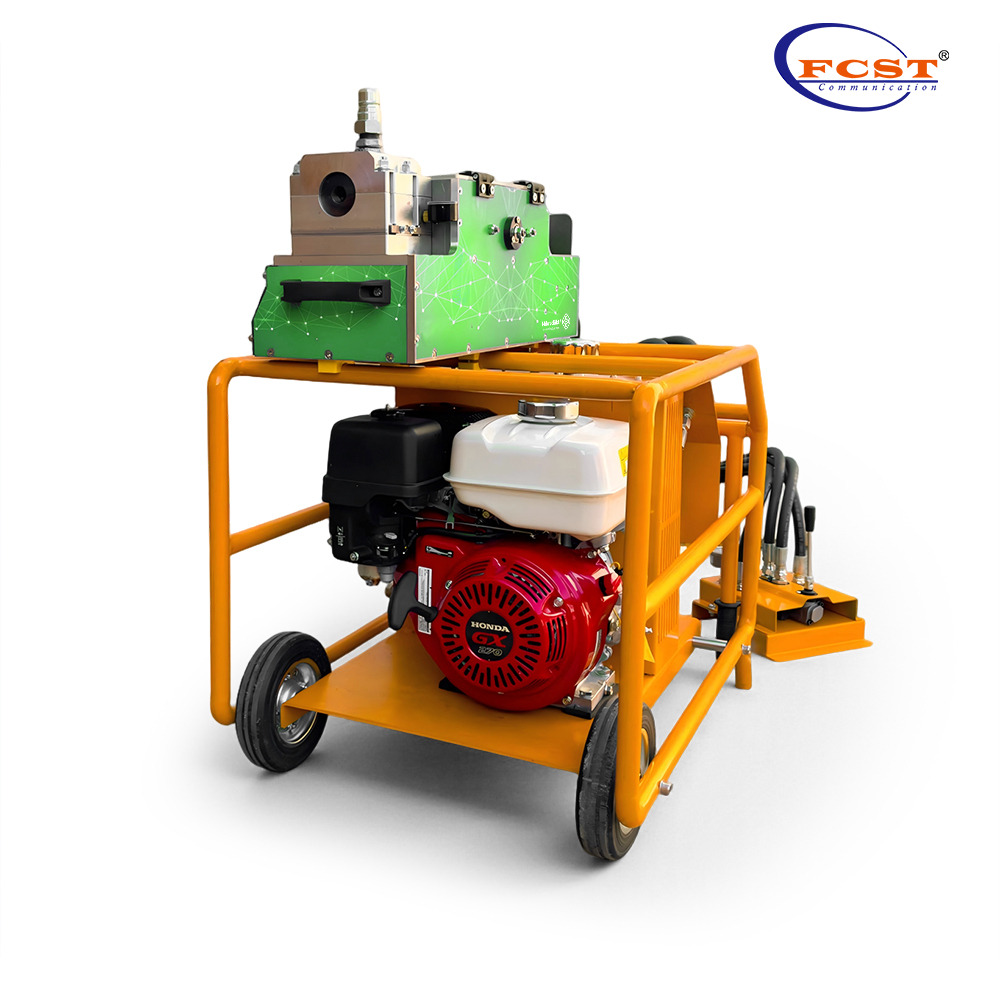

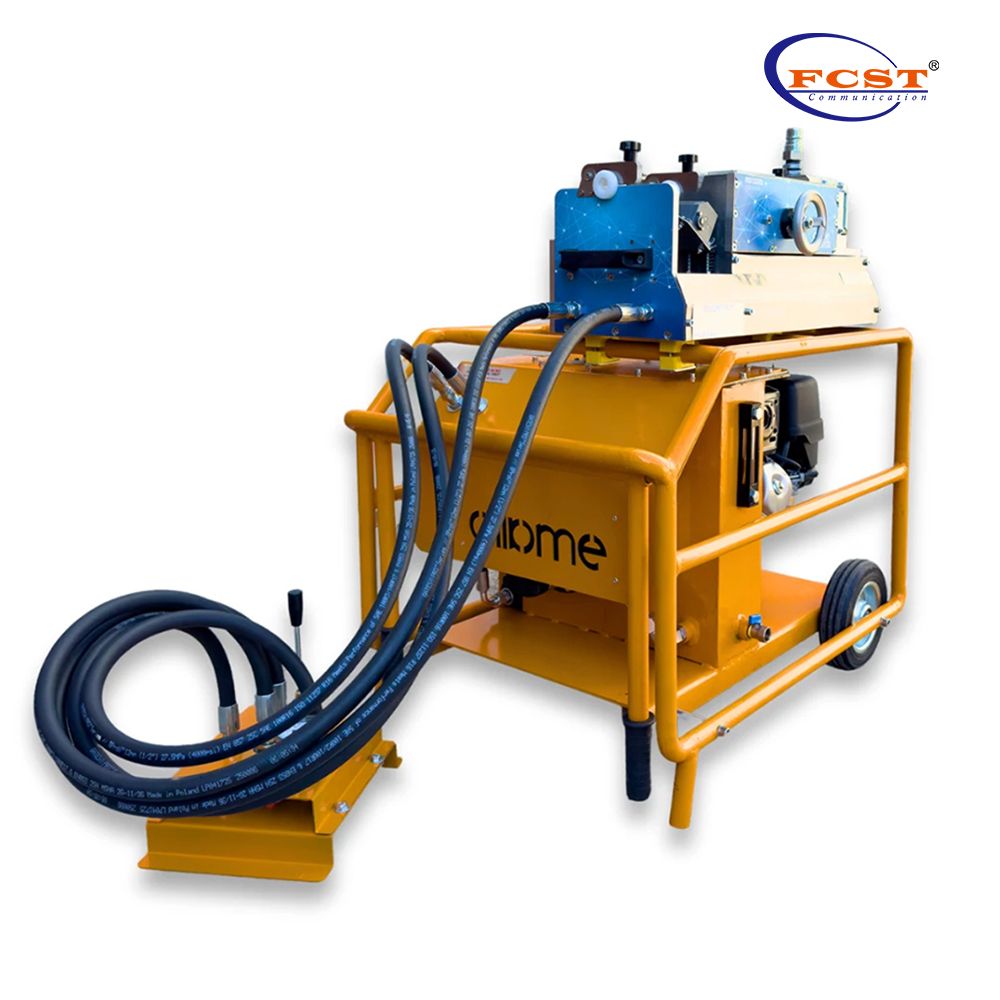

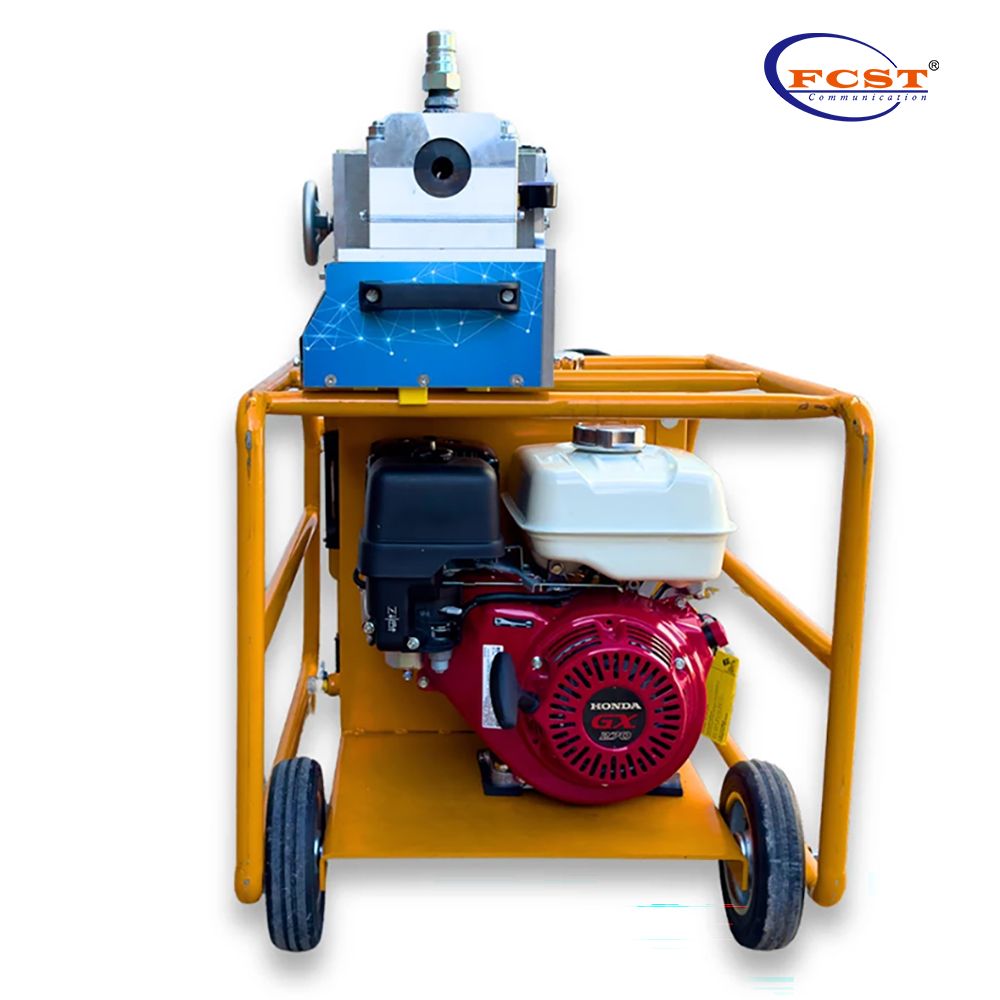

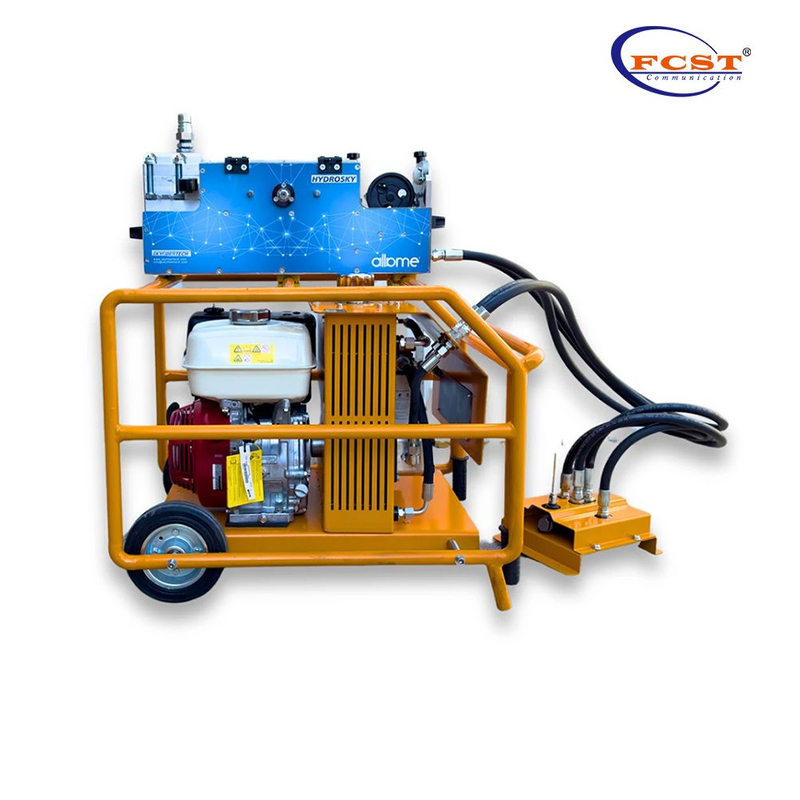

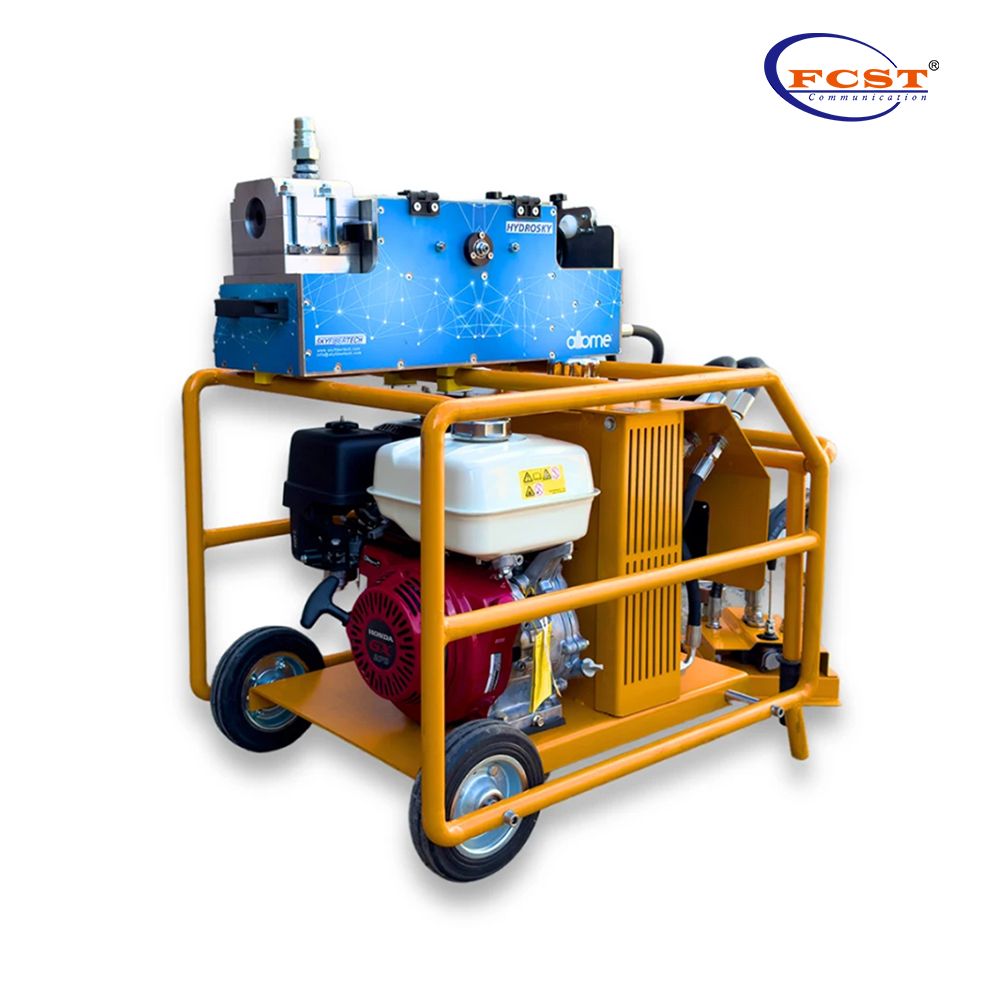

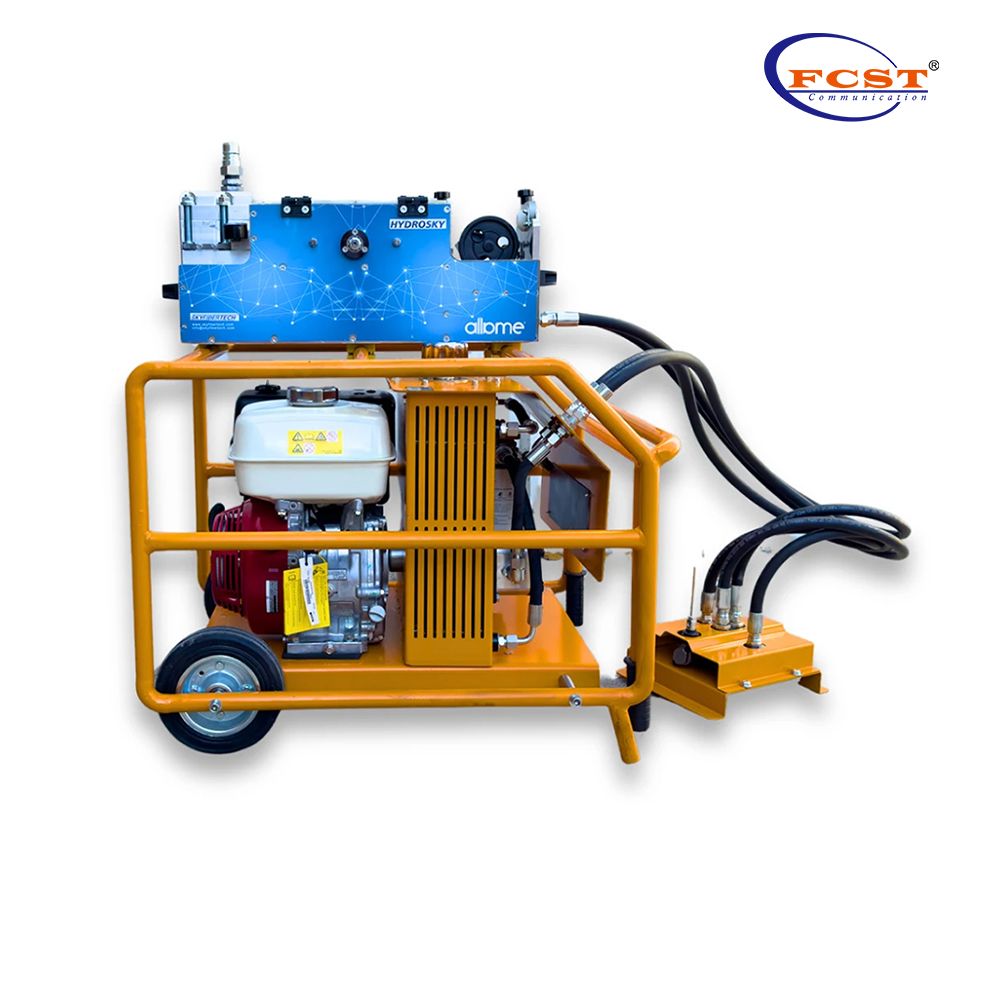

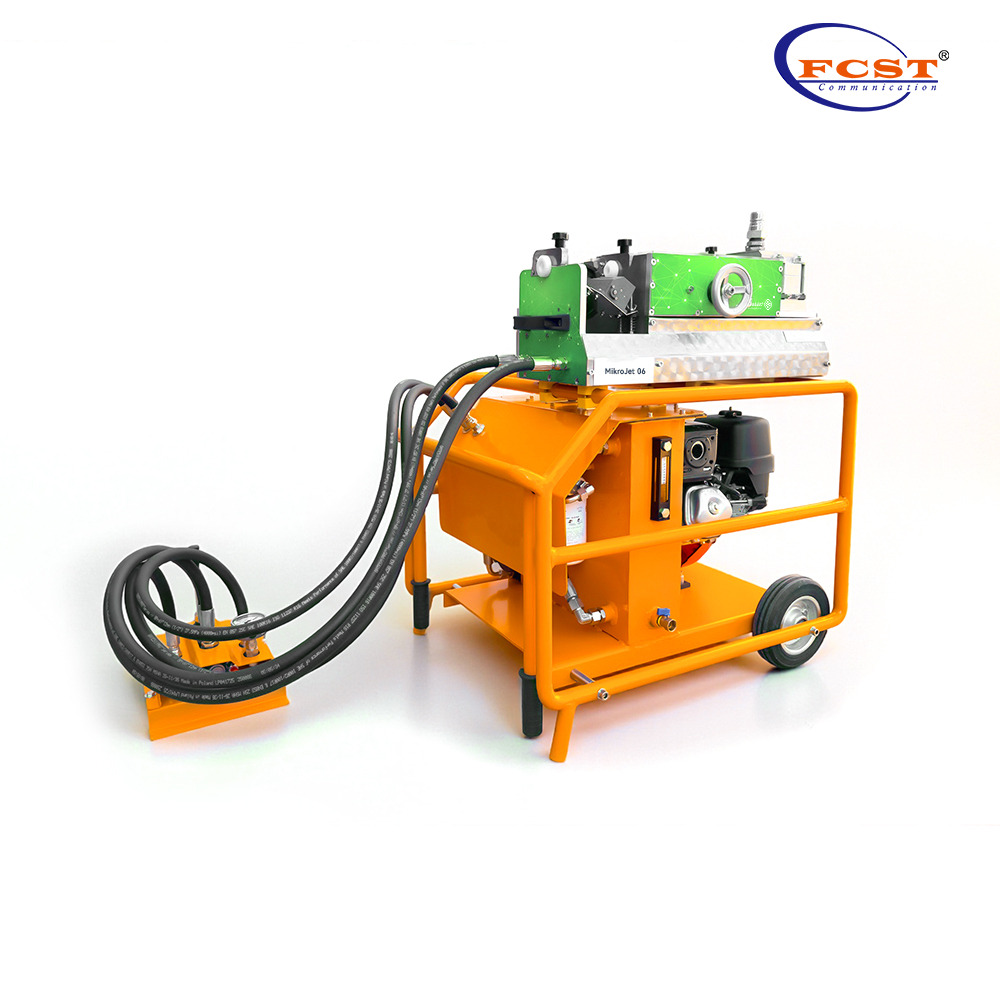

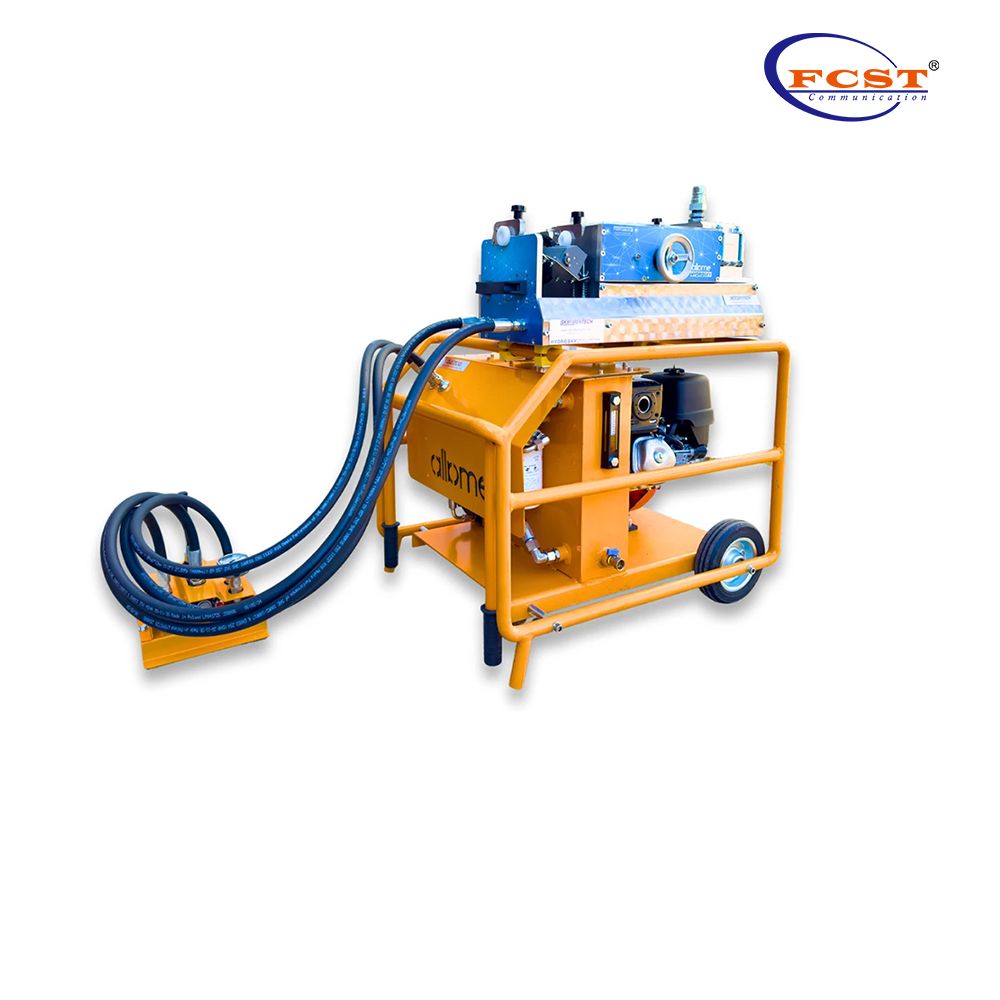

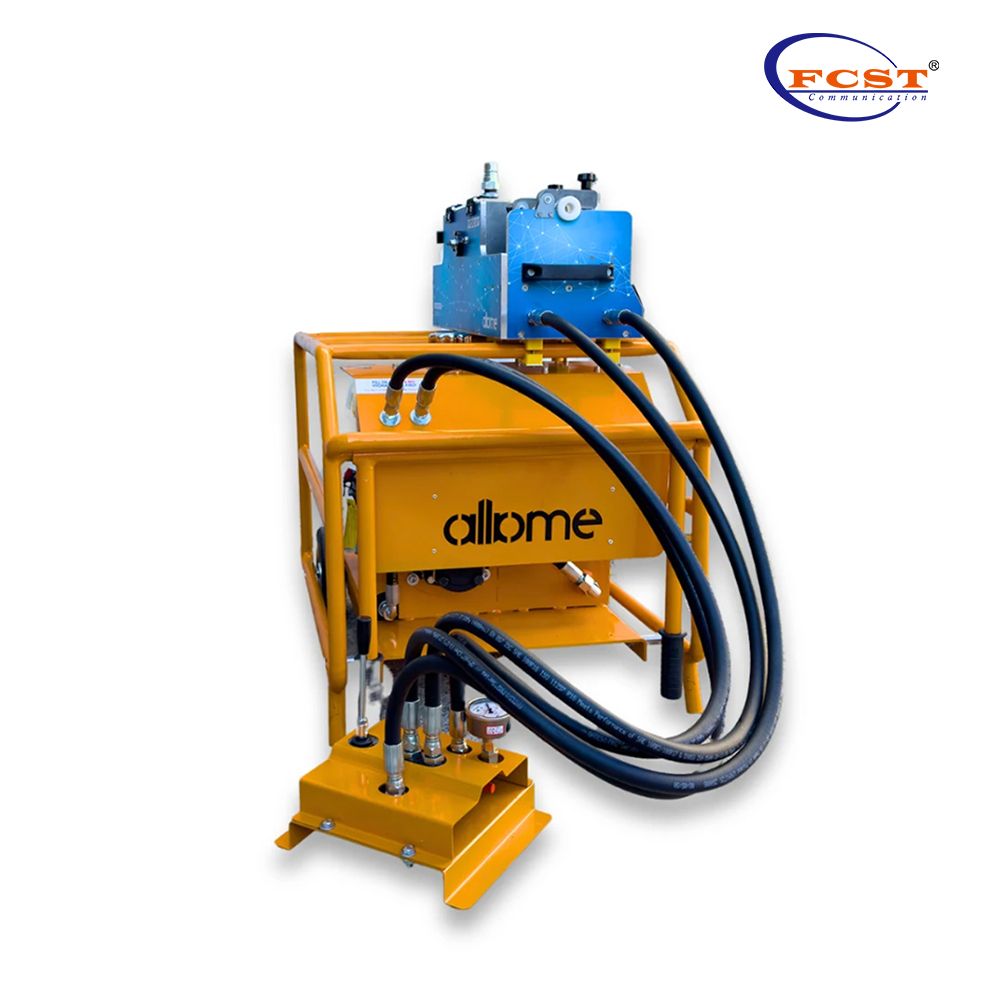

MikroJet06 is a high-performance fiber optic cable jetting system powered by a built-in hydraulic power unit. Engineered to handle challenging field conditions, this machine can insert fiber cables ranging from 6 mm to 24 mm into HDPE ducts with maximum stability and power.
Product Features
Compatible with fiber cables from 6 mm to 24 mm.
Supportingduct size: 20~63mm.
Long range with high performance cable blowing.
Quick-change chain system.

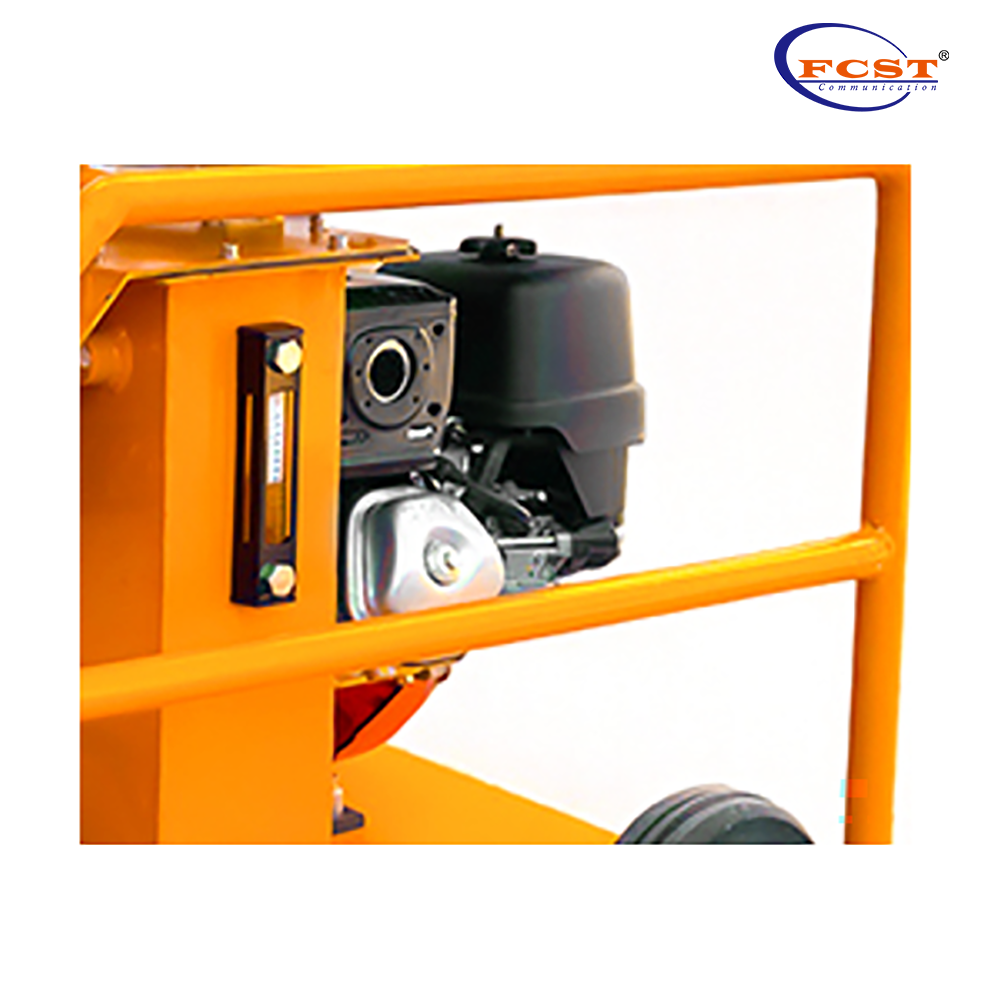

Compacted hydraulic power pack. (Honda GX270, 8 l/min)
Belts may be replaced with those having other cable diameters.
Precision surface driven feed system.
Press belt automatic and semi automatic device.
Replaceable duct inlets.(custom sizes available)
Waterproof, marine grade equipment case.
2-year service warranty and 10-year spare parts warranty.
Product Specifications
| Construction | Description |
| Micro Cable Diameter | φ6~24mm |
| Micro Tube Diameter | φ20~63mm(20/25/32/40/50/63mm) |
| Blowing Distance / Max | 3000m |
| Blowing Speed / Max | 180 m/min |
| Pushing Force | 0~200kg |
| Work Pressure / Max | 15 bar |
| Heavy Duty Hydraulic Hose (min):25mm (1”) | Compressor connection hose is not provided with the machine |
| Dimensions (L*W*H) | 600*700*900mm | 23.62*27.56*35.43in |
| Weight (approx.) | 160kg |
| Power Source | Hydraulic Motor |
| Pusher | Rubber Chain |
| Warranty Period | 48months |
| Chain Sets(mm) | 6.0~8.0mm/9~13mm/14~18mm/19~24mm |
| Hydraulic Drive System | 100 Bar (Max) |

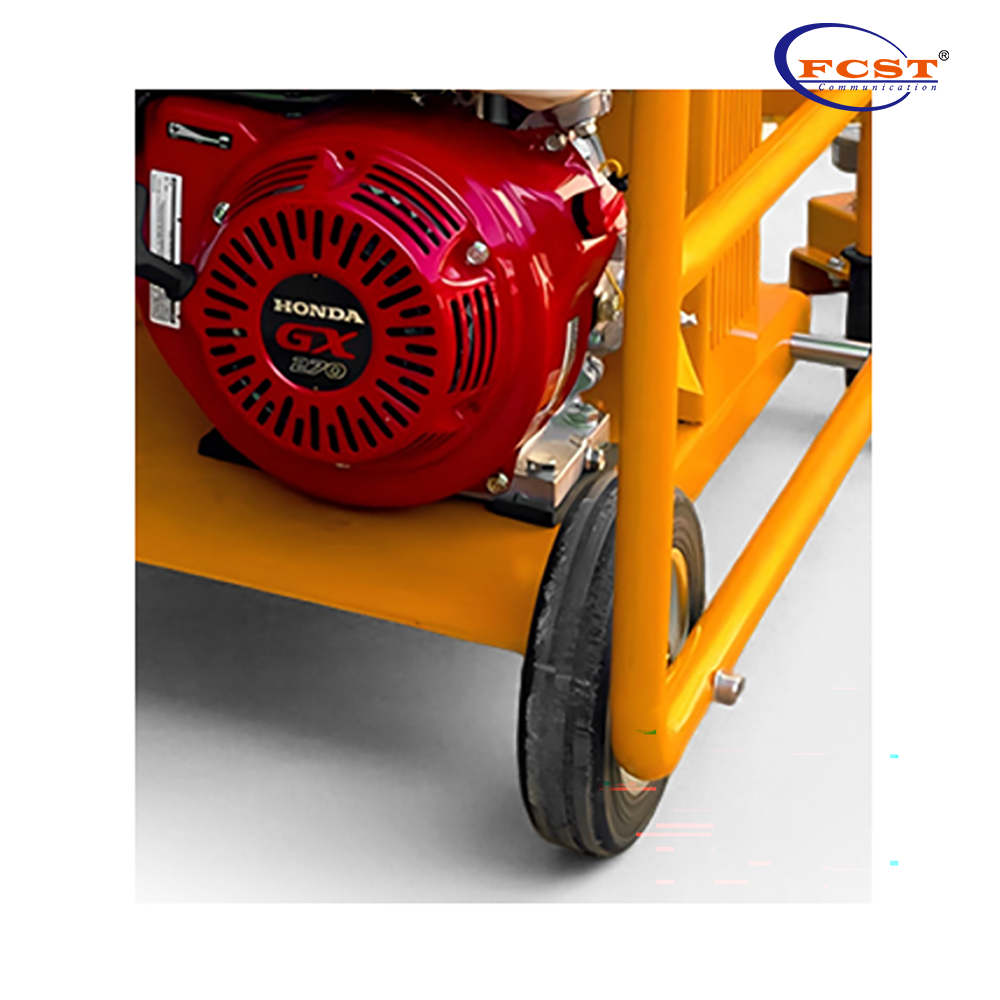

| Engine | Honda Motor : Gx270,9 HP Gasoline |
| Hydraulic Oil Capacity: (Filled by the user) | 25 Liter |
| Applications | FTTH/FTTx, micro cable networks,backbone |
| Minimum Air Consumption(at 12 bar) | 0~25mm :4m³/min 150 CFM 26~30mm :5m³/min 185 CFM 31~35mm :7m³/min 250 CFM 36~40mm :10m³/min 375 CFM 41~44mm :12m³/min 450 CFM |
Standard Accessories
Chain sets for selected cable sizes.
Pipe adapters matching your project specs.
Compressor couplings and fittings.
Nutrings, pads, and seals for safe blowing.
Allen keys and setup tools. Heavy-duty transport case.
