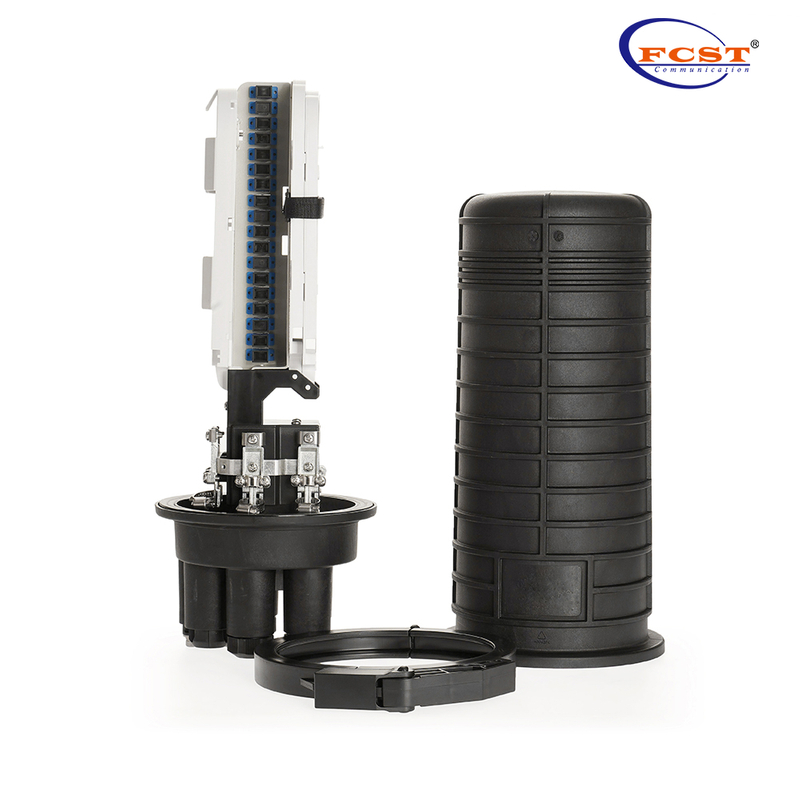

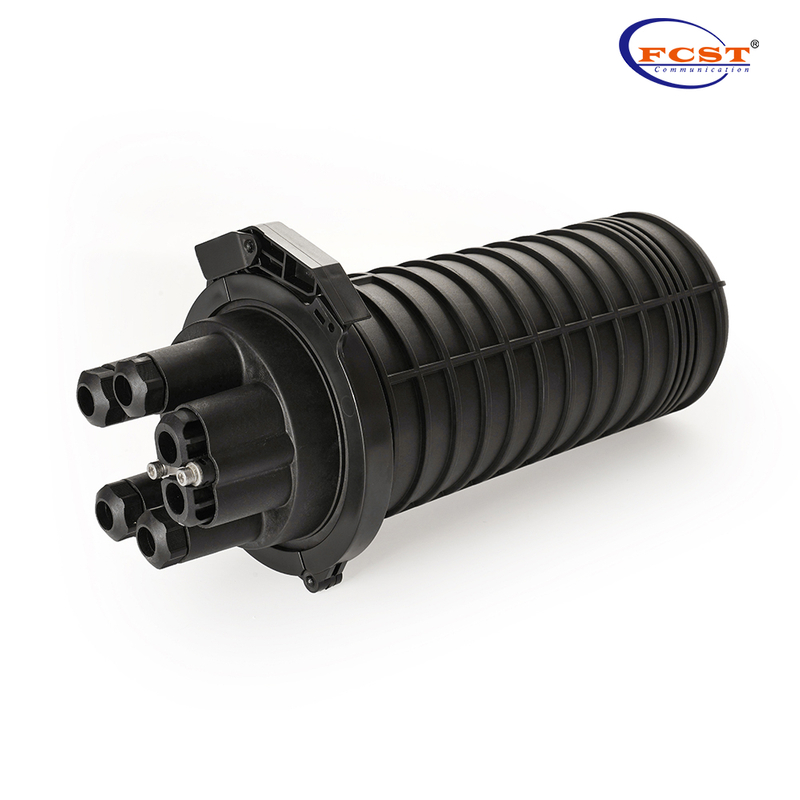

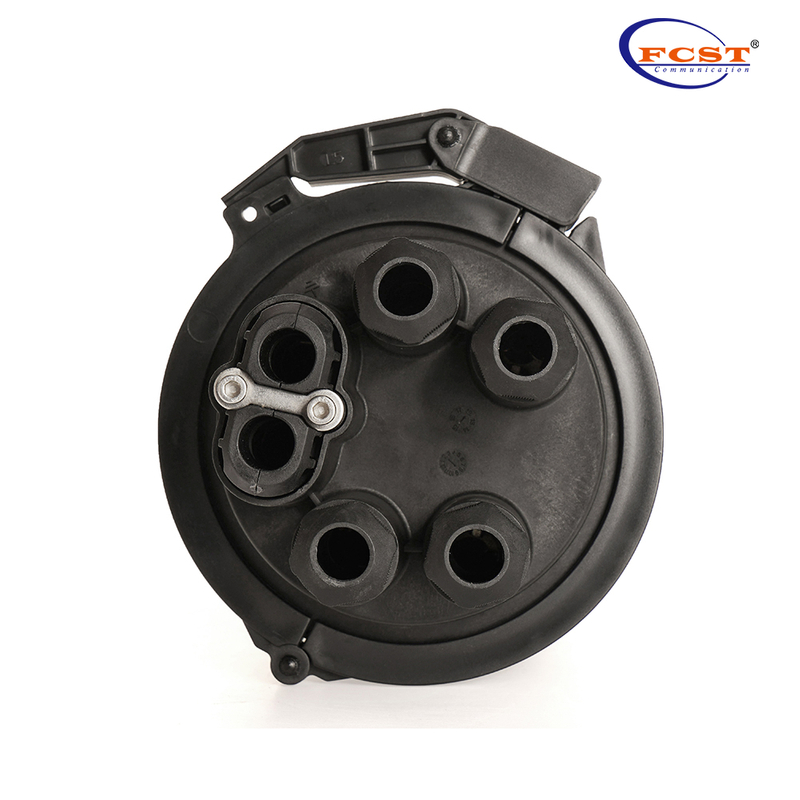

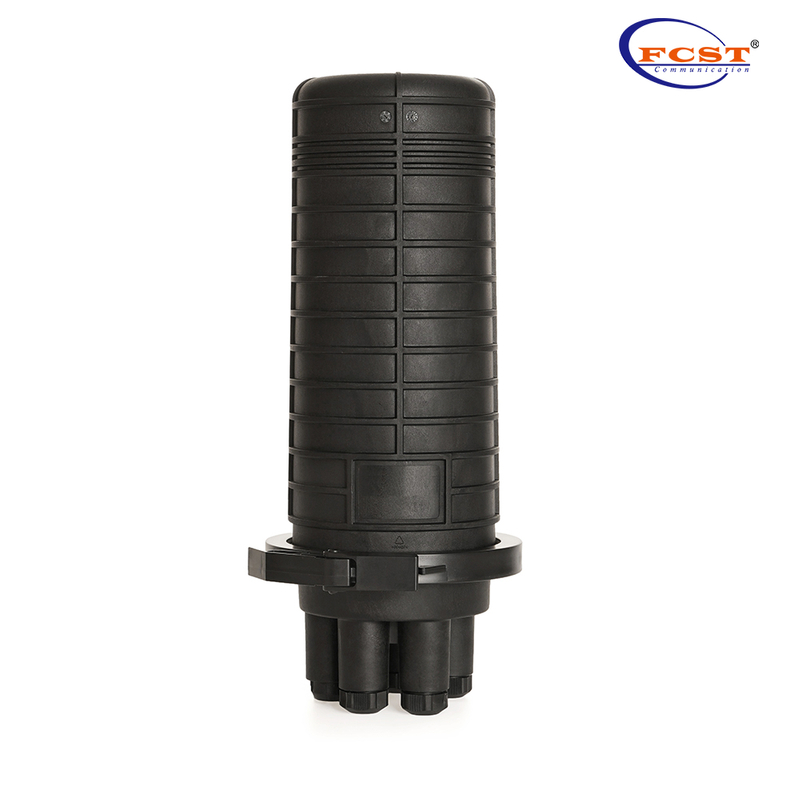

FCST012207 Fiber Optical Splice Closure

5 0 Reviews
FCST012207 Fiber Optical Splice Closure is a fiber optic cable splice of multiple purposes, which can connect and protect cables. The fiber closures are capable of protecting fiber cable splices in straight-through and branching applications and shall be used in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. We always devote to the R&D of telecommunication equipment. Our fiber closures can greatly improve the performance of the operation of your network communication system. Closure is suitable for the applications up to 240 single fibers, which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb (FTTH/FTTC). It is suitable for underground, aerial, pedestal or direct buried applications.
Availability:
Quantity:
  • FCST012207
  • FCST
  • FCST012207

Product Overview

       FCST012207 Fiber Optical Splice Closure is a fiber optic cable splice of multiple purposes, which can connect and protect cables. The fiber closures are capable of protecting fiber cable splices in straight-through and branching applications and shall be used in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. We always devote to the R&D of telecommunication equipment. Our fiber closures can greatly improve the performance of the operation of your network communication system. Closure is suitable for the applications up to 240 single fibers, which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb (FTTH/FTTC). It is suitable for underground, aerial, pedestal or direct buried applications.

Product Specifications

Construction

Description

Max. Capacity

Single:240Cores

Ribbon:720Cores

Material

ABS, PC

Dimension (mm)

480*Ф260

Inlets/Outlets

7

Installation

Pole mounting,Pedestal mounting

Strand mounting,Wall-mounting

Net Weightg

5450

Protection Level

IP68

Diameter Of Fiber Cable

Oval port: 1(Φ1018mm)

Round port(Φ818mm)

Sealing Mode

Heat Shrinkseal

Number Of Trays

10

Capacity Of Tray

Single:24F

Ribbon:6F

Packing Information

GGMFGTMYOIQHEHU_JTE(F

Construction

Description

Outside DimensionL*W*Hmm

480*290*275

Weight/PCkgs

5.89

Carton sizeL*W*Hmm

570*500*540

Qty/CTNpcs

4

Weight/CTNkgs

25.2

Design And Customization Services

Provide service with whole process from blueprint to product to the customer.

Meet customers requirement to customize logo in suitable place for existing product.

Meet customers requirement to make reasonable modify and customization for existing product.

Provide free design according to the requirement of customer after signed cooperative agreement.
