ODN is an optical distribution network. It is an optical transmission physical channel between OLT and ONU. The main function is to complete the two-way transmission of optical signals. It usually consists of fiber optic cables, optical connectors, optical splitters, and supporting equipment for installing and connecting these devices. The most important component is the optical splitter. Optical distribution network (ODN) mainly has two kinds of light splitting methods: primary splitting and secondary splitting, or centralized splitting and cascaded splitting.
FTTX Solution is the ultimate aim of access networks. It provids high bandwidth for enduser. Including FTTB, FTTC and FTTH Solution.
For FTTB
Data center in the building is using high capacity module type ODF for fiber optic distribution, leading to the floor distribution box, then go inside end user by ONU.
For FTTC
Distribute fiber in the cable cabinet nearby the residential area, leading to the optic distribution box in the building, after second-time distribution then go into end user by ONU.
For FTTH

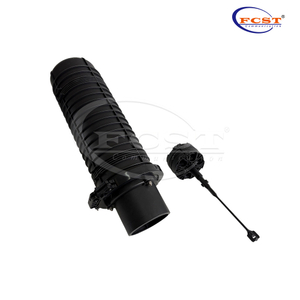

Fiber arrive around the house by fiber optic splice closure, fiber go inside end user by ftth box then connect to ONU.
ODN Solution 2.0
The most difficult in traditional ODN network construction is the connection between each ODN node equipment facility and optical cable equires complex optical cable stripping, fxing, and fusion operations, which is time-consuming and labor-intensive. In order to reduce on-sitefibersplicing, a Quick ODN solution came into being, which improves the speed of on-site installation, and is also called the Quick ODN solution (Quick ODN). At present, the pre-connection scheme can be used in the whole process of FTTH network construction.
Technical Support FAQ
What kind of products are including the ODN Solution?
These can be mechanical, or fusion splicers, which splice the fibre optic cables together by melting and fusing the ends. Cable pullers and tensioners are used to install fibre optic cables through ducts or conduits, while cable blowing machines are used for installations in microducts.
What is a fiber pedestal used for?
Fiber optic pedestals provide end users with a centralized point for fiber optic cable management, including splicing, termination, and internal cross-connect features used in FTTx networks.
