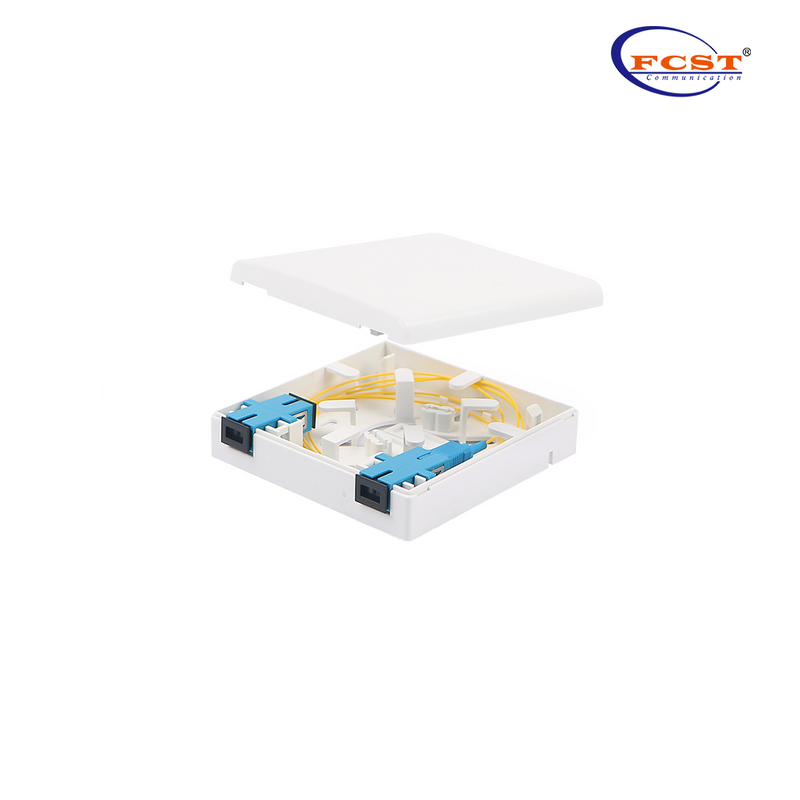

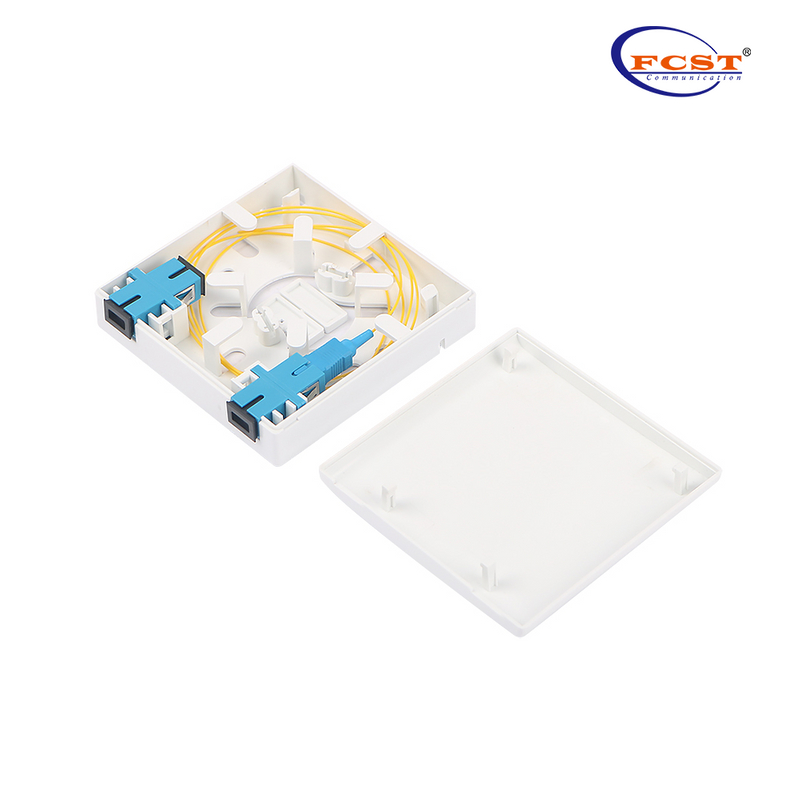

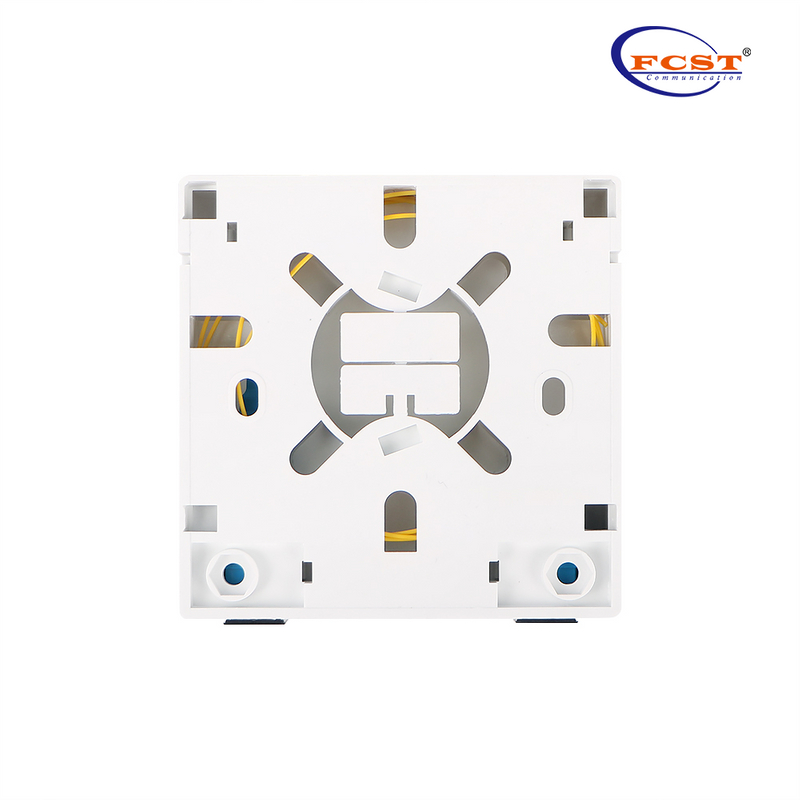

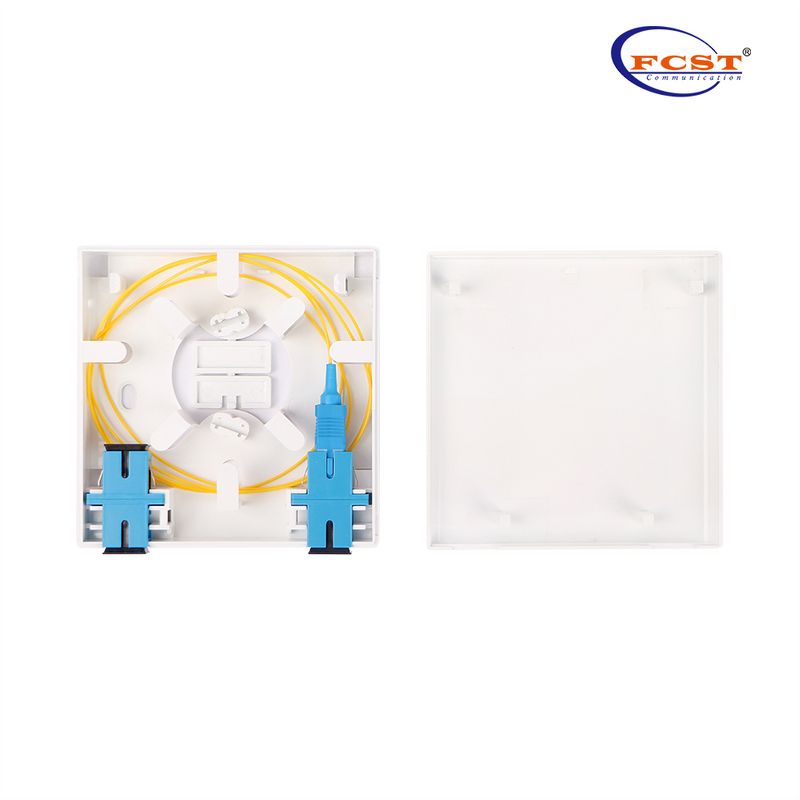

FCST02104 Optical Fiber Information Panel

  • Indoor wall mounting.
  • IP65 optical cable box is applicable for FTTH, FTTO and FTTD, etc.
  • Small size, light weight, pleasing in appearance.
Availability:
Quantity:
  • FCST02104

  • FCST

  • FCST02104

Product Advantages

It is applicable for FTTH, FTTO and FTTD, etc.

The clasp design of the cover has greatly reduced the installation strength. It is very thin and

matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables.

Coordinating with FC strip-type optical adapter, it generates more options in term of fiber

interfaces for users, SC, LC and SC/FC are all available.

The big-diametered wrapping post in the box protects radically in an omnibearing way.

Product Specifications

Construction

Description

Max. Capacity

Single:2 Cores

Material

ABS

Dimension (mm)

86*86*23

Inlets/Outlets

2

Adaptor

SC,LC,SC-FC

Connection Method

Fast field connection

Cable

8 figure soft cable, indoor cable, general outdoor cable

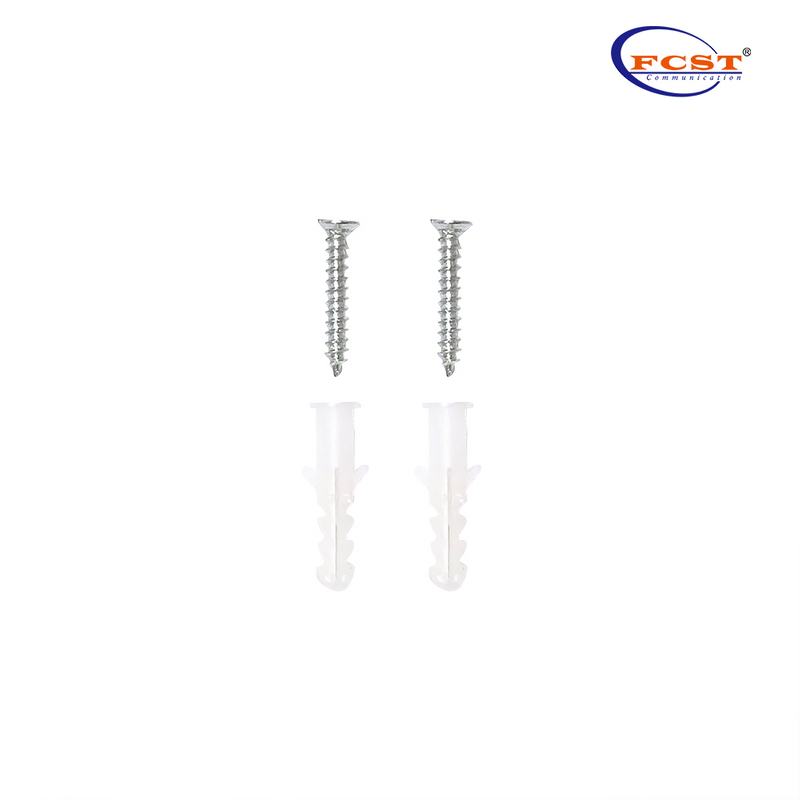

Standard Accessory

Box on set

Optional Accessory

FC strip-type optical adaptor, SC adaptor

Cable Diameter

Φ3mm

Packing Information

9F_QPUAV7HPTR_L497OH

Construction

Description

Outside DimensionL*W*Hmm

-

Weight/PCkgs

-

Carton SizeL*W*Hmm

500*390*320

Qty/CTNpcs

250

Weight/CTNkgs

14.5

Design And Customization Services

Provide service with whole process from blueprint to product to the customer.

Meet customers requirement to customize logo in suitable place for existing product.

Meet customers requirement to make reasonable modify and customization for existing product.

Provide free design according to the requirement of customer after signed cooperative agreement.
