Cold Shrink Silicone Tube
FCST
Product Overview

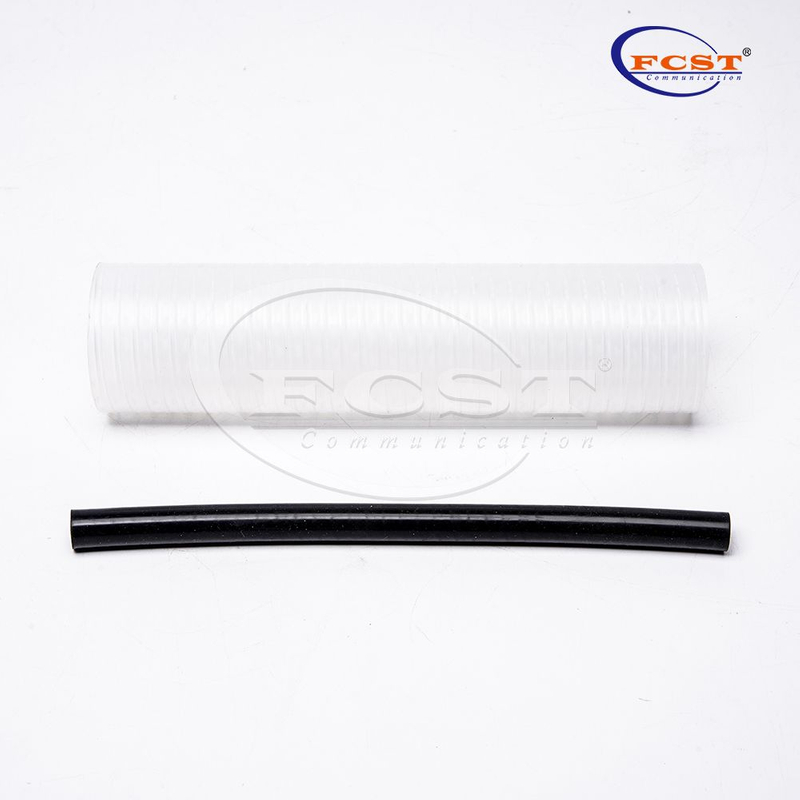

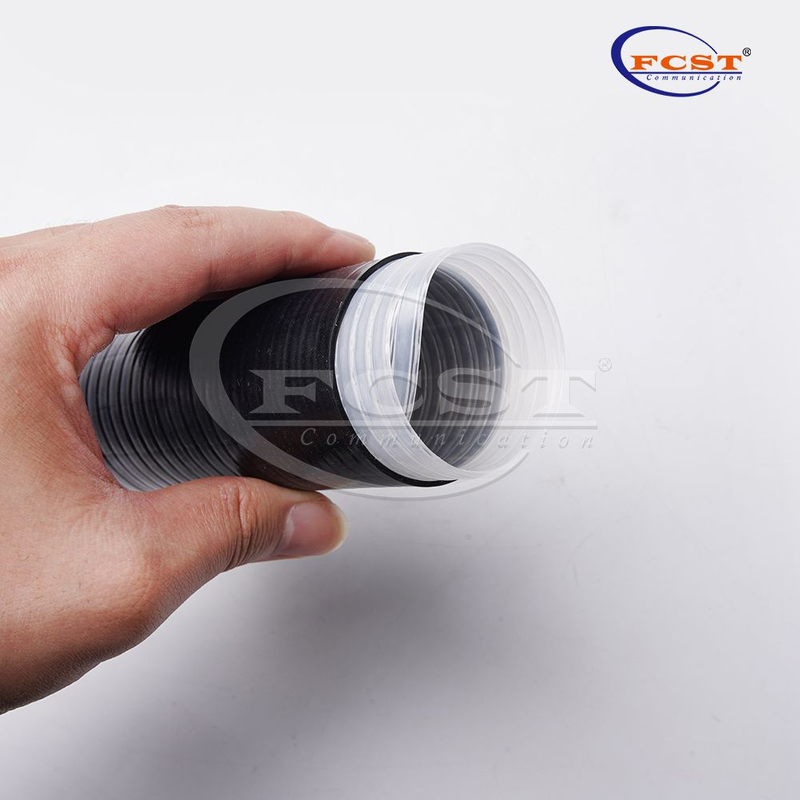

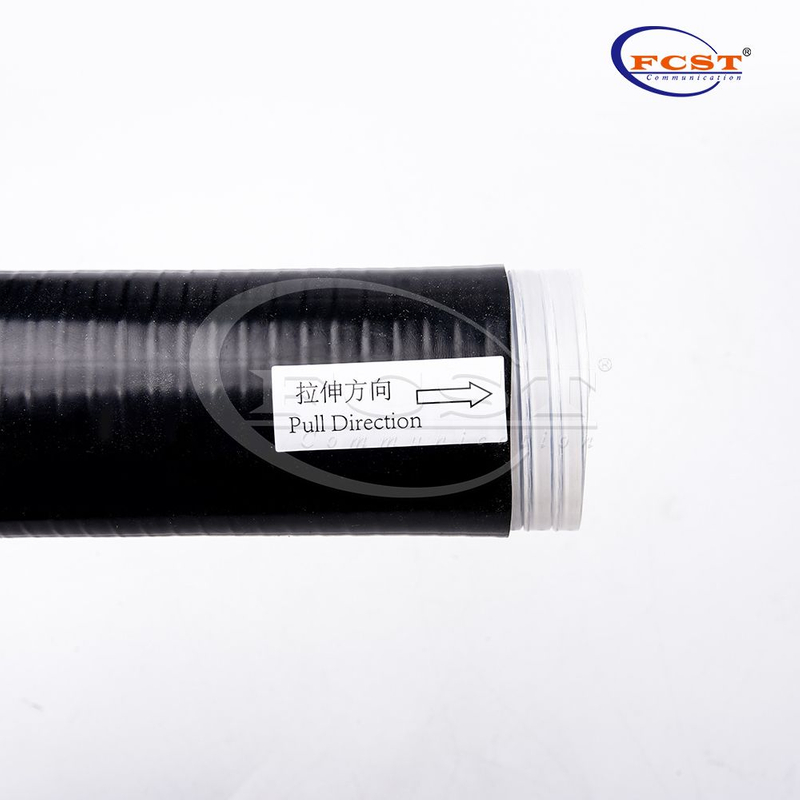

Cold Shrink Silicone Tube is an open-ended rubber sleeve, that can shrink down three to five times its original size, similar to heat shrink tubing. The rubber tubing is held in place by an inner, plastic core that, once removed, allows it to shrink in size. used to protect communication and power cables and connectors during FTTx or power line constructions.
Product Advantages
lResists UV,Ozone,fungus,acids and alkalis.
lCold Shrink Tube with excellent weather resistance and waterproof sealing properties.
lGood thermal stability,no gaps under thermal expansion and contraction.
lWide range of size,accommodates a wide range of cable , wire,conduit and hose diameters.
lGood aging resistant,retains its resiliency even after prolonged years of aging and exposure.
Product Specifications
Construction | Description |
Protection Level | IP68 |
Material | Solid Silicon Rubber |
Color | Black,Grey,Customized |
Tensile Strength | 9.89MPa |
Elongation | 910% |
Tear Strength | 46.2 N/mm |
Embrittlement Temperature | ＜-60℃ |
Dielectric Strength | 24.4N/mm |
Volume Resistivity | 4.0X1015Q.cm |
Heat Aging | Pass |
Ozone Aging | Pass |
UV Aging | Pass |
Cables | FCST-25*120/FCST-28*110 : RG8x, RG8, RG213, RG214,RFC240/RFC400, RFC600,LMR900 1/4", 1/2" Corrugated FCST-40*140/FCST-45*140 : RG8, RG213, RG214, RFC400, RFC600,LMR900 1/4", 1/2" Corrugated |
Connectors | FCST-25*120/FCST-28*110 : 4.1/9.5, 4.3/10,BNC, FME, UHF, SMA,TNC,Type N, Type F, NEX10 FCST-40*140/FCST-45*140 : 4.1/9.5, 4.3/10,7/16, UHF, Type N |
Performance Test
Construction | Description | Executive Standard |
Protection Level | IP68 | IEC 60529 |
Tensile Strength | 9.89MPa | ASTM D 421 |
Elongation | 910% | ASTM D 412 |
Tear Strength | 46.2 N/mm | ASTM D 624 |
Embrittlement Temperature | ＜-60℃ | ISO 812 |
Dielectric Strength | 24.4N/mm | ASTM D 4325 |
Volume Resistivity | 4.0X1015Q.cm | ASTM D 4325 |
heat Aging | Pass | ASTM D 412 |
Ozone Aging | Pass | ASTM D 1149 |
UV Aging | Pass | ASTM G 154 |

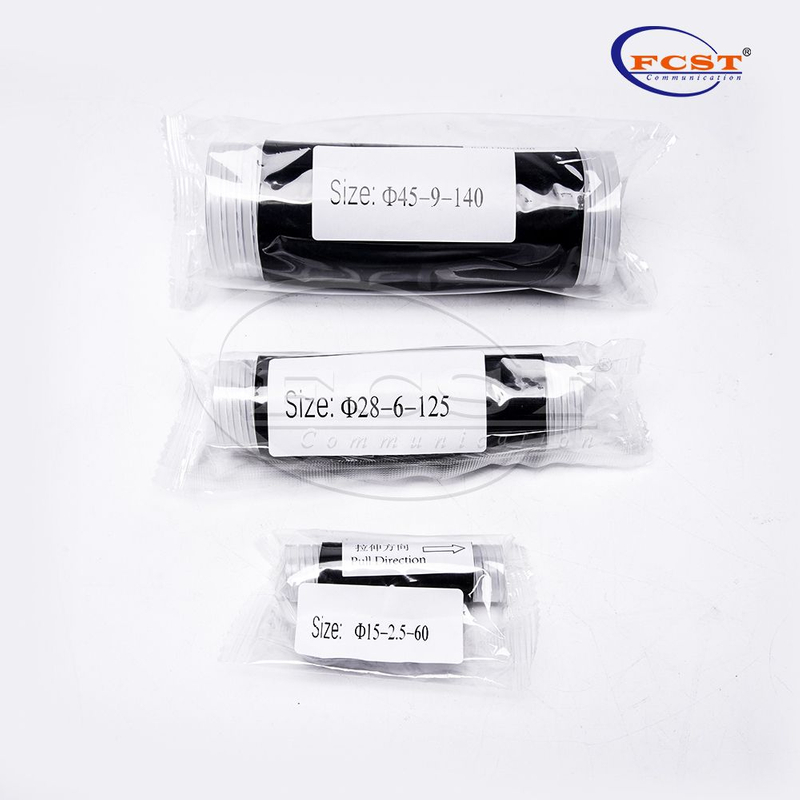

Ordering Information
Specification | FCST-15*60 | FCST-25*120 | FCST-28*110 | FCST-40*140 | FCST-45*140 |
Inner Diameter Before Shrink | 15mm | 25mm | 28mm | 40mm | 45mm |
Inner Diameter After Shrink | 2.5mm (0.098'') | 5.5mm (0.217'') | 6.0mm (0.236'') | 10mm (0.394'') | 10.5mm (0.413'') |
Unrelaxed Length | 45mm (1.772'') | 110mm (4.331'') | 100mm (3.937'') | 130mm (5.118'') | 130mm (5.118'') |
Relaxed Length | 60mm (2.362'') | 120mm (4.724'') | 110mm (4.331'') | 140mm (5.512'') | 140mm (5.512'') |
Relaxed Thickness | 2.5mm (0.098'') | 2.5mm (0.098'') | 2.7mm (0.106'') | 3.0mm (0.118'') | 3.0mm (0.118'') |
Min. Applicable Size | 2.75mm (0.108'') | 7.3mm (0.287'') | 8.5mm (0.335'') | 12mm (0.472'') | 12mm (0.472'') |
Max Applicable Size | 12.5mm (0.492'') | 21mm (0.827'') | 24mm (0.945'') | 35mm (1.378'') | 36mm (1.417'') |
Cables | RG174/U | RG8x, RG8, RG213, RG214, RFC240, RFC400, RFC600, LMR900 1/4", 1/2" Corrugated | RG8, RG213, RG214, RFC400, RFC600, LMR900 1/4", 1/2" Corrugated | ||
Connectors | SMA | 4.1/9.5, 4.3/10, BNC, FME, UHF, SMA, TNC,Type N, Type F, NEX10 | 4.1/9.5, 4.3/10, 7/16, UHF, Type N | ||

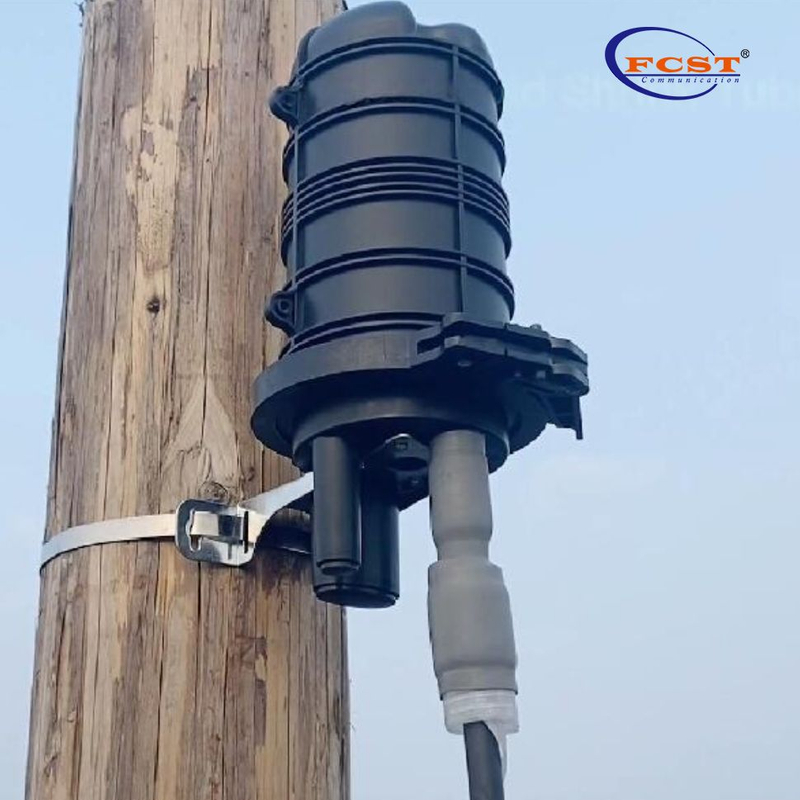

Product Application
