FCST02297
FCST
FCST02297
Product Overview

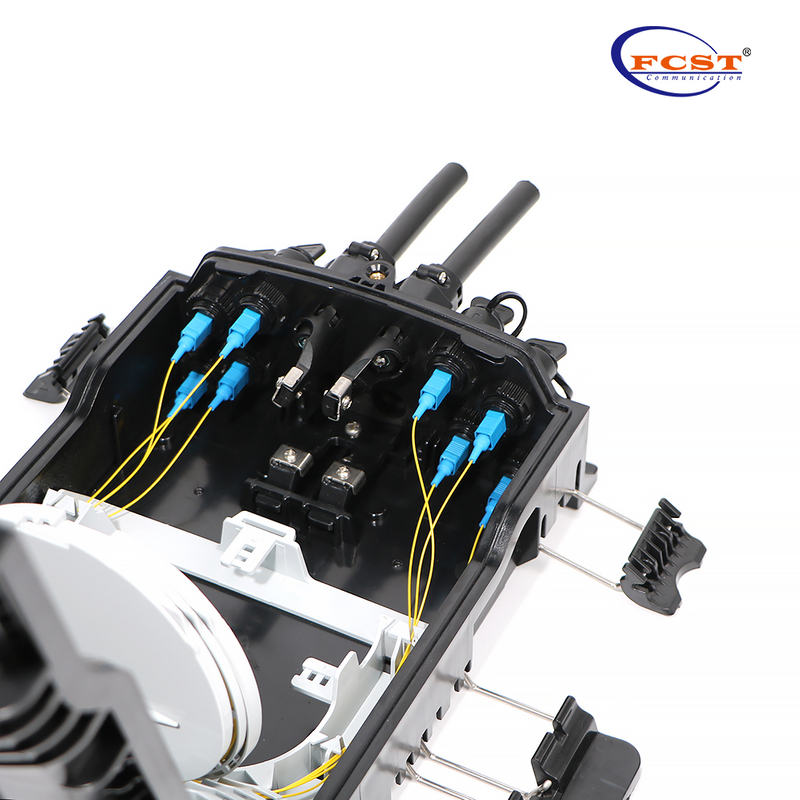

FCST02297 Fiber Access Terminal is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Product Advantages
l Advanced internal structure design, thus fiber suffering no attenuation.
l The box casing is made of industrial plastic PC+ABS material.
l Outdoor application and good UV resistant.
l Plug-and-play installation, easy for maintenance and expansion.
l 10 x reinforced adapters for drop cable with reinforced connectors.

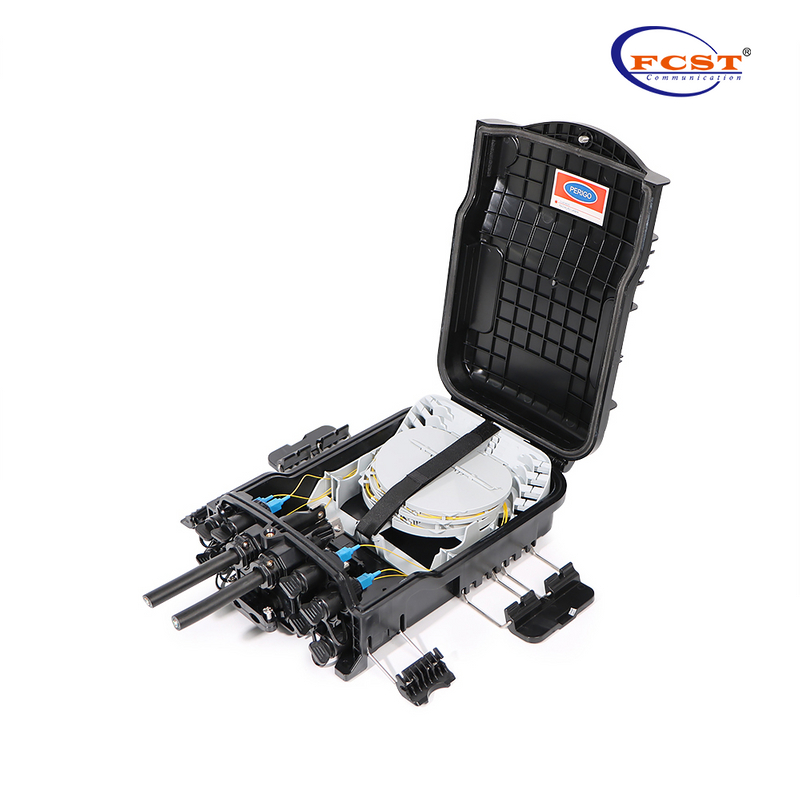

l Compact design integrates distribution, splicing, splitting 3-in-1.
l Designated position for the placement of 1:2 and 1:8 PLC splitter.
l 2 layers splitting design, 1pcs of 1:2 PLC splitter output to be pre- spliced with 1pcs of 1:8 PLC splitter input.
Product Specifications
Construction | Description |
Max. Capacity | 36 cores（Branch 8 cores） |
Material | PC+ABS |
Dimension (mm) | 319.3*200*97.5 |

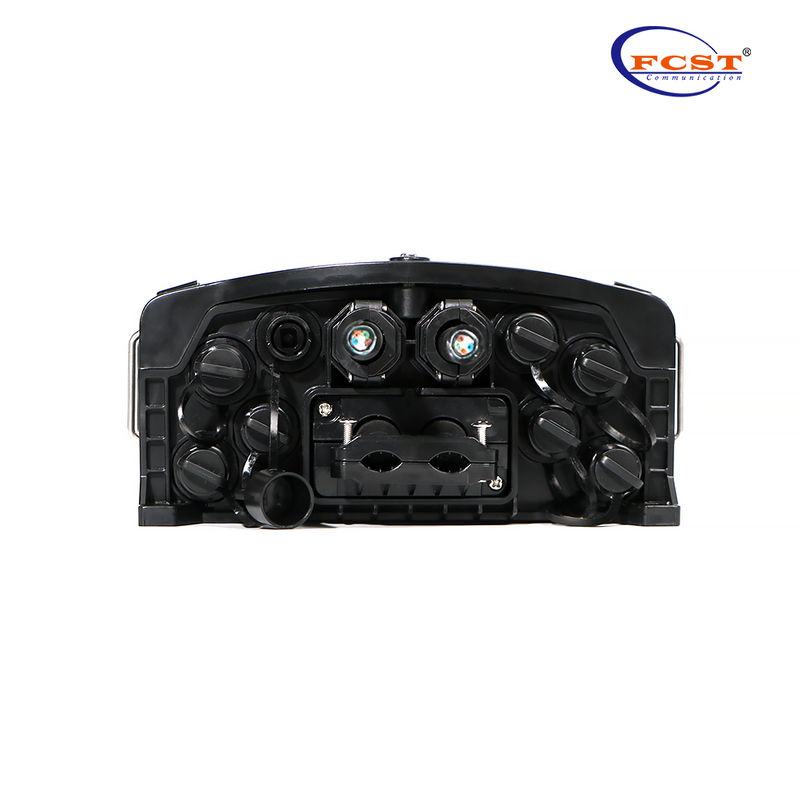

Inlets/Outlets | 4/8 |
Reinforced Adapter | 8 pcs SC/UPC or SC/APC |
Net Weight（g） | 1340 |
Protection Level | IP65 |
Color | Black |

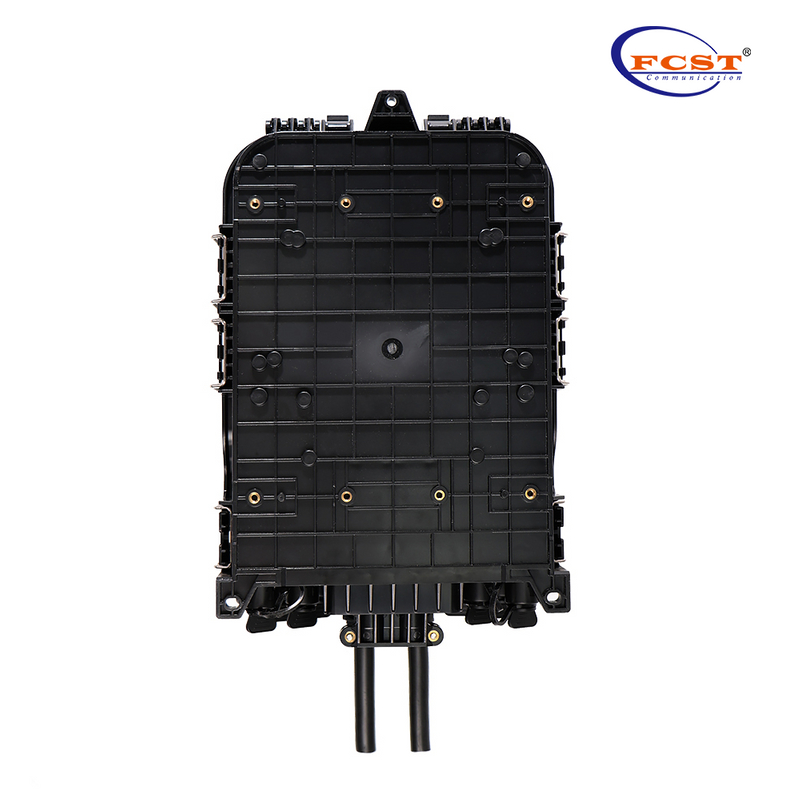

Installation | Pole mounting,Strand mounting,Wall-mounting |
Into The Largest Cable Diameter (mm) | Φ8~14 |
Maximum Size Of Branch Hole (mm) | Φ16 |
Note：Use HUAWEI Hardened adapter，The Seal adapter of FCST02297 Fiber Access Terminal is used in conjunction with FastConnect Distribution Cable.
Fiber connector installation
Rotate the arrow part of fiber connector counterclockwise and take out the dust cap.
The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.
Splicing Tray Optional
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
