FCST022112
FCST
FCST022112
Product Overview

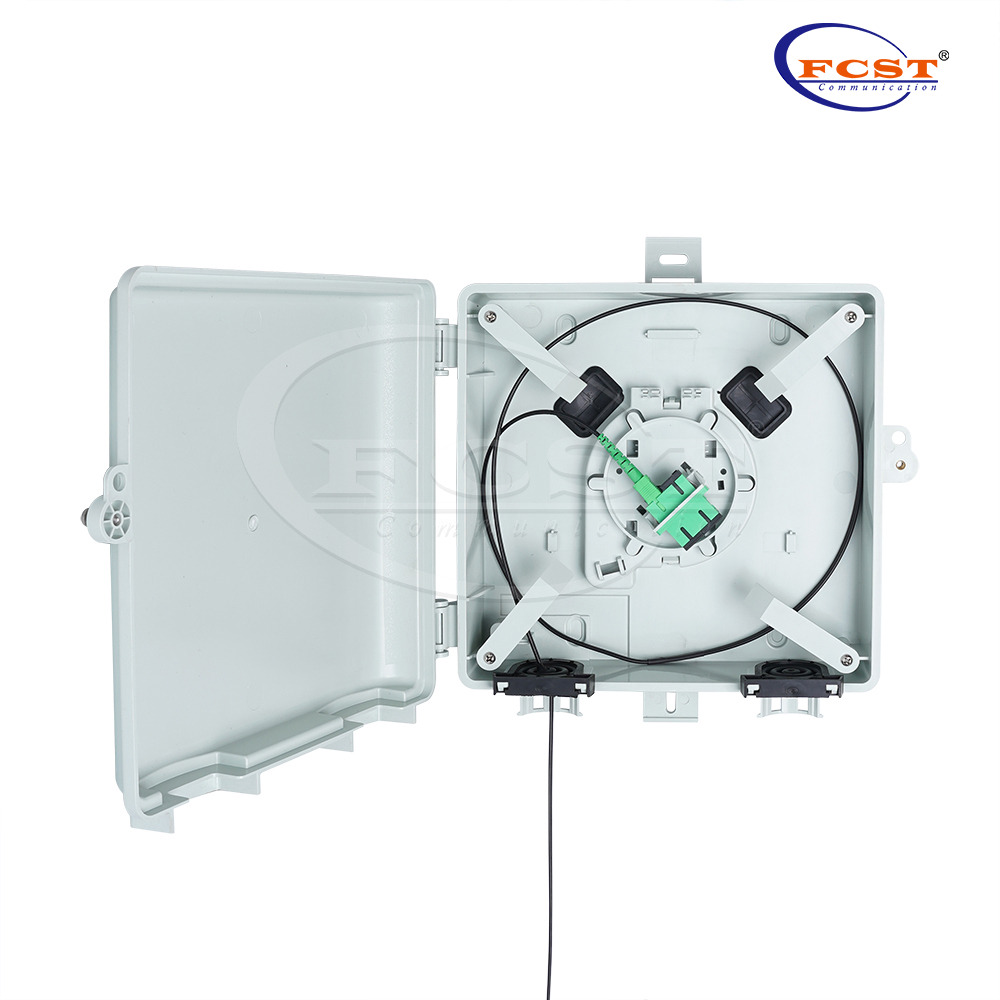

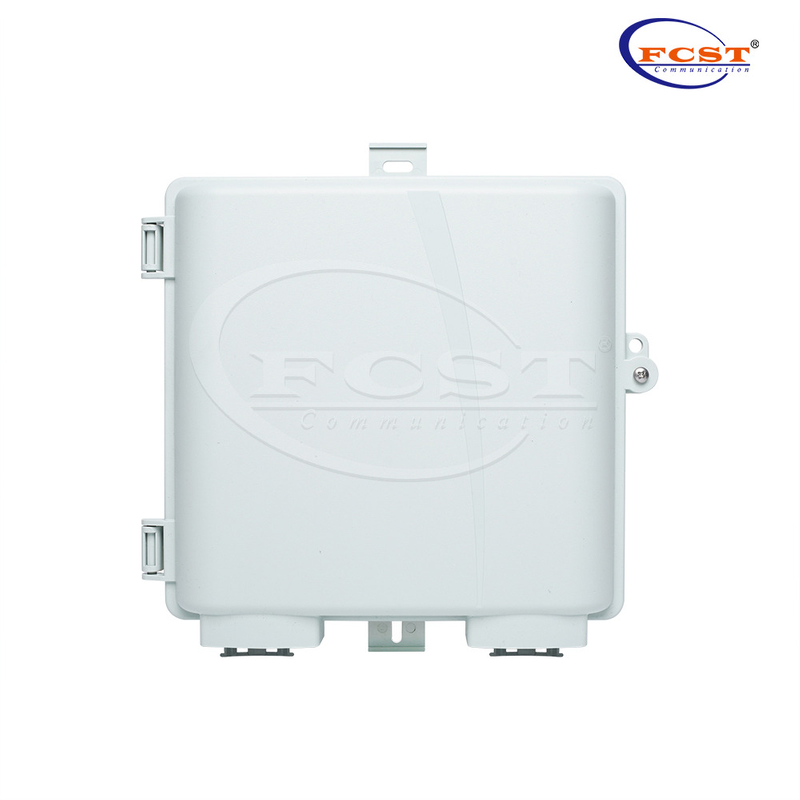

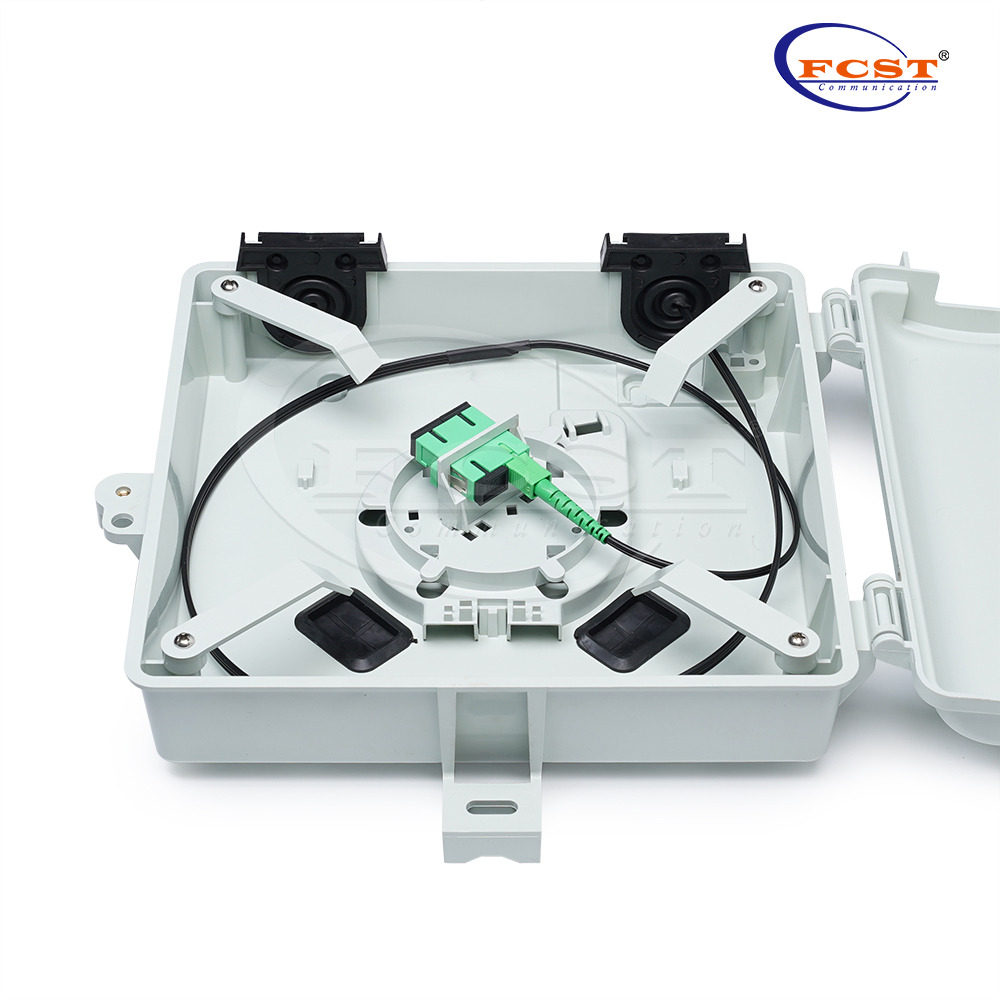

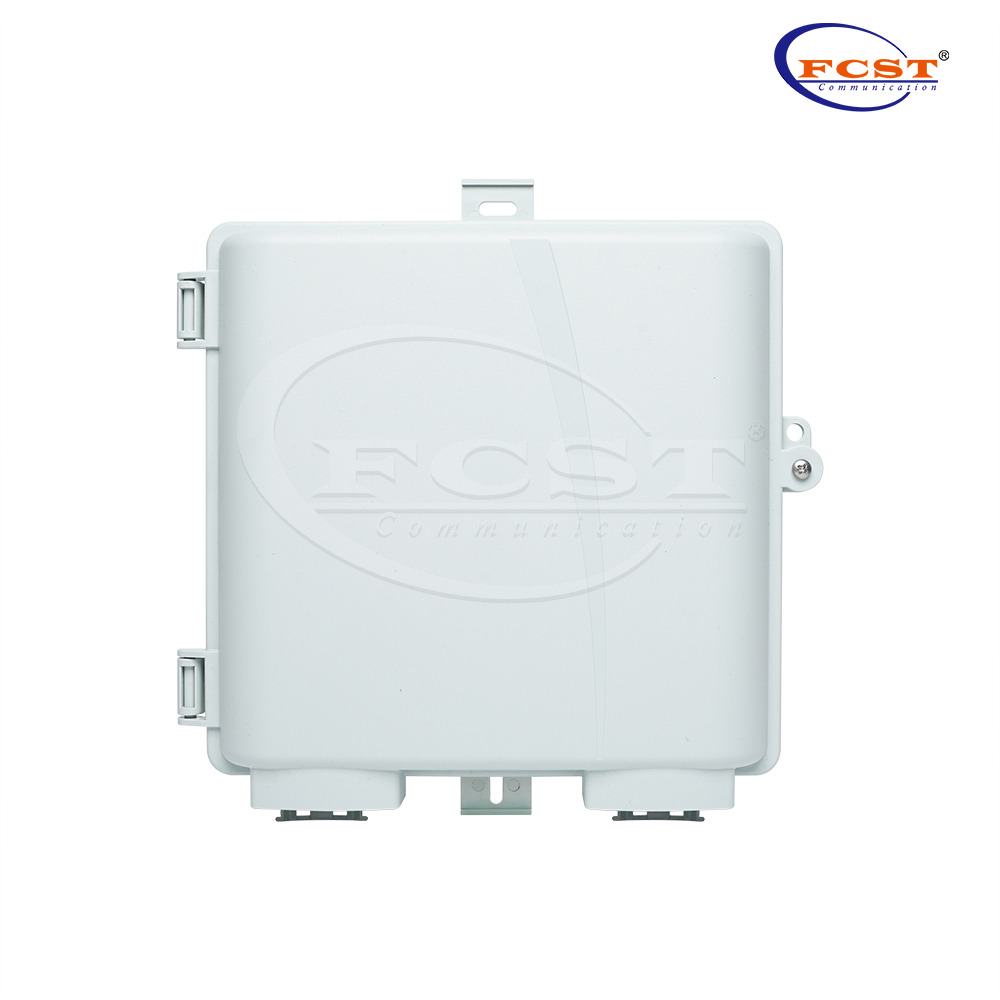

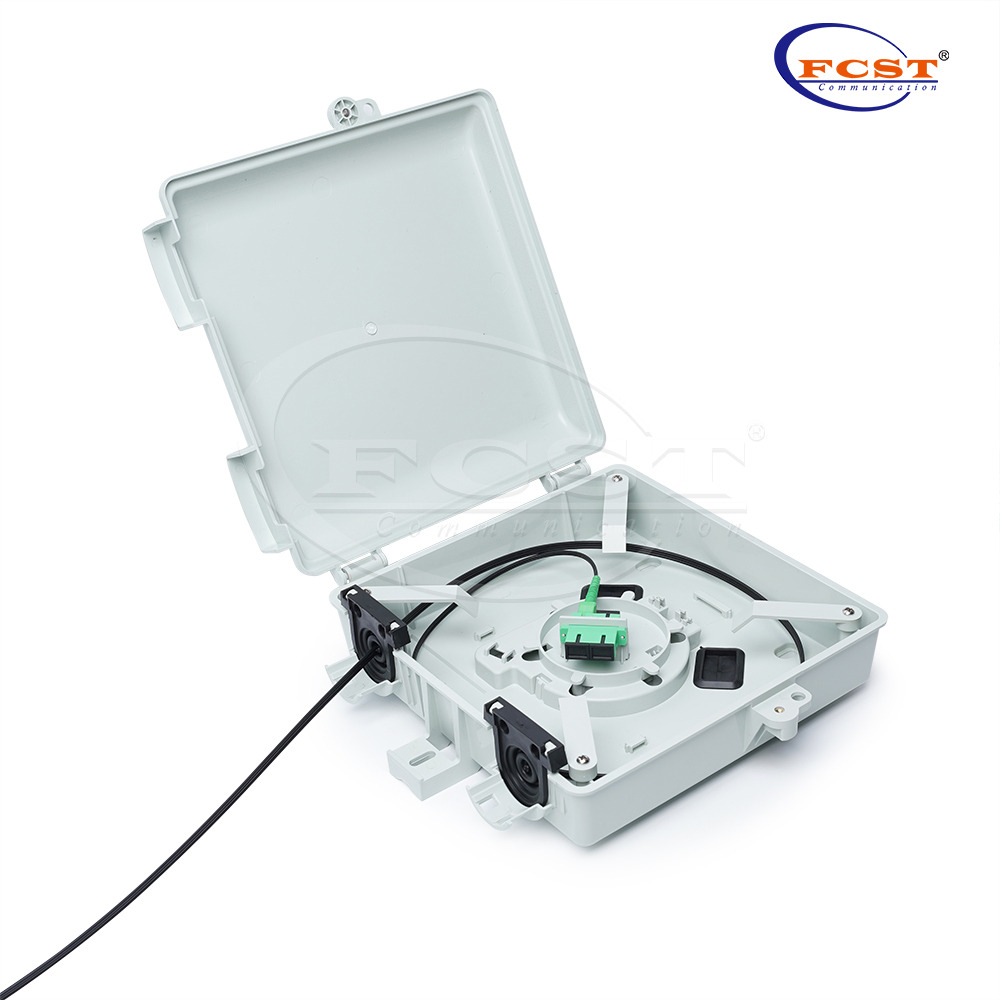

FCST022112 Fiber Entry Terminal are designed and manufactured to endure harsh environmental conditions. OurFiber Distribution Boxes are specially built to accommodate various amounts of pre-connectorised connectors or splitters needed for your fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), or fiber-to-the-curb (FTTC) project.And the pre-connectorised connectors are easy to be connected by the drop cables. It is suitable for wall mounting or pole mounting.
Product Advantages
Accepts up to 1-inch conduit.
IP55-rated for outdoor installation.
Electrical copper ground lug pre-installed.
Can hold up to two single fusion splices or one mass fusion splice.

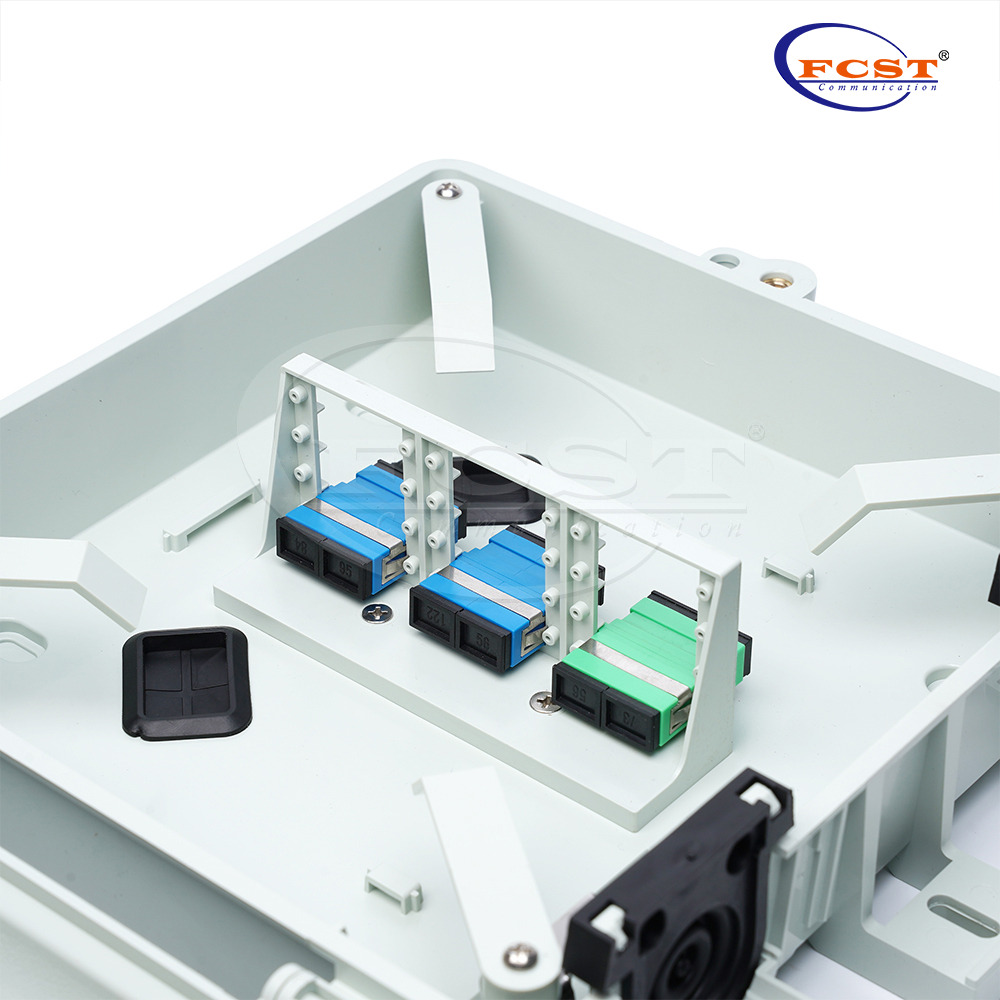

Compatible with both simplex SC/APC adapter and duplex SC/APC adapter.
Cable clamping system accommodates a variety of cable sizes & constructions.
Product Specifications
| Construction | Description |
Max. Capacity | 2/6/24cores |
Material | ABS/PC+ABS |
Color | Light Gray |
Dimensions | 232*224*74mm丨91.34* 88.19*29.13in |
Weight(g) | 43g(Accessories not included) |

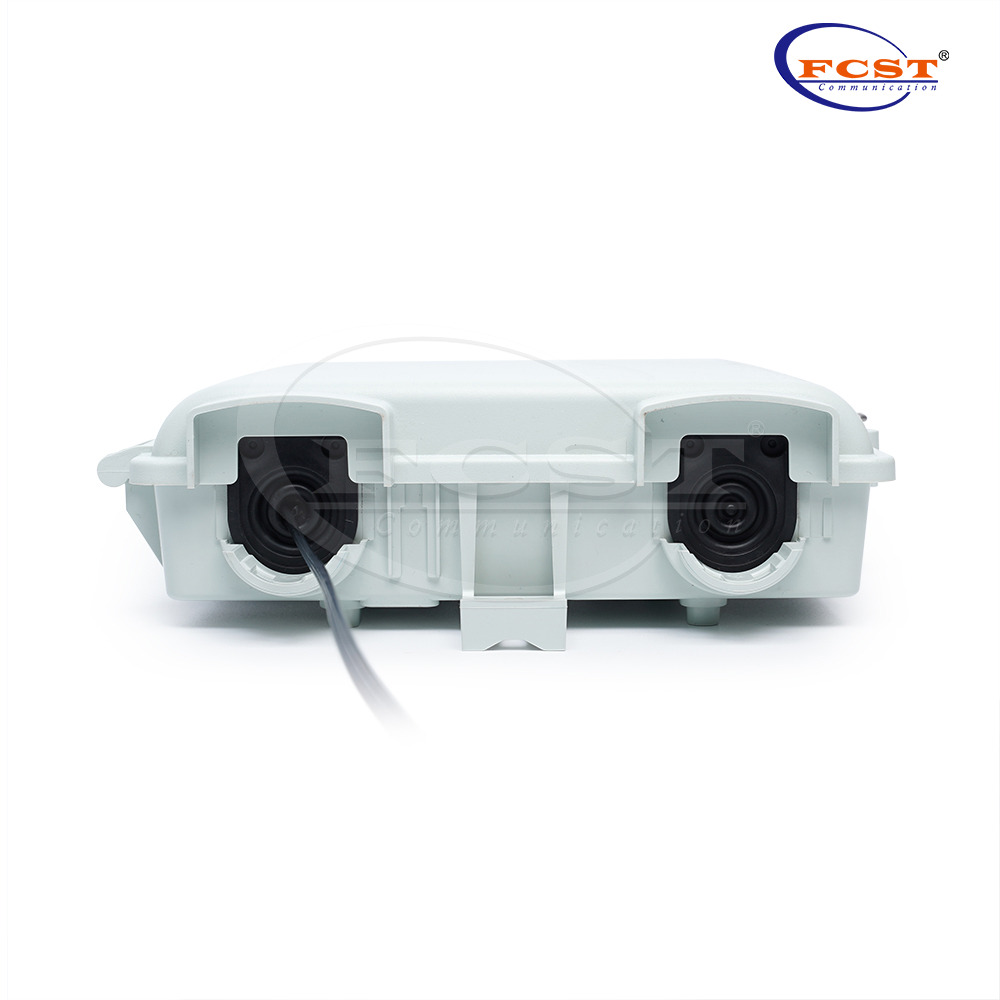

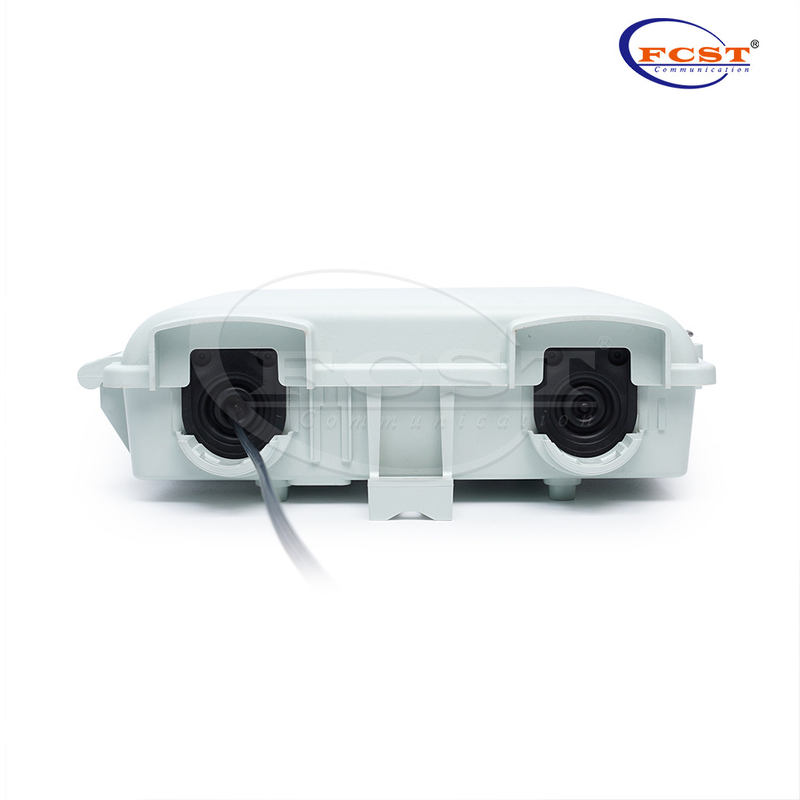

Inlets/Outlets | 1/1 |
Installation | Wall Mounting |
Operating Temperature | -40℃~+60℃ |
Diameter Of Fiber Cable | φ8-φ20mm |
Packaging Info. | 20PCS/CNT 15.11kg0.15cbm（540*540*470mm） |

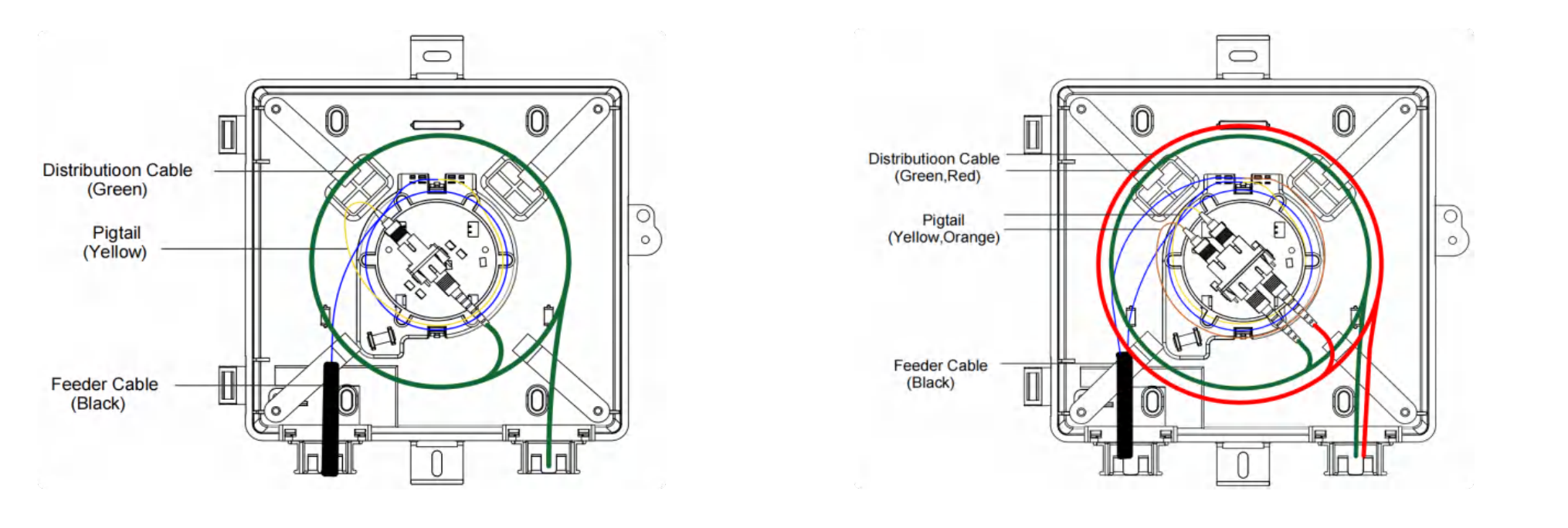

Fiber Routing

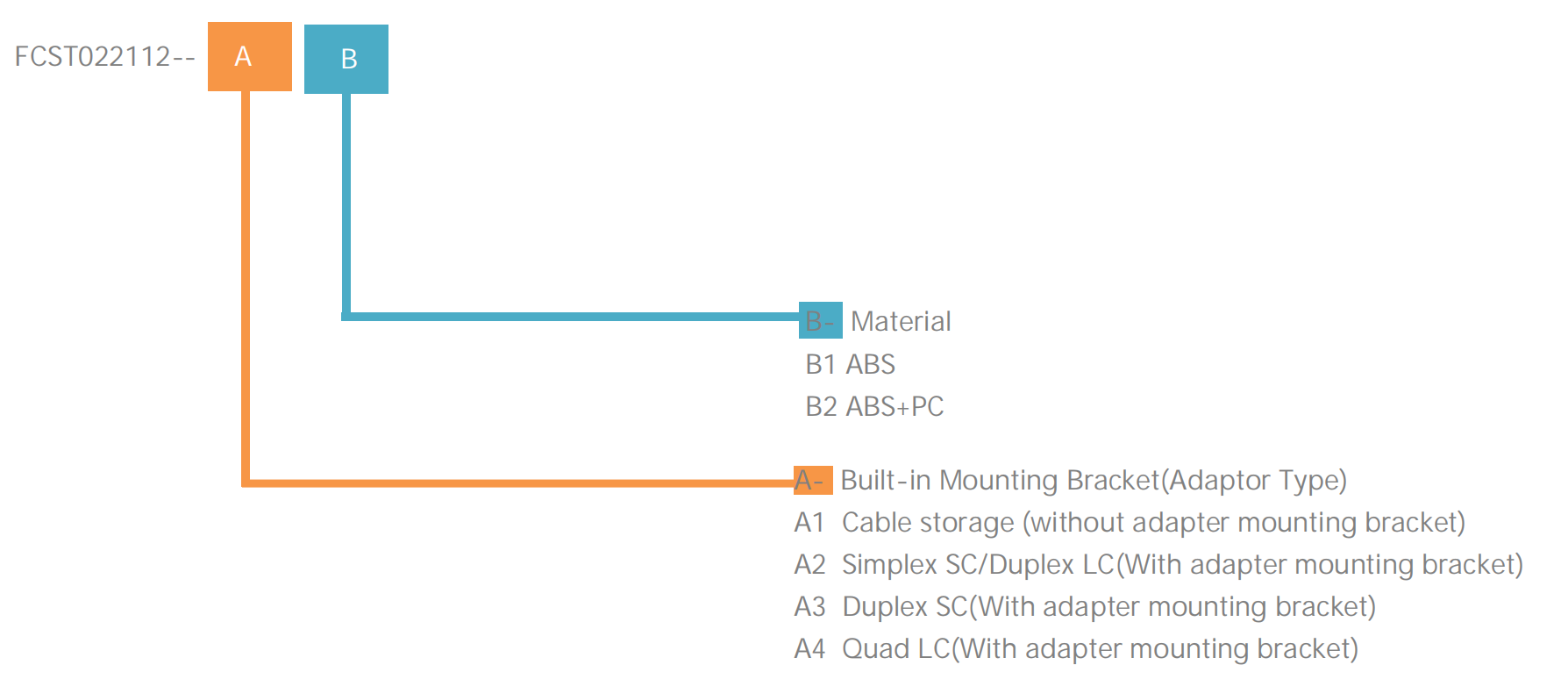

Ordering Information
*Note:Thespecifiedmodelisdeterminedbasedonoptionalconfigurations.Forexample:FCST022112--A1-B1.
