MikroJet03
Product Overview

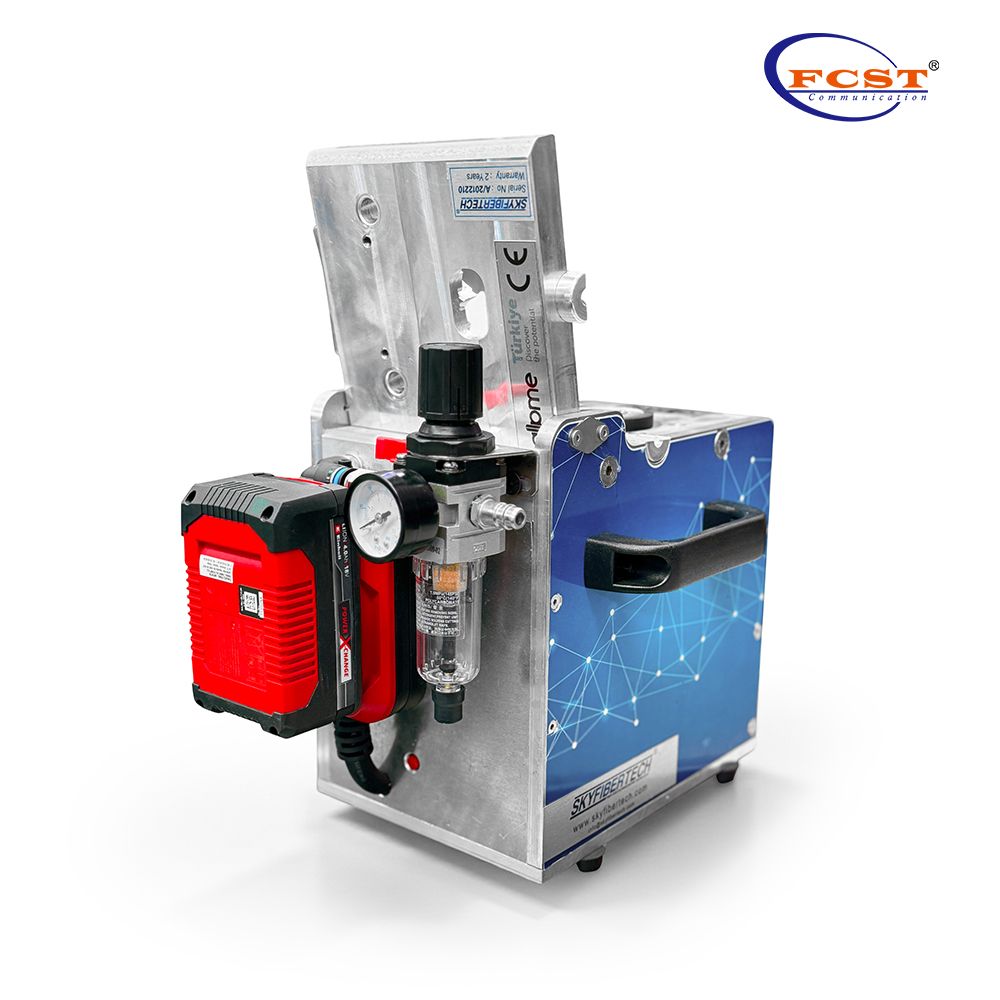

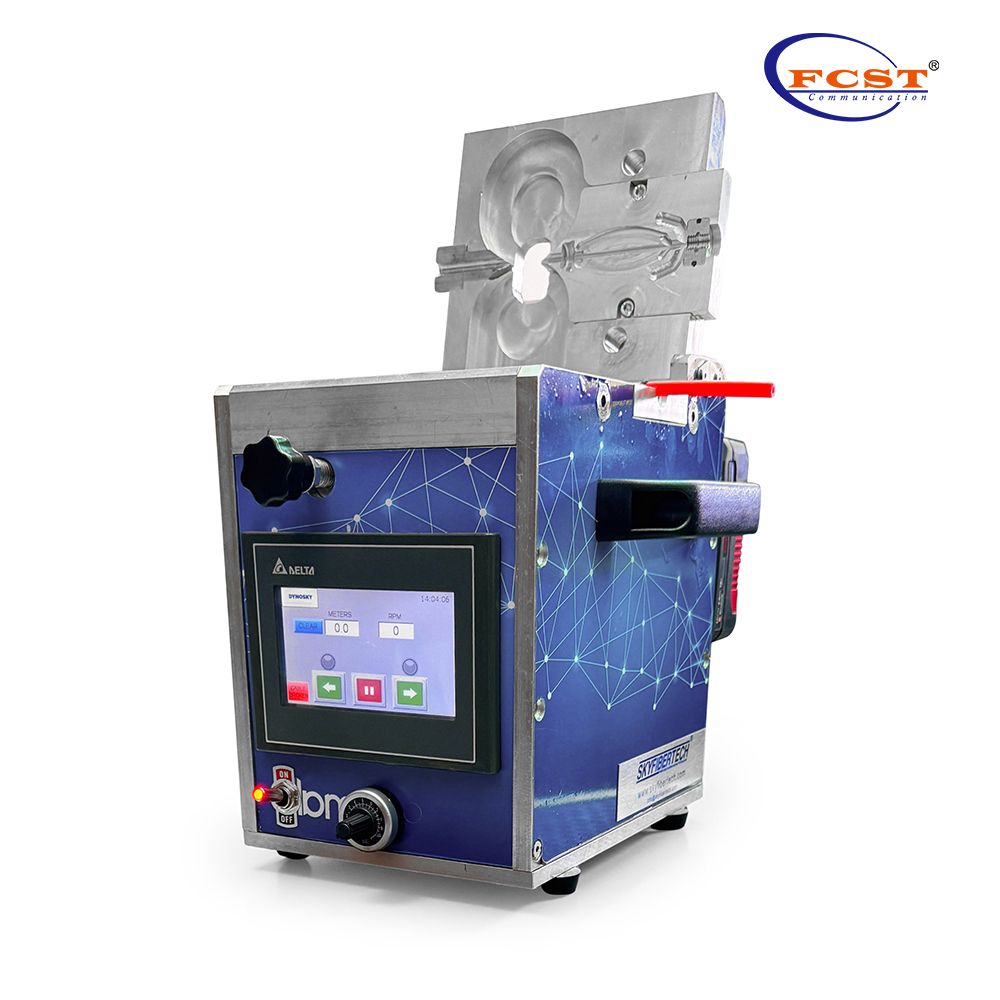

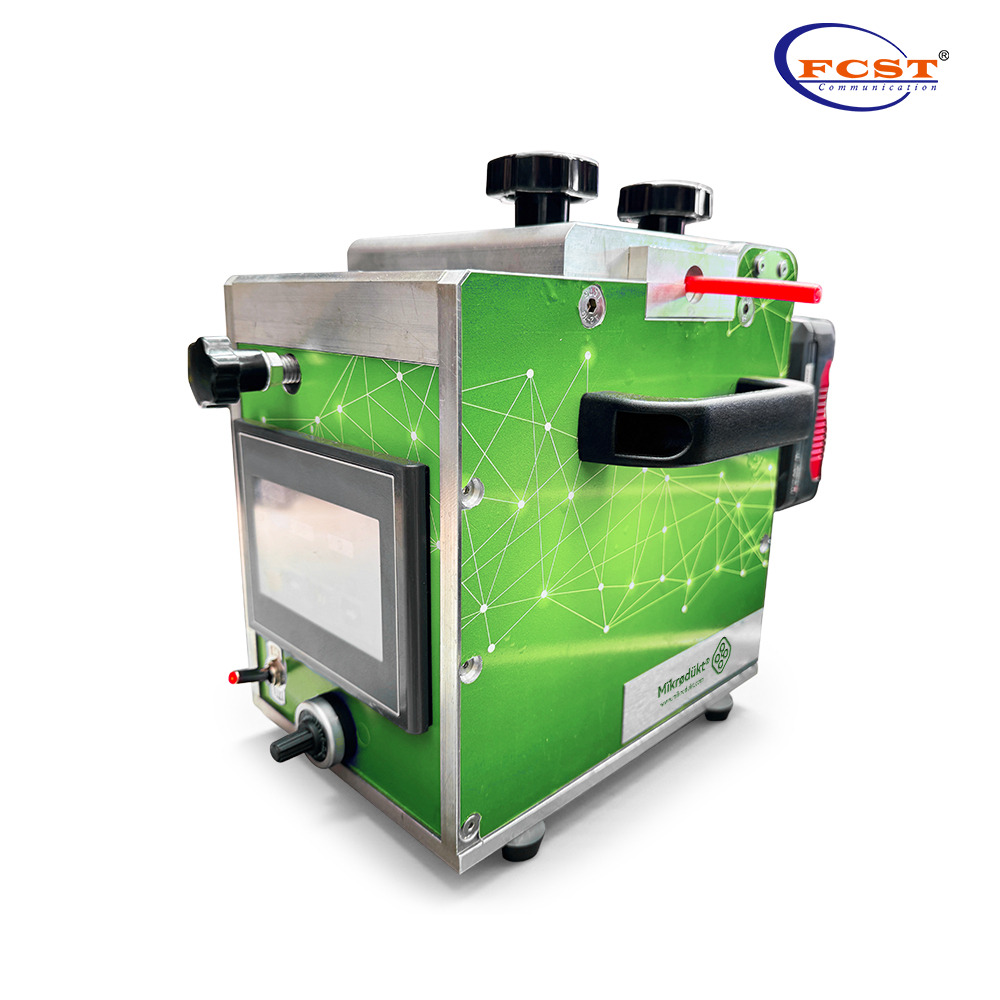

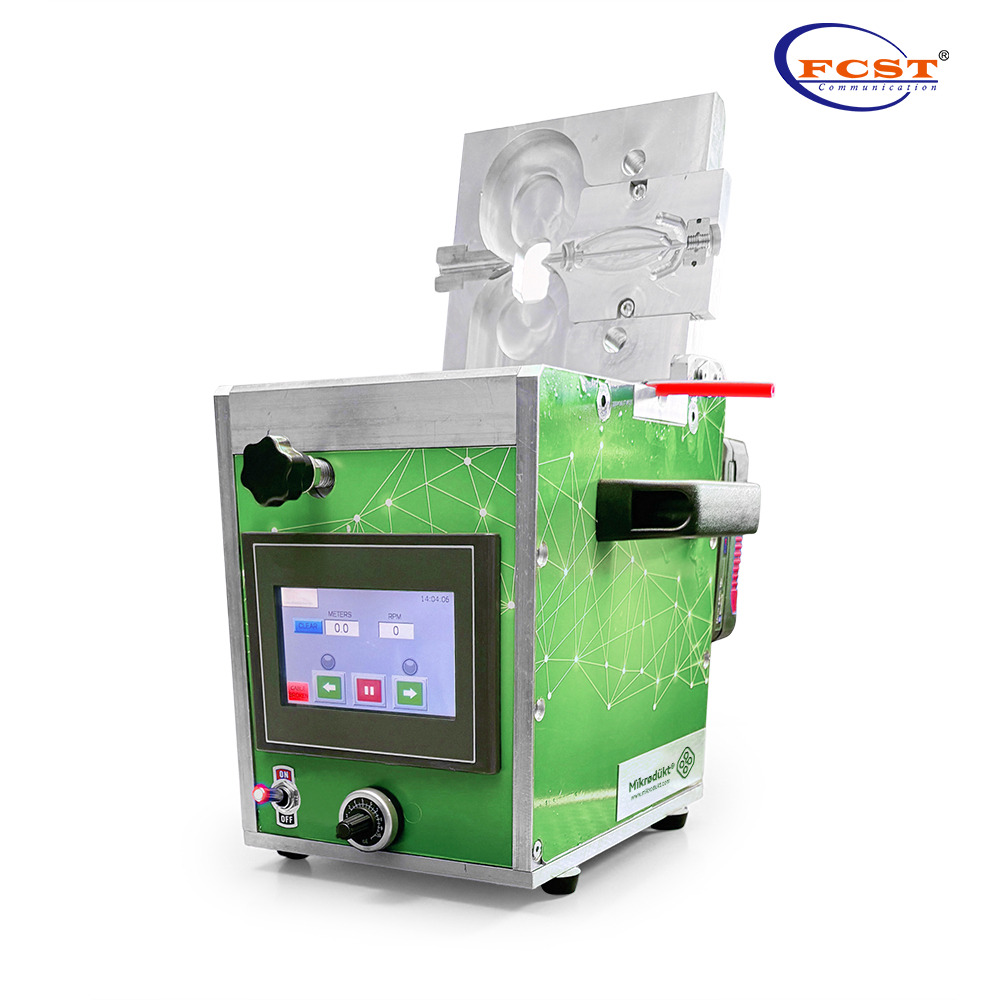

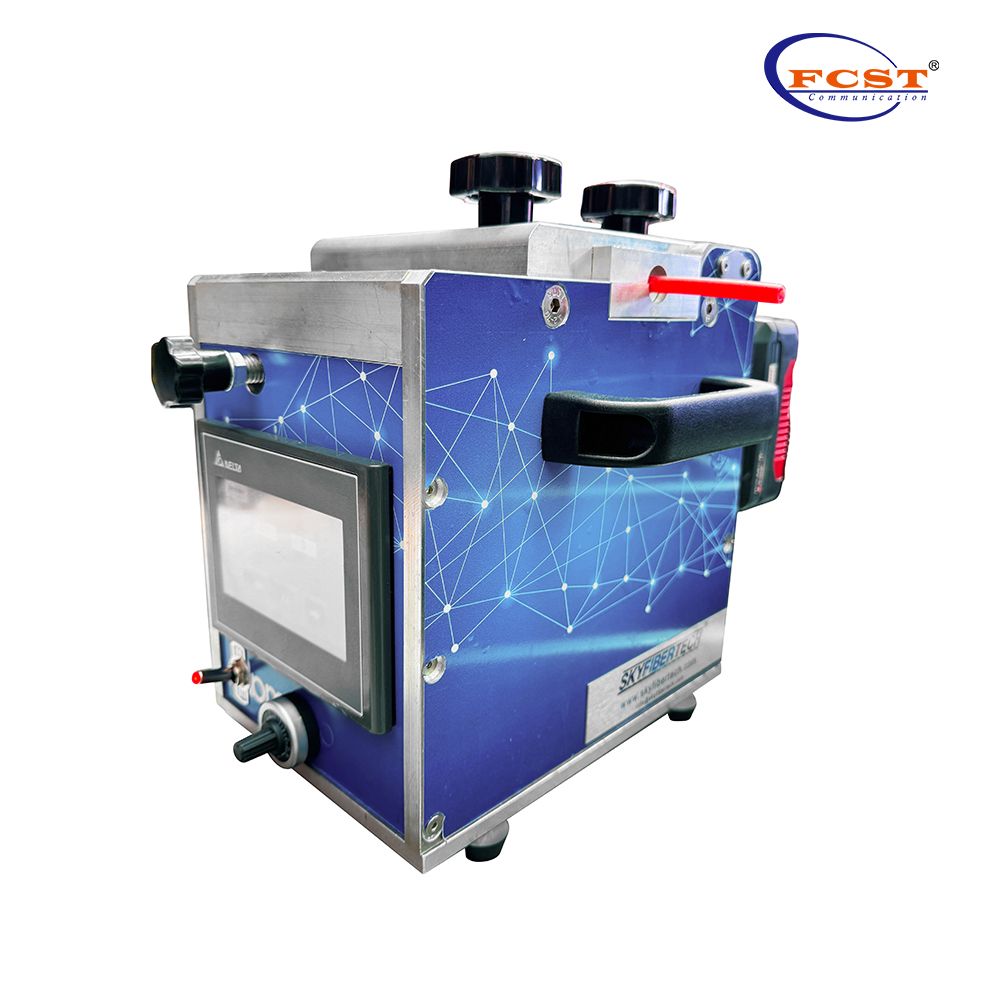

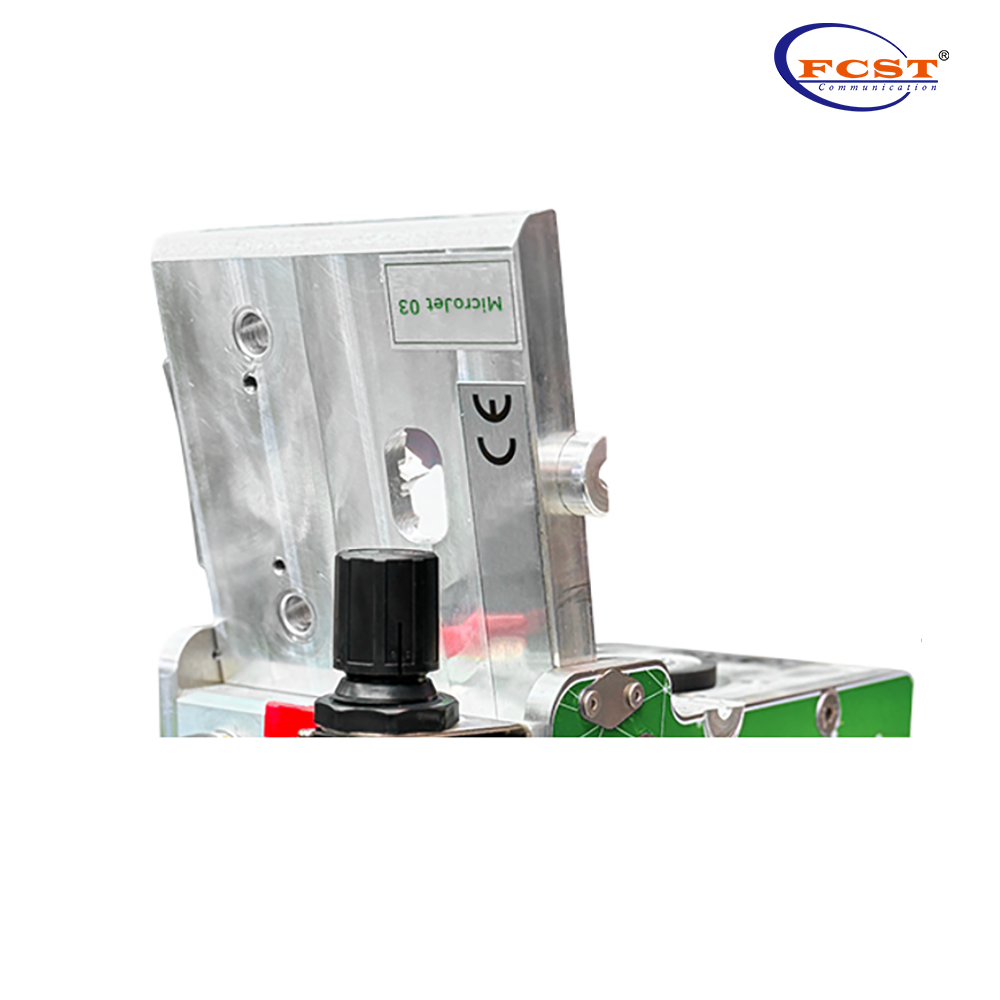

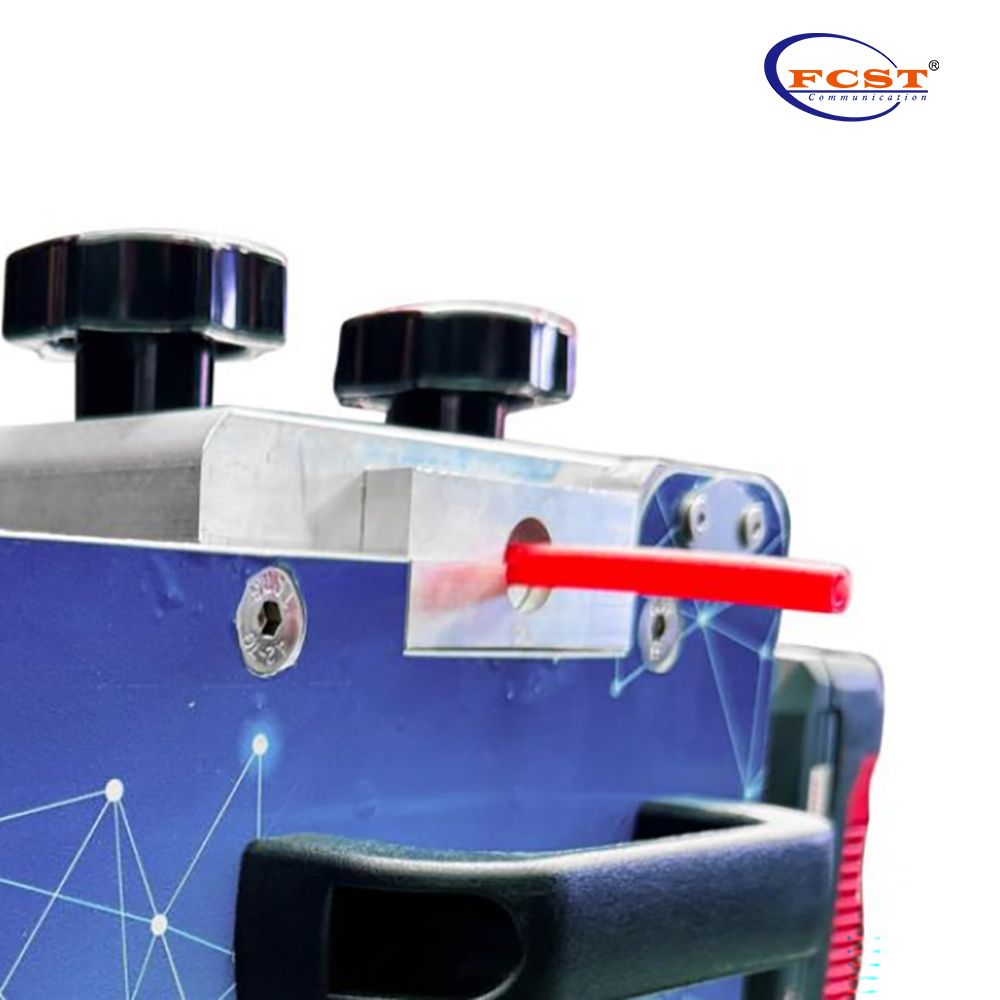

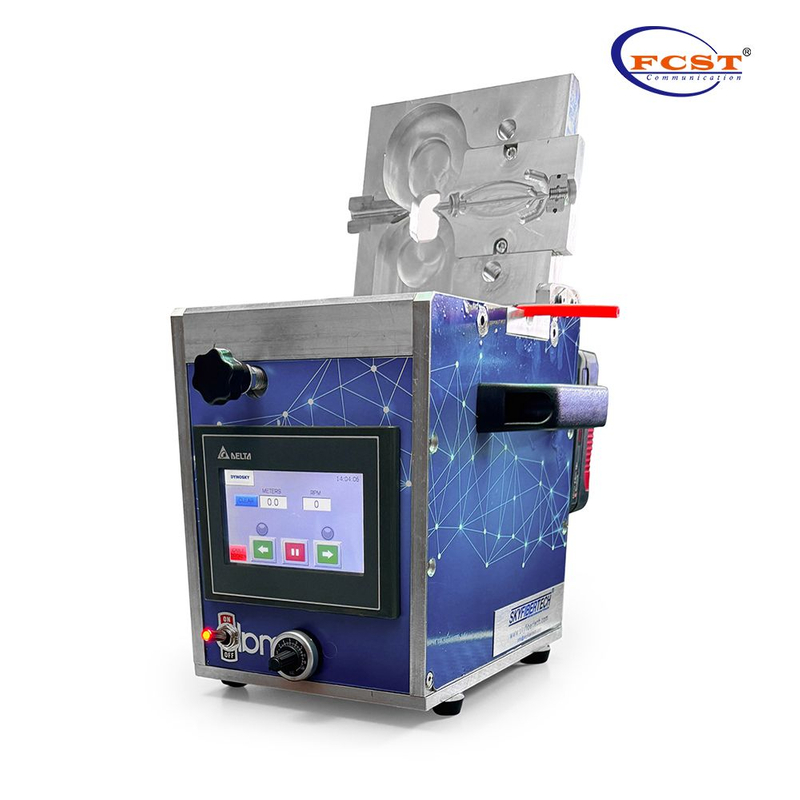

MikroJet03 Extended Fiber Blowing Machine is a compact, battery-powered fiber optic cable blowing machine engineered to handle 1mm to 6mm fiber cables with ease. Built with a high-torque servo motor powered by an internal battery, it gives you unmatched mobility on-site-no need for external electricity or power generators.Whether you're working on indoor installations or outdoor FTTH networks, MikroJet03 offers a perfect balance between portability and performance.
Product Features
Compatible with fiber cables from 1 mm to 6 mm.
Supportingduct size: 5mm,7mm, 10mm, 12mm, 14mm, 16mm.
With built-inservo motor and battery support.

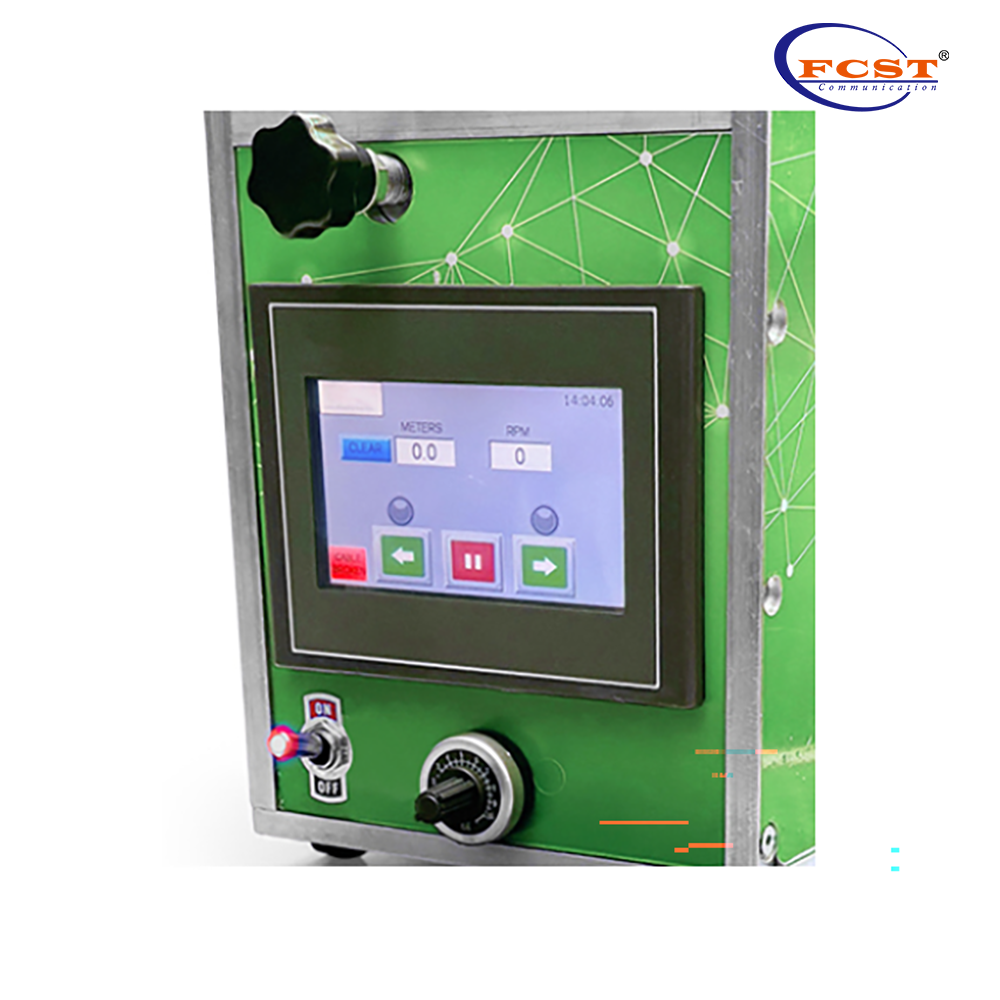

Doesn't needexternal electricity. Counter.(itsa resettable digital meter for cable length)
Forward/reverse feed with manual forward feed and optional anti-reverseprovisions.
Engineered cable stability system.
Comes with full adaptor & seal kit.
Waterproof case designed for transport on UTV or EXTV applications.
2-year service warranty and 10-year spare parts warranty.
Product Specifications
| Construction | Description |
| Micro Cable Diameter | φ1~6mm |
| Micro Tube Diameter | φ 5,7,10,12,14,16 mm |
| Blowing Distance / Max | 700m |
| Blowing Speed / Max | 100 m/min |
| Pushing Force | 0~30kg |
| Work Pressure / Max | 15 bar |
| Dimensions (L*W*H) | 250*180*160mm | 9.84*7.09*6.3in |
| Weight (approx.) | 9kg |
| Power Source | Lithium battery (Servo Motor) |
| Drive System | Dual belt feed |
| Operation Type | Automatic control |
| Warranty Period | 48months |
| Applications | FTTH, micro cable networks,indoor installations |
| Required Compressor's Efficiency | micro ducts up till 8mm:0.8m³/min micro ducts between 8-12mm:1.0m³/min micro ducts between 12-15mm:1.5m³/min |
Standard Accessories
All sizes supported by duct adapters.
Cable seals for the respective cable diameters.
Digital length counter pre-installed.
Drive wheels – high-efficiency.(for thin?and thick cables)
Battery and charger unit.
Set of Allen keys and screws.
Protective and storage case.
