What Are The Common Types & Specifications of Fiber Optic Marker Balls?

If you manage outside plant (OSP) fiber, you know the map isn't the territory. Splice points shift, cover depths vary, and long after construction, crews need a fast, unambiguous way to pinpoint buried features. That's exactly where the electronic marker ball (EMS) for fiber optic cables earns its keep: a passive, frequency-tuned resonator you can read years later with a standard RF marker locator—no batteries, no maintenance.

Why the electronic marker ball (EMS) for fiber optic cables matters

An electronic marker ball (EMS) for fiber optic cables creates a precise, repeatable reference at the spots that really matter: splices, handholes, route turns, depth transitions, and critical crossings. Because EMS markers resonate at utility-specific RF bands, they're easy to find without energizing the plant. In North America, telecom and fiber facilities are visually identified with orange under the APWA Uniform Color Code; aligning your marker inventory and labels with this convention improves field clarity and reduces mismatches between utilities. See the APWA's current guidance in the Uniform Color Code, where telecommunications (including fiber optics) are listed as orange in the 2023 resource update: APWA Uniform Color Code.

Two practical impacts you'll notice immediately:

Faster, more reliable as-built verification during closeout and future locates.

Lower risk of mislocates around high-consequence crossings, even when tracer wire is missing or damaged.

How passive EMS ball markers work (and why frequency matters)

Think of an EMS ball marker like a tuned bell buried in the right place. A compatible locator sends energy at a specific utility frequency; when that energy hits the marker, the internal resonant circuit "rings"and re-radiates a signal that the locator can detect and depth-estimate. Because each utility class lives in its own RF band, a technician can switch to the telecom band and confidently find only telecom-class markers along a congested corridor.

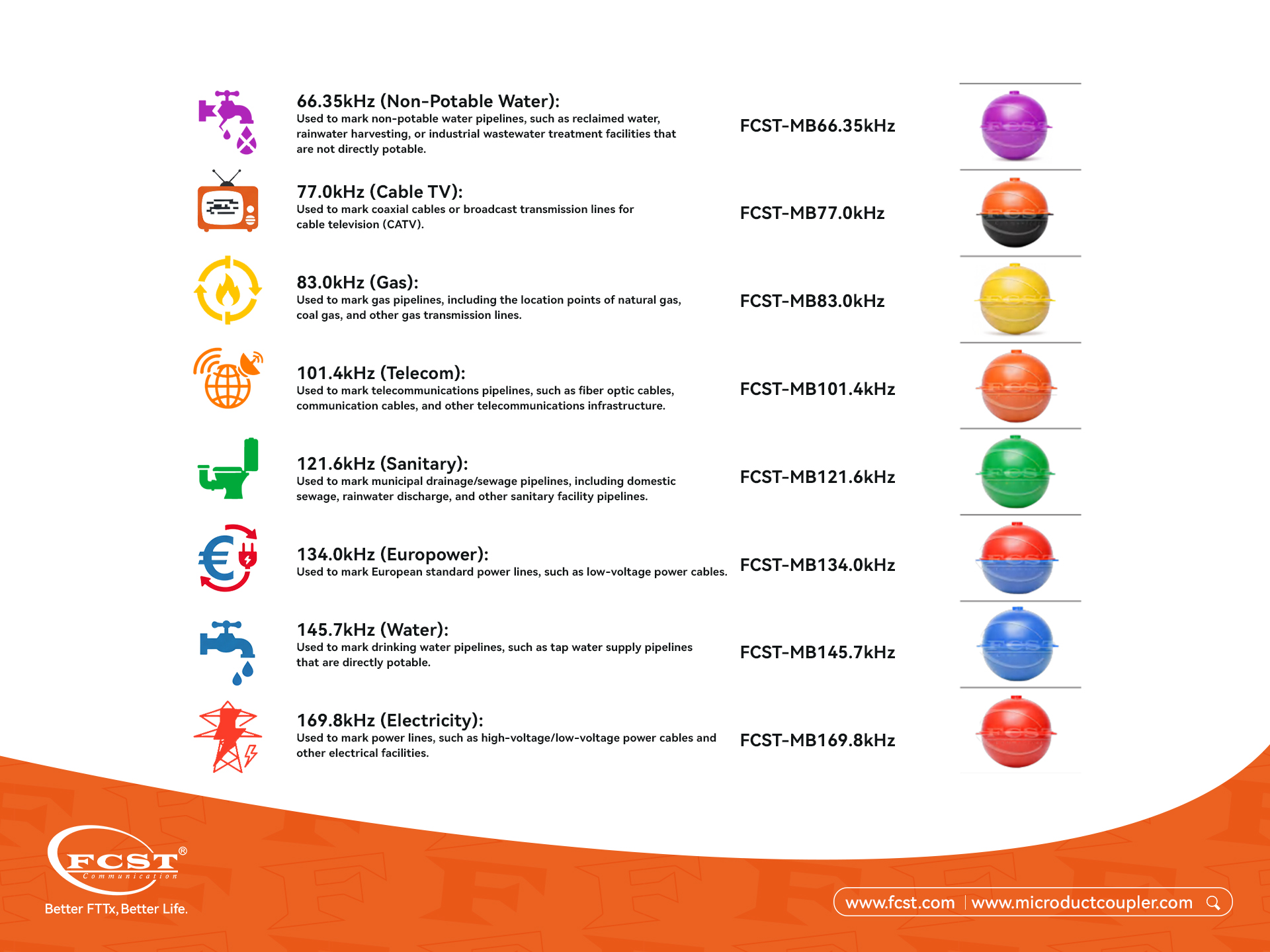

Telecom/fiber EMS markers are tuned to 101.4 kHz across mainstream vendors, and field locators list that band explicitly in their marker modes.  For example,3M's utility marker frequencies including Telecom 101.4 kHz and adjacent utilities like Gas 83.0 kHz, Water 145.7 kHz, and Power 169.8 kHz.The FCST-MB series Marker Ball include telecom 101.4 kHz, cable TV 77.0 kHz, sanitary 121.6 kHz and so on. Tempo's OmniMarker II family likewise documents a telecom band at 101.4 kHz on its product page.

Depth estimation is a function of marker/locator design and conditions like soil conductivity and nearby metallic structures. Vendors publish typical maximum detection depths by marker family.

Global types and specifications of the electronic marker ball (EMS) for fiber optic cables

Marker families used on fiber routes

You'll encounter three families in practice:

• Ball markers (self-leveling): The workhorse for telecom. Available in standard, Extended Range (XR), and optional iD variants that store asset data. Typical maximum detection depth around 5 ft (1.5 m) for iD/XR ball models in current vendor literature.

• Full-range markers (non-ball geometry): Used when you need deeper detection—up to about 8 ft (2.4 m) .

• Near-surface/disc markers: Useful for shallow features and path marking; but relevant when features sit very close to grade.

Material construction is typically a durable, water-resistant polyethylene or HDPE shell with a sealed passive resonant circuit.

Frequency and color mapping (telecom and adjacent utilities)

Depth and operating envelope matrix
Depth capability depends on both the marker and the locator. The matrix below synthesizes ranges commonly cited across current brochures and data sheets. Use these as planning envelopes; verify against specific SKUs and your locator models in field conditions.

Operating temperature envelopes for EMS marker systems are often published at the system level (marker plus locator). A common envelope appearing in current 3M documents is −4 to 122°F (−20 to 50°C) for equipment and field use.

Engineering selection guide for fiber projects

Picking the right electronic marker ball (EMS) for fiber optic cables is about matching your installation reality and your locator fleet.

Burial depth and accessibility: For handholes, splices, and features at typical telecom depths, iD/XR ball markers with ~5-ft detection are the baseline. If your plant sits deeper (e.g., certain river crossings or embankments), consider full-range markers at those critical points so you still meet your verification plan.

Soil and surroundings: High-conductivity soils and proximity to large metallic structures can attenuate or skew depth readings. Favor Extended Range or full-range units at high-interference locations and plan for test reads during backfill when possible.

Locator ecosystem: Standardize on marker bands supported by your fleet. 3M Dynatel models explicitly list telecom 101.4 kHz and adjacent utilities; Radiodetection RD7100M/RD8100M families provide RF Marker modes for mainstream bands. If you mix fleets, validate programming and operator workflows during pre-job meetings.

Placement objectives: If the goal is asset identification (e.g., "this lid belongs to our fiber splice"), mount an XR ball under a non-metallic handhole lid. If the goal is route navigation in featureless right-of-way, consider a pattern at turns, depth transitions, and critical crossings rather than uniform linear spacing.

Installation and verification best practices (fiber-focused)

The golden rule: place the electronic marker ball (EMS) for fiber optic cables directly above the feature you want to find later, then verify before you leave the site.

Placement points that pay off: Splices and enclosures, handholes, sharp route turns or offsets, depth transitions, and critical crossings (pipelines, rail, major road bores). These are the locations crews actually need to find—so mark them.

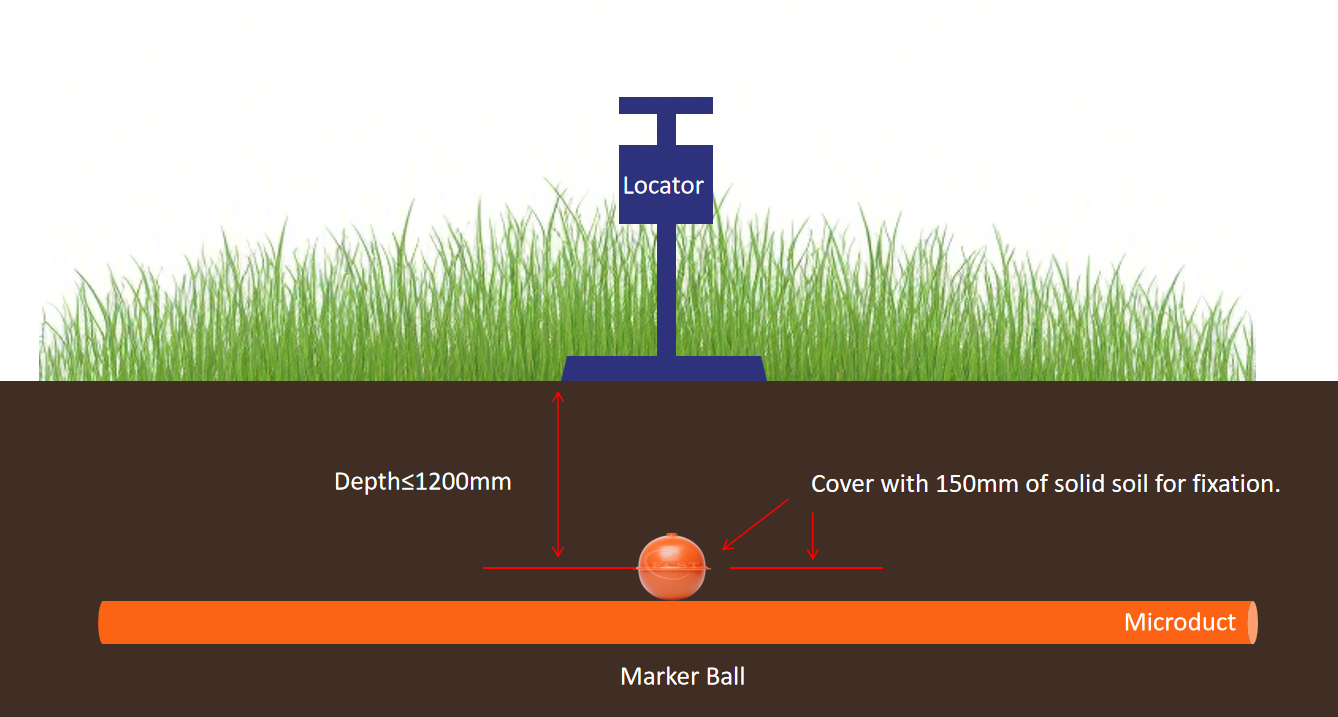

Backfill and stabilization: After seating the ball marker in clean fill, hand place at least ~6 in (≈15 cm) of soil over it to prevent movement when mechanical backfill starts. This practice appears in 3M's EMS markers technical data sheet and helps keep the resonator centered for accurate future reads.

Metal proximity and verification: Nearby metallic structures can cause coupling and depth errors. Maintain reasonable clearance where practical, and always verify with your locator after initial backfill. 3M's locator data sheet calls out environmental effects and depth capability tables by marker family, which is useful when setting expectations with crews.

Handhole tip: Where lids are non-metallic, Extended Range ball markers can be affixed to the underside of the lid so the marker rides with the access point, staying aligned through backfill and future resurfacing.

A quick word on linear spacing: Most vendors avoid prescribing fixed spacing along straight runs because soil and depth vary widely. If your organization uses interval patterns (e.g., rural runs every few hundred meters), document them in your SOP and test for coupling or ambiguity before making them standard.

Locator compatibility and interoperability

Your field results depend on both the marker and the reader. The good news: the telecom-class band at 101.4 kHz is widely supported.

3M Dynatel: The 1420X/7420X families (and related models like 2550X/2573X and 7550X/7573X) detect standard utility marker frequencies and, for iD markers, can read/write asset data. The current Dynatel data sheet lists the telecom band explicitly and provides depth-capability tables by marker family: 3M Dynatel 1420X/7420X data sheet (2021).

Radiodetection: RD7100M/RD8100M series include RF Marker modes for common utility markers; their user guides describe enabling per-utility marker modes. Confirm your exact model's marker set and any regional frequency packs before deployment: RD7100 Marker user guide (2023), RD8100 Marker user guide (2023). For a concise explainer, see Radiodetection's knowledge base article on RF Marker mode (2025): RF Marker mode overview.

Vivax-Metrotech: During this research window, we did not locate an official, current document listing EMS marker frequency support by model. If vLoc units are in your fleet, request confirmation from the manufacturer and obtain the manual for your exact model before specifying EMS markers as a primary locate method.

Interoperability tip: When you mix locator brands, run a short acceptance test during mobilization—read a known 101.4 kHz telecom marker at representative depth/soil, record signal strength and depth, and capture any operator notes on best-practice swing/centering techniques.

Standards, colors, and compliance notes

Color conventions: In the U.S., telecommunications (including fiber optics) are orange per the APWA Uniform Color Code. Using orange-labeled or orange-capped telecom markers and documenting this in project specs makes your field program more robust. Source: APWA Uniform Color Code (2023).

Ingress and crush ratings: Current mainstream vendor literature for ball markers does not consistently publish IEC 60529 IP ratings or numeric crush strengths. If your project requires them, obtain SKU-specific documentation from the manufacturer.

Materials compliance: RoHS/REACH declarations are sometimes available at the product-family or SKU level but aren’t universally stated in public brochures. Ask for compliance letters as part of submittals when needed.

FAQ and glossary for specifiers

FAQ

What's the best electronic marker ball (EMS) for fiber optic cables at typical telecom depths?

For most splices and handholes, a telecom-tuned iD or Extended Range ball marker with ~5-ft detection is a solid default, validated by current brochures and locator data sheets; verify with your specific locator model and soil conditions using a test read during backfill.

Can I rely only on EMS markers instead of tracer wire?

They serve different purposes. EMS markers provide precise point references without needing continuity. Tracer wire supports continuous line locating under active signal. Many operators use both for redundancy at critical features.

How do I avoid marker coupling or ambiguous reads in congested corridors?

Favor placing markers at discrete features (splices, turns, crossings) rather than uniform intervals; maintain practical separation from large metallic masses; and verify with a locate after initial backfill to confirm signal quality. 3M's technical data sheet and locator manual notes on environment and metal proximity are your guideposts.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
