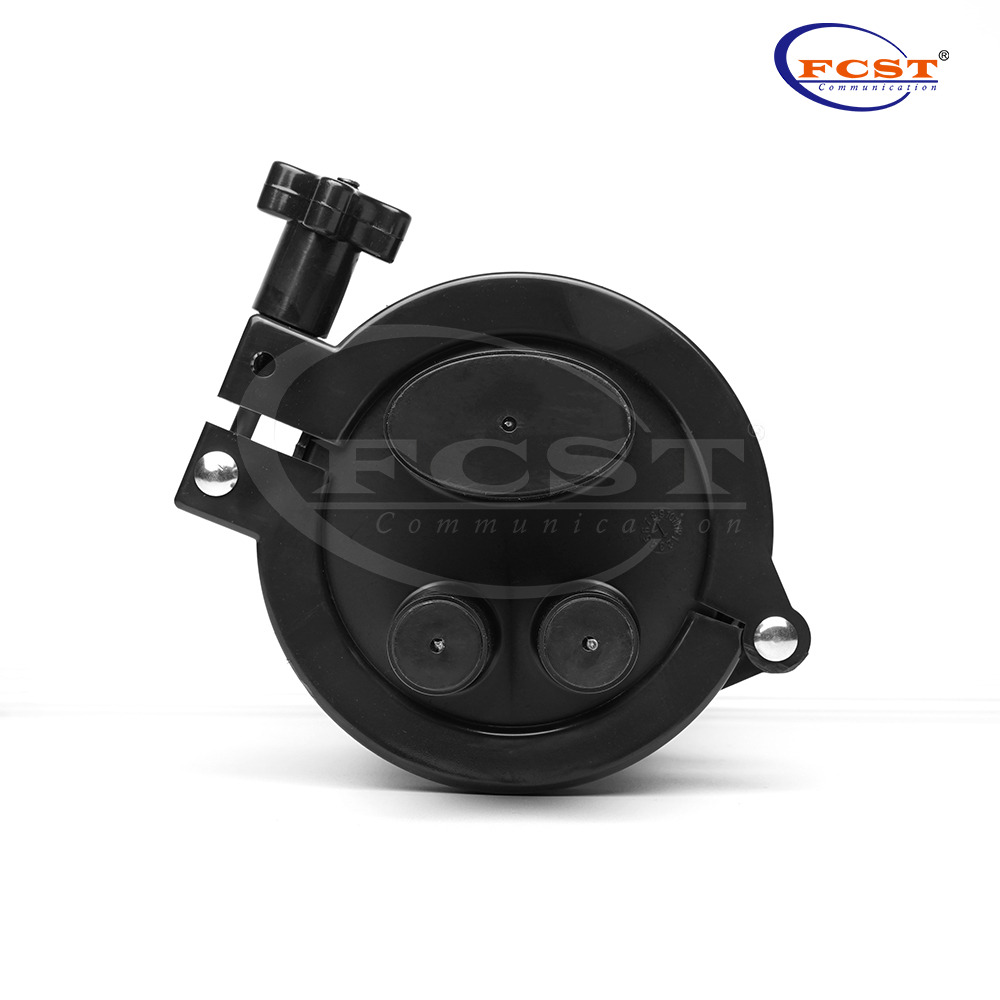

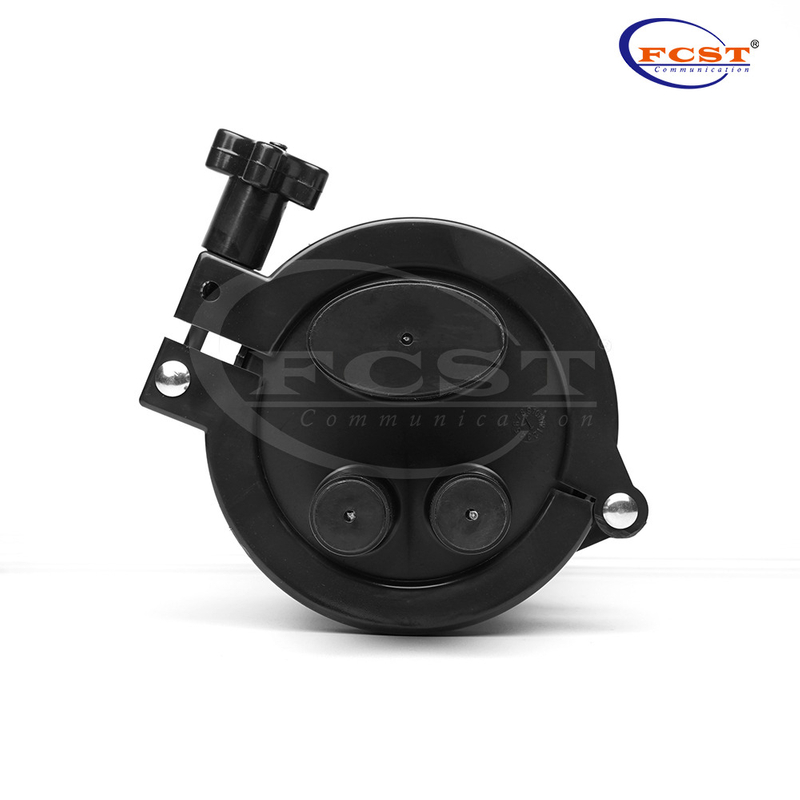

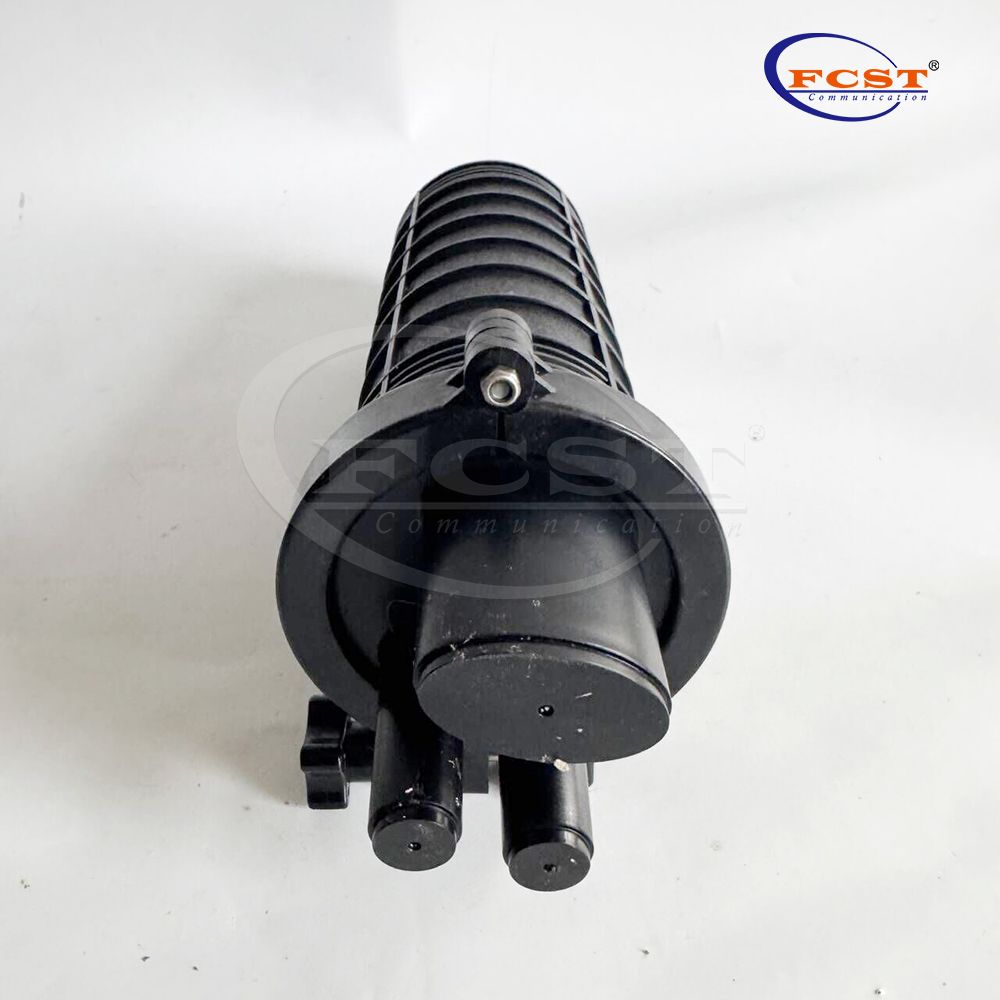

FCST012255 24F Underground Outdoor Fiber Optical Splice Closure

Single-ended design, easy to install overhead or on pole.
Small size, suitable for narrow space applications.(manholes and pipelines) .
The dome can be quickly opened for maintenance and repair,no special tools required.

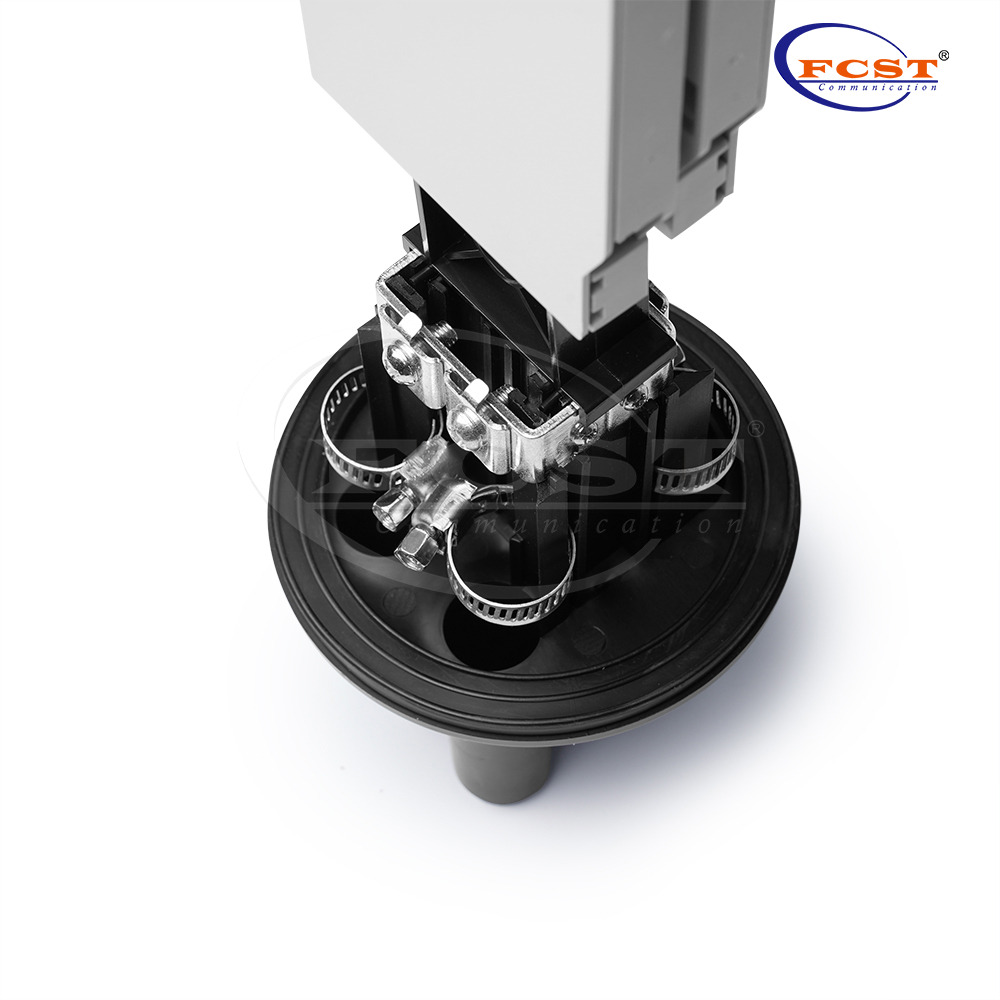

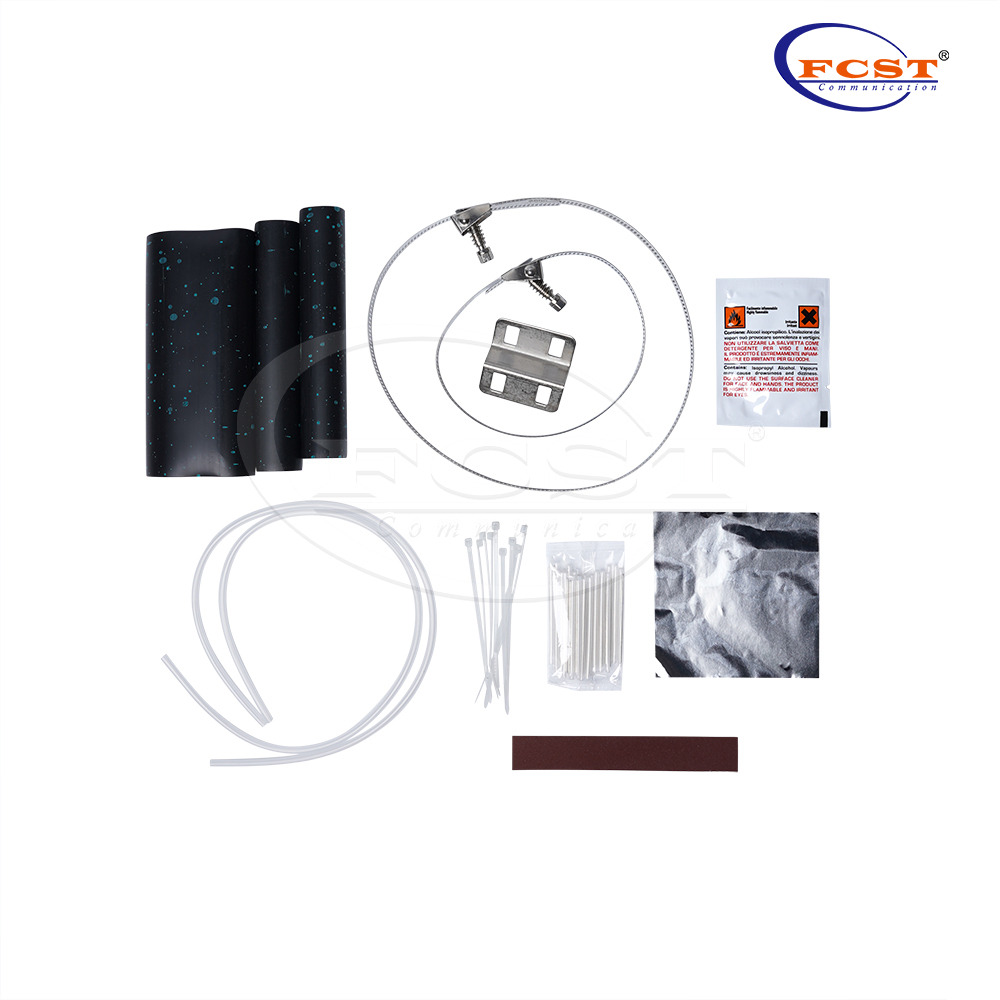

Dome and base is sealed with silicone rubber ring,cable entry ports are sealed with heat shrink tube, good air tightness.

Availability:



Get a Quote Add to Quote Cart

Model:
FCST012255
Brand:
FCST
Code:
FCST012255
MOQ:
50

Product Description

Product Overview

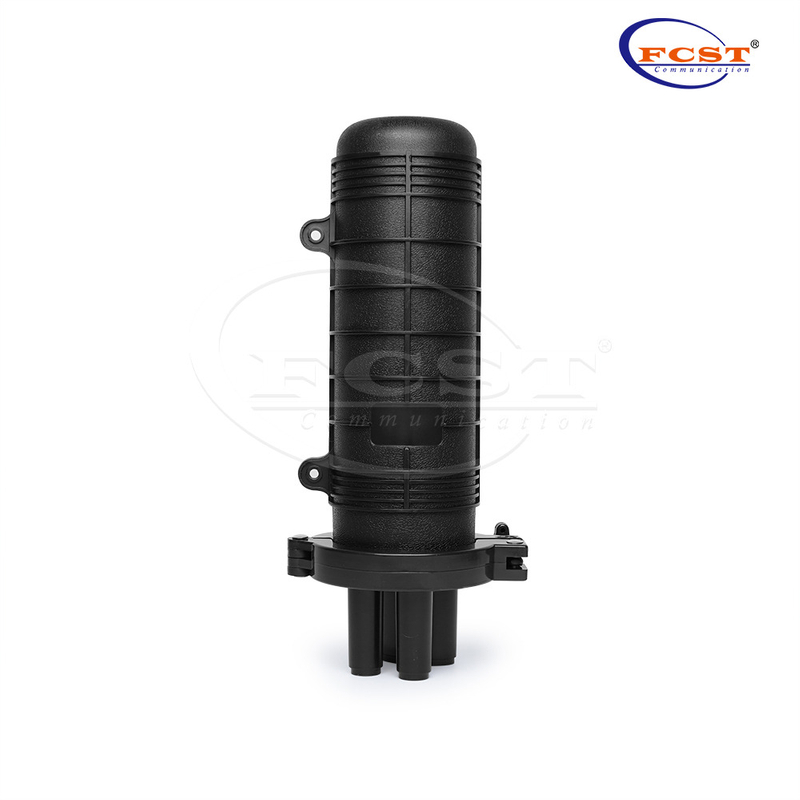

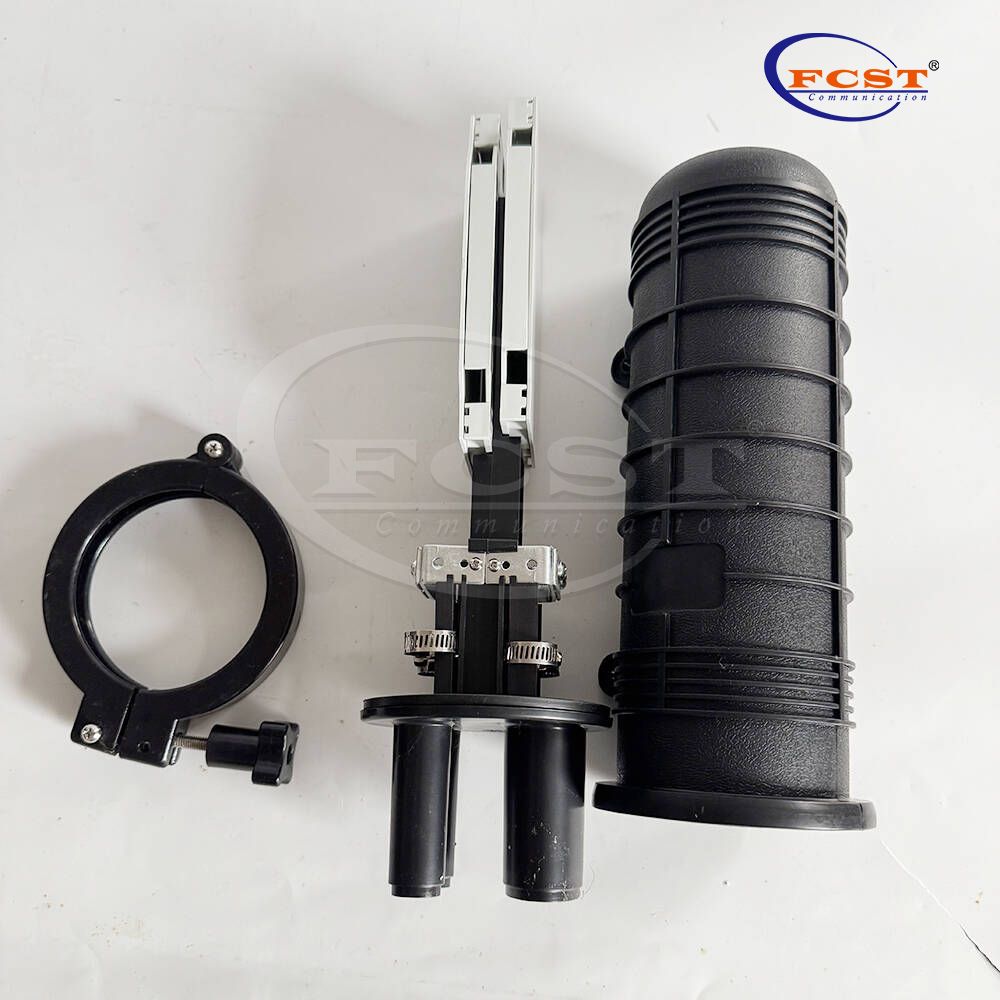

FCST012255 Fiber Optic Splice Closure provides space and protection for the fiber optic cable splicing and joint.Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.

Single-ended design, easy to install overhead or on pole.
Small size, suitable for narrow space applications.(manholes and pipelines).

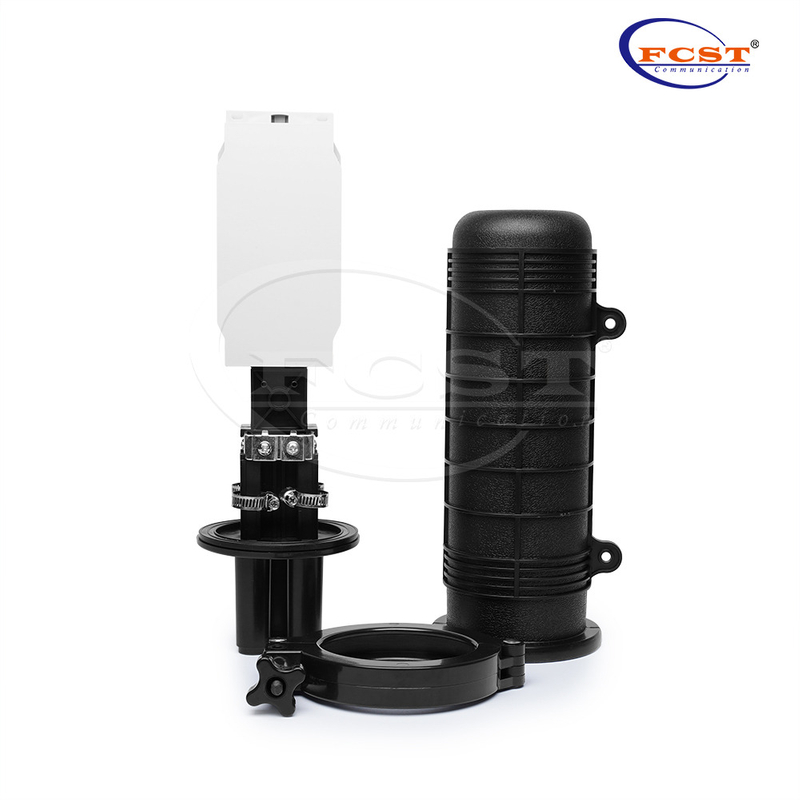

The dome can be quickly opened for maintenance and repair,no special tools required.
Dome and base is sealed with silicone rubber ring,cable entry ports are sealed with heat shrink tube, good air tightness.

Product Specifications

Construction	Description
Max. Capacity	Bunchy: 12-24 Cores
Material	Dome Base: PP \| Tray: ABS
Dimensions	330mm 85mm丨12.992in 3.347in
Inlets/Outlets	2/2
Installation	manholes \| pipelines
Operating Temperature	-40℃~+60℃
Diameter Of Fiber Cable	φ7-φ20mm
Sealing Mode	Heat Shrink

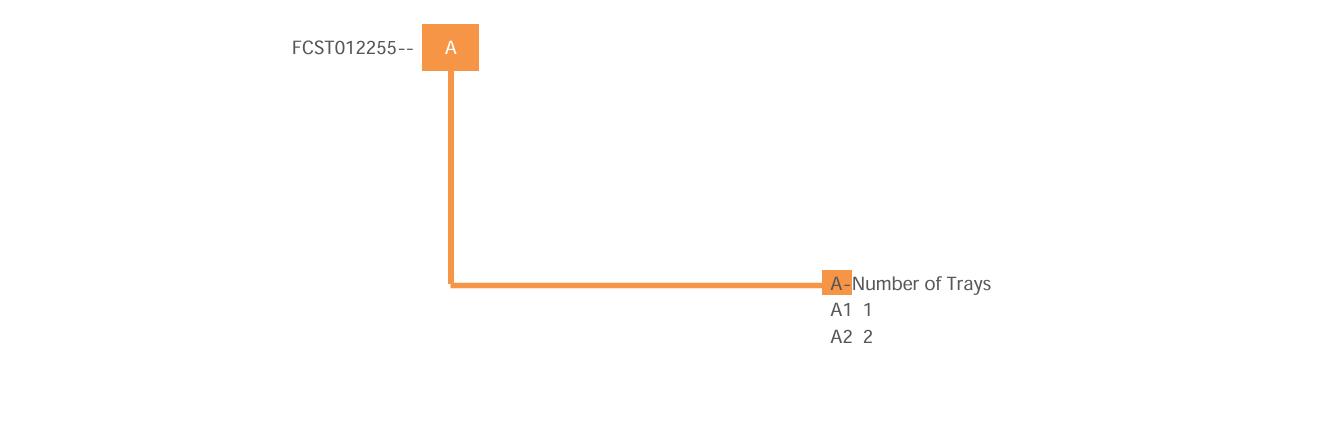

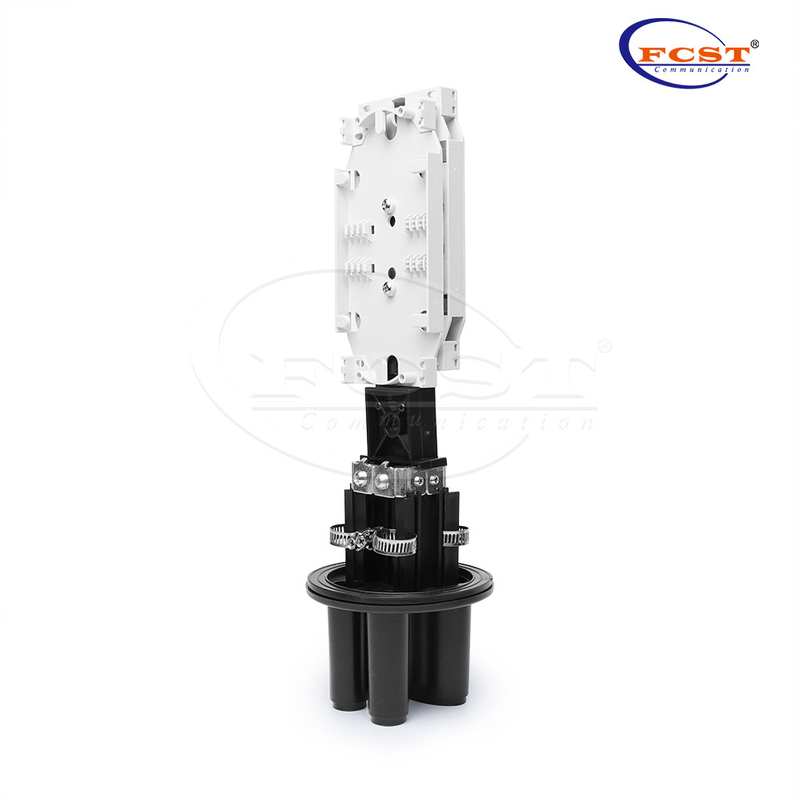

Number Of Trays	2
Capacity Of Tray	12F
