FCST01131-D
FCST
FCST01131-D
Product Overview
FCST01131-D Fiber Access Terminal Closure is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution is done in this box, and meanwhile it provides solid protection and management for FTTx network.
Product Advantages
Fiber routing is reasonable.
Suitable for indoor or outdoor ,wall-mounted , pole installation.
Cable sealing terminations use gel-sealing technology instead of Plain rubber seal.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
Made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance,sturdiness and durability.
Product Specifications
Construction | Description |
Max. Capacity | 8 Cores |
Material | PP |
Dimension (mm) | 156*185*53.5 |
Inlets/Outlets | 2/8 |
Installation | Pole-mounting/Wall-mounted |
Net Weight(g) | 470 |
Protection Level | IP65 |
Optional Accessories | Pigtail,Adapter |
Input Cable Method | Cutting |
PLC Splitter Available | Yes |
PLC Splitter Type | Tube splitter |

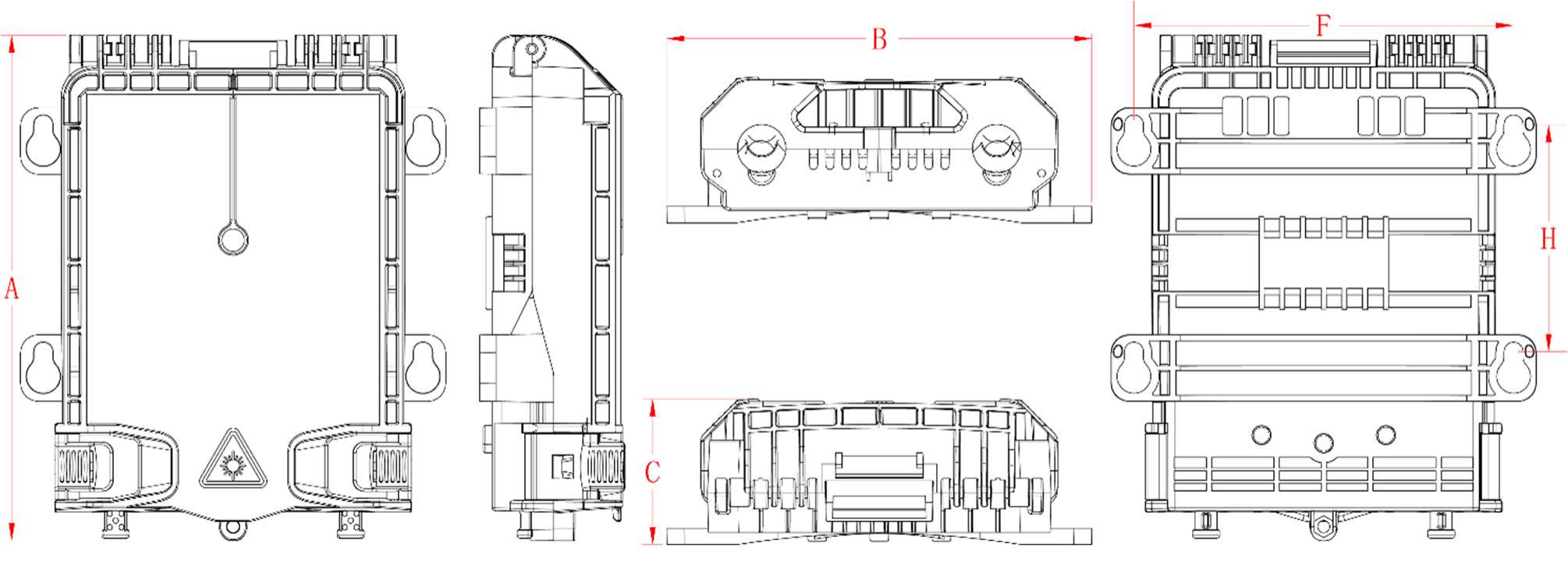

Product Structure

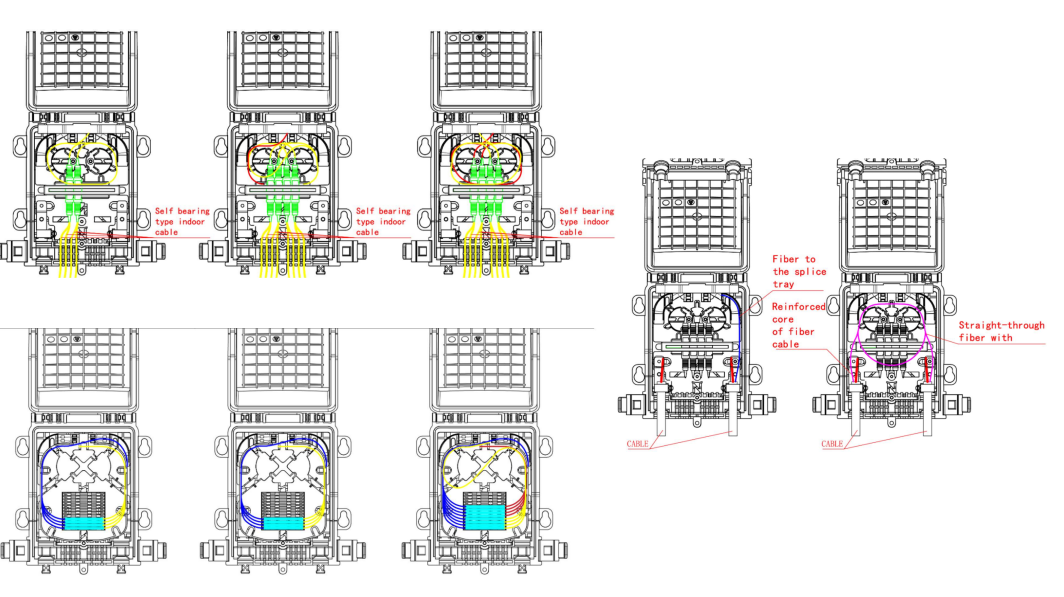

Fiber Routing Diagram
Product Installation
Wall-mounted installation
Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten.
Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole, as below.
