Product Overview

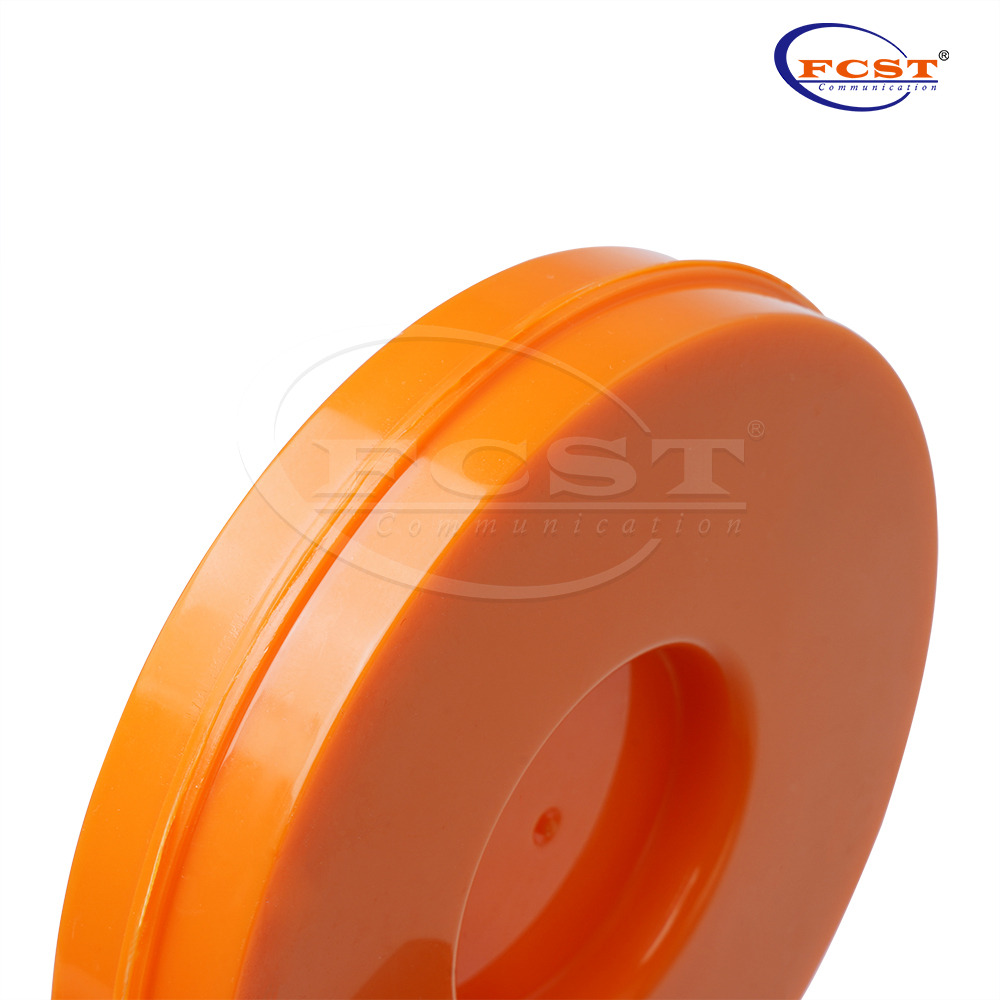

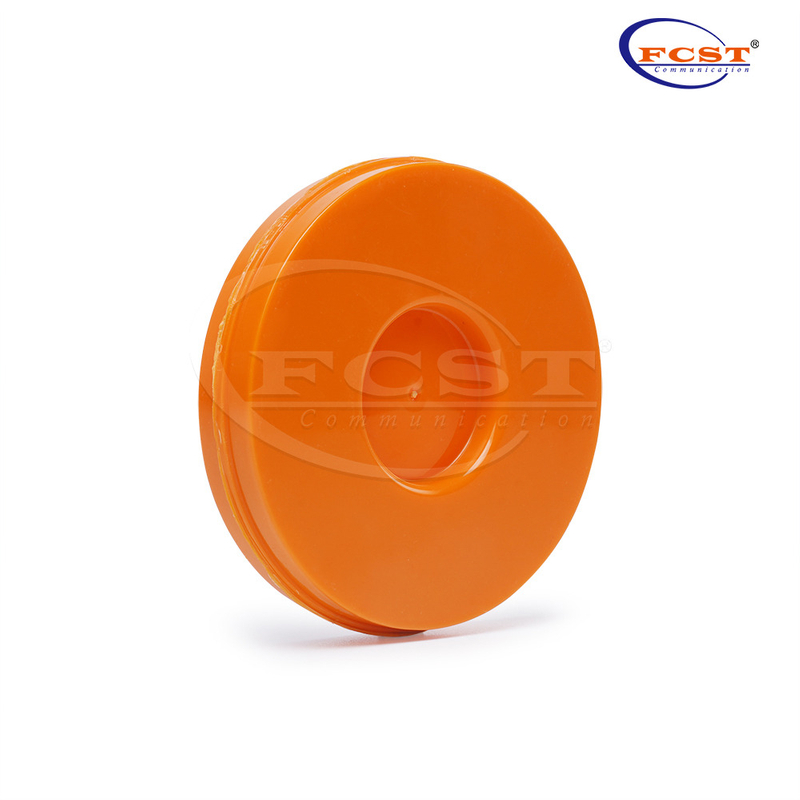

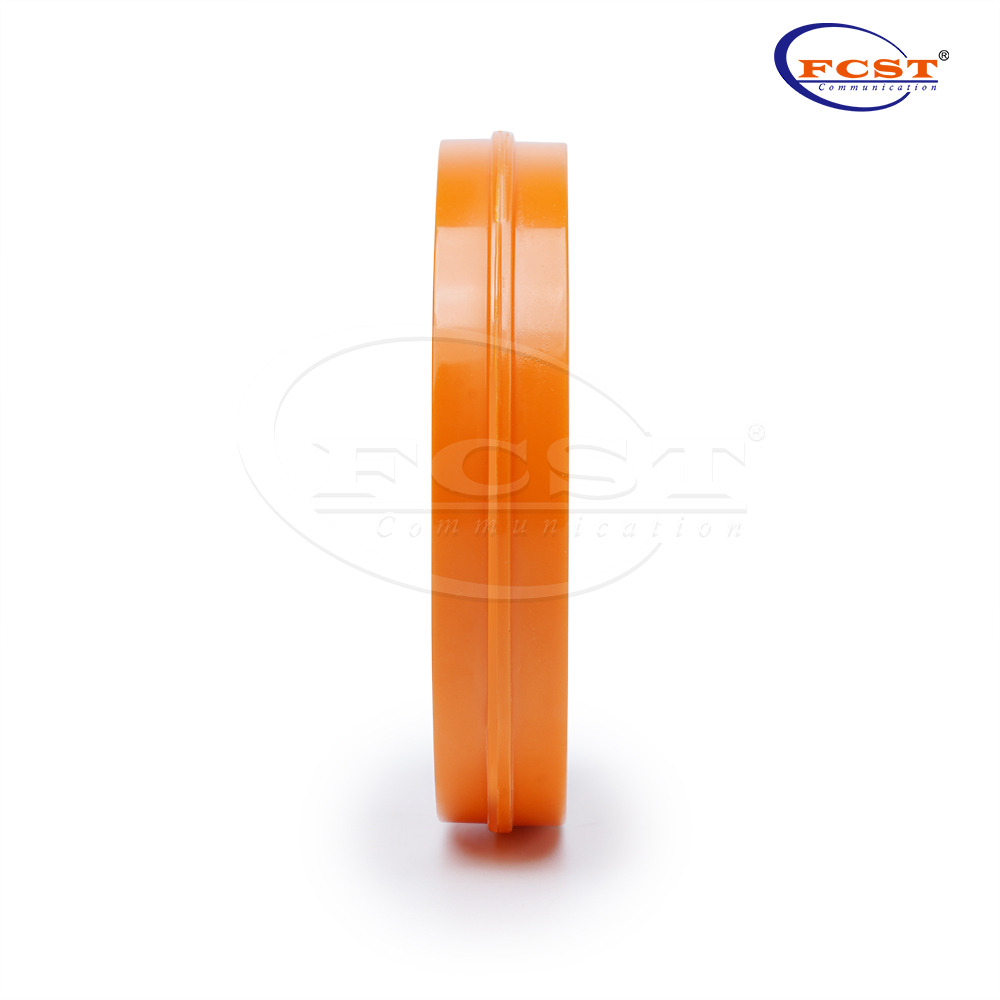

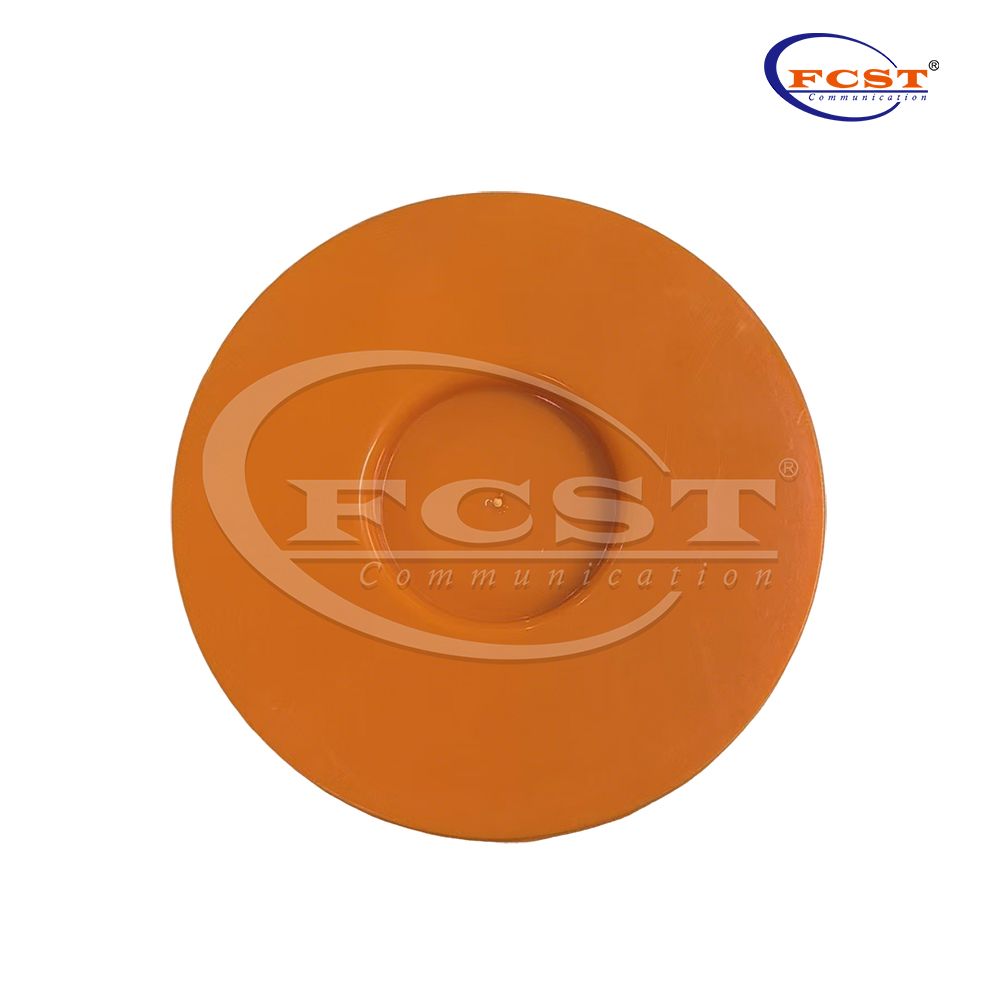

FCST-PUEM4 1.5-1.7m Extended Range Disk Markers provides an easy and accurate method of precisely locating flush mounted facilities, which become covered by backfill. The disk marker is easily fastened to the underside of non metallic lids or covers over flush mounted facilities, such as hand holes, manholes and other grade level enclosures during construction and maintenance. Disk Markers are not intended for direct burial.
Product Advantage
Maximum burial depth up to 1.7 meter.
Locates the exact position of the marker.
HDPE packaging, resistant to chemical corrosion.
Withstands a temperature range of -4 to 122 °F (-20 to 50 °C).
Suitable for multiple industries (Water, Sanitary, Telecom, Gas, Electricity,Europower).

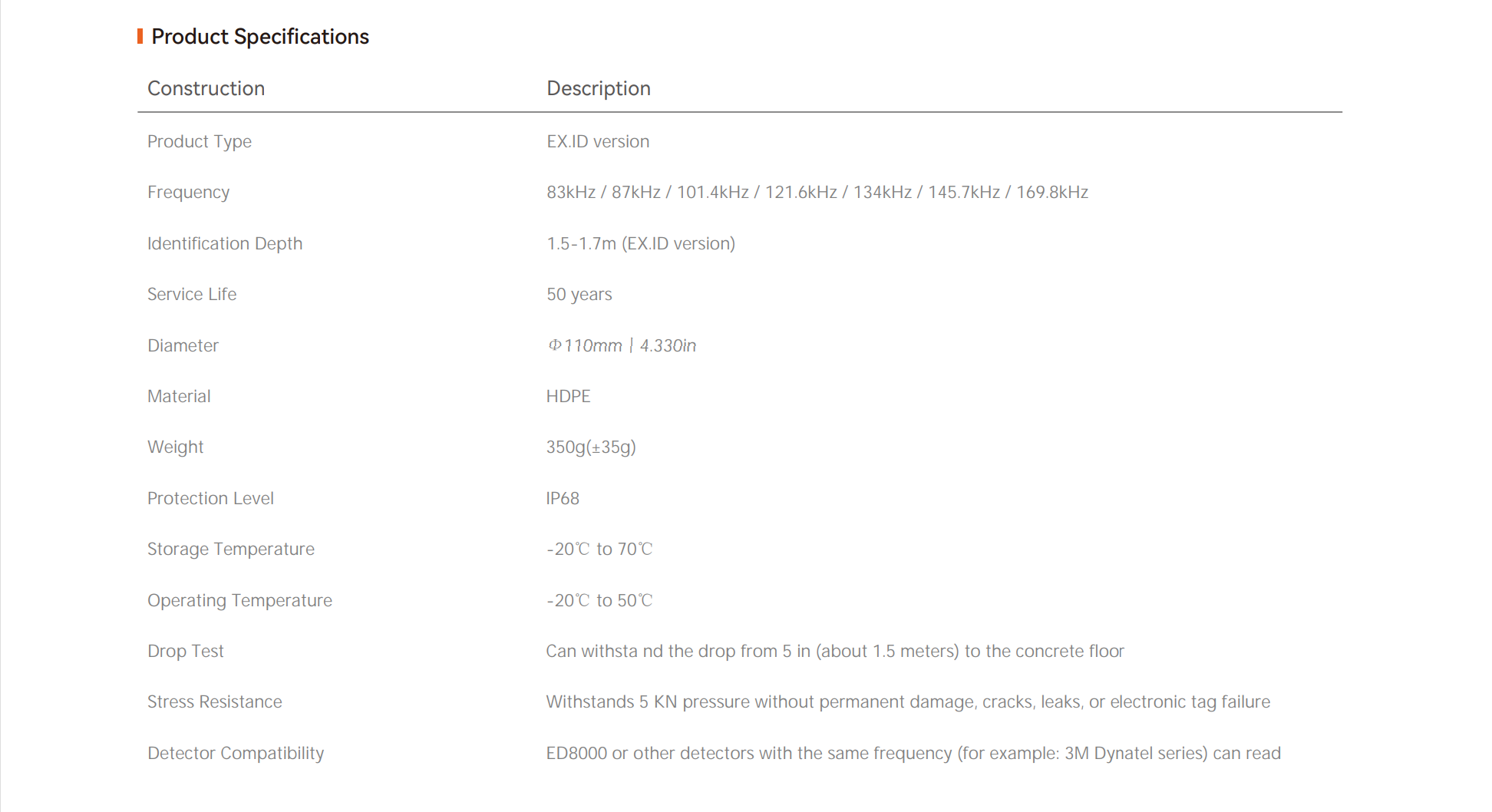

Product Specification
| Construction | Description |
| Product Type | EX.ID version |
| Frequency | 83kHz / 87kHz / 101.4kHz / 121.6kHz / 134kHz / 145.7kHz / 169.8kHz |
| Identification Depth | 1.5-1.7m (EX.ID version) |
| Protection Level | 50 years |
Diameter | Φ110mm丨4.330in |
| Weight | 350g(±35g) |
| Protection Level | IP68 |
| Storage Temperature | -20℃ to 70℃ |
| Operating Temperature | -20℃ to 50℃ |
Drop Test | Can withstand the drop from 5 in (about 1.5 meters) to the concrete floor |
| Stress Resistance | Withstands 5 KN pressure without permanent damage, cracks, leaks, or electronic tag failure |
| Detector Compatibility | ED8000 or other detectors with the same frequency (for example: 3M Dynatel series) can read |

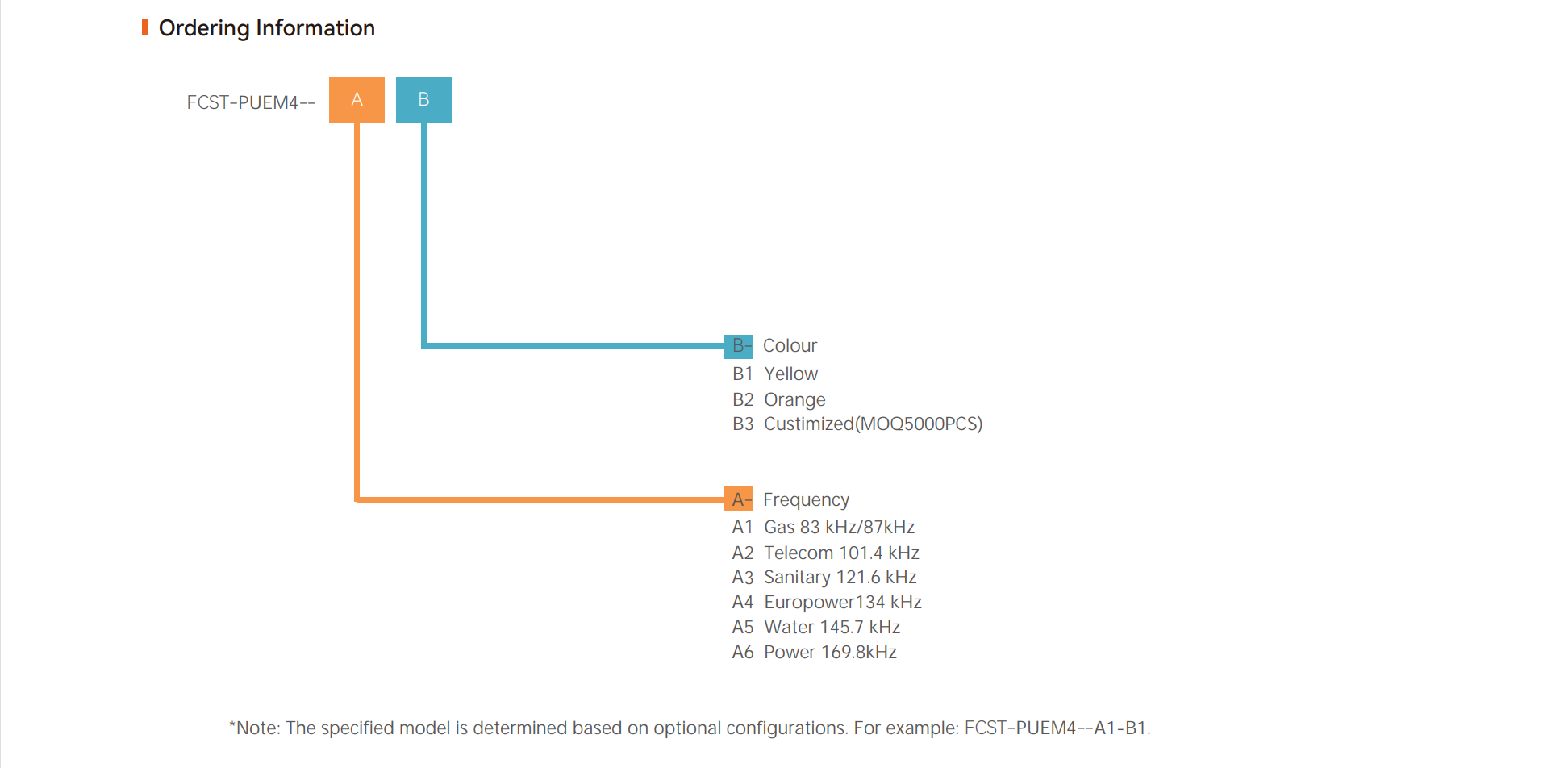

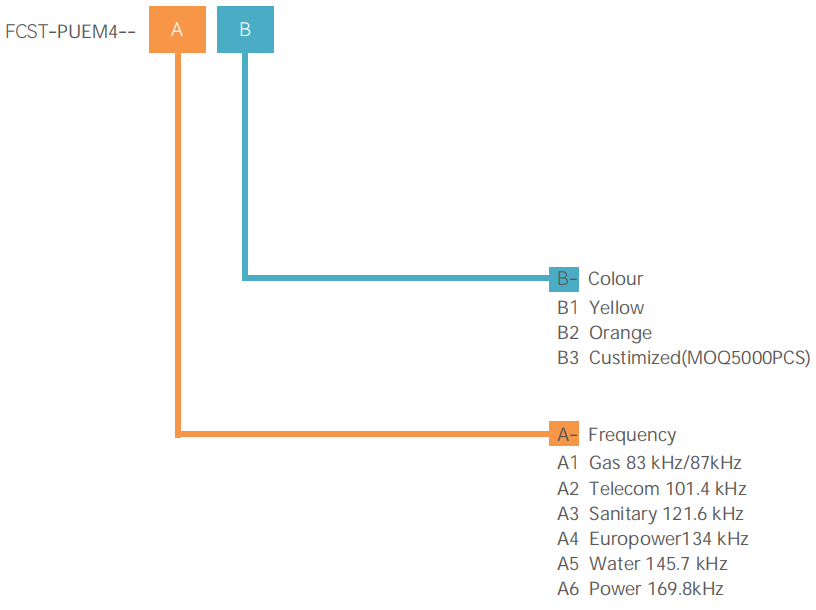

Ordering Information
*Note: The specified model is determined based on optional configurations. For example: FCST-PUEM4--A1-B1.
Installations

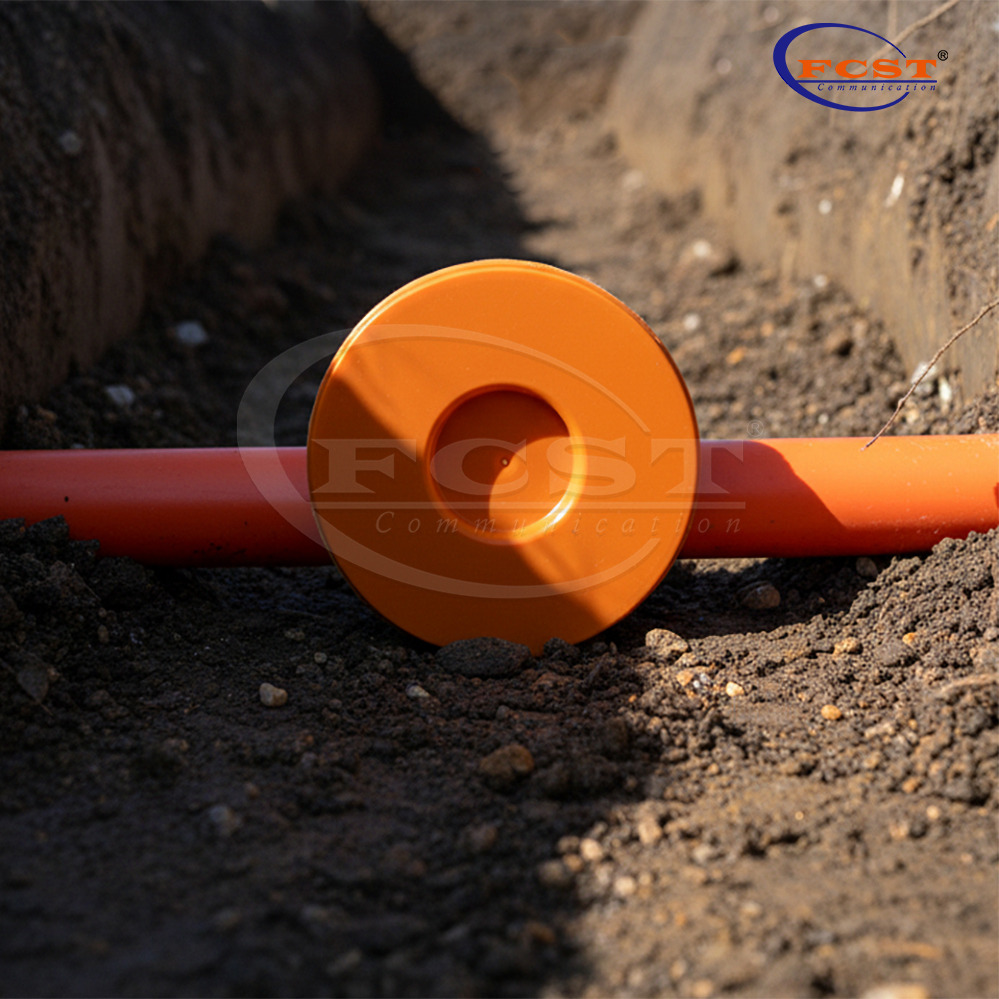

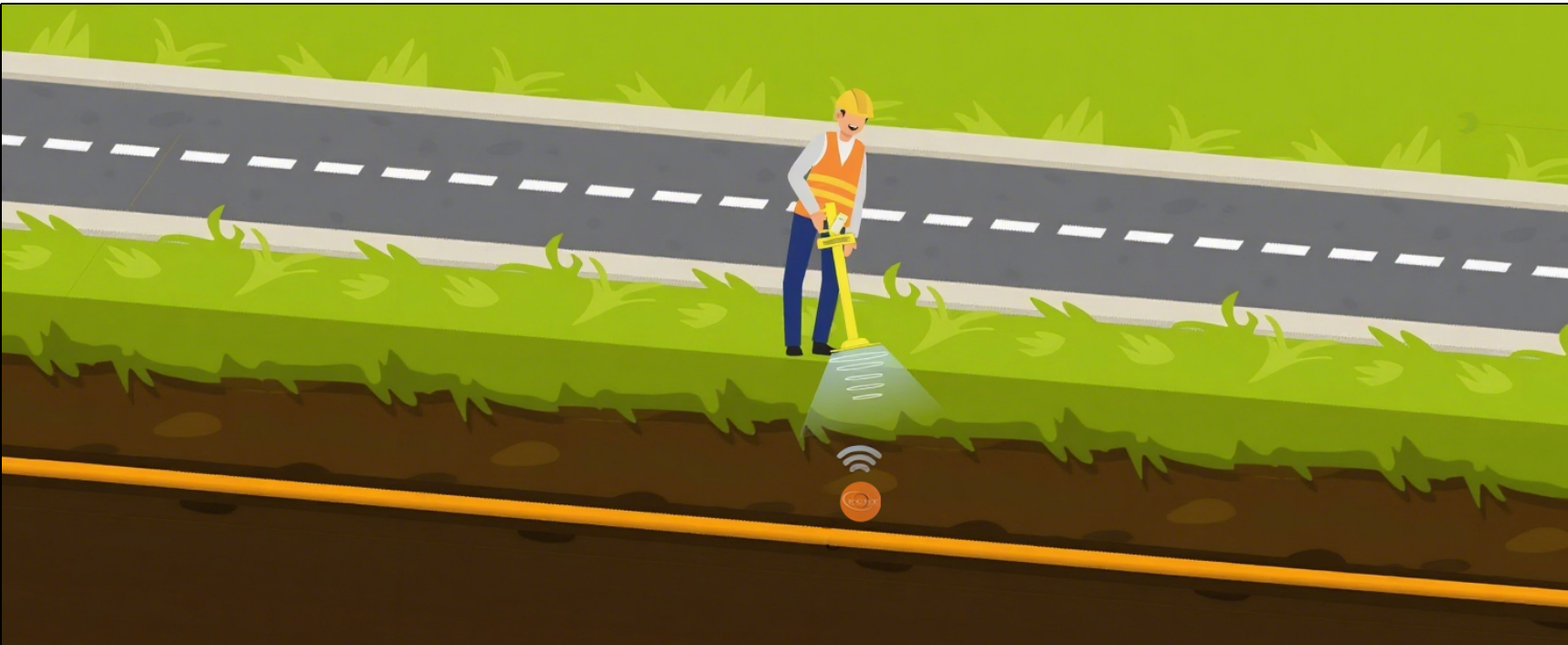

The disc electronic marker should be installed above the pipeline and kept as horizontal as possible. The non-metallic pipe should be directly attached to the pipeline and fixed with ties. When covering the soil, sand or sand should be used to fill the gap between the marker and the pipeline to avoid uneven force on the marker after covering the soil.
Considering the uncertainty of the later soil cover thickness, it is generally recommended that the burial depth be less than 80% of the maximum detectable depth of the model.
To avoid mutual interference between markers, the distance between two adjacent markers should be greater than 1.5 meters.FCST-PUEM4 Electronic Marker Datesheet.
Do not press the marker under the pipeline or the marked object.
If it is a metal pipe, the marker should be kept at a distance of no less than 12CM from the top of the pipe, and there should be no metal objects covering the marker.
