FCST-VBKB
FCST
FCST-VBKB
Product Overview

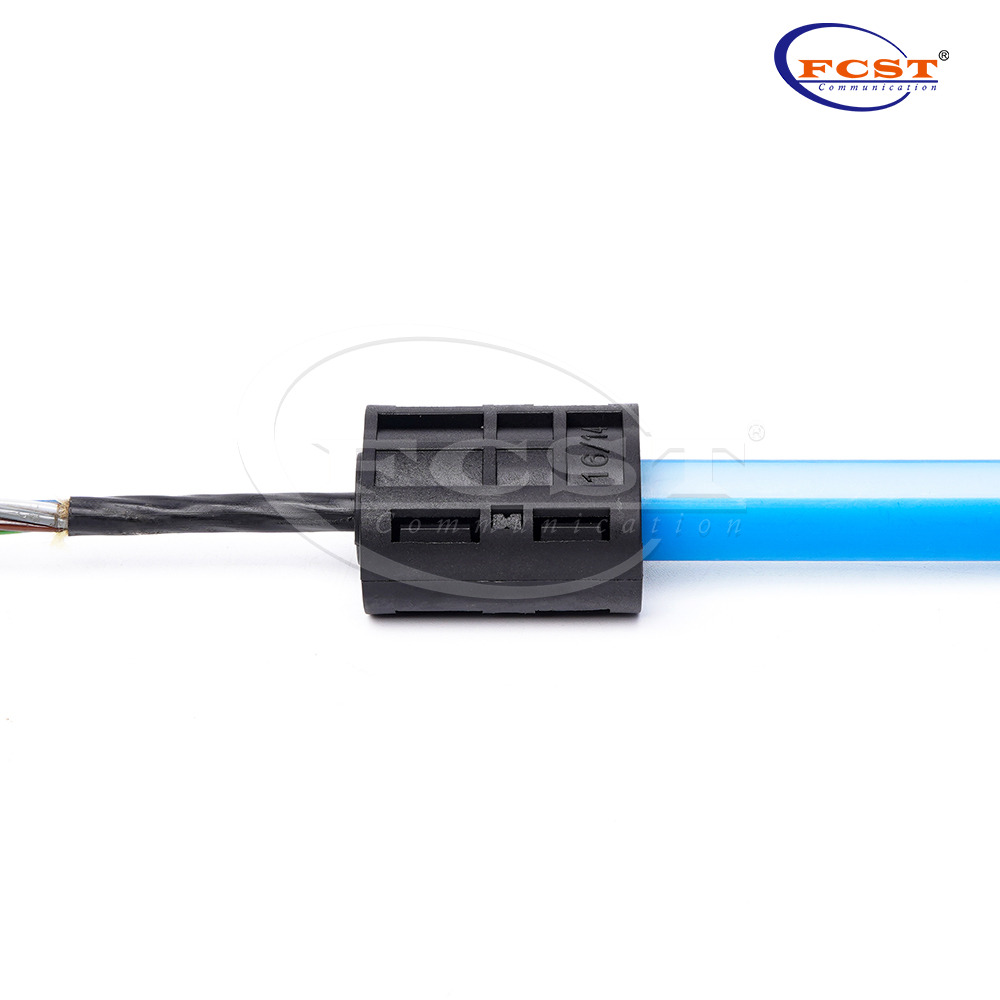

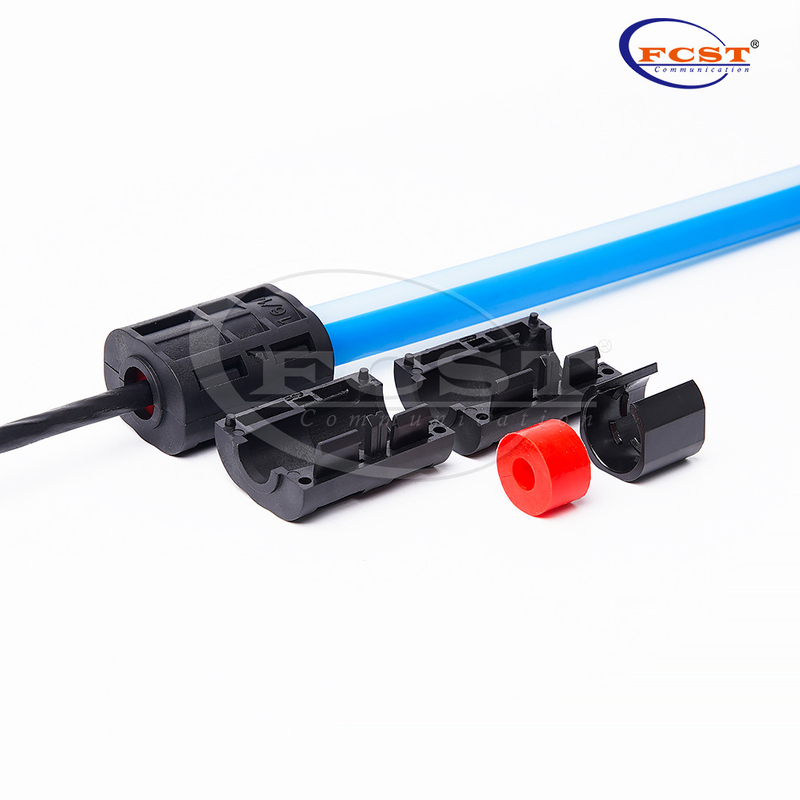

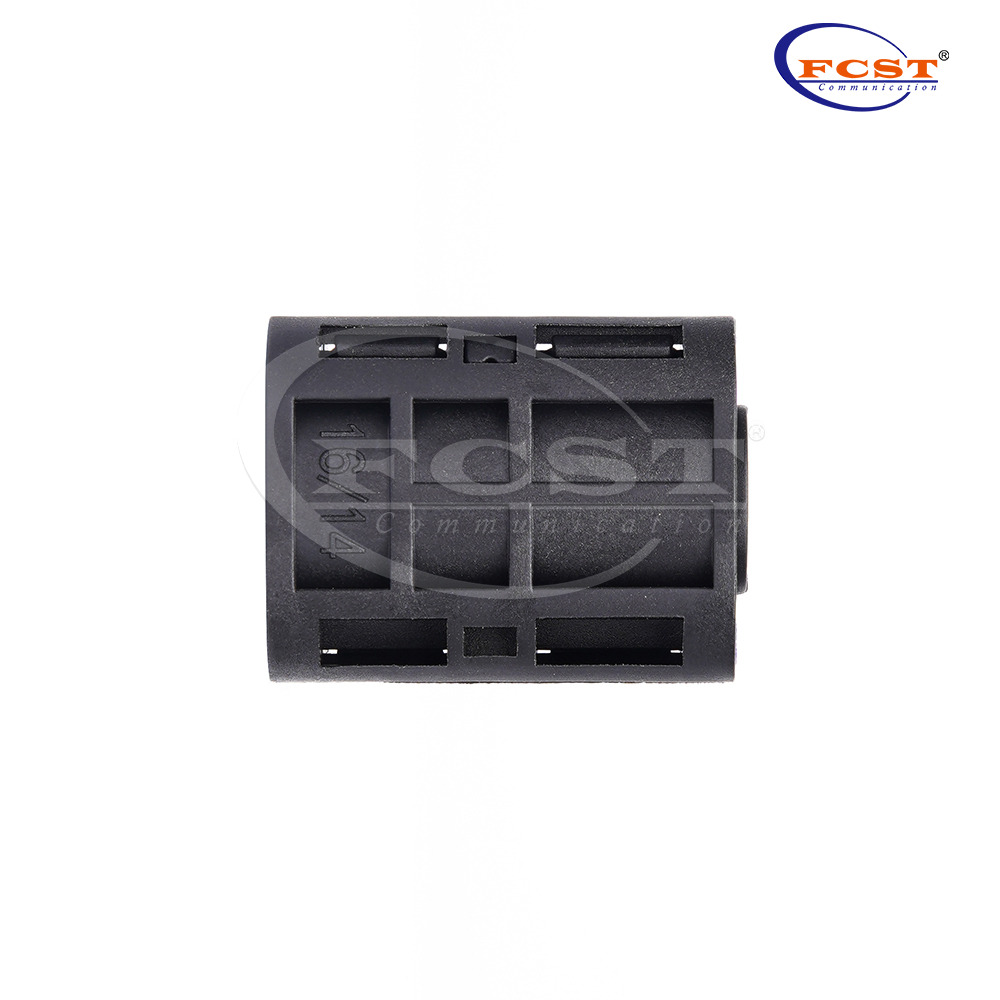

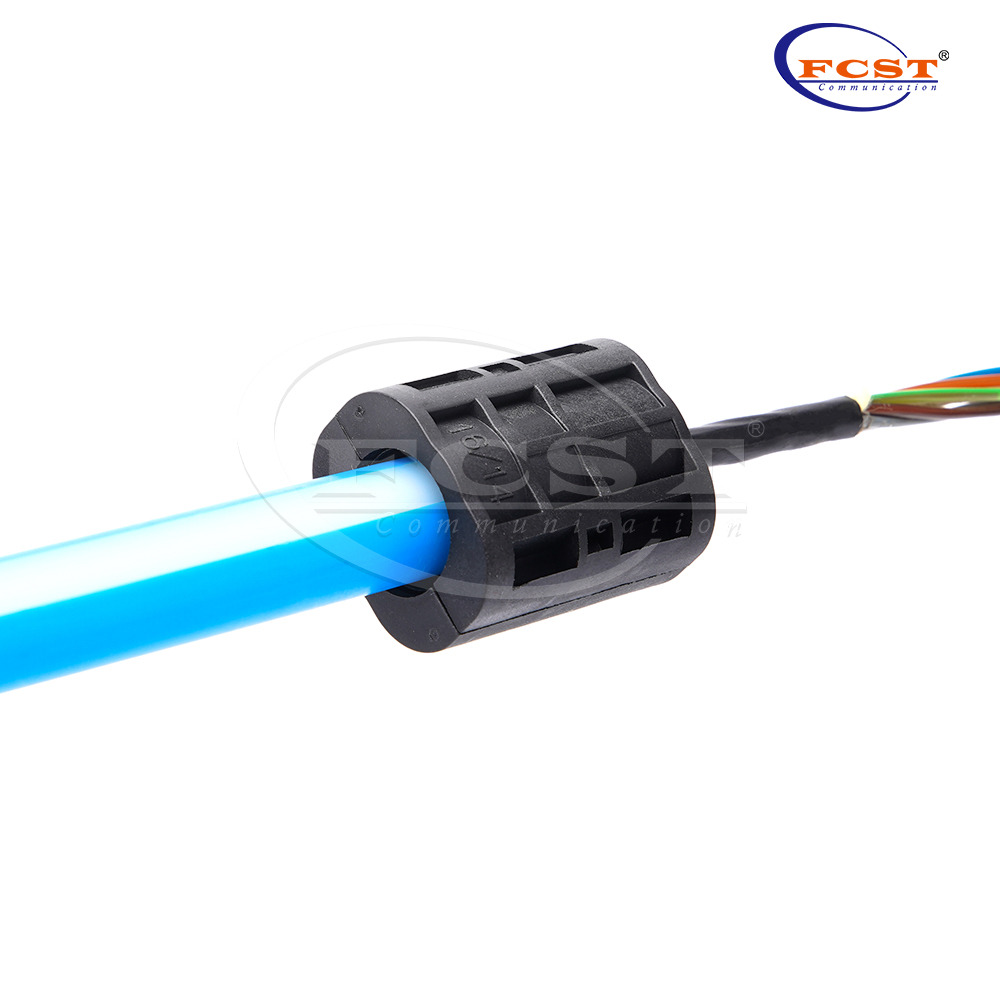

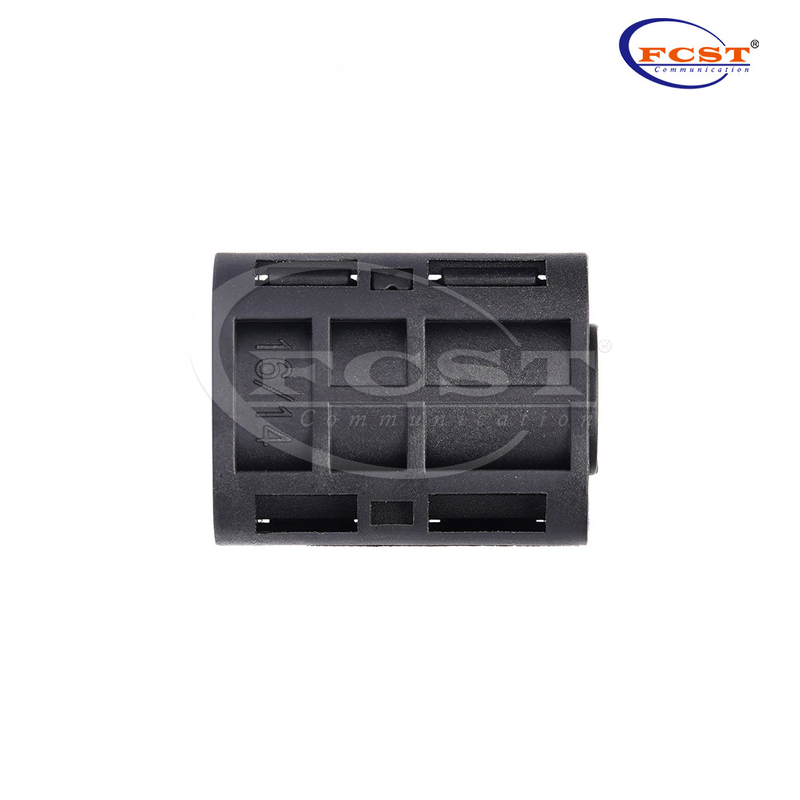

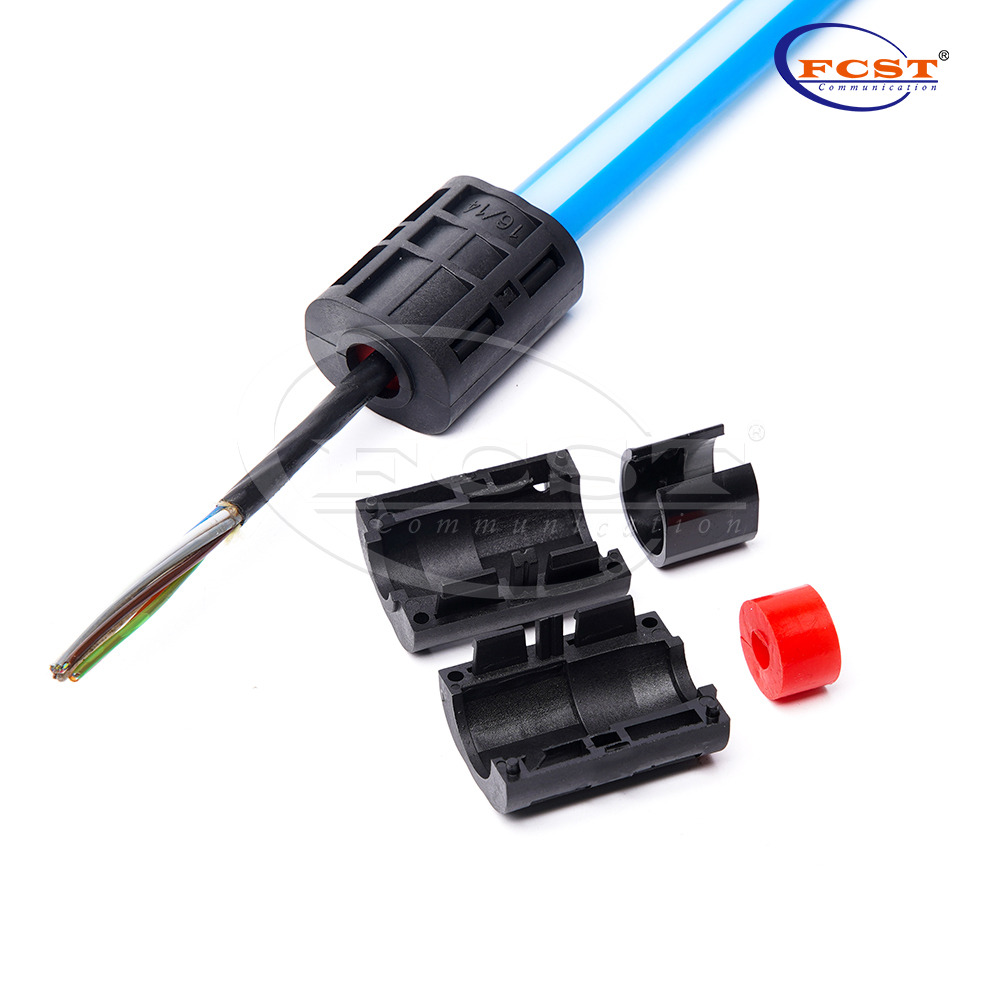

FCST-VBKB Divisible Duct Seals, simple modular design enables easy installation in all situations, even if cable is already terminated. Made of glass-fiber reinforced polyamide, provides gas-tight sealing of your micro-duct with cable up to 0,5 bar. Very compact design helps to installations in congested spaces like inside ODF.
Product advantages
Simple & quick installation.
For micro-ducts OD 10 to 20 mm.
Pull-out force duct seal vs duct ≥ 100N.
Divisible solution,Suitable for retrofitting.

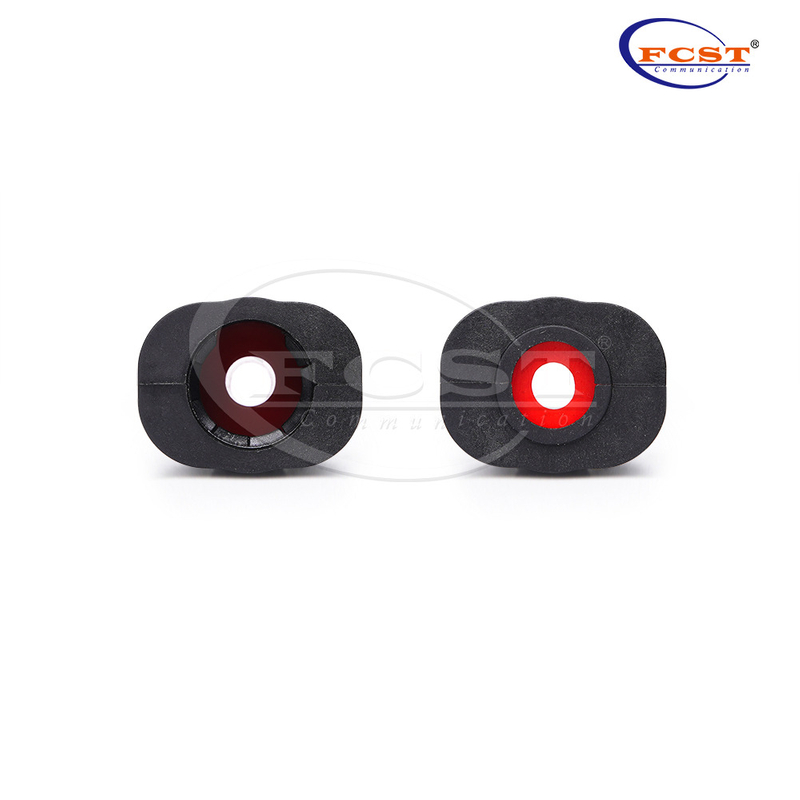

Slim design,Rubber seals with color coding.
Product Specifications
| Construction | Description |
| Sealing | up to 0.5 bar |
| Material | Body:PA Seal:Silicon Rubber |
| Pull-out Force Duct Seal Vs Duct | ≥ 100N |
| Mechanical Compression Strength | ≥ 1000N, 10 sec |

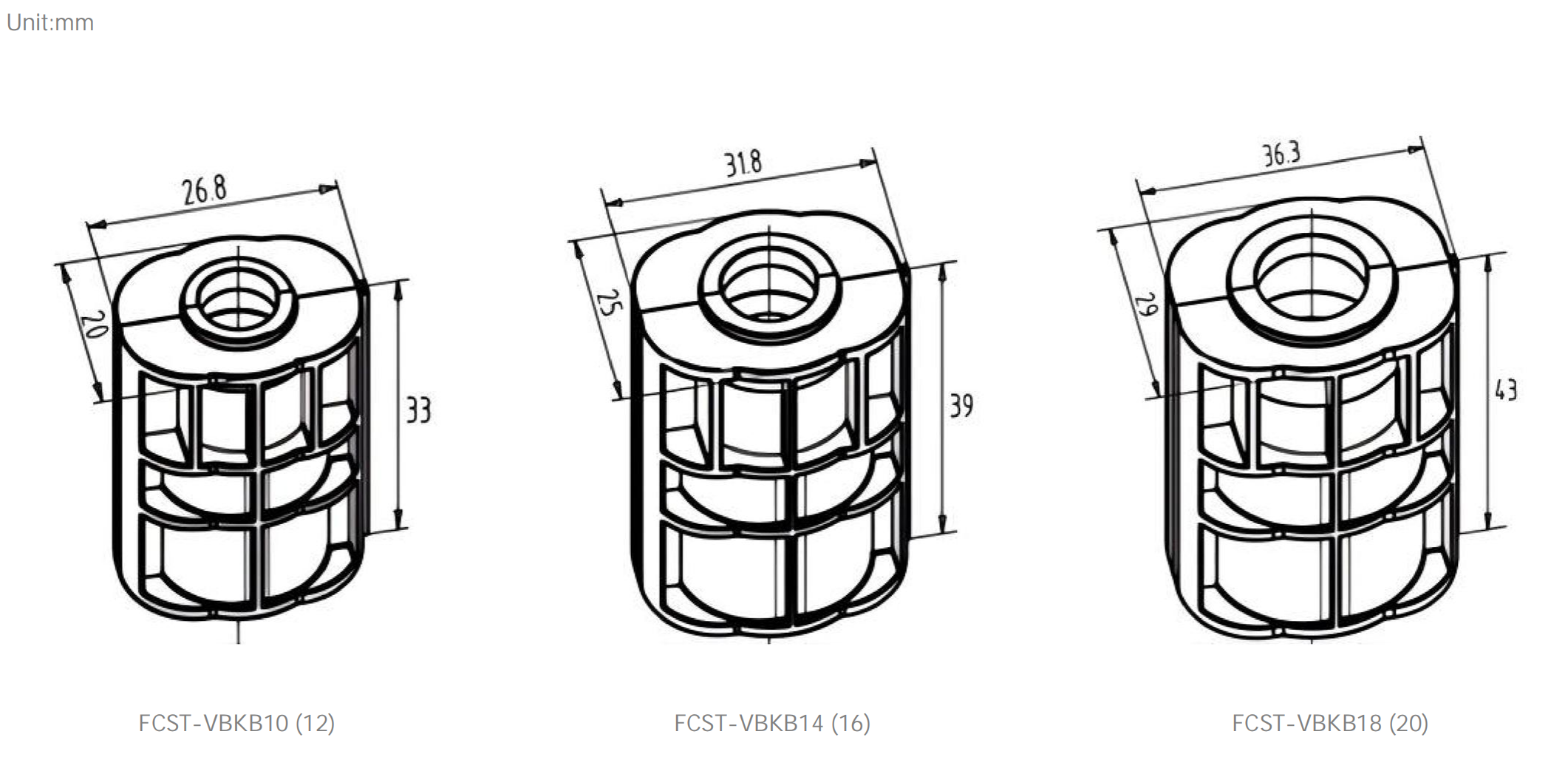

Product Size
Ordering Information
| SKU | Duct OD(mm) | Cable OD Range(mm) |
FCST-VBKB10/2.5 | 10 | 1.5~2.5 |
| FCST-VBKB10/3.5 | 10 | 2.5~3.5 |
| FCST-VBKB10/5.0 | 10 | 3.5~5.0 |
| FCST-VBKB10/6.5 | 10 | 5.0~6.5 |
| FCST-VBKB10/7.5 | 10 | 6.5~7.5 |
| FCST-VBKB12/2.5 | 12 | 1.5~2.5 |
| FCST-VBKB12/3.5 | 12 | 2.5~3.5 |
| FCST-VBKB12/5.0 | 12 | 3.5~5.0 |
| FCST-VBKB12/6.5 | 12 | 5.0~6.5 |
| FCST-VBKB12/8.0 | 12 | 6.5~8.0 |
| FCST-VBKB12/8.5 | 12 | 7.0~8.5 |
| FCST-VBKB14/5.0 | 14 | 3.5~5.0 |
| FCST-VBKB14/6.5 | 14 | 5.0~6.5 |
| FCST-VBKB14/8.0 | 14 | 6.5~8.0 |
| FCST-VBKB14/10 | 14 | 8.0~10.0 |
| FCST-VBKB16/2.5 | 16 | 1.5~2.5 |
| FCST-VBKB16/5.0 | 16 | 3.5~5.0 |
| FCST-VBKB16/6.5 | 16 | 5.0~6.5 |
| FCST-VBKB16/8.0 | 16 | 6.5~8.0 |
| FCST-VBKB16/10 | 16 | 8.0~10.0 |
| FCST-VBKB18/6.5 | 18 | 5.0~6.5 |
| FCST-VBKB18/8.0 | 18 | 6.5~8.0 |
| FCST-VBKB18/9.5 | 18 | 8.0~9.5 |
| FCST-VBKB20/5.0 | 20 | 3.5~5.0 |
| FCST-VBKB20/6.5 | 20 | 5.0~6.5 |
| FCST-VBKB20/8.0 | 20 | 6.5~8.0 |
| FCST-VBKB20/10 | 20 | 8.0~10.0 |
| FCST-VBKB20/12 | 20 | 9.4~12.0 |
Installation Guide
