FCST-UML9000
FCST
FCST-UML9000
Product Overview

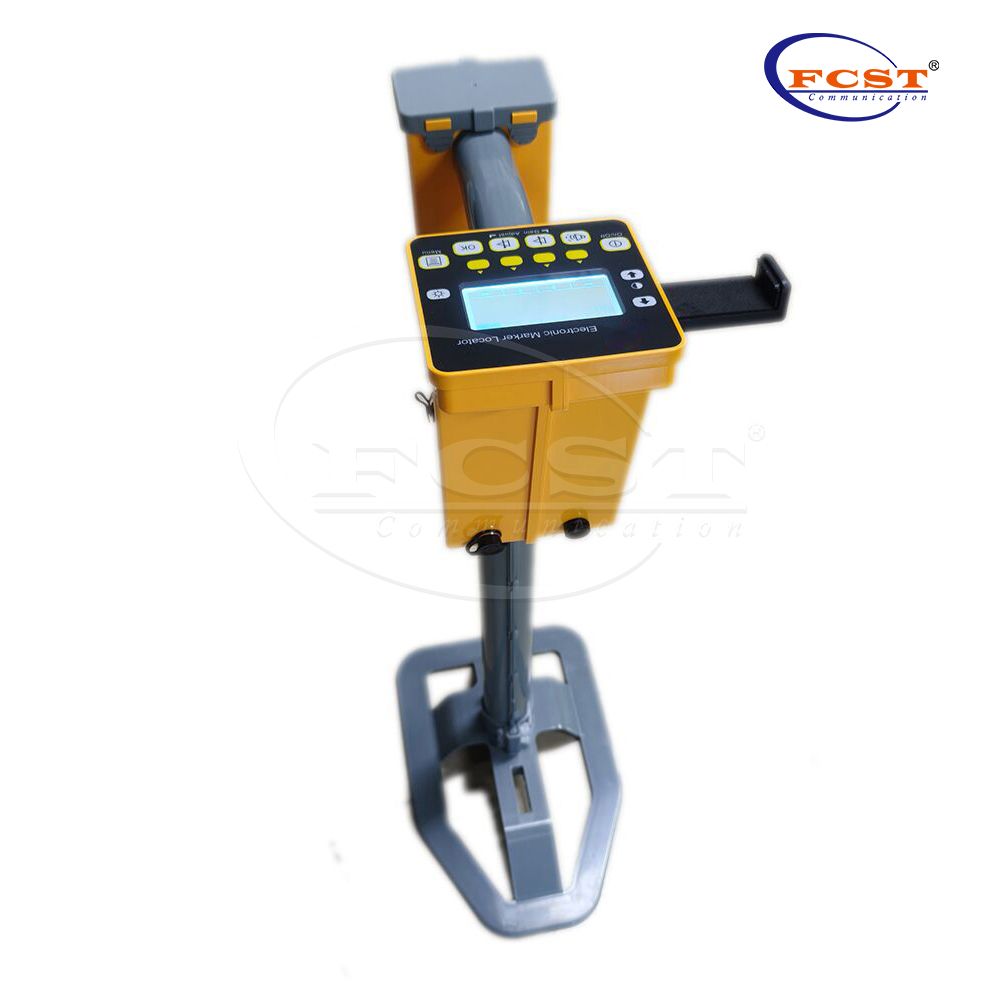

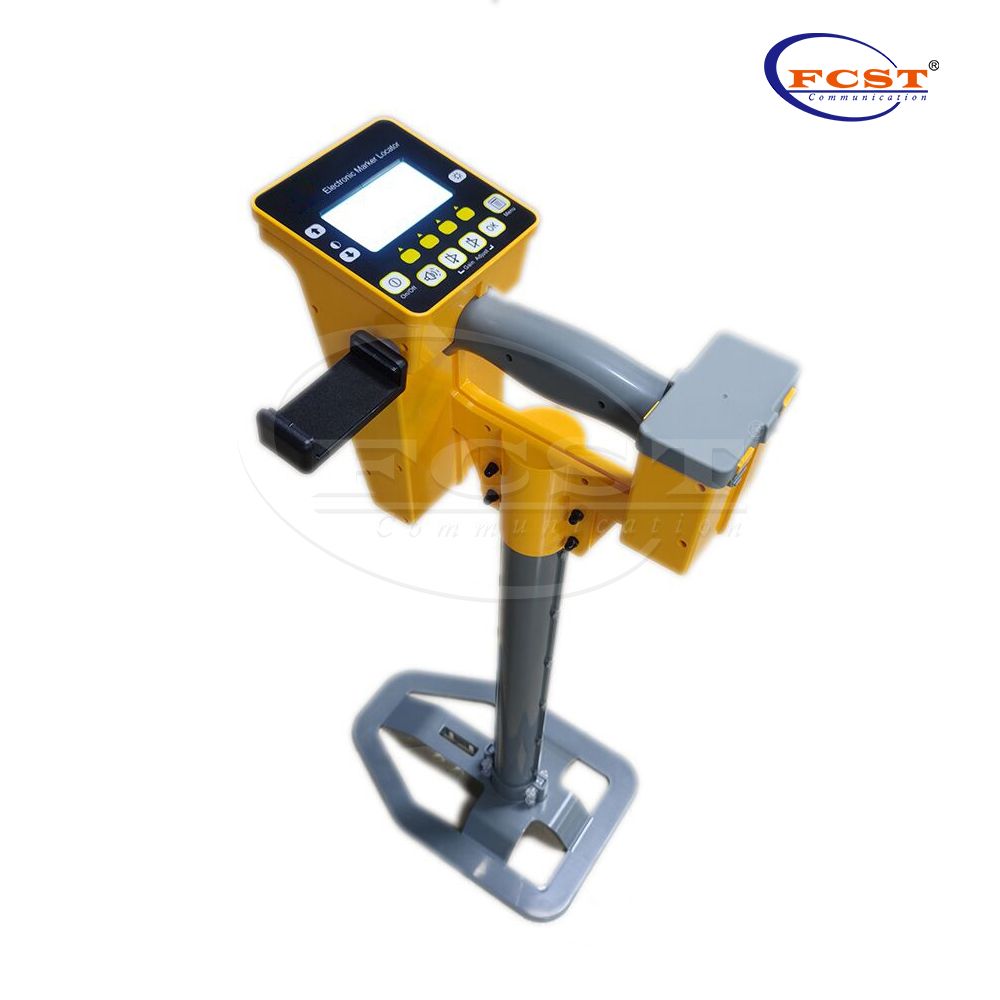

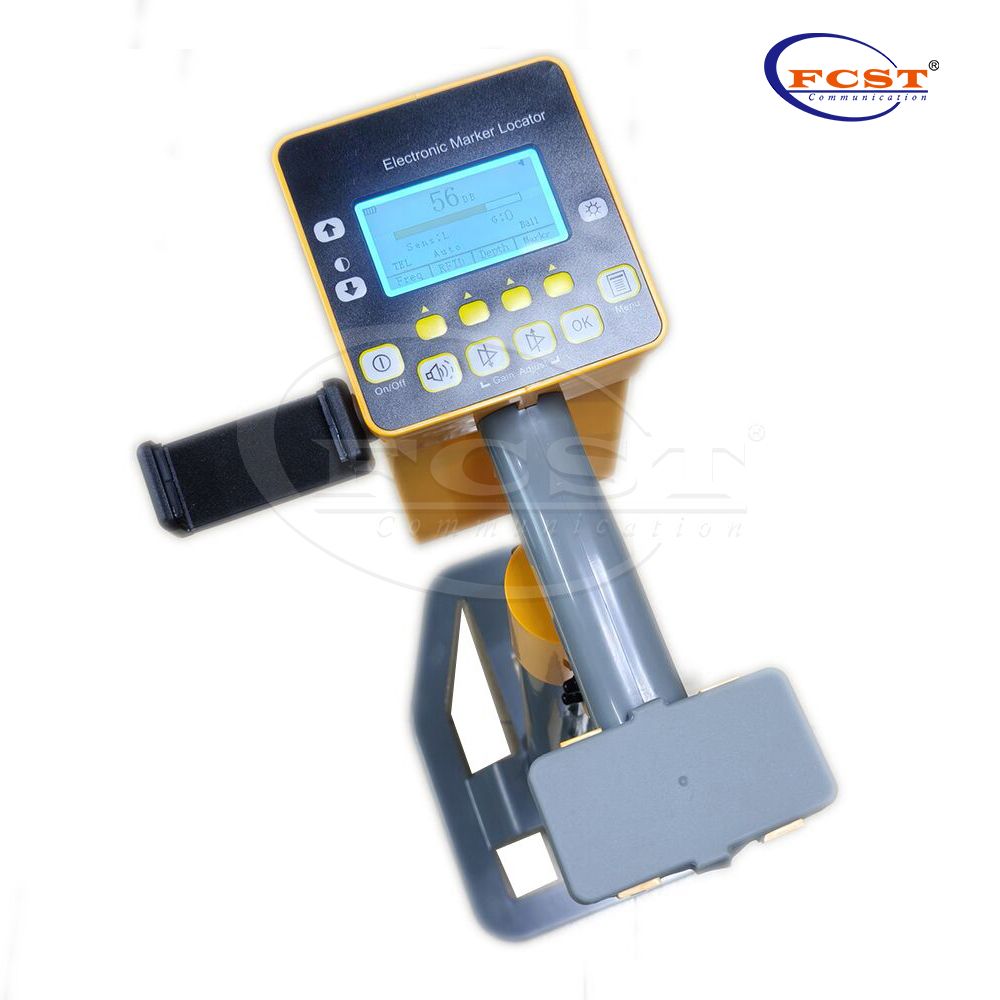

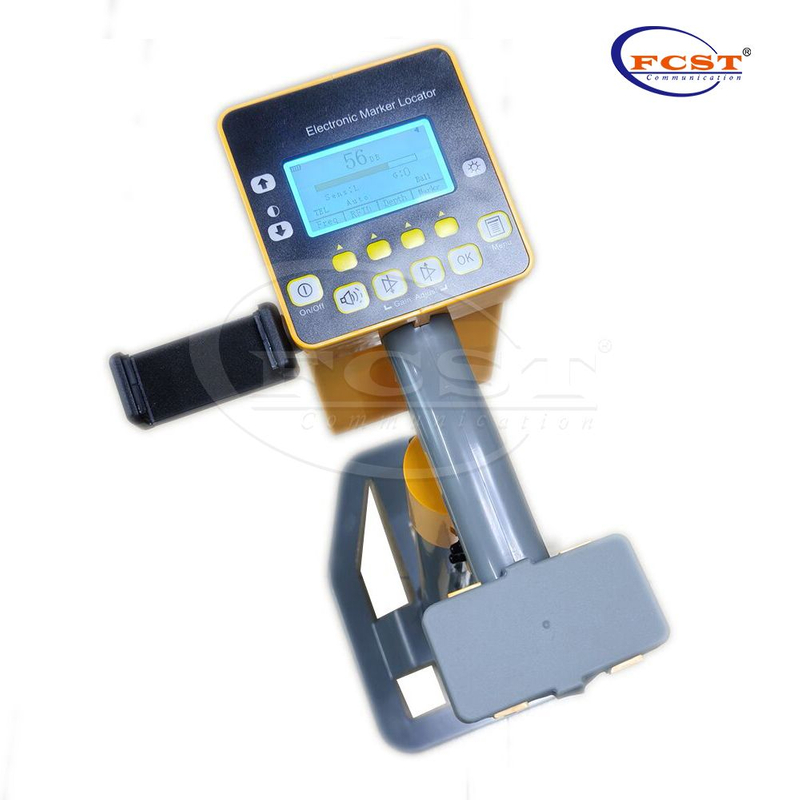

The FSCT-UML9000 Underground Marker Locator features a mobile phone clip interface, facilitating interaction between the marker locator and a mobile app. Built-in GPS, combined with dedicated PC software, ensures secure marker data collection. Multiple power supply options completely eliminate the transportation challenges associated with lithium-ion battery-powered devices. The detachable base retains the precise positioning advantages of the magnetic rod antenna while allowing the operator to remove their hands from the detector at any time without interrupting detection, making even single-person inspections easy.
Product advantage
Maximum local cache of 250 records. (repeated overwrite storage) .
Upgrade clip interface for convenient device and mobile app interchange.

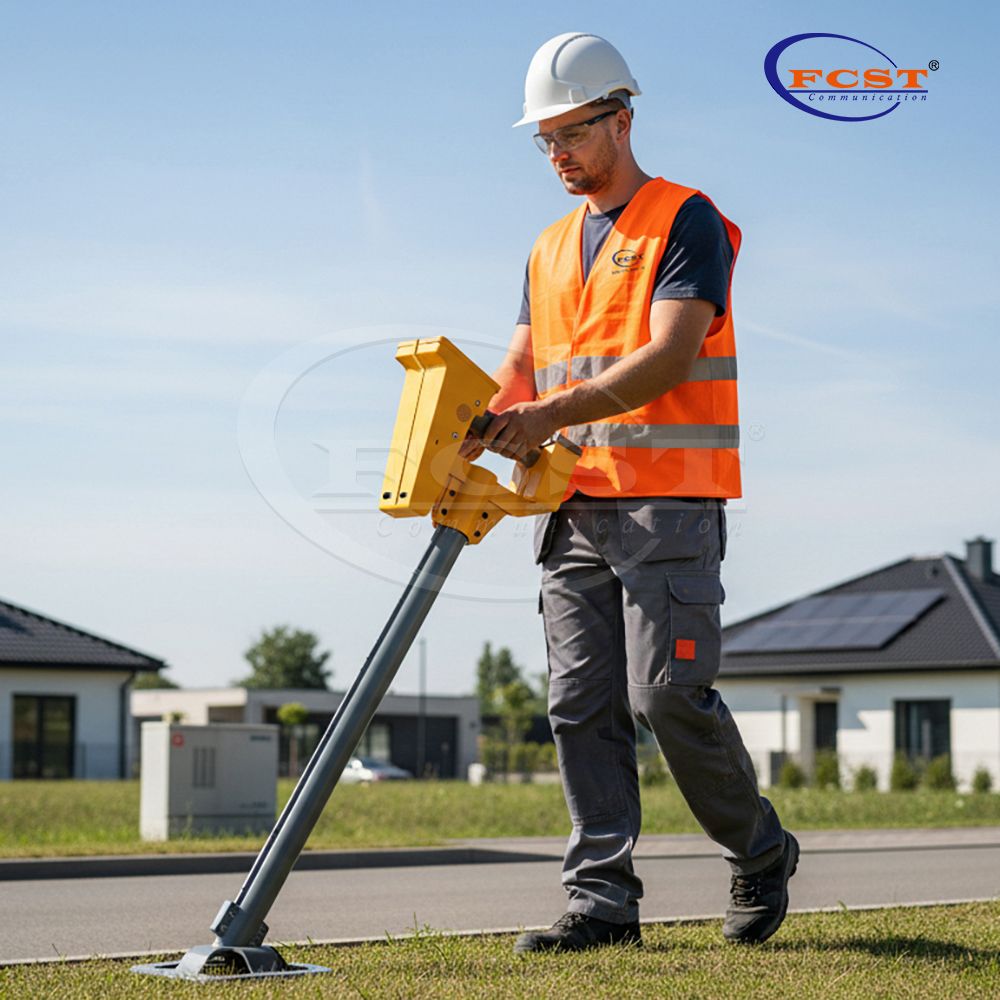

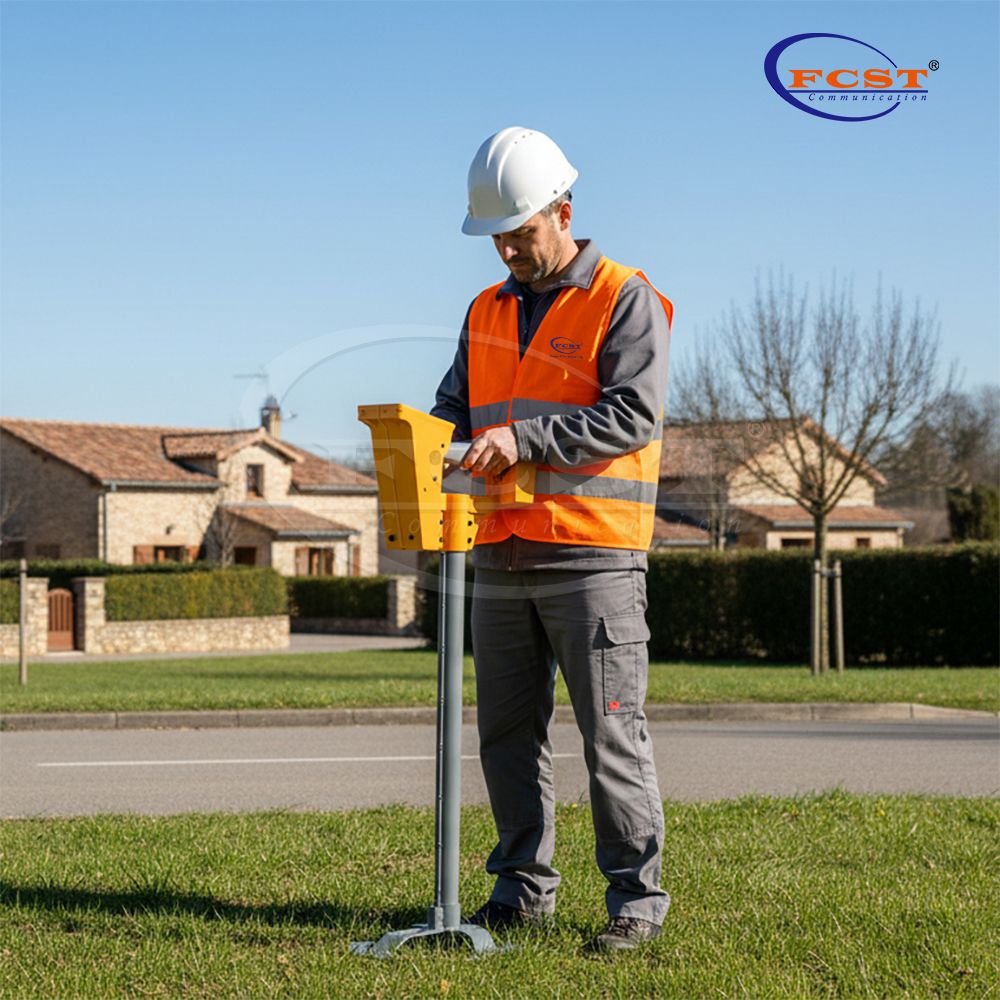

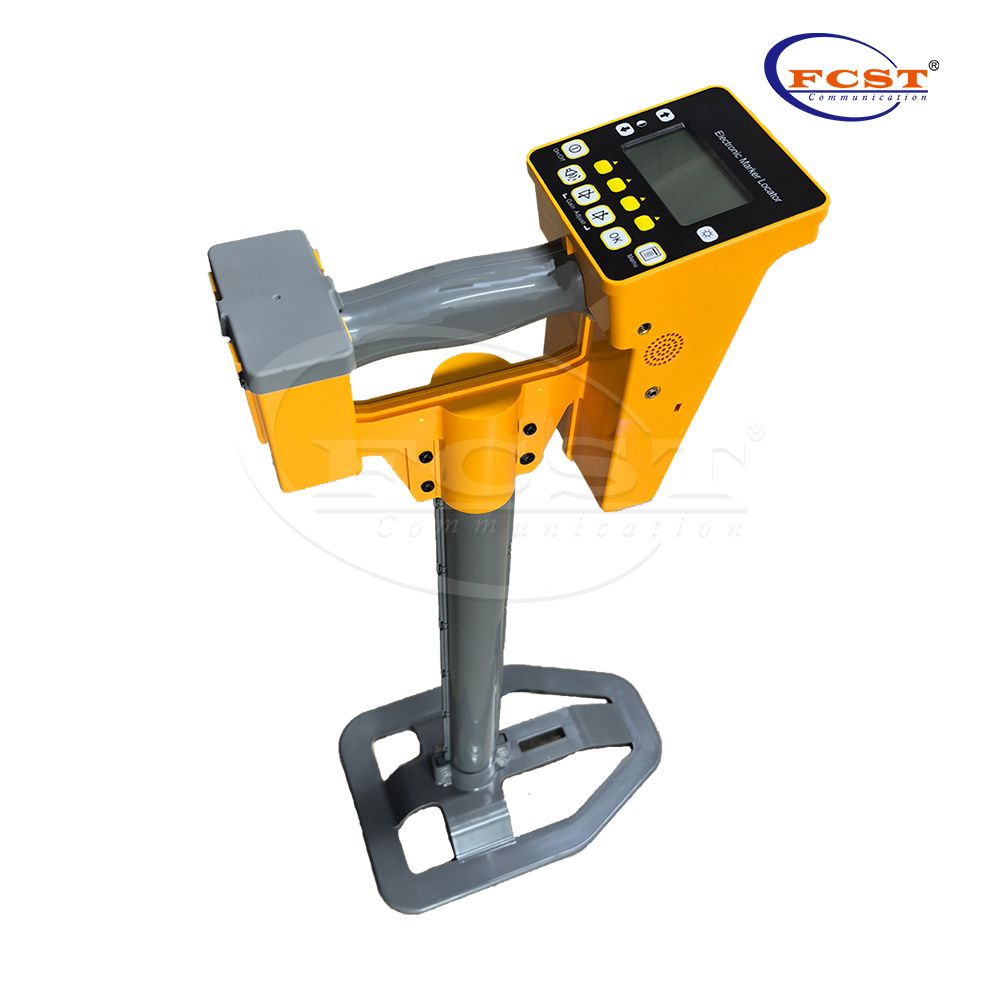

Vertical detachable base allows for easy detection even when the device is removed.
Built-in GPS positioning chip for longitude and latitude information from detection signals.
Supports 7 operating frequencies. (66.35 kHz, 77.0 kHz, 83.0 kHz, 101.4 kHz, 121.6 kHz, 145 .7 kHz, 169.8 kHz).
Product Specifications
| Construction | Description |
| Material | ABS |
| Recognizable Frequency | 66.35 kHz, 77.0 kHz, 83.0 kHz, 101.4 kHz, 121.6 kHz, 145.7 kHz, 169.8 kHz |
| Height | 750.00mm | 29.530in |
| Width | 270.00mm | 10.630in |
| Length | 120.00mm | 4.720in |
| Weight | 2.45kg±5%(Conventional antenna without base) 2.85kg±5%(Regular antenna with base) 3.10kg±5%(Extended antenna with base) |
| Waterproof Grade | IP54 |
| Max. Detection Distance | 2.8m(varies depending on frequency) |
| Max. ID Read Distance | 3.0m(varies depending on frequency) |
| Max. Date Write Distance | 0.8m(varies depending on frequency) |
| Antenna Gain | 14DBi~16DBi |
| Alert Tone | Alarm or Ring Tone |

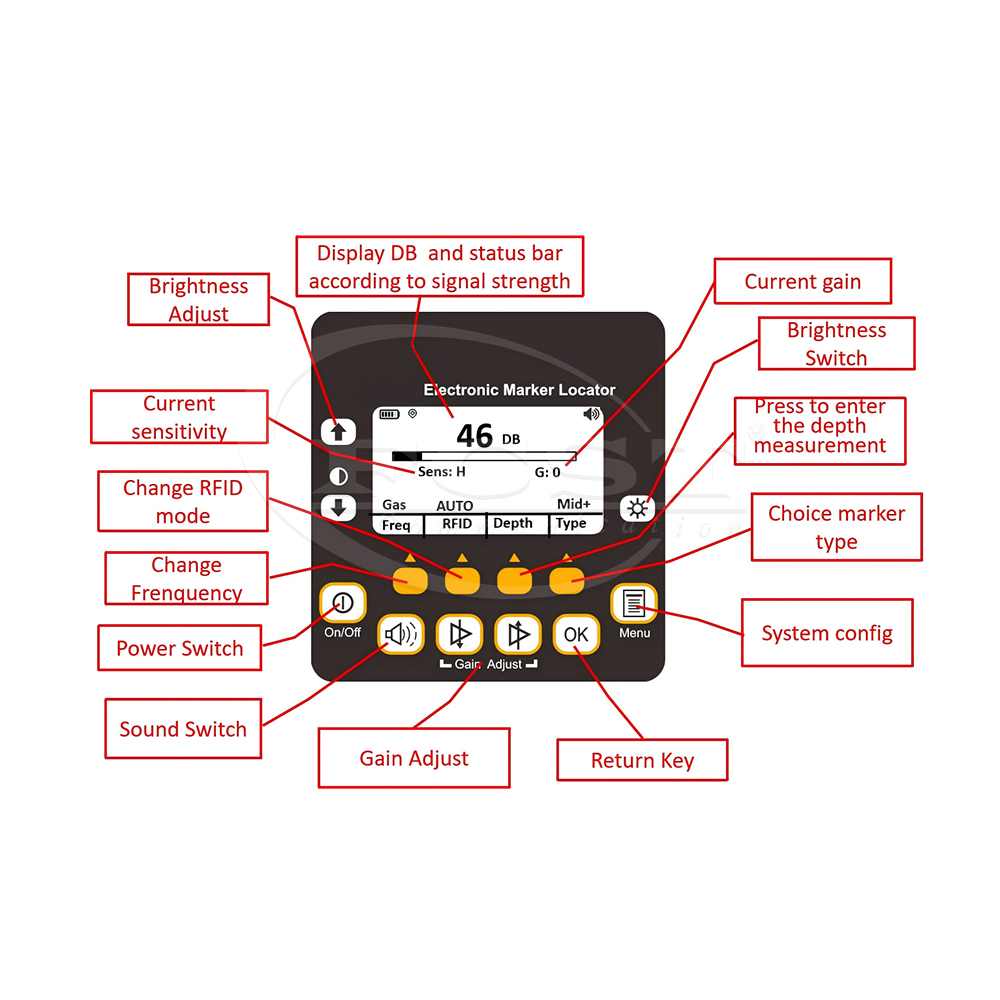

UI

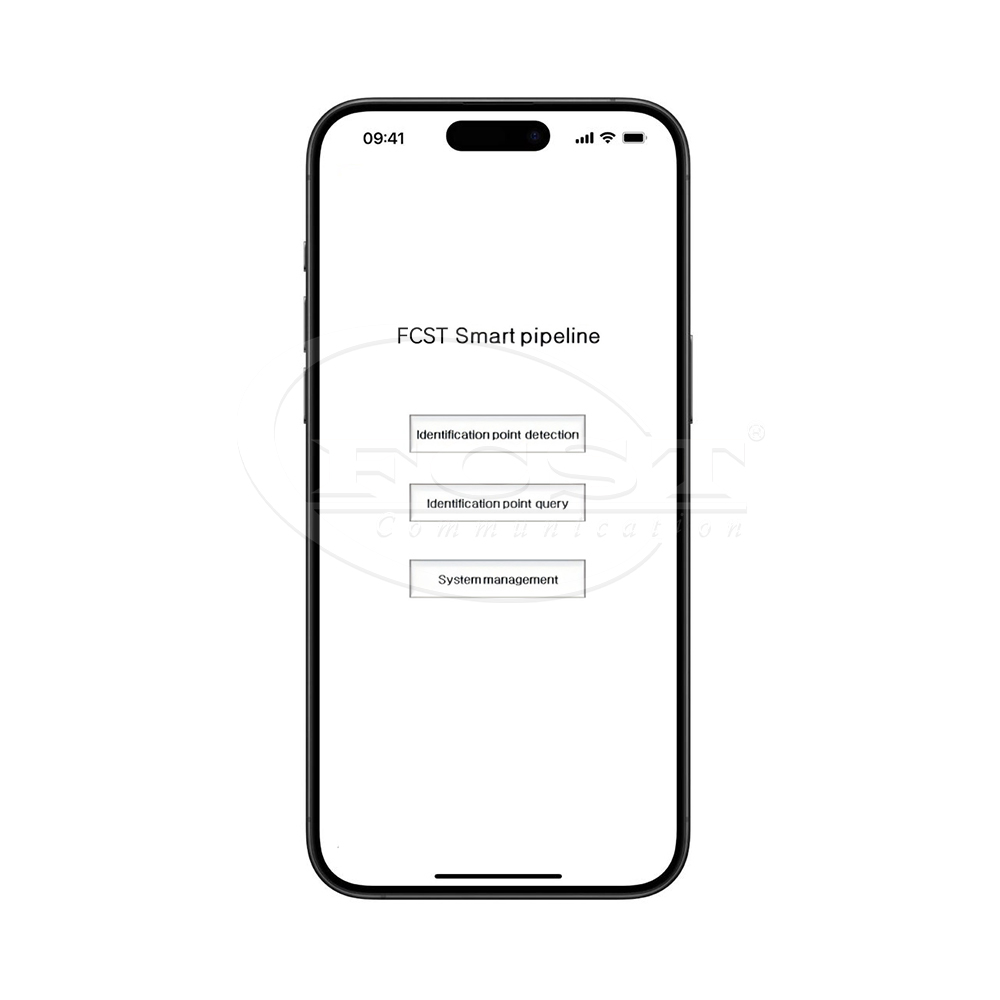

Main UI of Locator.
After connecting Android App through Bluetooth, all operating functions of the locator are taken over by app.

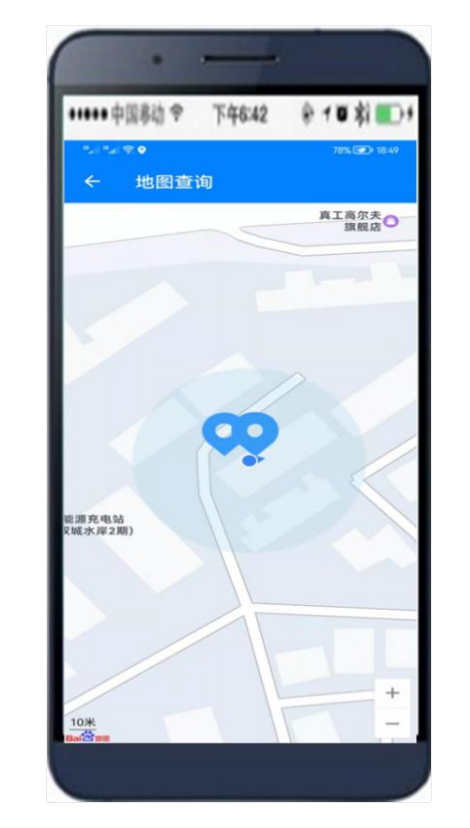

By querying the marking point through the map, you can select Google map to navigate to the selected identification point.

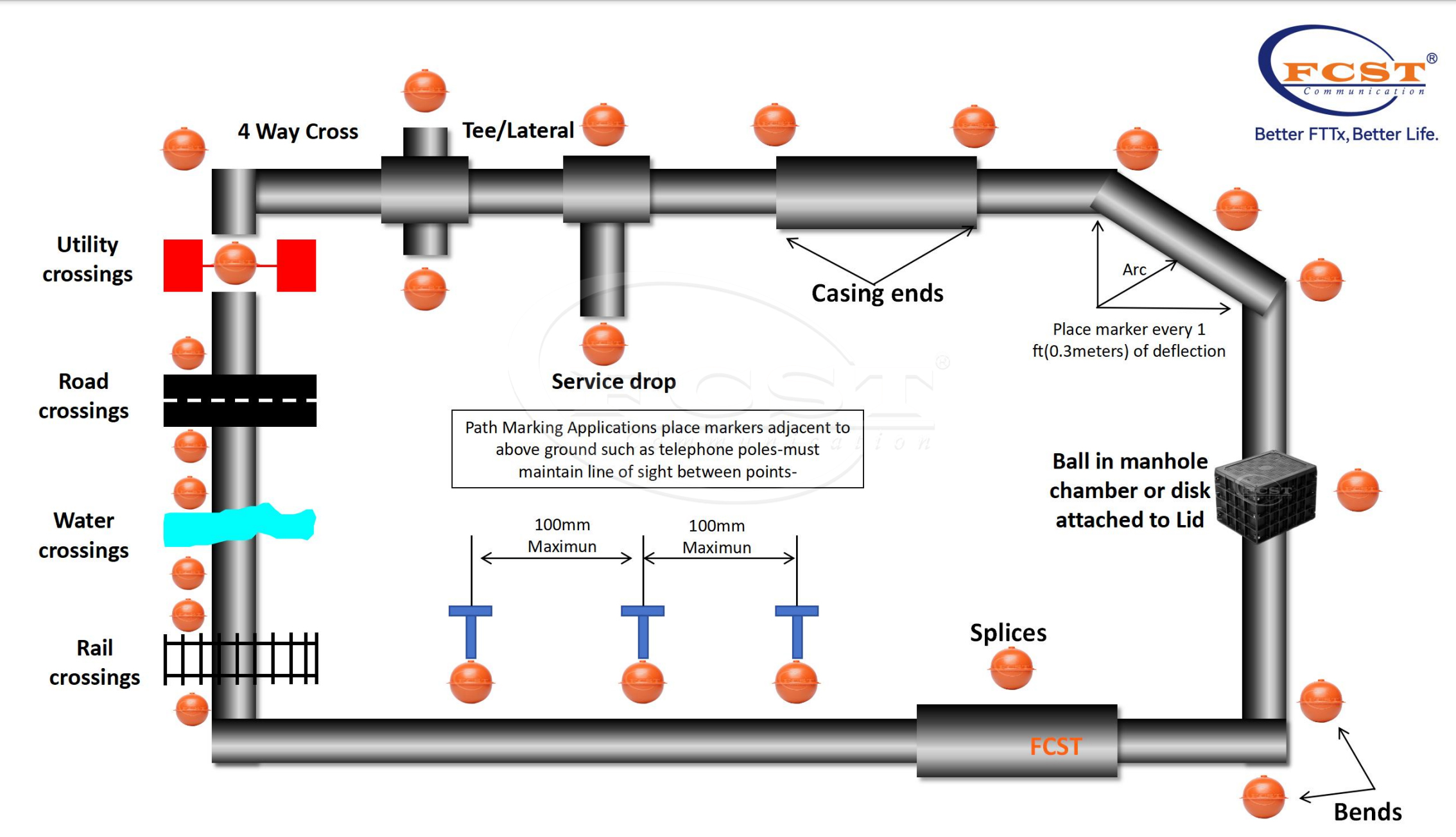

Usage Scenarios
Pipeline path 、Nonmetallic pipe 、Various valves、Metering meter 、Various、crossing points 、Tee 、Depth change 、Pressure reducing device 、Catholic protection 、 Pressure control point 、 Embedded reserved port 、 Various elbows、Pipe diameter change 、manhole 、 Cover 、Maintenance point

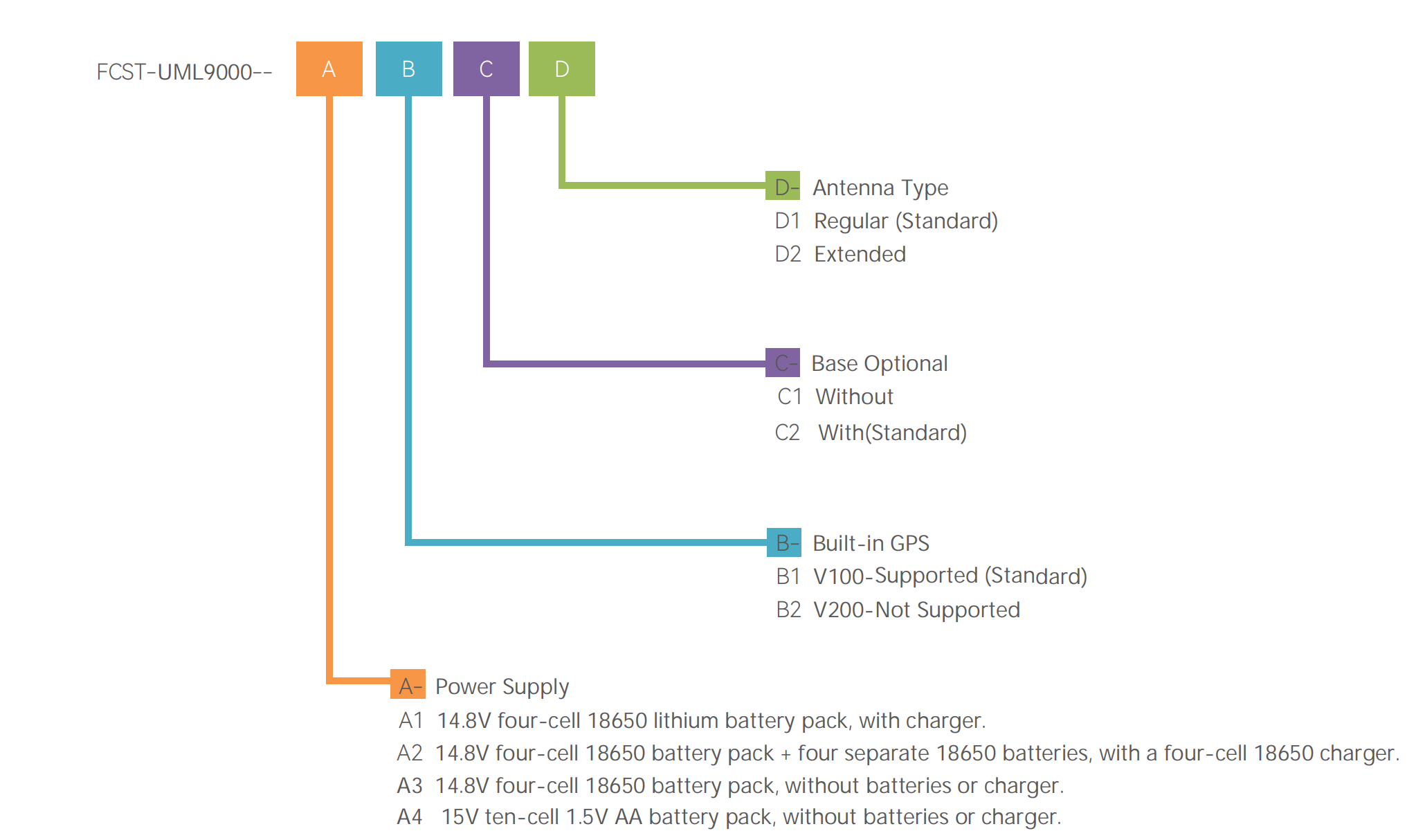

OrderingInformation
*Note: The specified model is determined based on optional configurations. For example: FCST-UML9000--A1-B1-C1-D1.
