MikroJet04
Product Overview

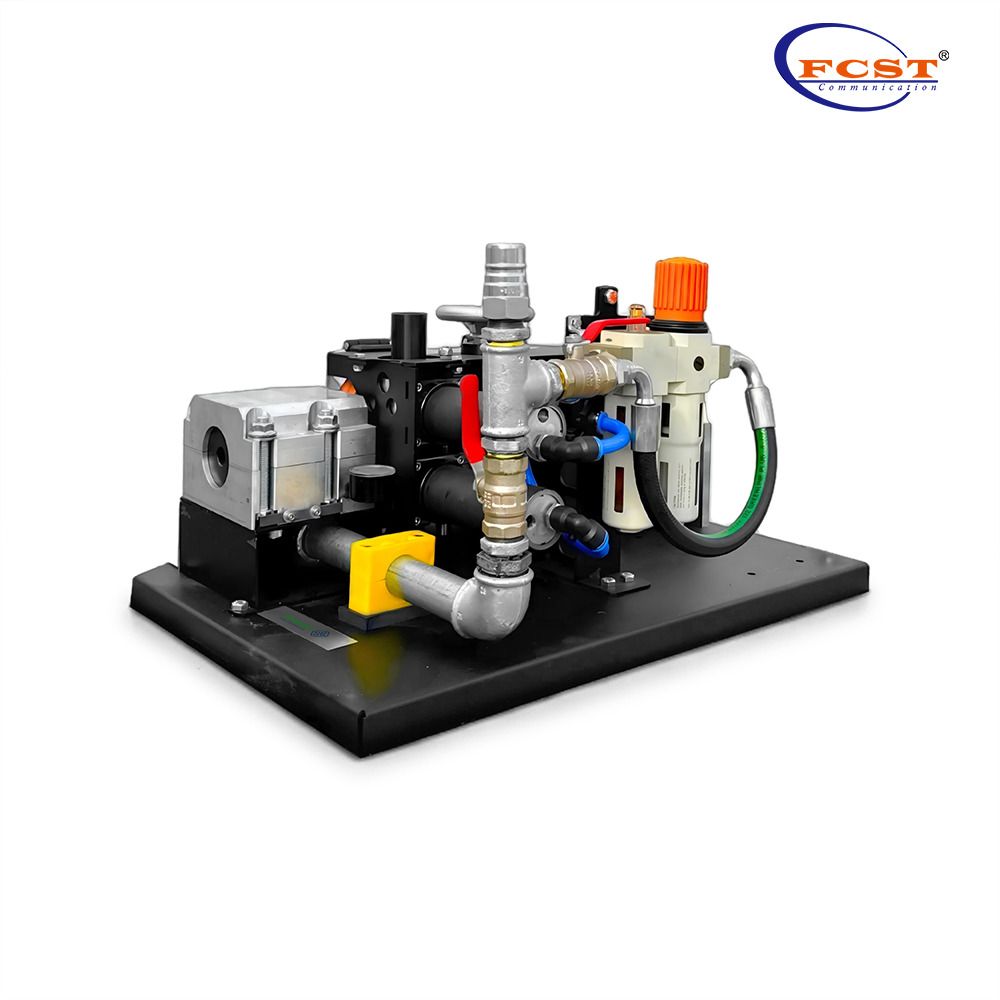

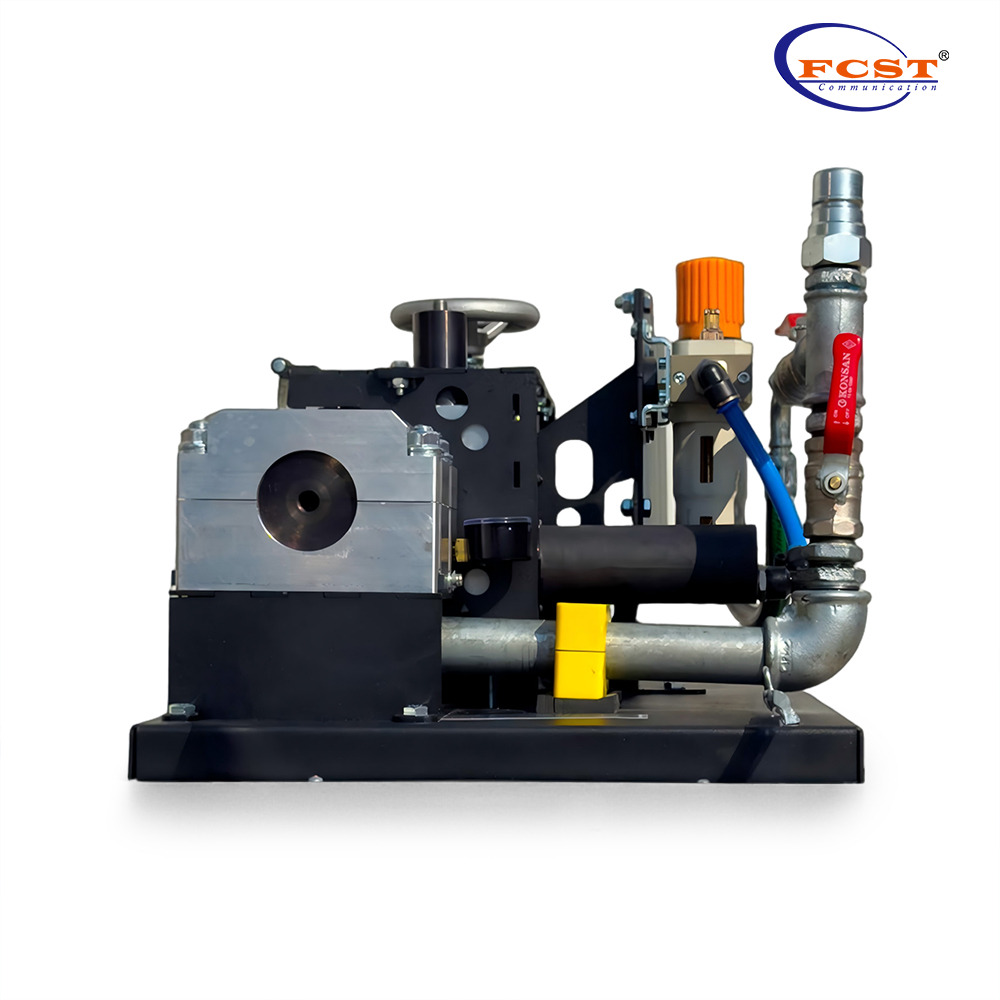

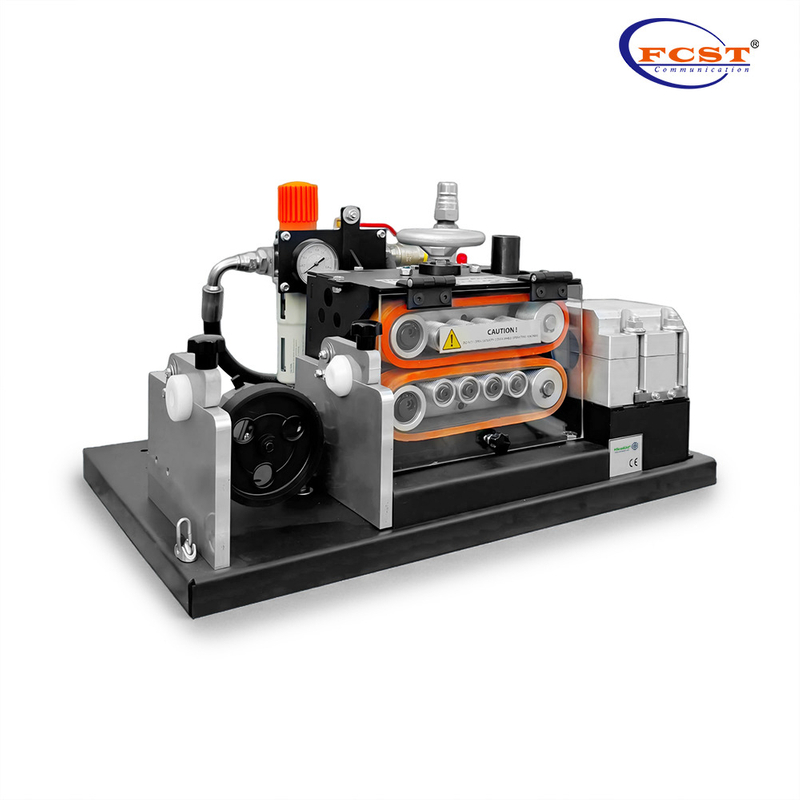

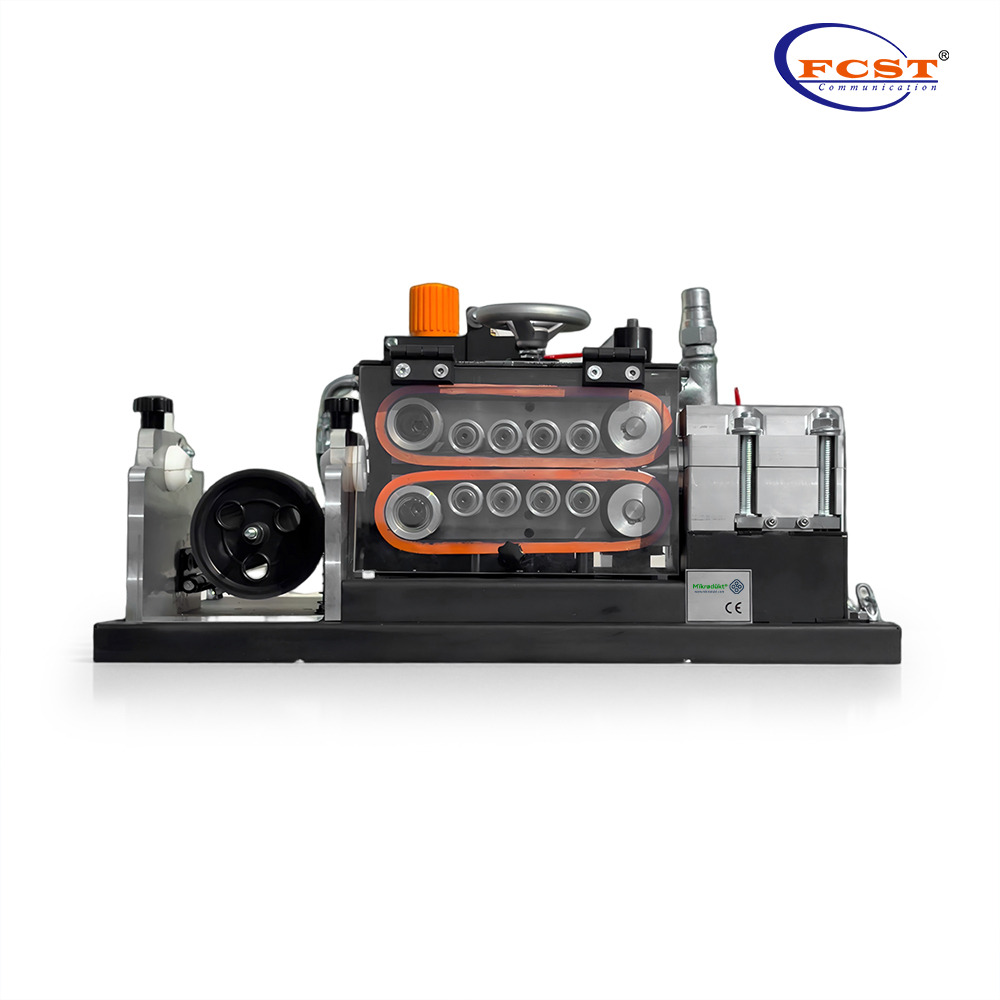

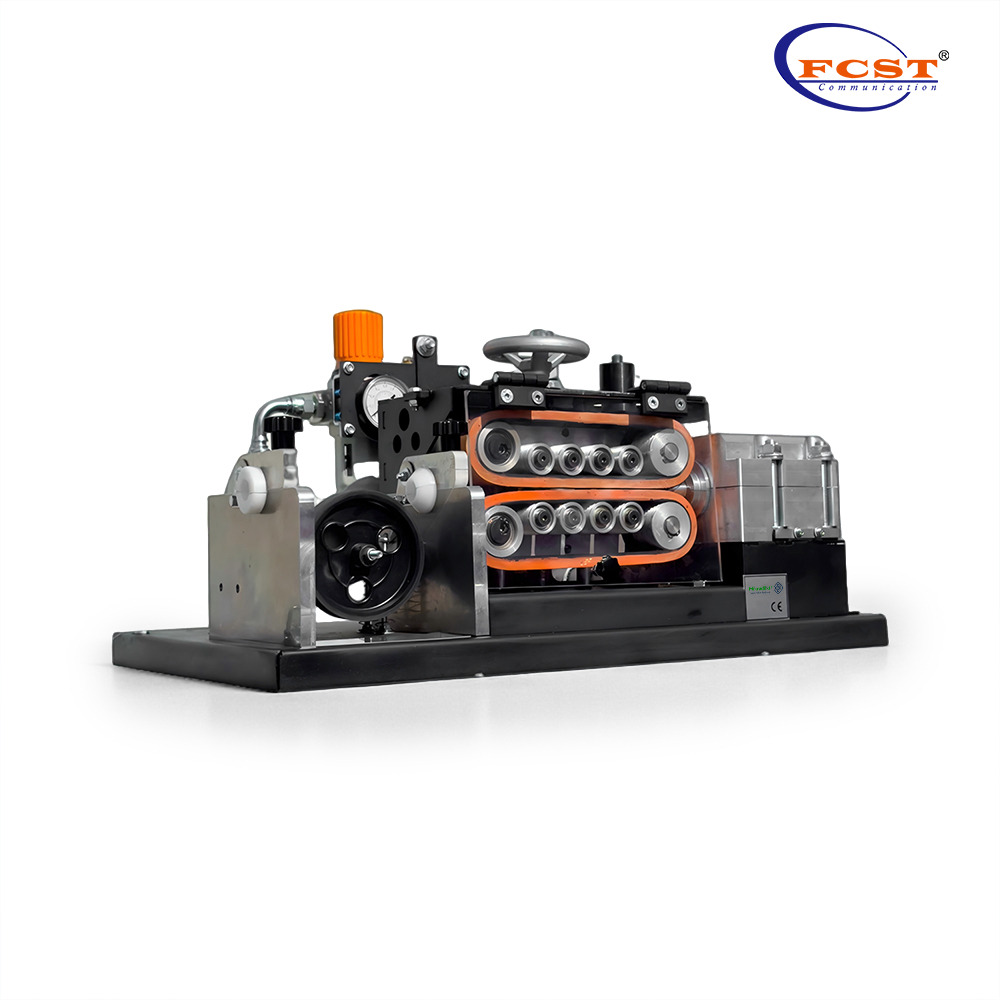

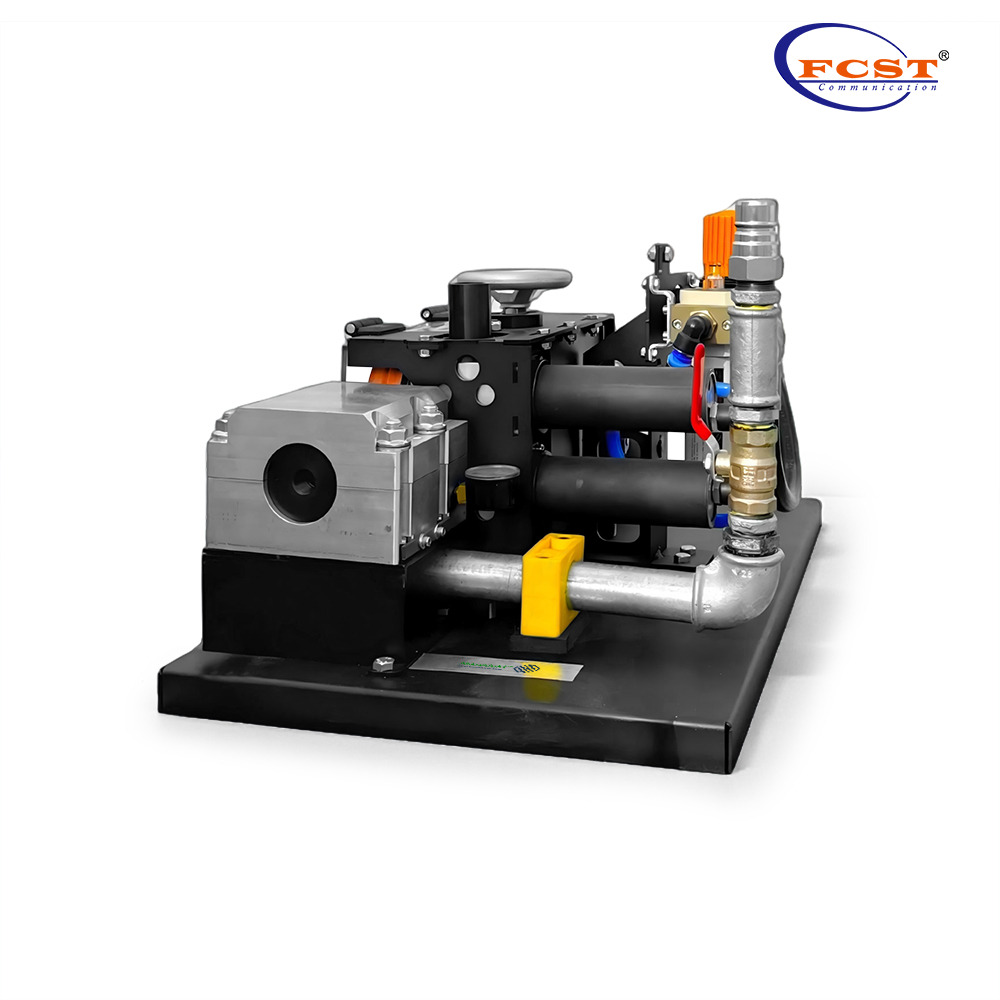

MikroJet04 is an air blowing machine for optic cables, ideal for economical insertion of fiber cables into thin wall HDPE ducts. Compact size, simple and reliable structure as well as high fiber compatibility, MikroJet04 is Most popular product for FTTH,FTTX,etc infrastructure. It is appropriate for fiber cable diameter from 2.5mm to 16 mm.
Product Features
Compatible with fiber cables from 2.5 mm to 16 mm.
Supporting duct size: 8~63mm.
Quick-change belt mechanism.
Half-automatique system of the pressure of the belt.
Digital Counter (for cable speed and distance)
Forward/reverse feed with manual forward feed and optional anti-reverse provisions.
Engineered cable stability system.
Comes with full adaptor & seal kit.
Waterproof case designed for transport on UTV or EXTV applications.
2-year service warranty and 10-year spare parts warranty.
Product Specifications
| Construction | Description |
| Micro Cable Diameter | φ2.5~16mm |
| Micro Tube Diameter | φ 8~63mm(8/12/14/16/20/25/32/40/50/63mm) |
| Blowing Distance / Max | 1500m(Single Motor) | 3000m(Double Motors) |
| Blowing Speed / Max | 150 m/min(Single Motor) |
| Pushing Force | 0~50kg(Single Motor) |
| Work Pressure / Max | 15 bar |
| Dimensions (L*W*H) | 200*350*300mm | 7.87*13.78*11.81in |
| Weight (approx.) | 35kg |
| Power Source | Air Motor |
| Pusher | Rubber Belt |
| Warranty Period | 48months |
| BePusher Sets(mm) | 2.5~4.0mm/5~8mm/9~12mm/13~16mm |
| Applications | FTTH/FTTx, micro cable networks,backbone |
| Minimum Air Consumption(at 12 bar) | 0~8mm :1m³/min 40~50 CFM 8~12mm :2m³/min 100~120 CFM 12~16mm :3m³/min 150 CFM 16~20mm :4m³/min 200 CFM 20~32mm :5~6m³/min 300 CFM |
Standard Accessories
All sizes supported by duct adapters.
Cable seals for the respective cable diameters.
Digital length counter pre-installed.
Set of Allen keys and screws.
Protective and storage case
