FCST-TH-SMC08
FCST
Product Overview

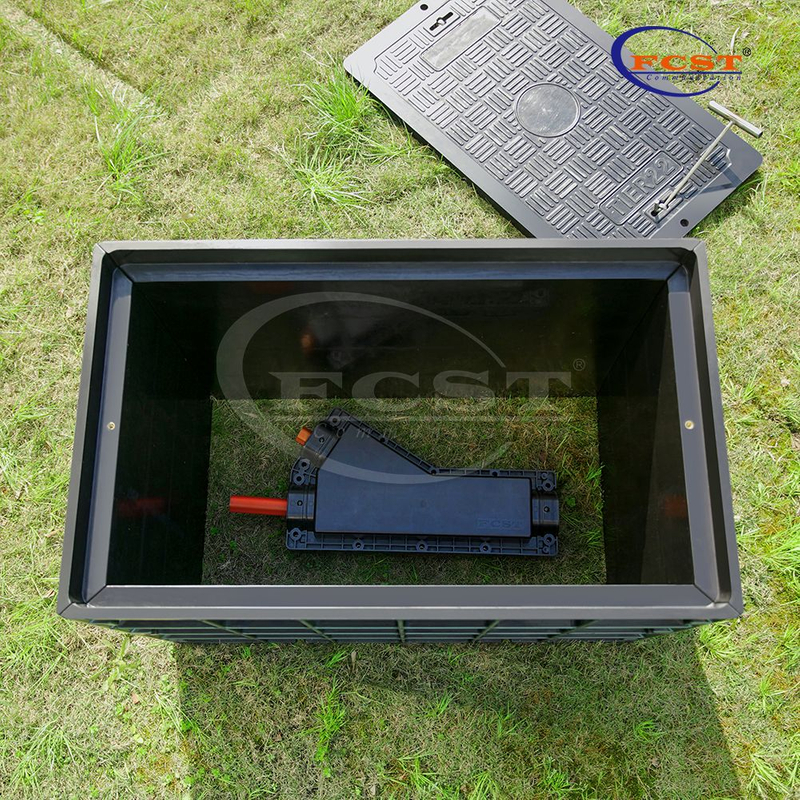

FCST-TH-SMC08 Telecom Manhole Chamber(L431.8*W762*D609.6mm) which is specially designed to provide protection, storage, equipment installation and maintenance and other functions for the underground embedding of optical fiber splice boxes and cable products. This composite access chamber not only has the advantages of high stability, long service life, pressure resistance, convenient assembly, but also has the characteristics of high protection level, high reliability, which can ensure that no problems will occur in any complex environment.
Product Advantages
The duct access box can be easy installation.
Strong corrosion resistance.
Telecoms Chamber have good resistance to high and low temperature.
Convenient transportation and cost reduction.
Transverse and vertical cross stiffeners are arranged around the outer side of the shaft, also be closely combined with the rammed soil layer. It is not easy to move and loosen after rolling.
Product Specifications
Construction | Description |
Executive Standard | ANSI/SCTE 77 2017 |
Material | SMC/BMC |
Manhole Cover Load Grade | Tier 15/Tier 22 |
Length | 431.80mm丨17in |
Width | 762.00mm丨30in |
Depth | 609.60mm丨24in |
Weight | SMC:55kg |
Flame Retardant Grade | V0 |
Environmental Requirements LOGO | Meet ROHS Available |
Working Temperature | -40℃~+65℃ |
Storage Temperature | -40℃~+70℃ |
Product Size
Ordering Information
Performance Test
Structural Load Test
Test Items | Test Standards |
Vertical Design Load Test | ANSI/SCTE 77 2017 -7 15 |
Vertical Test Load Test | ANSI/SCTE 77 2017 -7 15 |
Transverse Design Load | ANSI/SCTE 77 2017 -7 15 |
Vibration Test Load Test | ANSI/SCTE 77 2017 -7 15 |
Structural Load Test
Test Items | Test standards |
Ultimate Bending Strength | ANSI/SCTE 77 2017 -6.1.6 |
Chemical Resistance | ANSI/SCTE 77 2017 -6.2.6 |
Simulate Sunlight | ANSI/SCTE 77 2017 -6.3.6 |
Water Absorption | ANSI/SCTE 77 2017 -6.4.6 |
Flammability | ANSI/SCTE 77 2017 -6.5.6 |
Internal Equipment Protection Test | ANSI/SCTE 77 2017 -6.6.6 |
Product Application
Note:The practical application of this Composite Manhole Chamber, covering many fields such as municipal administration, electric power,electricity, water, road administration,and drainage.
Packing And Transportation

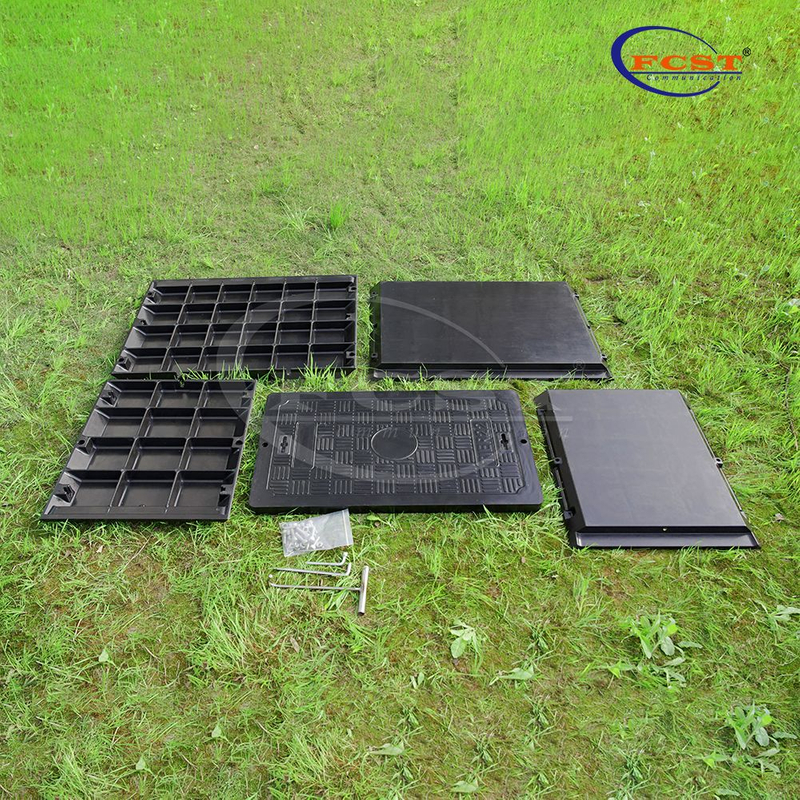

Disassembly and transportation
Pallet Size | Product Weight | Pallet Capacity | Container Loading Capacity (40GP container,Weight limit 26 tons) |
FCST-TH-SMC08 (1090mmx875mmx1200mm) | 77 | 24sets | 330sets |
Design And Customization Services
lProvide service with whole process from blueprint to product to the customer.
lMeet customer’s requirement to customize logo in suitable place for existing product.
lMeet customer’s requirement to make reasonable modify and customization for existing product.
