FCST090104
FCST
FCST090104
Product Overview
FCST090104 Pedestal Model is suitable for the protection of optical cable and optical communication equipment connection.Through the pigtail spliced with the incoming cable inside the box,the signalis led lead out directly to realize the wiring function.FTTH Fiber Pedestals is suitable for floor installation outdoors.
Product Advantages
l Provide protection for optical cable distribution,which is waterproof and dustproof;
l Internal metal parts are electrostatic sprayed with uniform color and elegant appearance.
l Independent optical fiber splicing area,adapter connection area and cable wiring parking area,easy to operate and maintain;
l The box body is upper and lower structure.After opened,it can be operated on both sides of the front and back without shielding.
Product Specifications
Construction | Description |
Max. Capacity | 144 cores (single core) |
Dimension (mm) | 346*298*681 |
Weight(kg) | 7.4 |
Fiber Radius Of Curvature(mm) | ≥ 40 |
Fiber Optic Disk Additional Loss(dB) | ≤0.01 |
Floor Mounting Hole Distance(mm) | 260 |
Product Size
Unit:mm

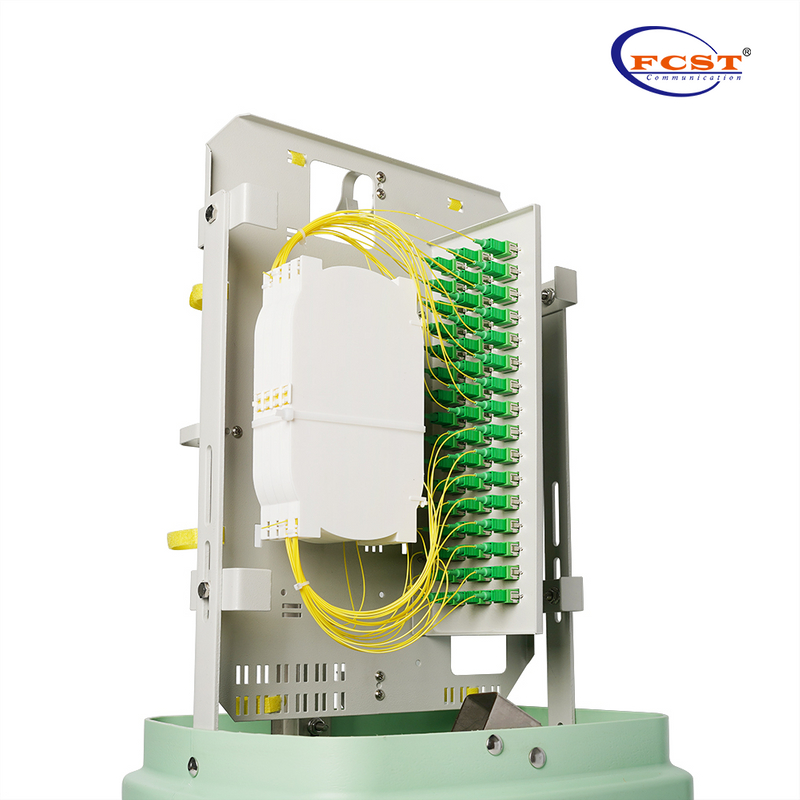

Product Structure
The First Structure
The Second Structure
Remove the backboard,splice tray,adapter holder, and install the splitter distribution box on the cross beam(can match different types of distribution boxes).

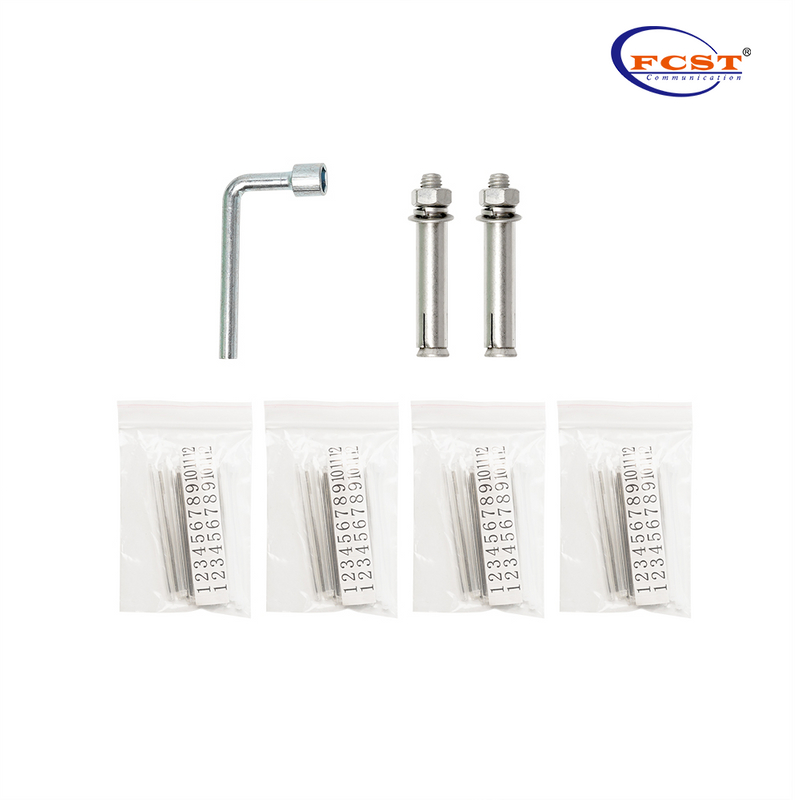

Packing Information
Name | Quantity |
Fused Fiber Package | configured according to the number of cores |
Round Head Screw M2x5 | configured by flange number |
Bare Fiber Protection Tube φ4x400 | one for every 12 cores |
Product Application
l Widely used in FTTX Network.
l Telecommunication Networks.
l Data communications Networks and Local Area Networks.
