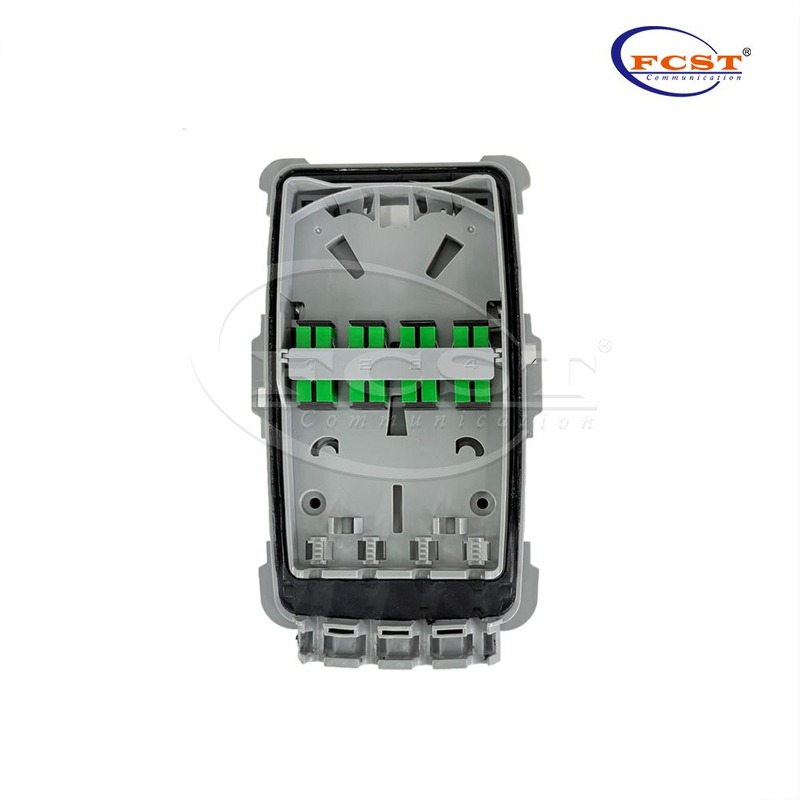

FCST022111 Optical Fiber Distribution Box

  • Gel-sealed, IP67 rated.
  • Max. Capacity 10 Cores.
  • Efficient cable management.
  • 1*4 PLC Splitter can be installed as an option.
Availability:
  • FCST022111

  • FCST

  • FCST022111

  • 100

Product Overview

FCST022111 Optical Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one

solid protection box.


Product Advantages

  • Gel-sealed, IP67 rated.
  • Max. Capacity 10 Cores.
  • Efficient cable management.
  • 1*4 PLC Splitter can be installed as an option.


Product Specifications

Construction

Description

Max. Capacity

10 cores

Material

PP+GF

Dimension (mm)

            203*121*43mm丨7.992*4.764*1.693in

Inlets/Outlets

2/4

Splitter Type

1*4 PLC Splitter

Operating Temperature

-45℃~+65℃

Cable Entry Ports

2 pieces - φ5mm or φ4* 7mm

            Cable Capacity.Dop

4 pieess -φ2*3mm or φ3mm or φ5mm


fiber optic distribution box FCST022111通用图片-1
