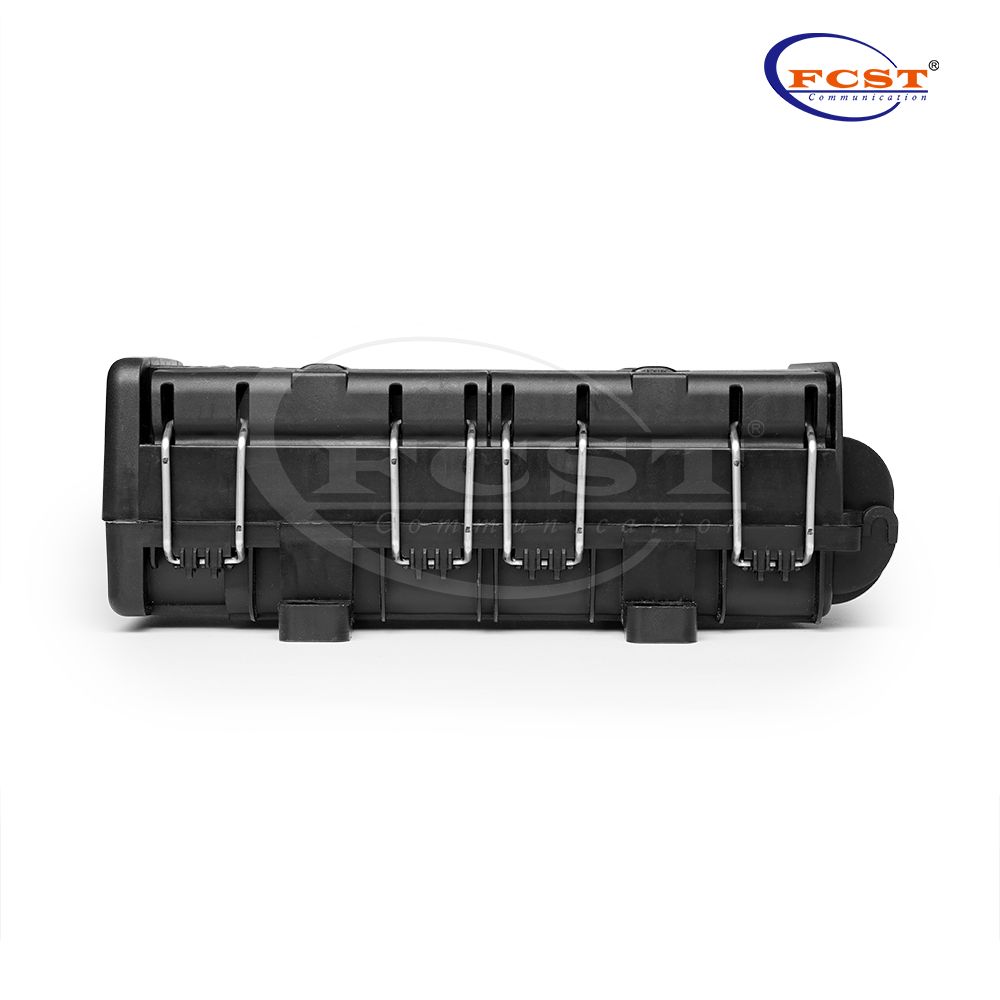

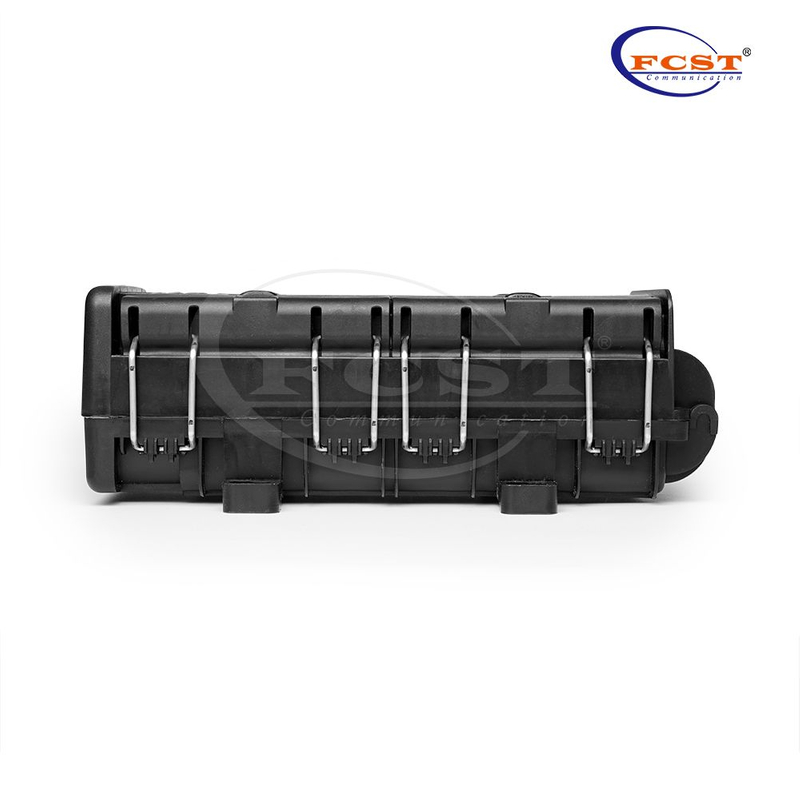

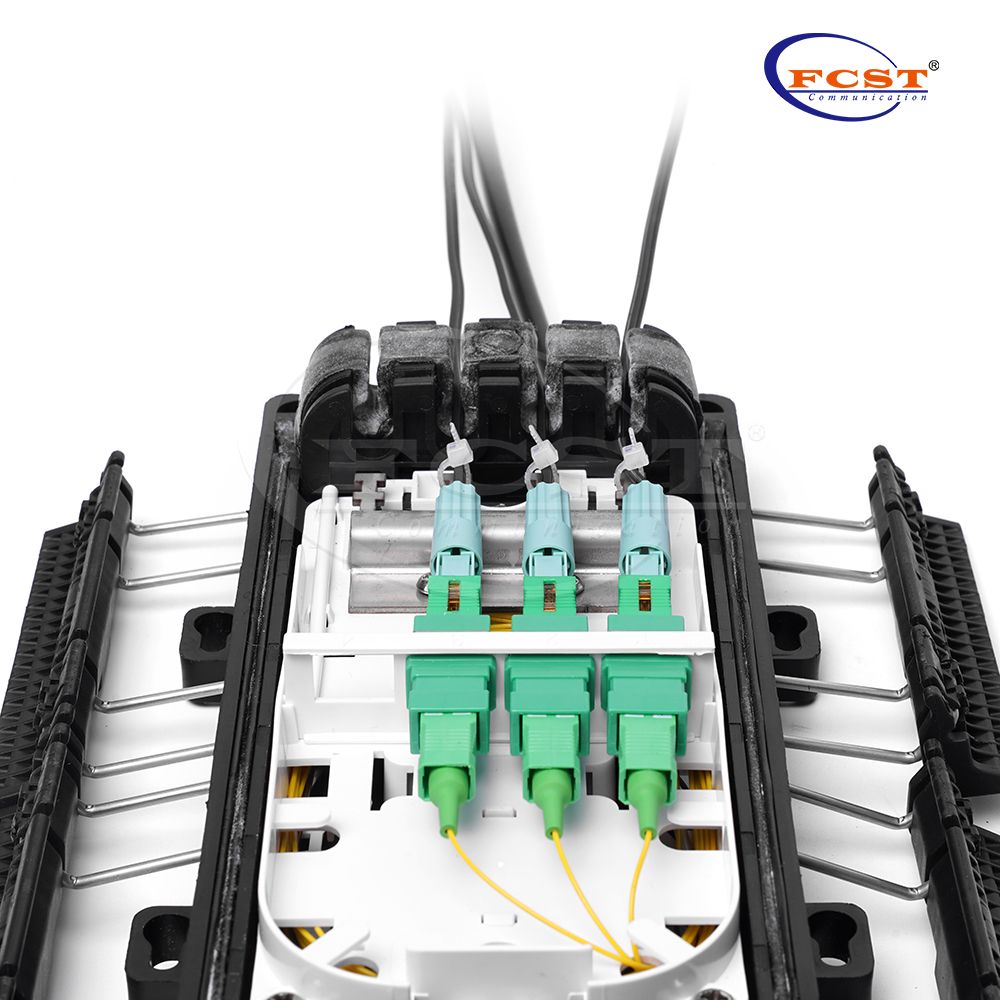

FCST022113 Fiber Access Terminal Closure – IP68 FTTX Termination Box for Wall/Pole Mount

Product Overview

FCST022113 Fiber Access Terminal Closure is a compact FTTX termination point designed for feeder cable to drop cable connection in FTTH, FTTB, and other fiber networks.

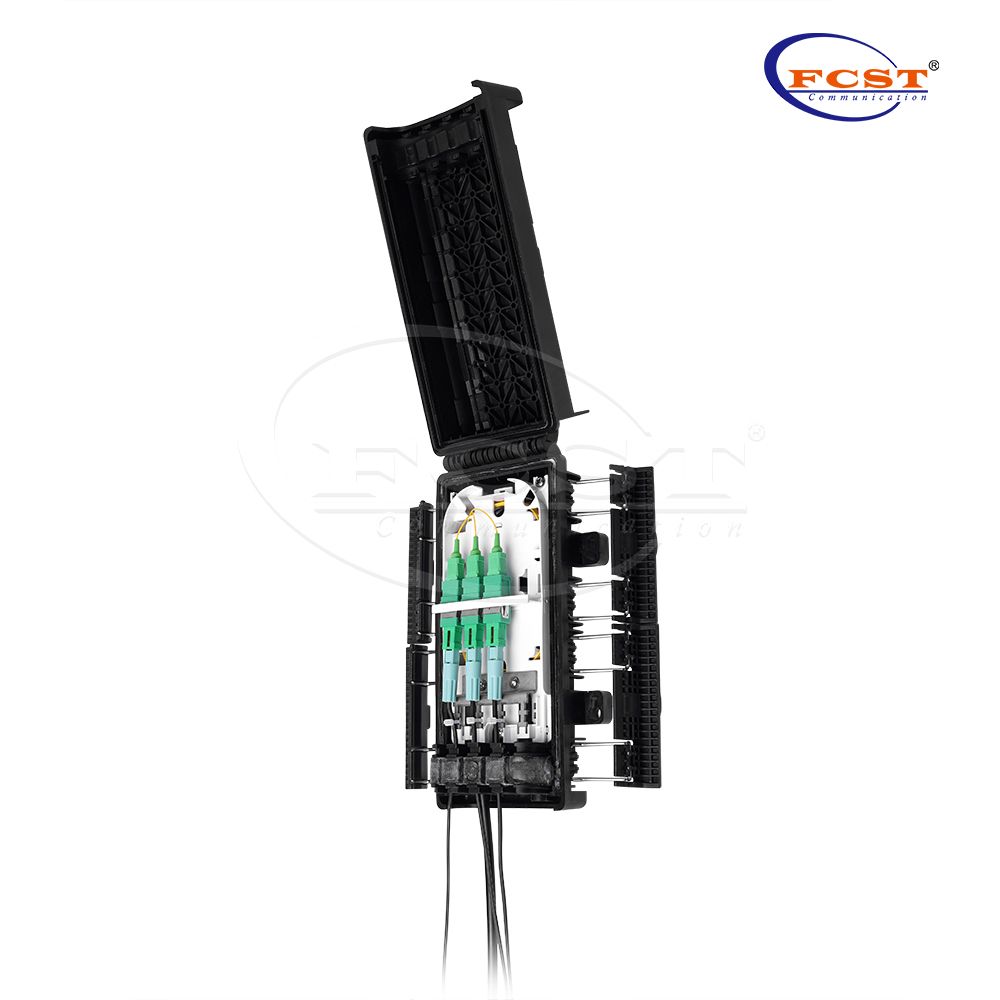

It integrates fiber splicing, splitting, and distribution in one sealed box, providing solid protection against moisture, dust, and mechanical stress.
Ideal for: Wall-mount or pole-mount outdoor/indoor installations where reliable cable termination and management are required.

Product Application

• FTTH / FTTB / FTTC distribution point

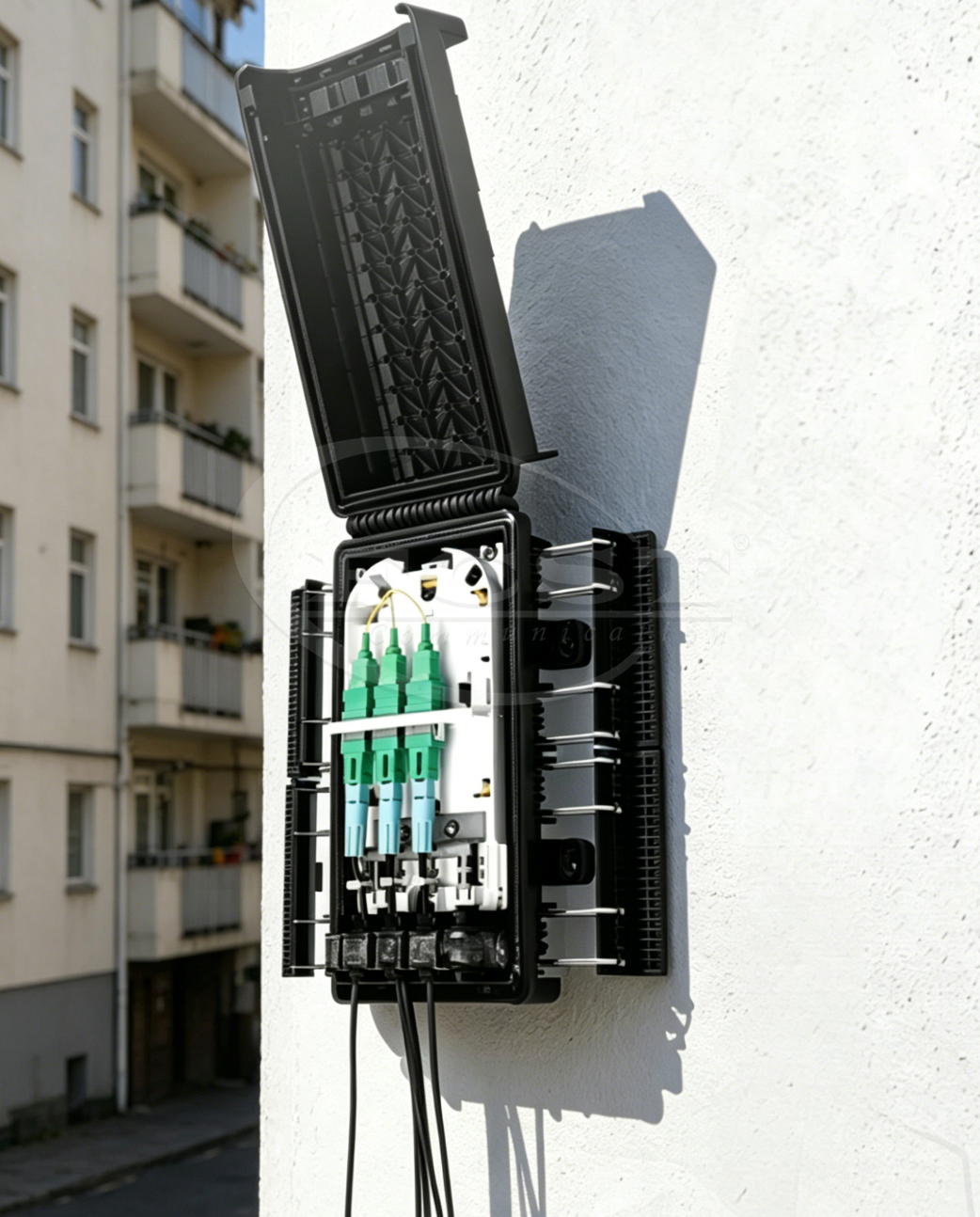

• Outdoor wall-mounted termination box for residential areas

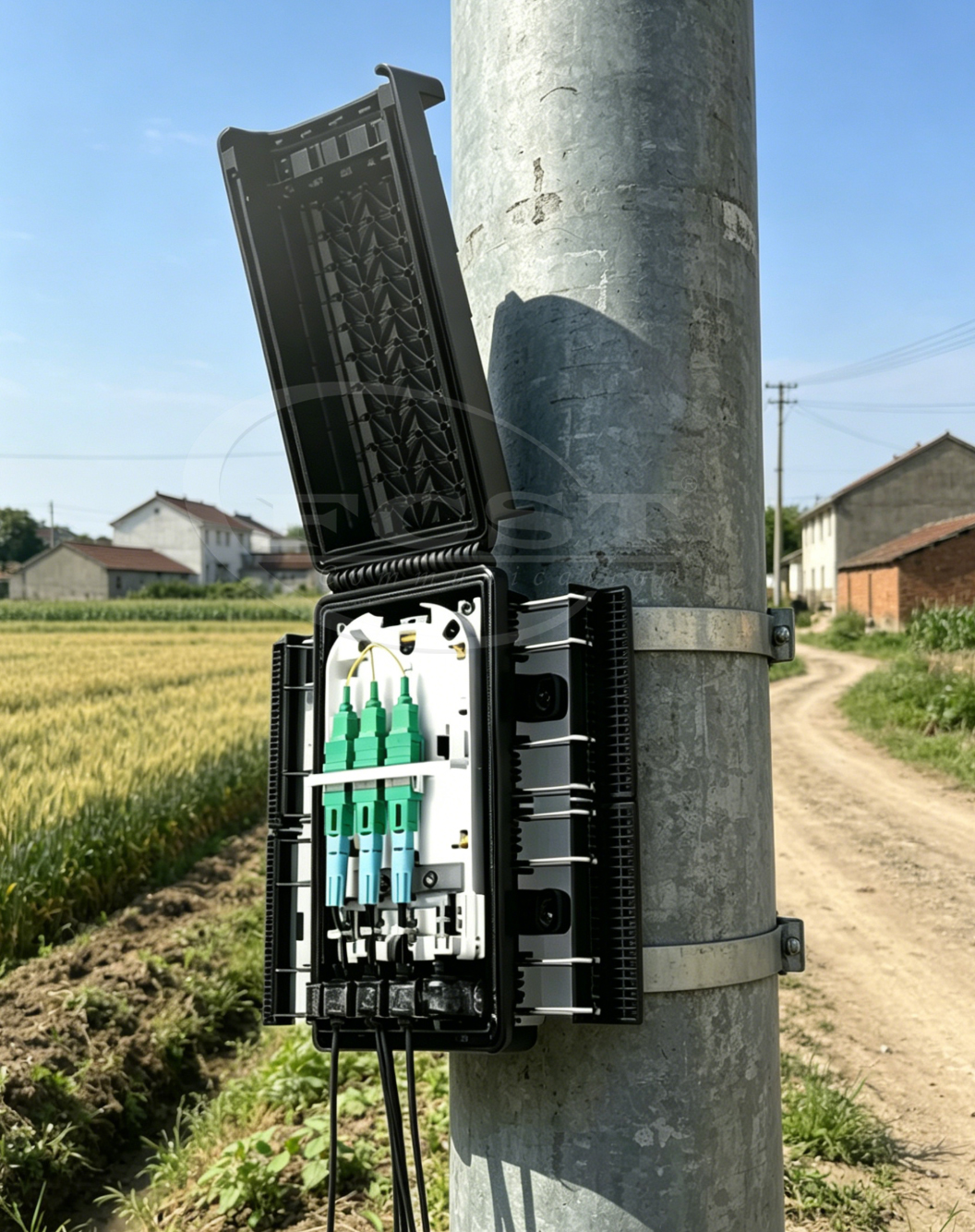

• Pole-mounted enclosure in rural fiber networks

• Underground or aerial terminal (IP68 protection)

• Indoor telecom room fiber management

Product Advantages

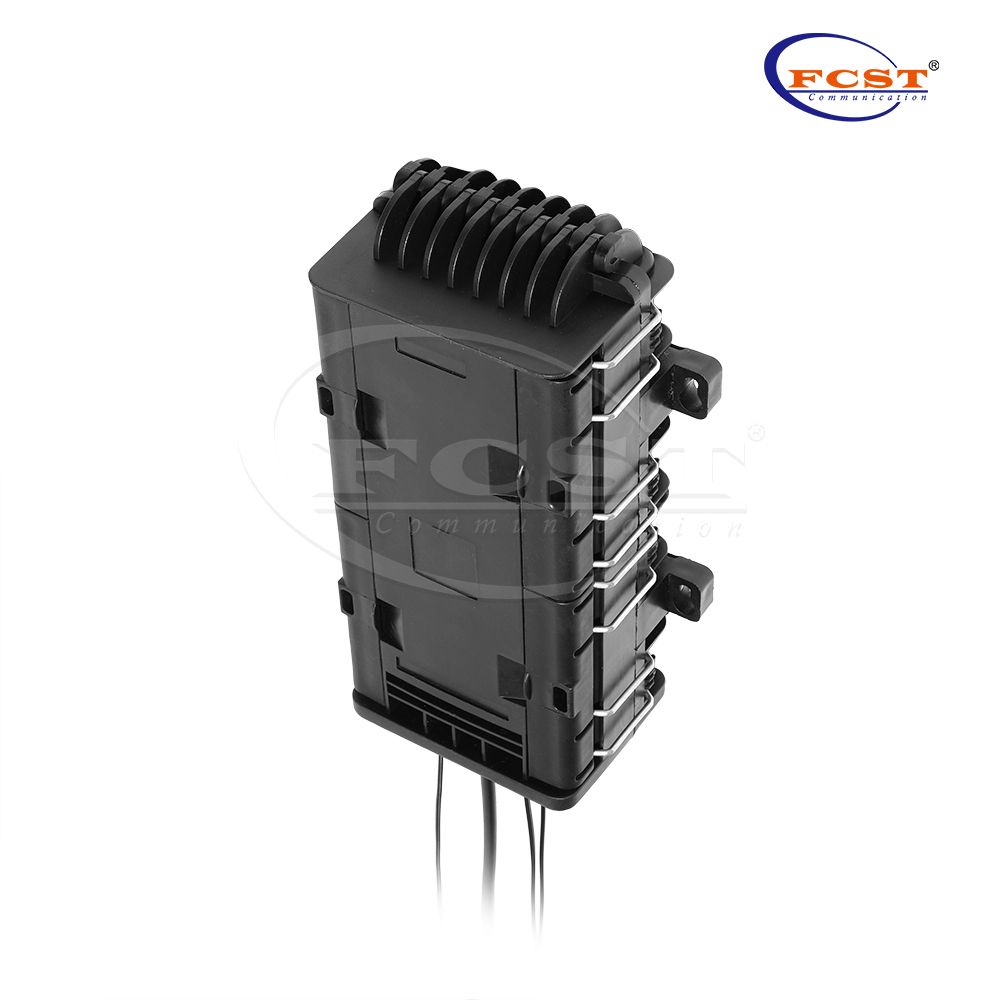

• IP68 rated --- Fully waterproof and dustproof, suitable for harsh outdoor environments.

• Gel sealing technology --- More reliable than plain rubber seals; easy cable entry and resealing.

• PP+GF engineering plastic --- High mechanical strength, sturdy, durable, and lightweight.

• 24 fiber splice capacity --- Supports up to 24 splices, enough for small to medium FTTX nodes.

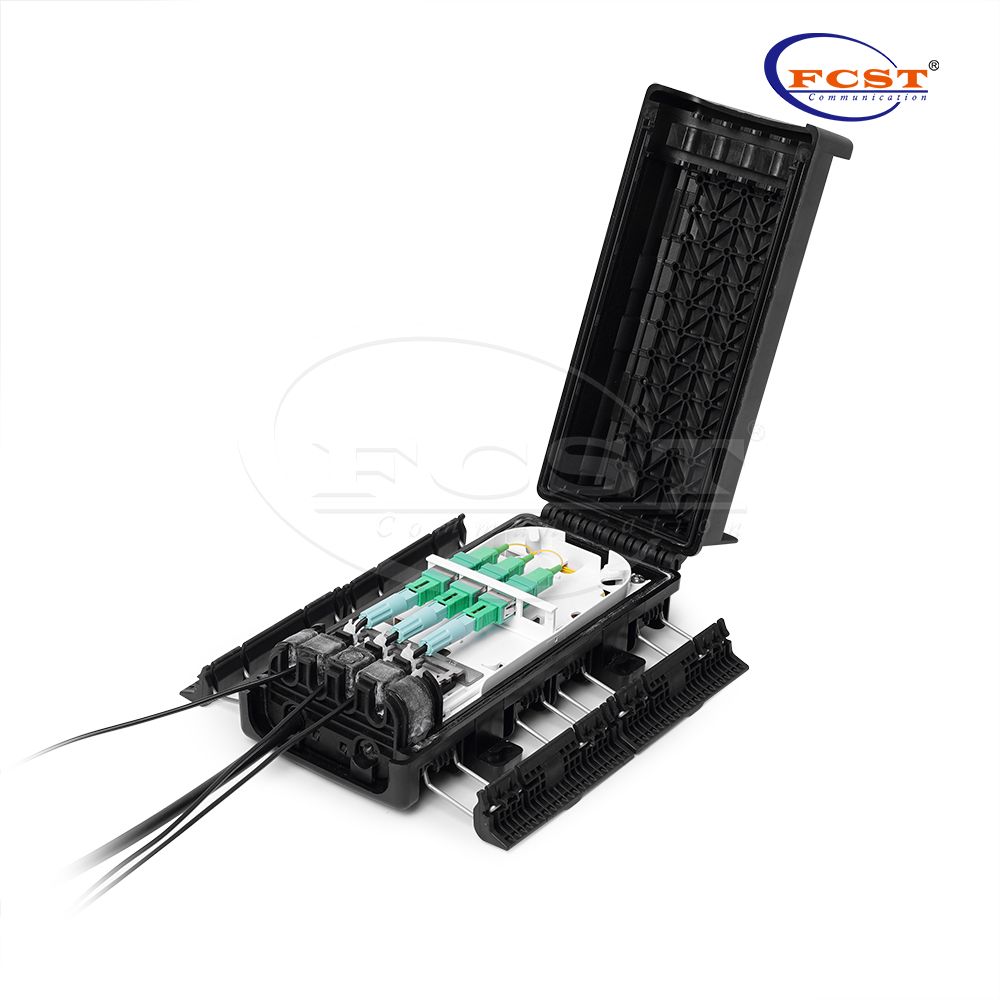

• Built-in stacked splice tray --- Splice tray can be removed for easy installation and maintenance.

• 2 inlets / 4 outlets --- Flexible cable routing for feeder and drop cables.

• Wall or pole mount --- Adapts to different deployment scenarios.

Contact our team for a custom quote in 24 hours.

Product Specifications

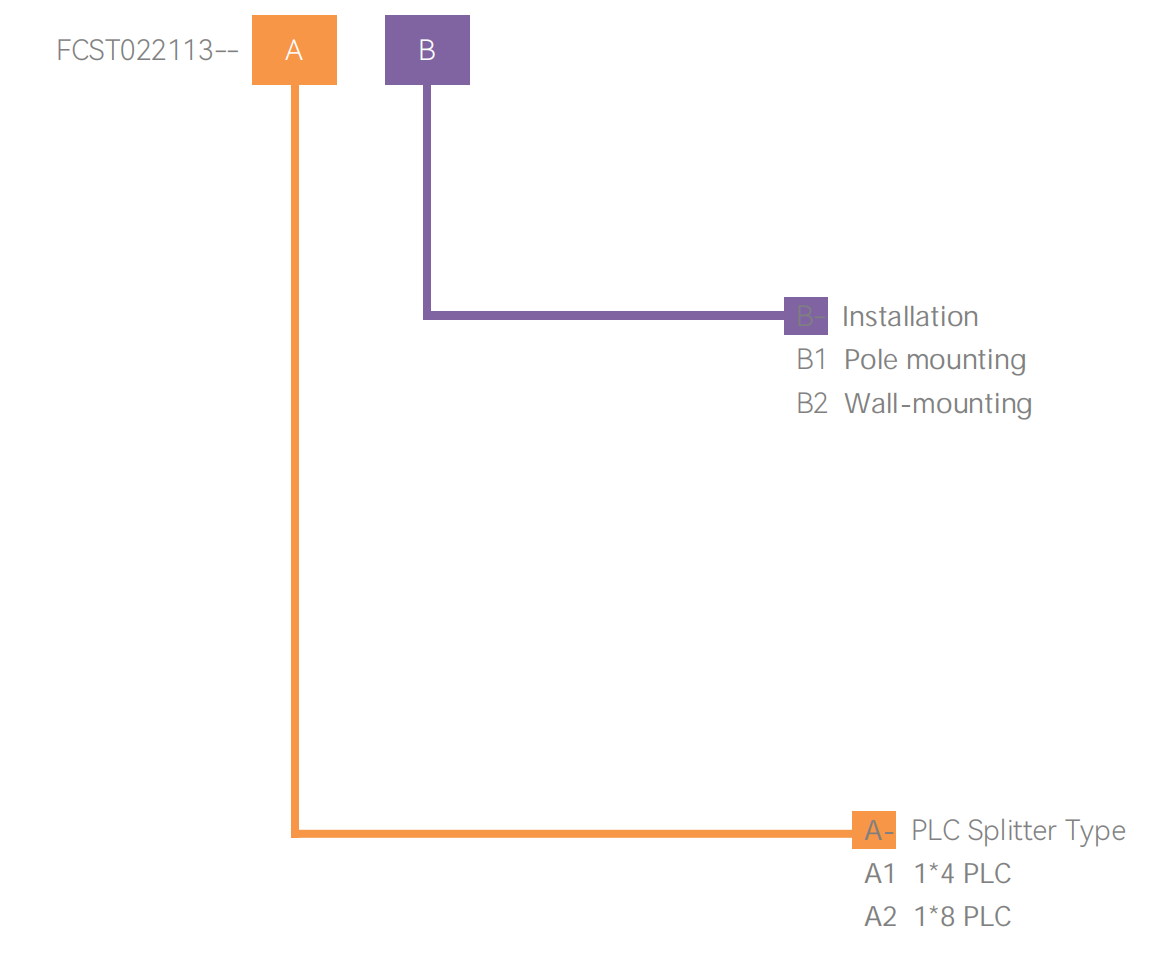

Ordering Information

Q&A

1: Is FCST022113 fiber access terminal closure suitable for outdoor use?

Yes, it is IP68 rated and made of UV-resistant PP+GF material, suitable for wall or pole outdoor installation in direct sunlight or rain.

2: What is the maximum fiber core capacity?
It supports up to 24 fiber splices and up to 4 branch cores using SC adapters.

3: What type of sealing does the FTTX termination box use?

Gel sealing technology – more durable and re-enterable than plain rubber seals. No special tools needed.

4: Can I install a PLC splitter inside?
Yes, the box has space for a 1x4 or 1x8 PLC splitter (ordered separately or as a bundle).

5: How to access the splice tray?
The built-in stacked splice tray can be lifted or removed manually without any tools for easy maintenance.

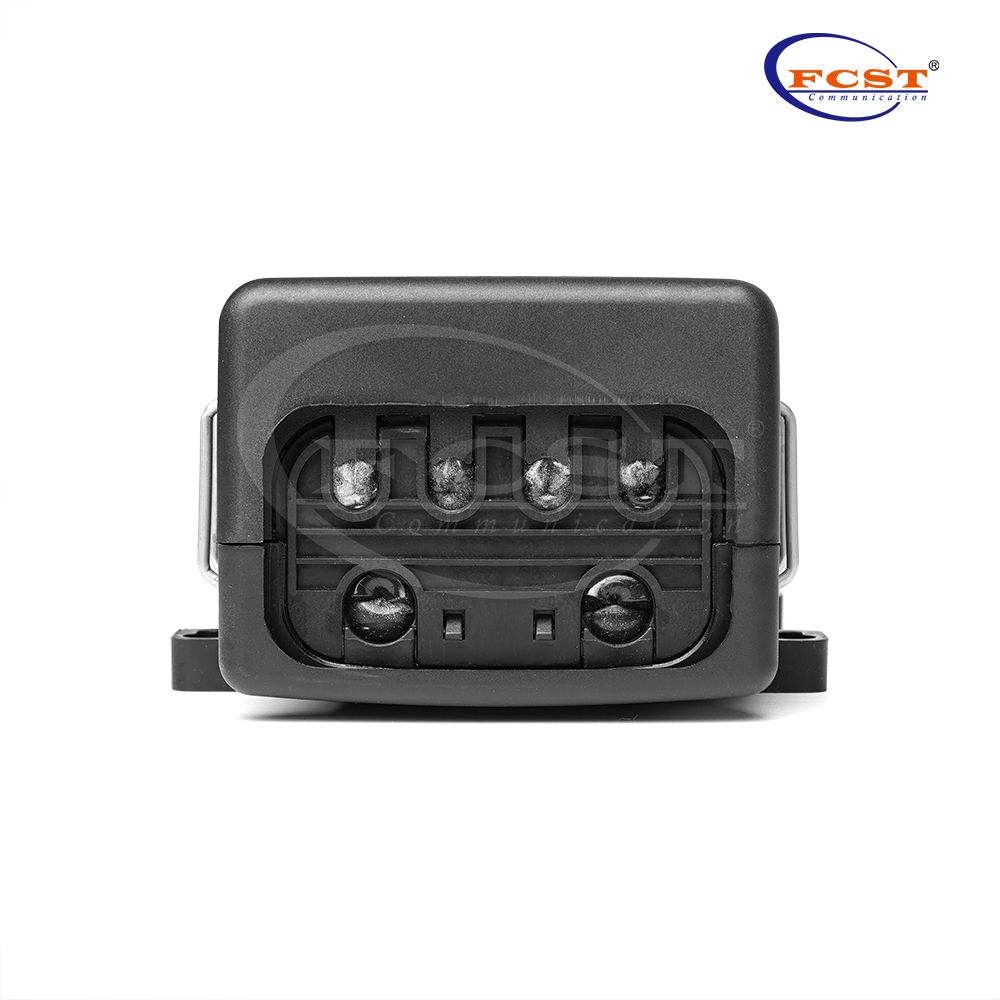

6: What is the maximum cable diameter for inlet/outlet ports?
Inlet port accepts cable up to 12mm in diameter, and outlet ports accepts cable up to 8mm in diameter.

7: Is this pole mount ftth enclosure flame retardant?

The PP+GF material has good flame retardant properties, suitable for outdoor telecom applications.
