FCST022105
FCST
FCST022105
Product Overview

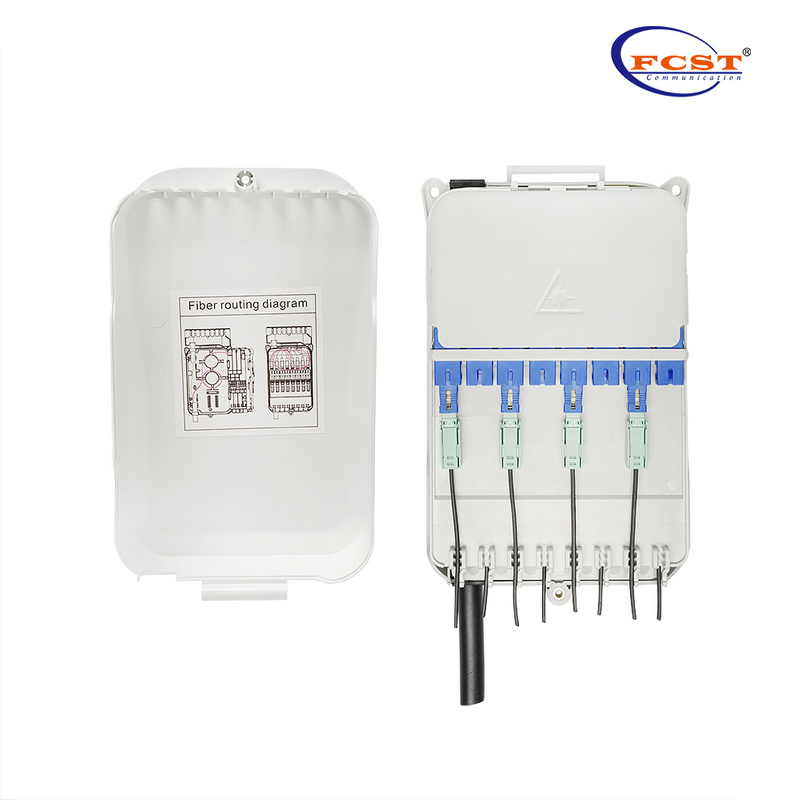

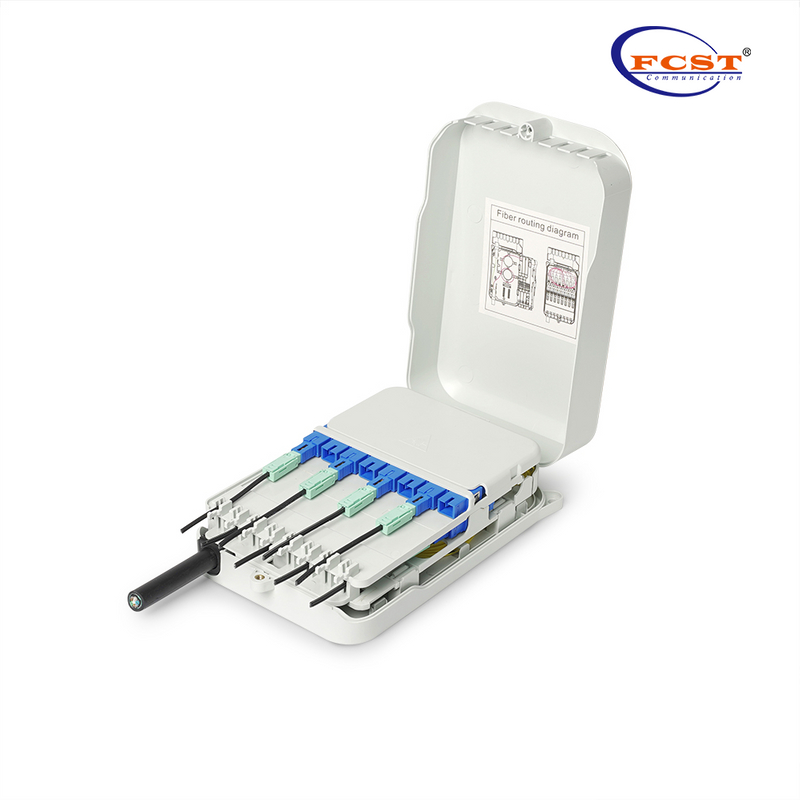

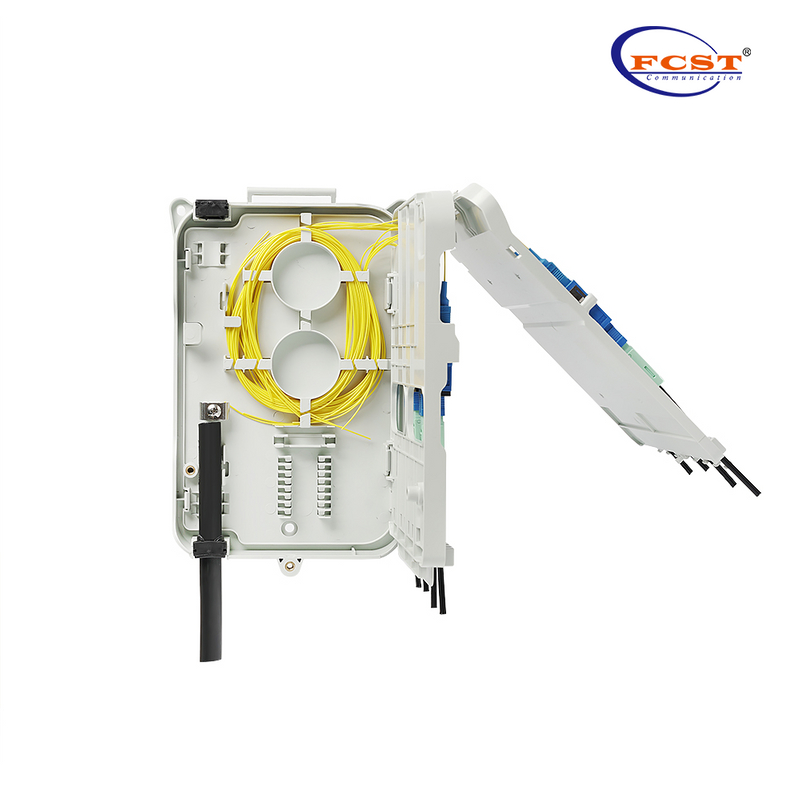

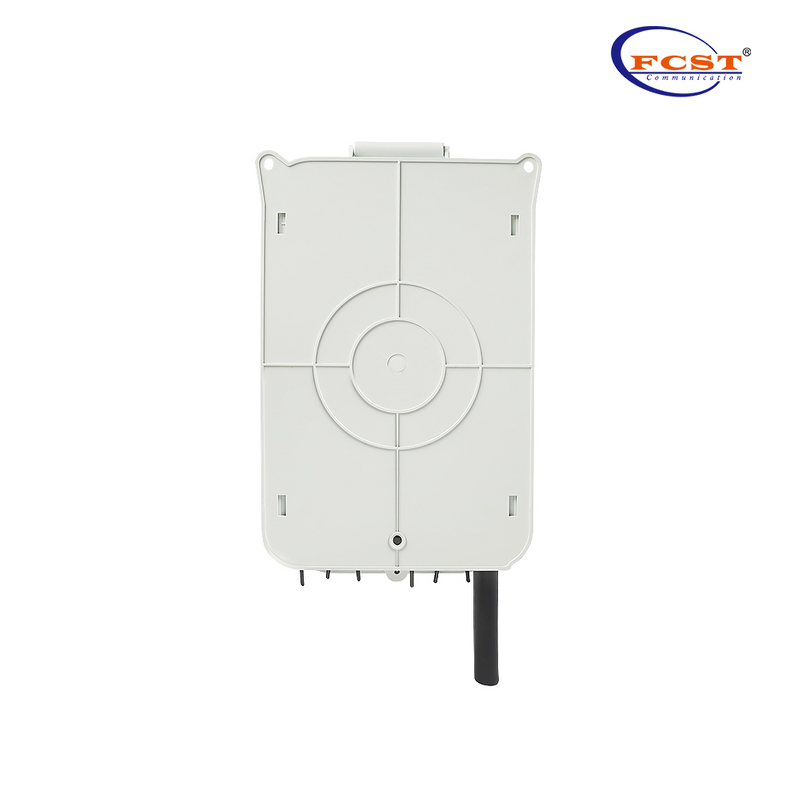

FCST022105 Fiber Access Terminal is able to hold up to 16 subscribers. Terminal splice box is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Product Advantages
l Efficient cable management.
l 16 ports cable entrance for drop cable.
l Easy to maintain and extend the capacity.
l 2:1*8 Splitter can be installed as an option.
l Fiber bend radius control more than 40mm.
l Water-proof design with IP-55 Protection level.
l Suitable for the fusion splice or mechanical splice.
l Manage fibers in a reasonable fiber radius condition.
l Integrated with splice cassette and cable management rods.
Product Specifications
Construction | Description |
Max. Capacity | 16 Cores(SC) PLC 2:1x8(SC) |
Material | PC+ABS |
Dimension (mm) | 220*140*55 |
Inlets/Outlets | 1/16 |
Net Weight(g) | 600 |
Protection Level | IP55 |
