FCST012222
FCST
FCST012222
Product Overview

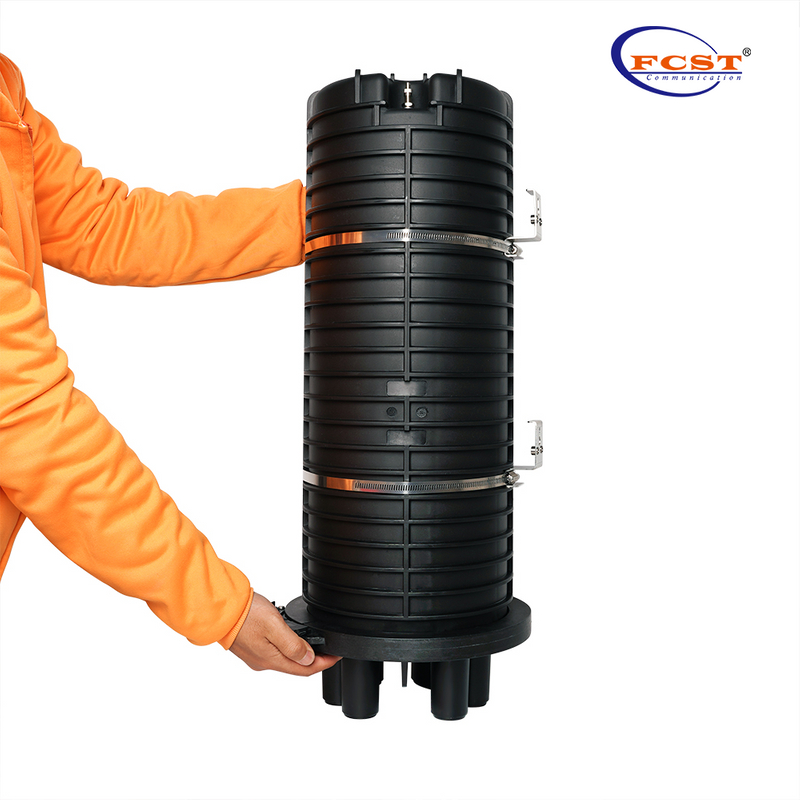

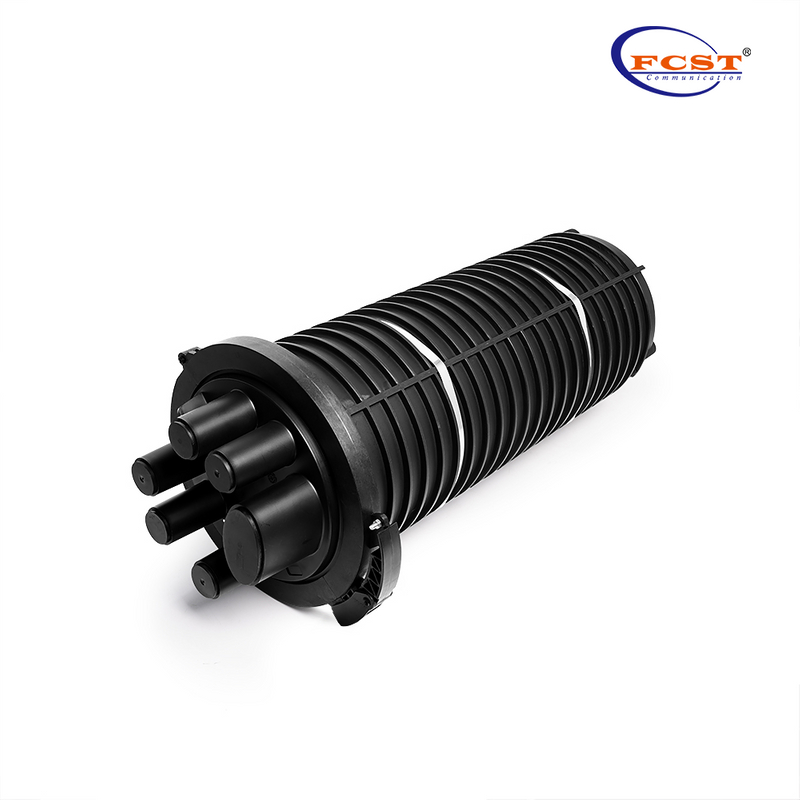

FCST012222 Fiber Optic Splice Closure is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. Optical fiber splice closure adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

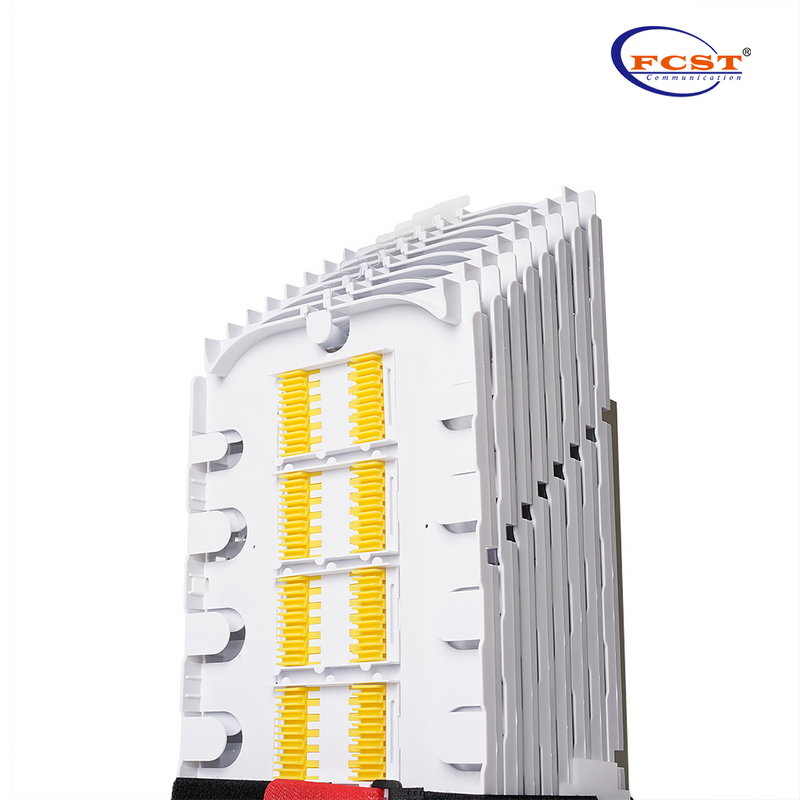

Dome-to-base design; up to 8 pieces splice trays with excessive loose buffer storage basket, hinge for access of any splice without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, pole/ wall mounting or directly buried.
Product Specifications
Construction | Description |
Max. Capacity | Single fiber：576cores |
Material | Dome,clamp,base：PP Tray: ABS Metal parts：Stainless steel |
Dimension (mm) | 680*φ305 |
Inlets/Outlets | 1 oval port,5 round ports |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Net Weight（g） | 8500 |
Protection Level | IP68 |
Diameter Of Fiber Cable | Oval port：available for 2 pcs, 10~33mm cables Round ports：Each available for 1pc 6-33mm cable |
Sealing Mode | Heat-shrink |
Splice Tray Capacity | Single fiber：72F |
Max No.Tray Installed | 8pc |

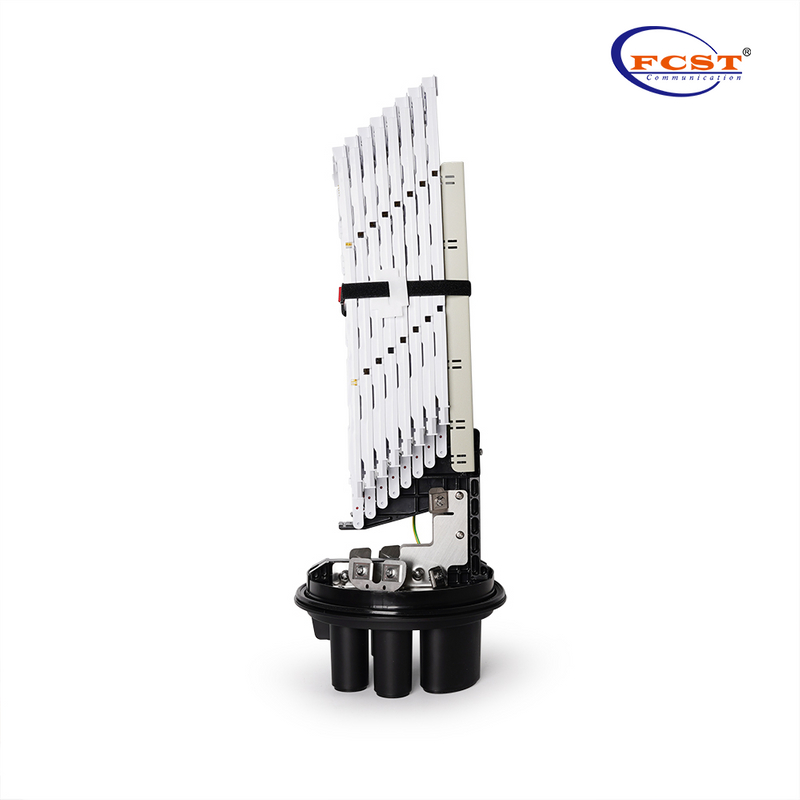

Product Structure

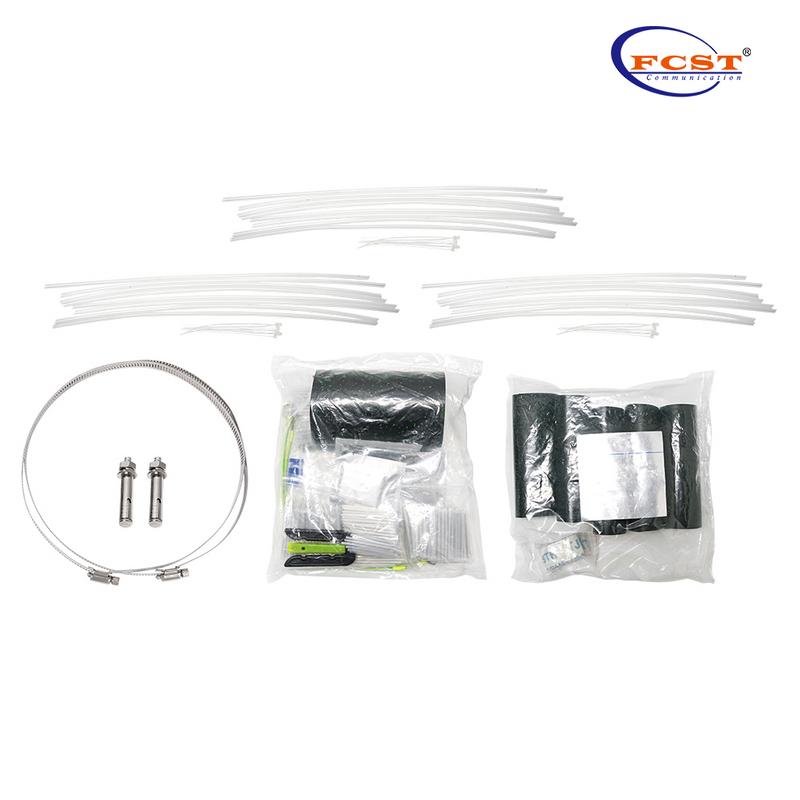

Packing Information
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
