FCST012203
FCST
FCST012203
Product Overview

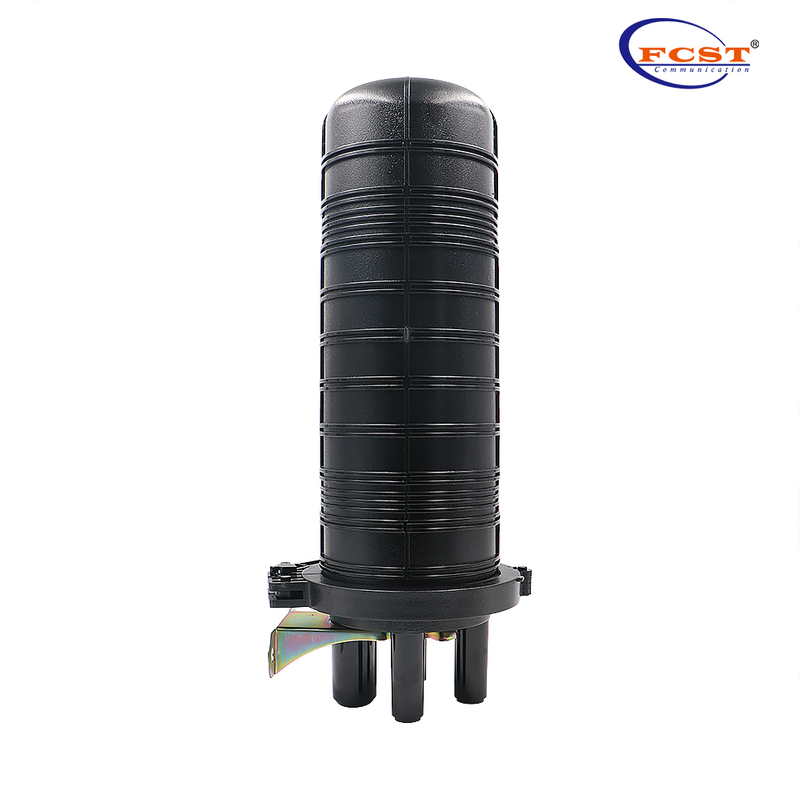

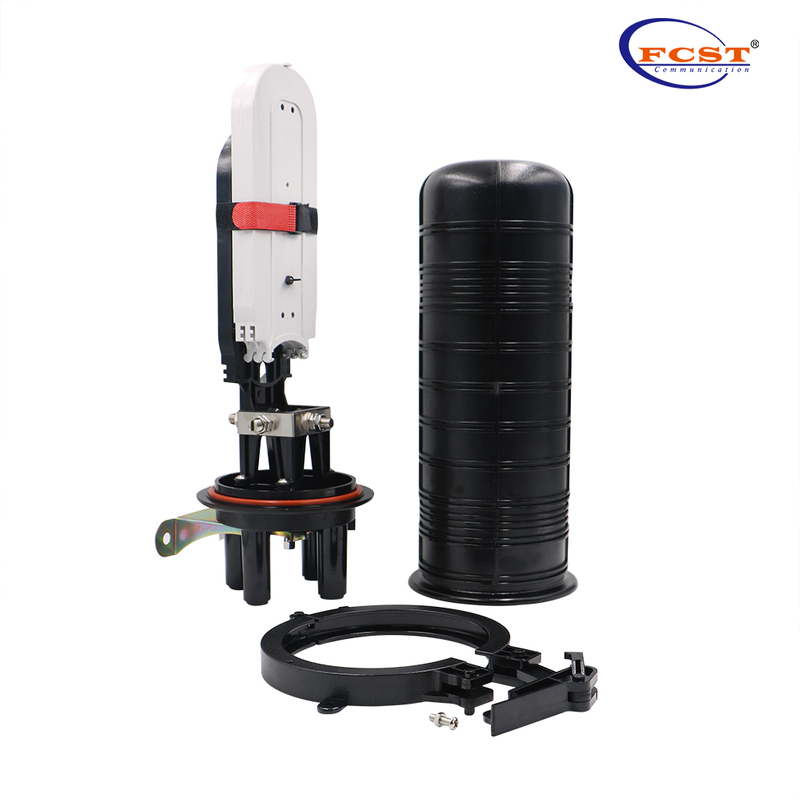

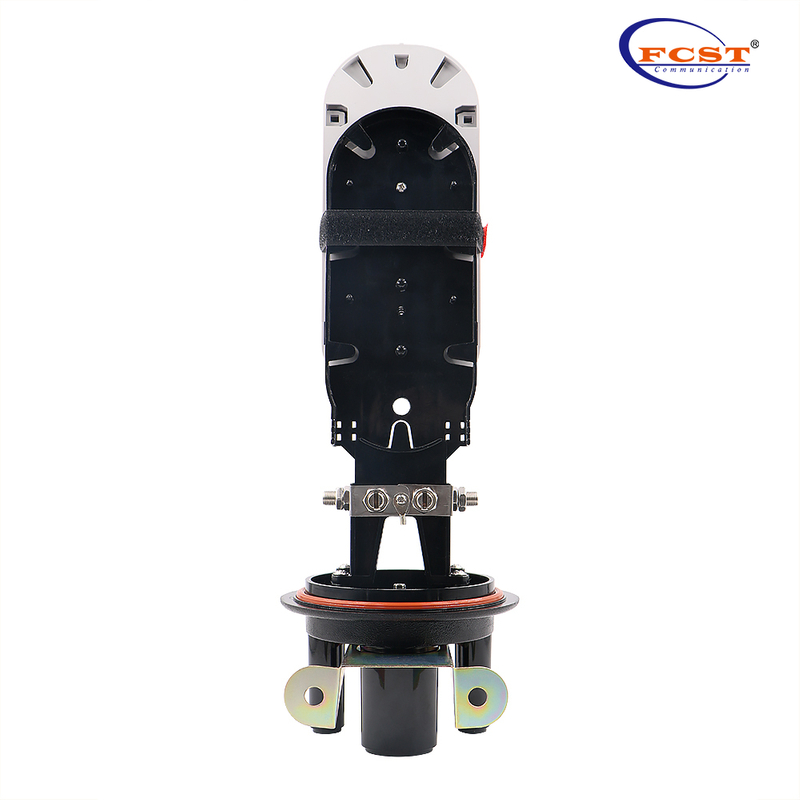

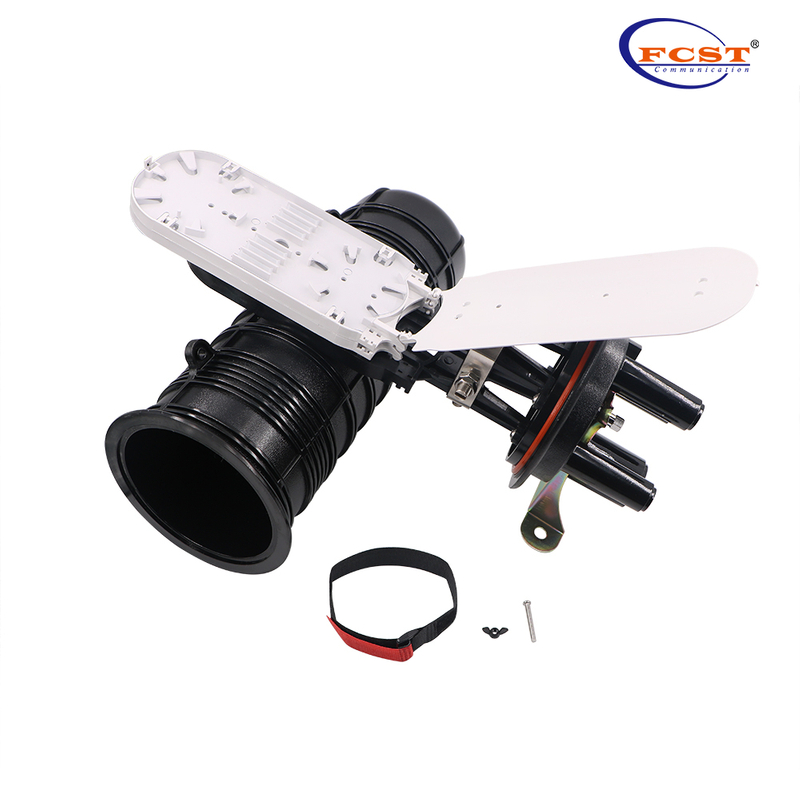

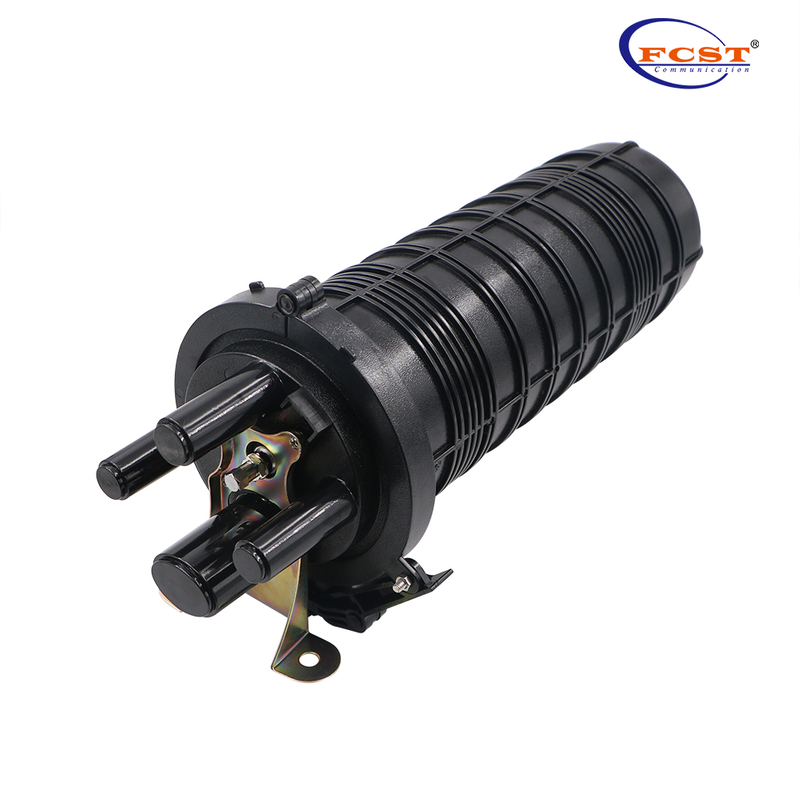

FCST012203 Fiber Optical Splice Closure is widely used to connect and branch optic cable fibers in aerial, pipeline and direct buried applications.Adopt fully mechanical sealing methods.
With optional valve and ground feed-through lug.Designed with simple inner structure, easy installation and reopen, is the best choice for network construction.
Product Specifications
Construction | Description |
Max. Capacity | Single:12-96Cores Ribbon:144Cores |
Material | PP+GF |
Dimension (mm) | Φ435*190 |
Inlets/Outlets | 1/3 |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Net Weight（g） | 1950 |
Protection Level | IP68 |
Diameter Of Fiber Cable | Φ8mm~φ25mm |
Sealing Mode | Heat Shrinkseal |
Number Of Trays | 5 |
Capacity Of Tray | 24F |
Packing Information
Construction | Description |
Outside Dimension（L*W*H）mm | 200*170*438 |
Weight/PC（kgs） | 2.4 |
Carton size（L*W*H）mm | 880*420*455 |
Qty/CTN（pcs） | 10 |
Weight/CTN（kgs） | 26.1 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
