FCST022102
FCST
FCST022102
Product Overview
FCST022102 FastConnect Closure is a wiring line device of user distributions in FTTH system, it provides protection and management for fiber cable, and be used for terminating, cable branching, cross connection.The terminal splice box is mainly used for user access point in FTTH-ODN network , fiber optic terminal box can be divided into indoor and outdoor type according to the installation scenario, and can be divided into distribution type and optic-split type according to the function.
FCST022102 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for FTTx network building.
Product Advantages
l Fiber routing is reasonable.
l Suitable for indoor or outdoor ,wall-mounted , pole installation.
l Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
l Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
l Made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance, sturdiness and durability.
Product Specifications
Construction | Description |
Max. Capacity | 12cores(SC/APC) |
Material | PP |

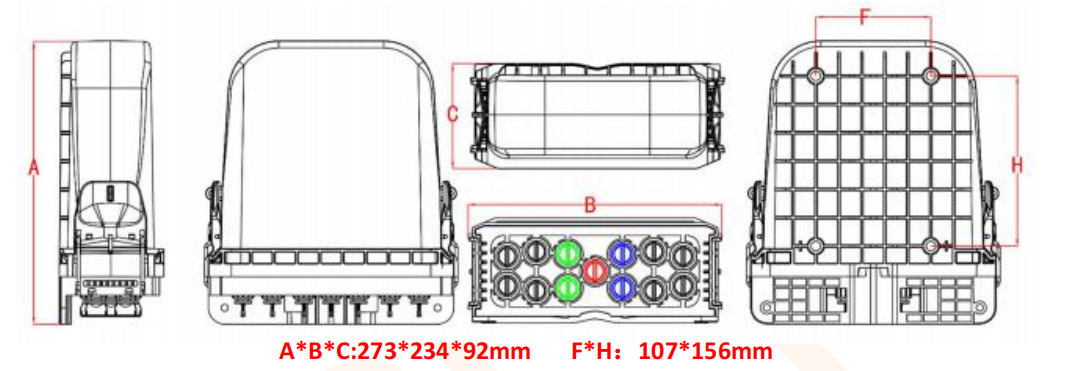

Dimension (mm) | 273*234*92 |
Inlets/Outlets | 1/12 |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Protection Level | IP67 |

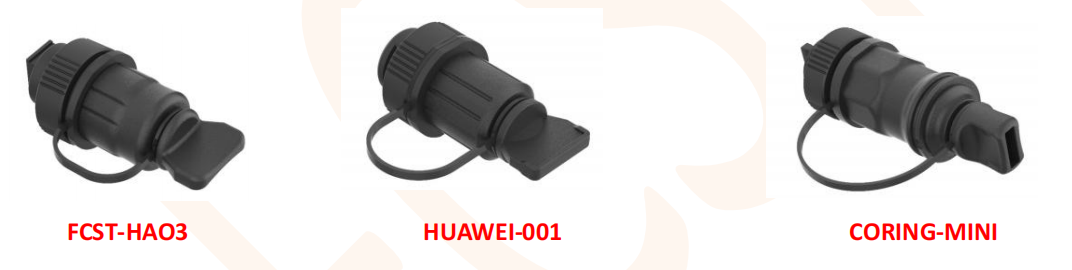

Hardened Adapter Optional
Installation

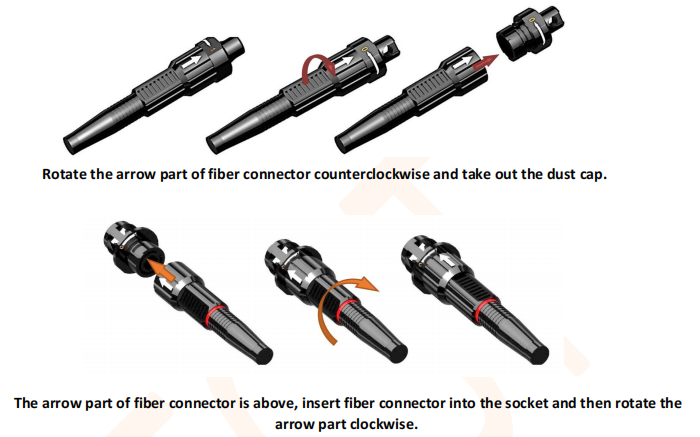

Fiber connector installation
Product installation

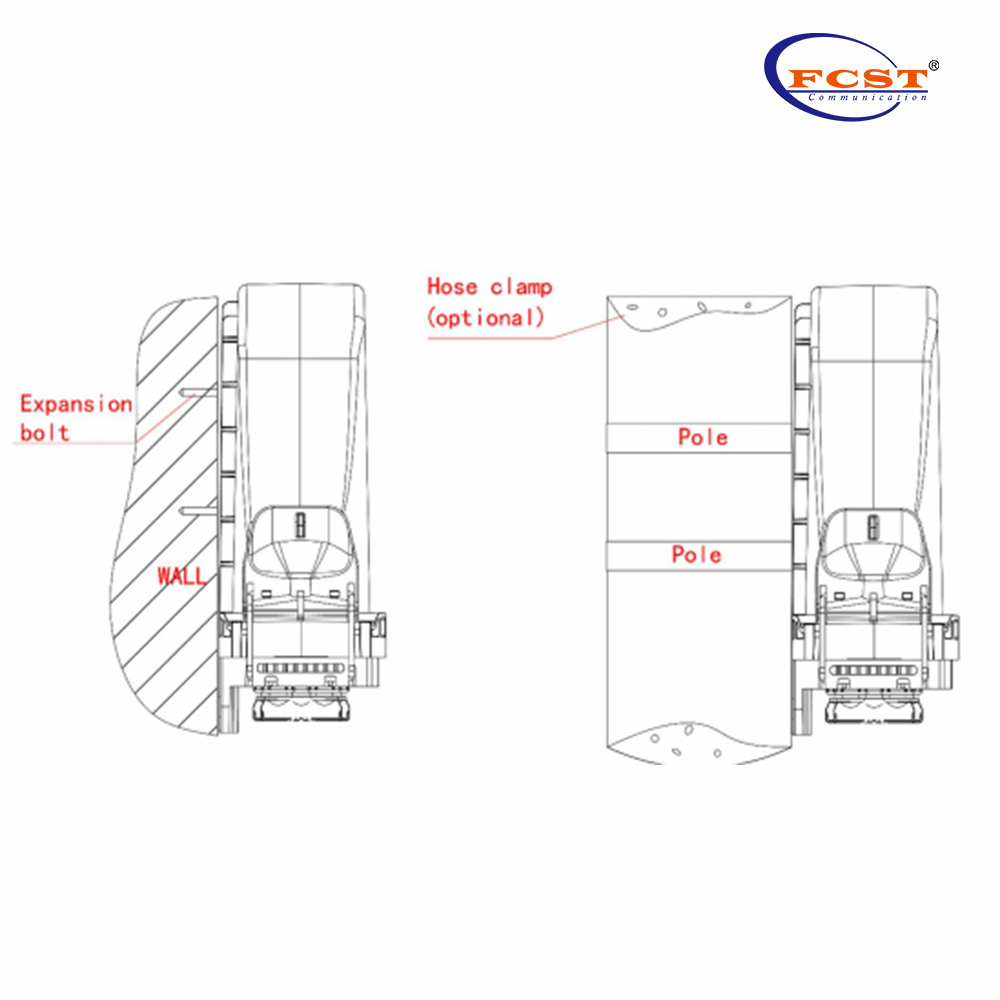

Wall-mounted installation
Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten.

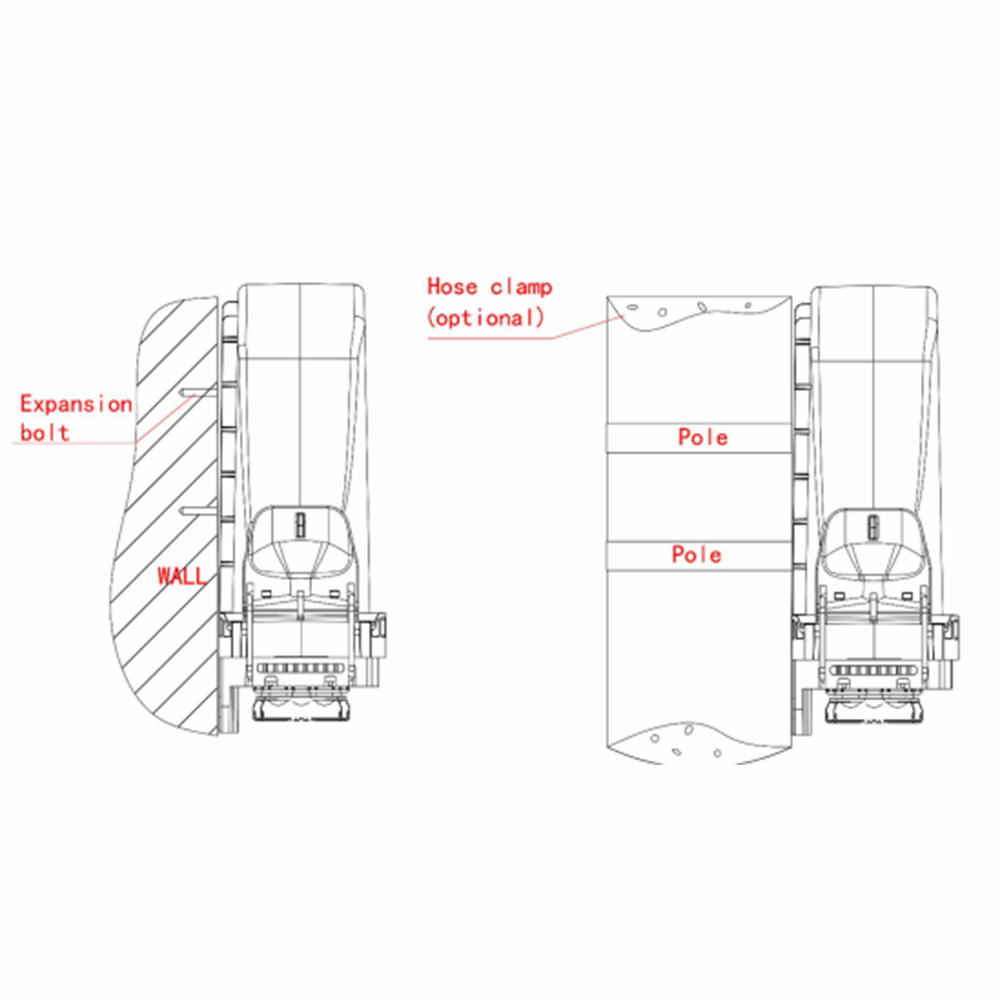

Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole, as below.
