FCST022108
FCST
Product Overview

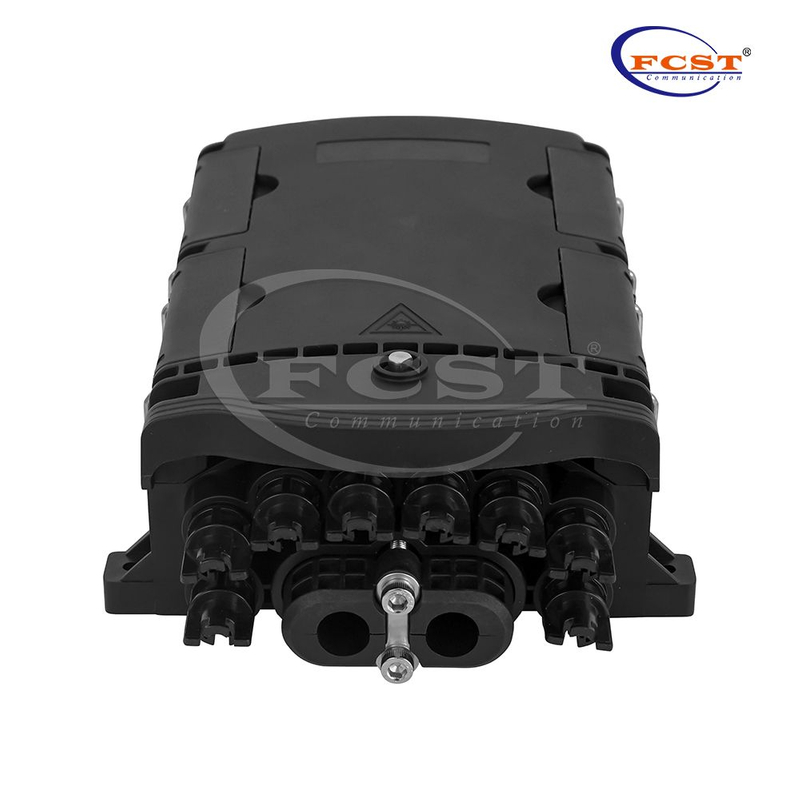

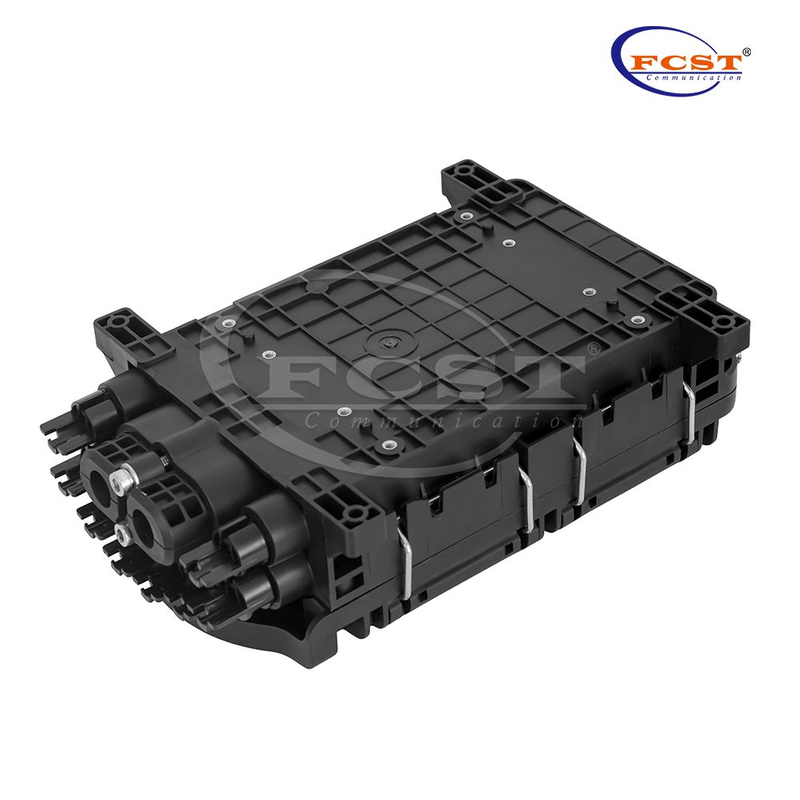

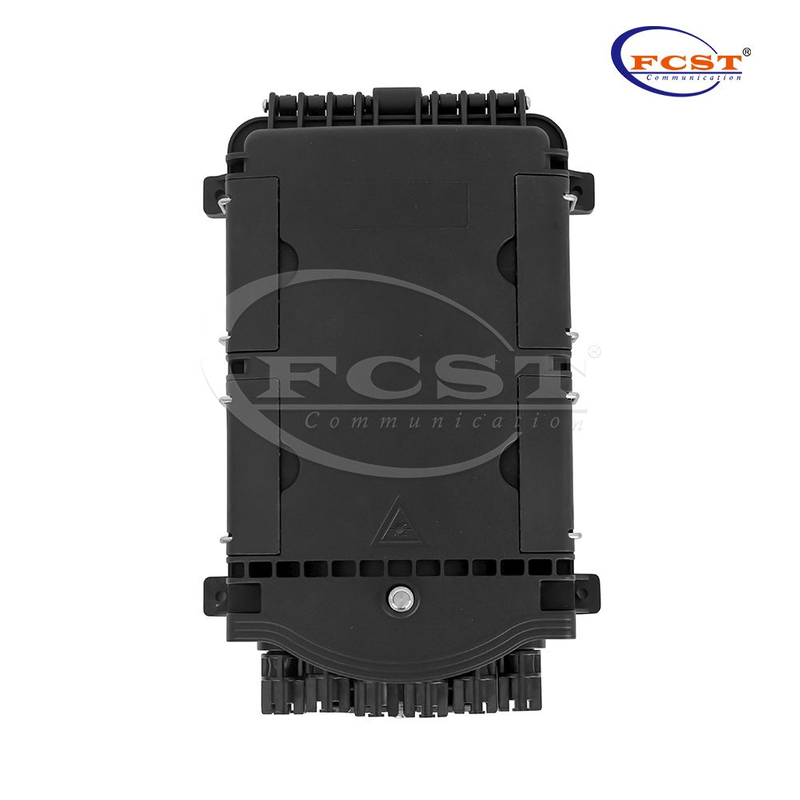

The Outdoor Termination Cable Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this optical terminal box, and meanwhile it provides solid protection and management for the FTTx network building.
Product Advantages
lOutdoor termination cable box material: PP or PC+ABS.
lOptical terminal box with 1 oval optical cable entry.
lProtection level up to IP68.
lMoisture proof, waterproof, dust-proof, anti-aging.
lAdvanced structure design, easy operation and reasonable routing.
lInstallation method: pole-mounted, aerial-mounted, wall-mounted.
Product Specifications
Construction | Description |
Max. Capacity | 8 Cores |
Material | PP/PC+ABS |
Inlets/Outlets | 2/8 |
Installation | Aerial, Pole mounting, Wall mounting |
Cable Outlet Size | 2*3~Φ7 mm |
Into the Largest Cable Diameter | Φ13 mm |
Protection Level | IP68 |
Splitter Type | 1* 8 PLC Splitter |
Length | 280mm丨11.023in |
Width | 182mm丨7.165in |
Height | 82mm丨3.228in |
Weight | 1400 g |

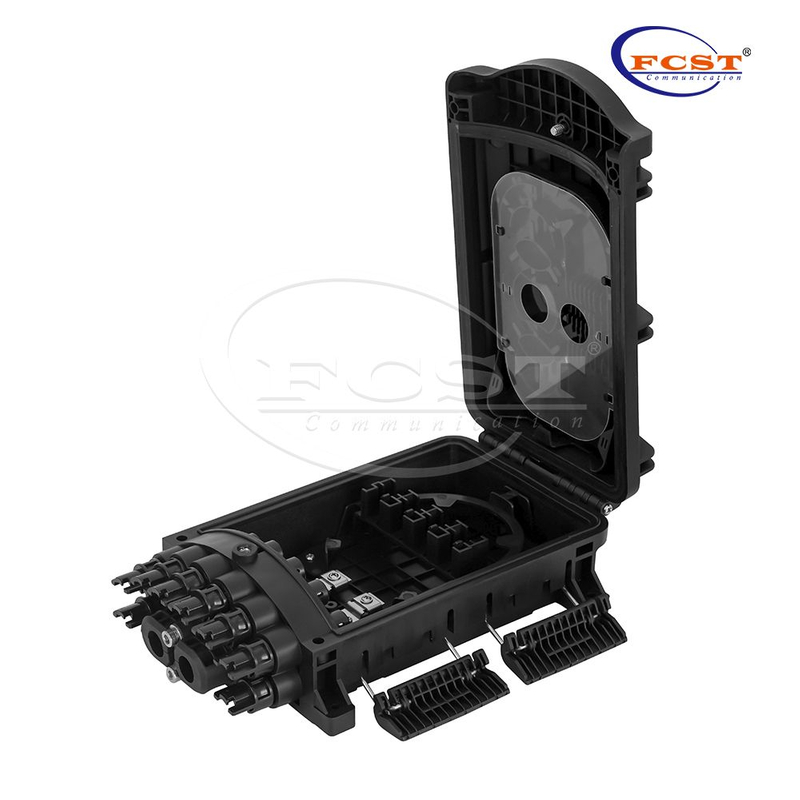

Product Structure
Packing Information
Construction | Description |
Outside Dimension (L*W*H) mm | 295*195*95 |
Weight/PC (kgs) | 1.5 |
Carton Size (L*W*H) mm | 410*315*510 |
Qty/CTN (pcs) | 10 |
Weight/CTN (kgs) | 15.2 |
Accessories Optional
Design And Customization Services
lProvide service with whole process from blueprint to product to the customer.
lMeet customer’s requirement to customize logo in suitable place for existing product.
lMeet customer’s requirement to make reasonable modify and customization for existing product.
lProvide free design according to the requirement of customer after signed cooperative agreement.
