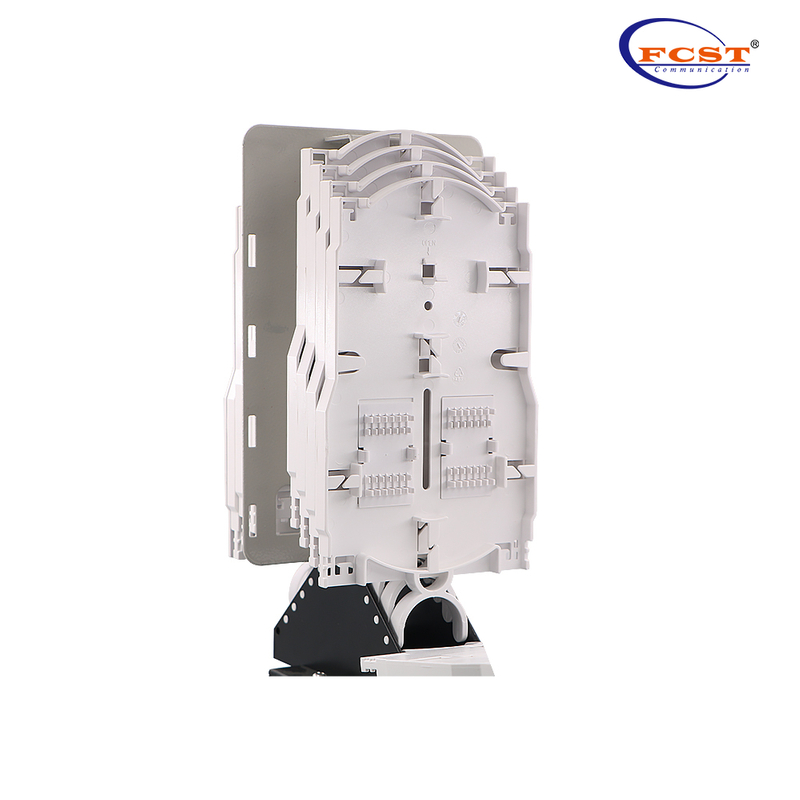

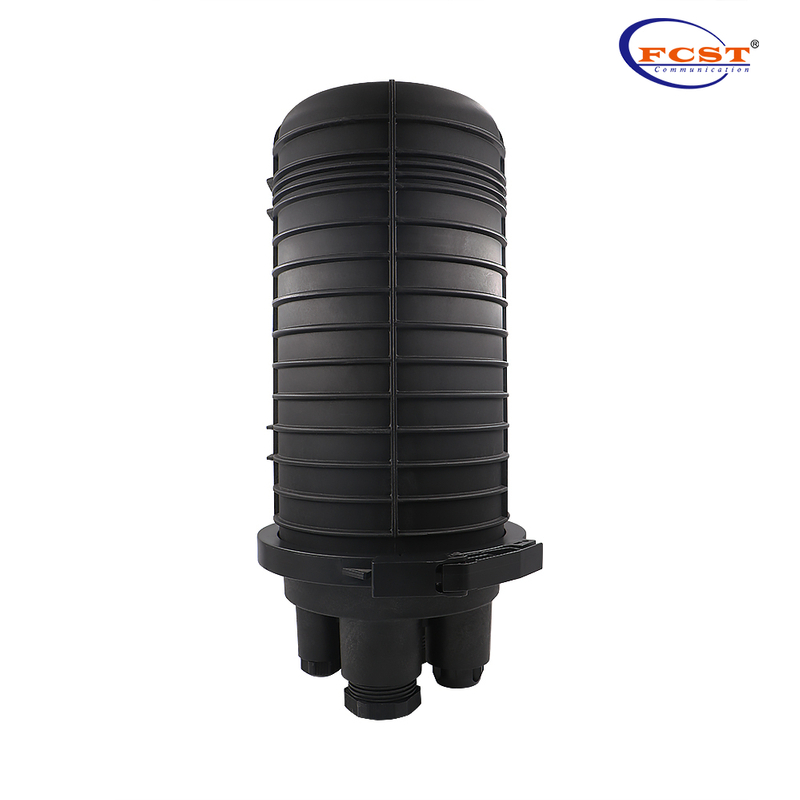

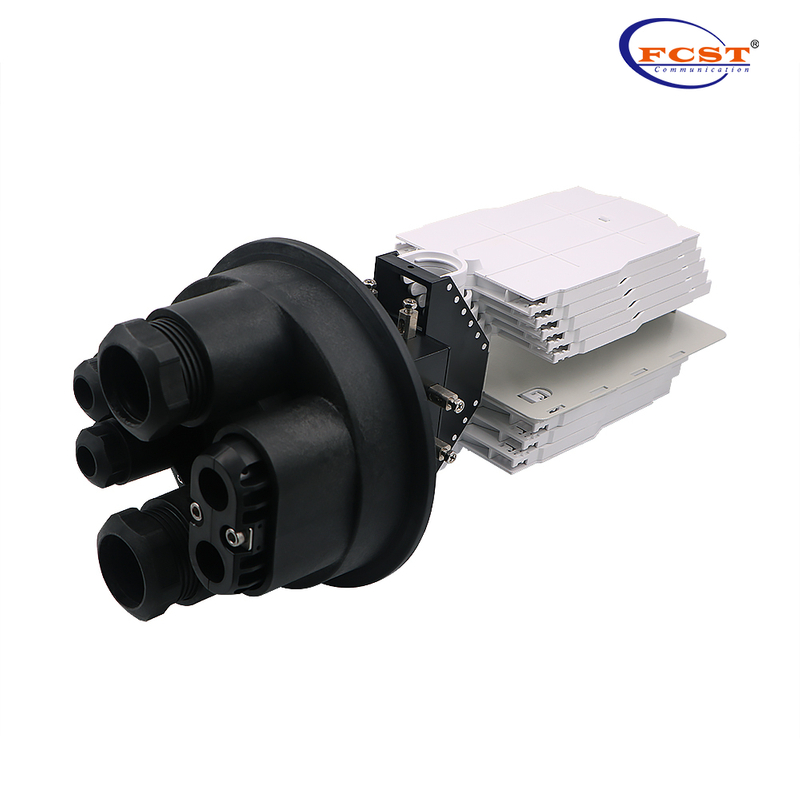

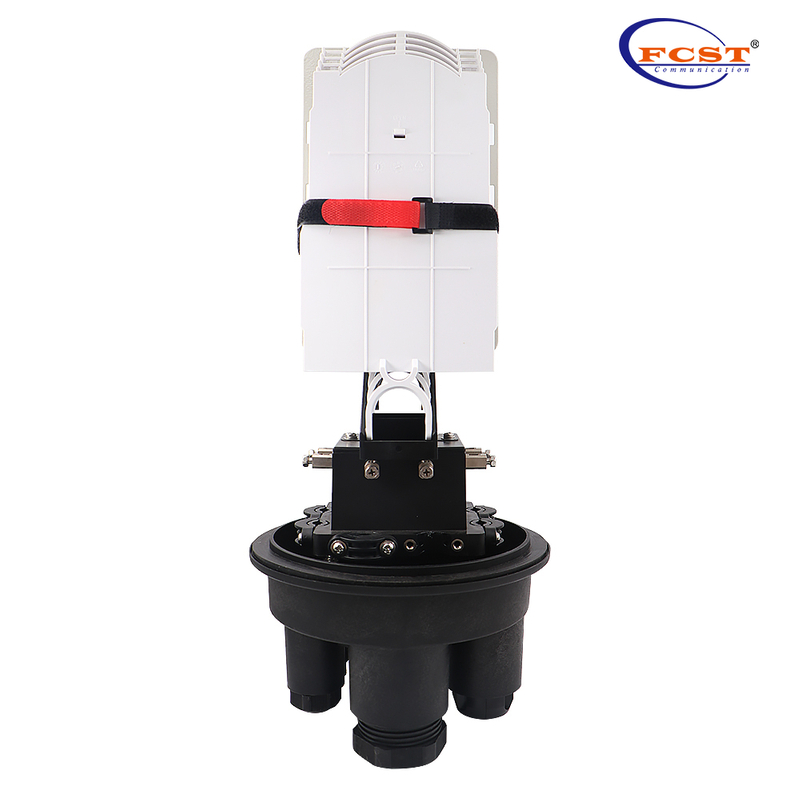

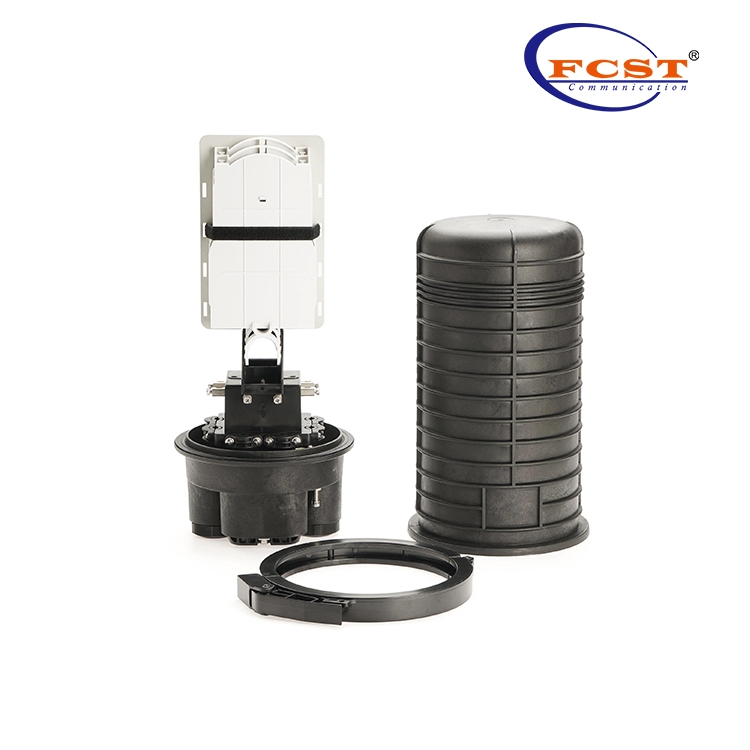

FCST012106 Fiber Optical Splice Closure

  • With protection grade of IP68.
  • Easy installation with no specialtoolrequired.
  • Good corrosion resistance, compressive resistance and tensile strength.
Availability:
Quantity:
  • FCST012106

  • FCST

  • FCST012106

Product Overview

FCST012106 fiber optic splice closure which supports optical cable link and branch. The unique mechanical sealing design owns national patent and a perfect sealing. Fiber optic splice enclosure is suitable for wall-mounting, aerial, pole-mounting and grounding buried.

Product Specifications

Construction

Description

Max. Capacity

Single:240Cores

Ribbon:720/960Cores

Material

PP+GF

Dimension (mm)

480*Φ260

Inlets/Outlets

1/4

Installation

Pole/Aerial/Manhole

Net Weightg

4500

Protection Level

IP68

Diameter Of Fiber Cable

Oval port: 1(Φ822mm)

Two big round port(2 pieces Φ614mm cable)

Two small round port(Φ818mm)

Sealing Mode

Mechanical

Number Of Trays

10

Capacity Of Tray

Single:24F

Ribbon:6F/8F

Packing Information

GGMFGTMYOIQHEHU_JTE(F

Construction

Description

Outside DimensionL*W*Hmm

-

Weight/PCkgs

-

Carton sizeL*W*Hmm

570*500*540

Qty/CTNpcs

4

Weight/CTNkgs

22.1

Design And Customization Services

Provide service with whole process from blueprint to product to the customer.

Meet customers requirement to customize logo in suitable place for existing product.

Meet customers requirement to make reasonable modify and customization for existing product.

Provide free design according to the requirement of customer after signed cooperative agreement.
