FCST-DMDS
FCST
FCST-DMDS
500
For easy gas- and watertight sealing of cables in microducts.The microduct seal is easy to mount on new installations and existing installations. Thanks to the clever design, shifting the seal over the fiber now belongs to the past. Due to the compact design this seal can be installed in every situation,even in locations with difficult access.
Slim design.
Easy installation.
Gas- and water tight up to 0,5 bar.
No need to slide the seal over the glass fibre for installation.
The sealing ring features a pull - tab at the top for easy removal.

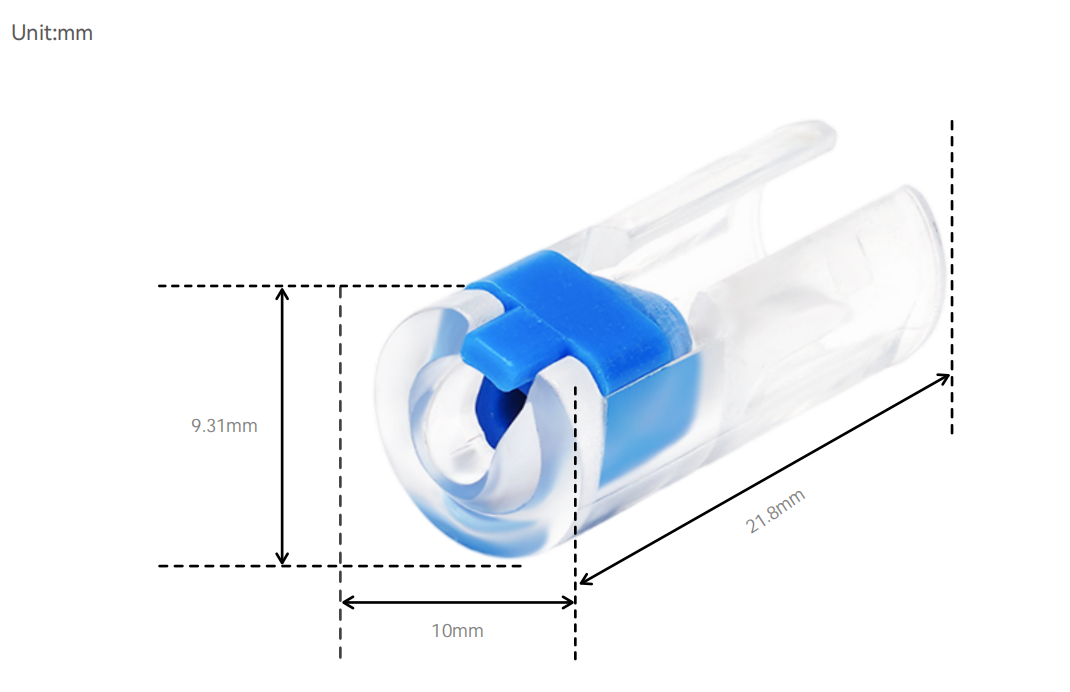

Construction | Description |
Length | 21.8mm丨0.858in |
Width | 9.31mm丨0.367in |
Diameter | Φ10mm丨0.394in |

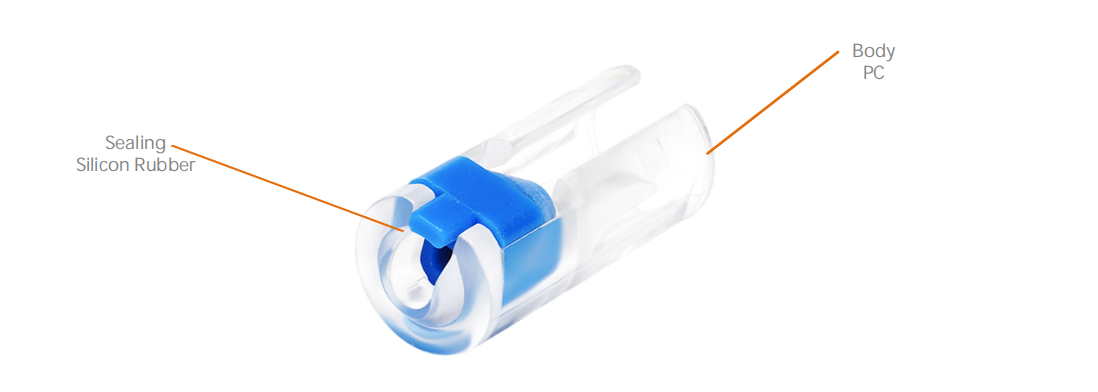

Material | Body:PC Seal:Silicon Rubber |
Sealing | Up to 0.5 bar |
Tensile Force | ≥70N |
Model
| Duct OD (mm)
| Cable OD Range (mm)
| Silicon Seal Color
|
FCST-DMDS7/1.2 | 7 | 0.9~1.2 | Purple (RAL4006) |
FCST-DMDS7/1.5 | 7 | 1.3~1.5 | Red(RAL3028) |
FCST-DMDS7/1.8 | 7 | 1.6~1.8 | Green (RAL6037) |
FCST-DMDS7/2.2 | 7 | 1.9~2.2 | Blue (R4L5015) |
FCST-DMDS7/2.5 | 7 | 2.25~2.5 | Yellow (RAL1016) |
*Note: For other sizes, please contact the sales department.
