FCST02298
FCST
FCST02298
Product Overview

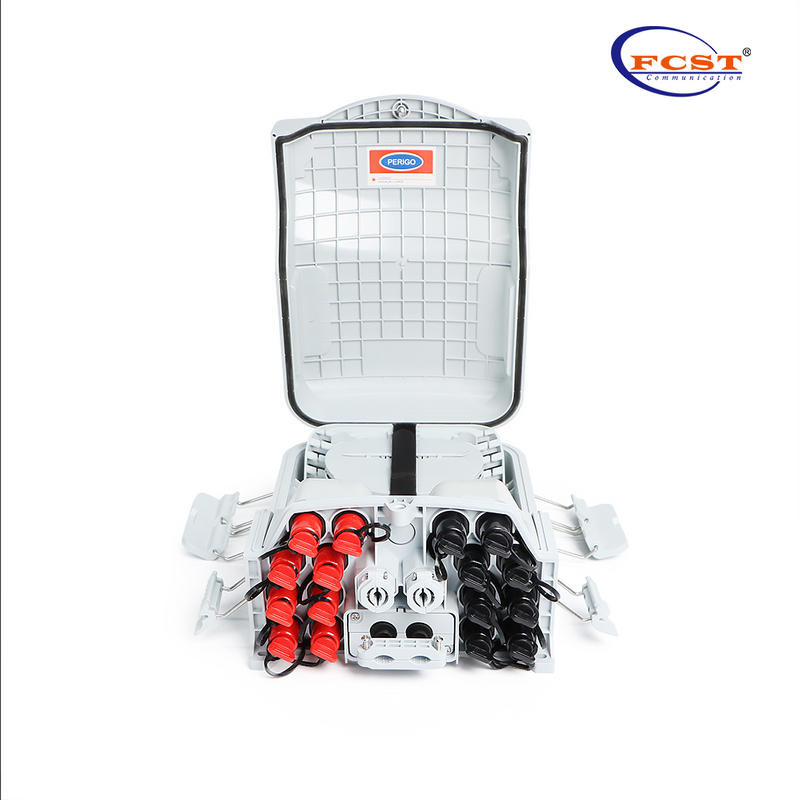

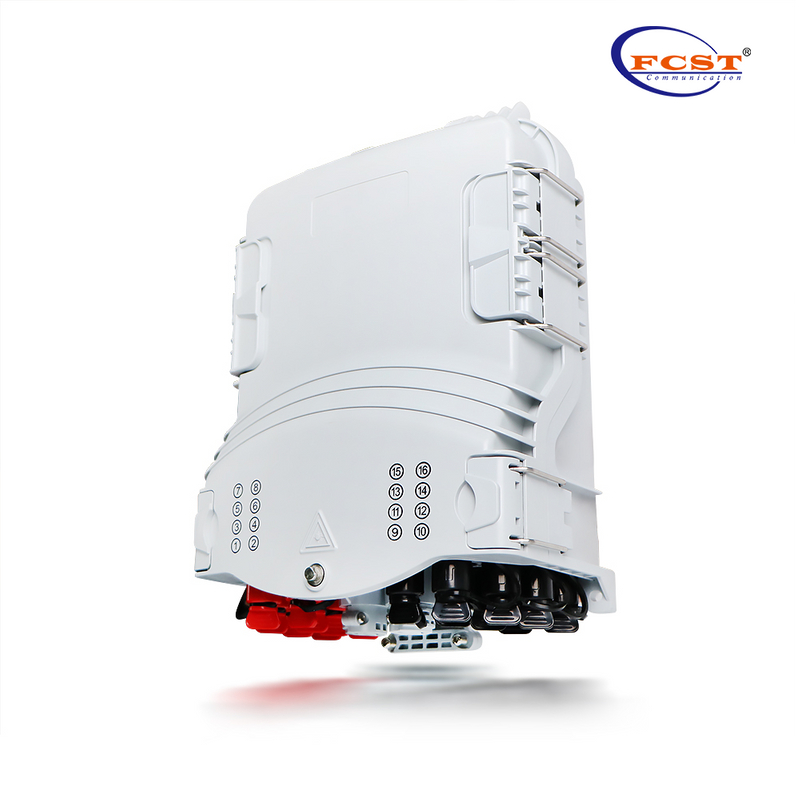

FCST02298 Fiber Access Terminal is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Product Advantages
l Total enclosed structure.
l Material:PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
l Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

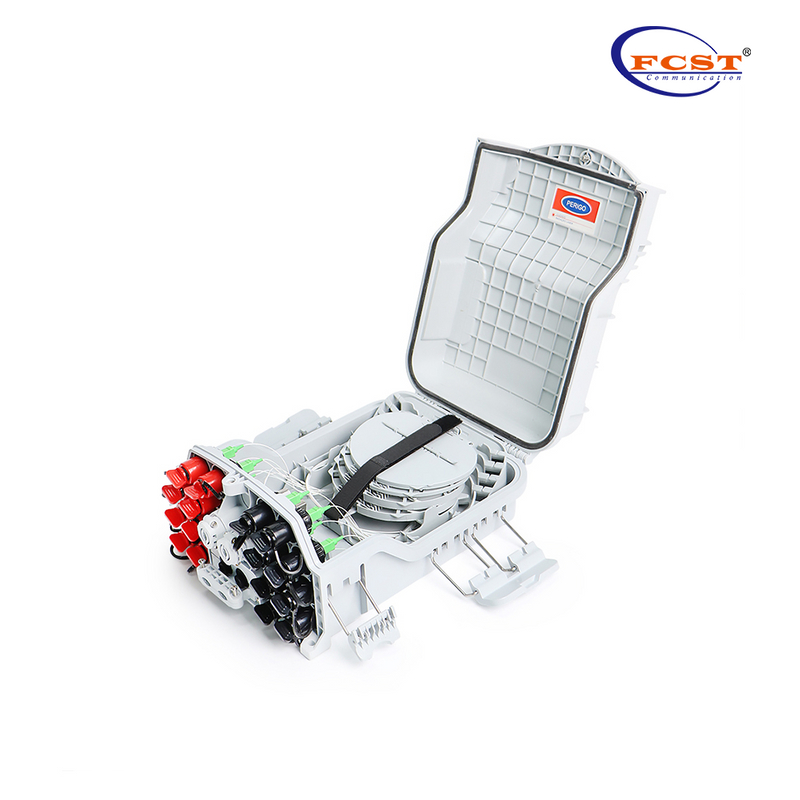

l Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
l Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
l Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Product Specifications
Construction | Description |
Max. Capacity | 48 cores（Branch 16 cores） |
Material | PC+ABS |
Dimension (mm) | 319.3*214*133 |
Inlets/Outlets | 4/16 |
Reinforced Adapter | 16 pcs SC/UPC or SC/APC |
Net Weight（g） | 1600 |
Protection Level | IP65 |

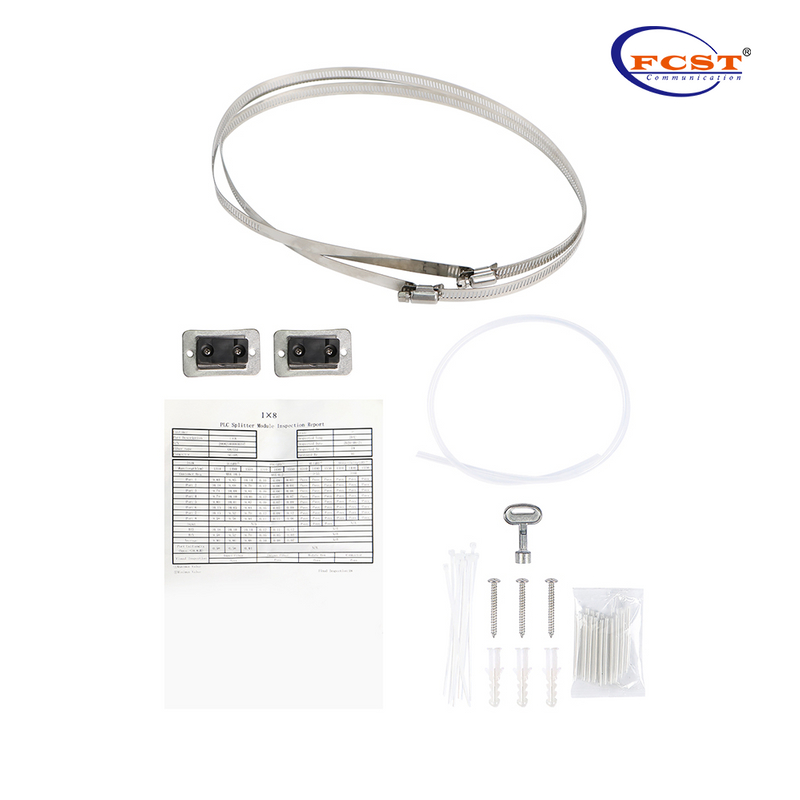

Installation | Pole mounting,Strand mounting,Wall-mounting |
Into The Largest Cable Diameter (mm) | Φ8~14 |
Maximum Size Of Branch Hole (mm) | Φ16 |
Note：Use HUAWEI Hardened adapter，The Seal adapter of FCST02298 Fiber Access Terminal is used in conjunction with FastConnect Distribution Cable.
Fiber connector installation
Rotate the arrow part of fiber connector counterclockwise and take out the dust cap.
The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.
Splicing Tray Optional
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
