FCST022110-H
FCST
FCST022110-H
100
Product Overview

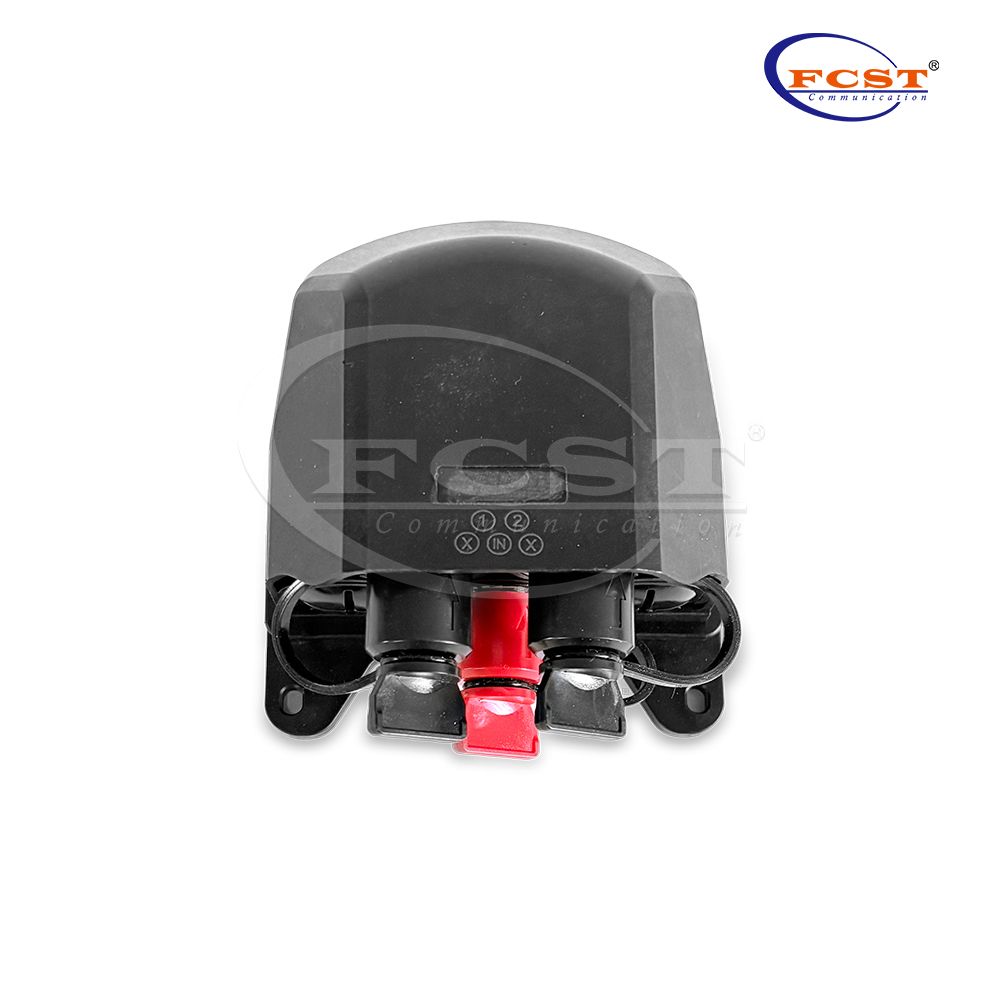

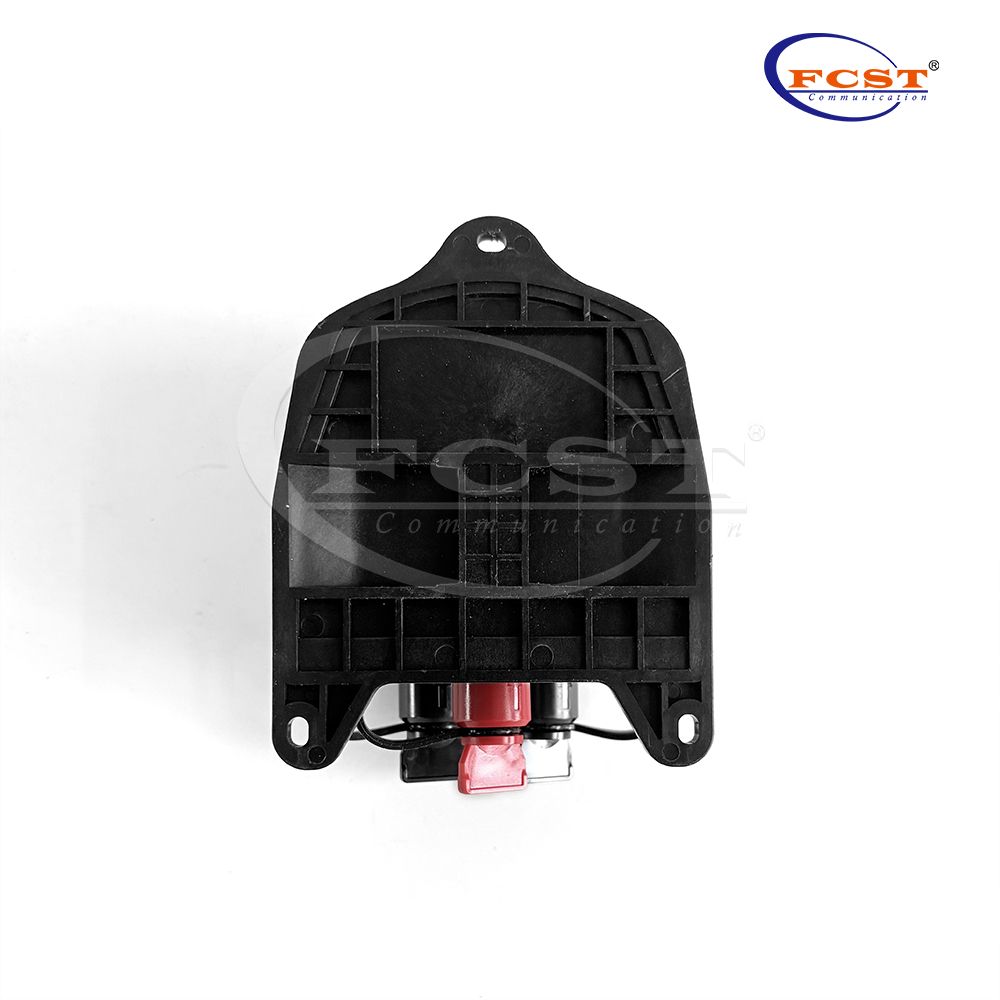

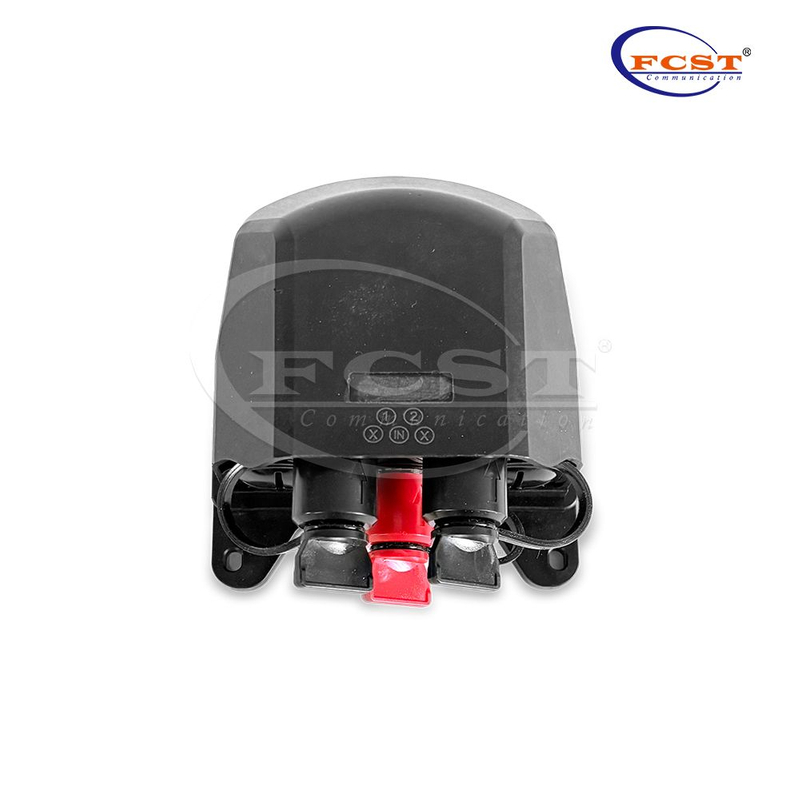

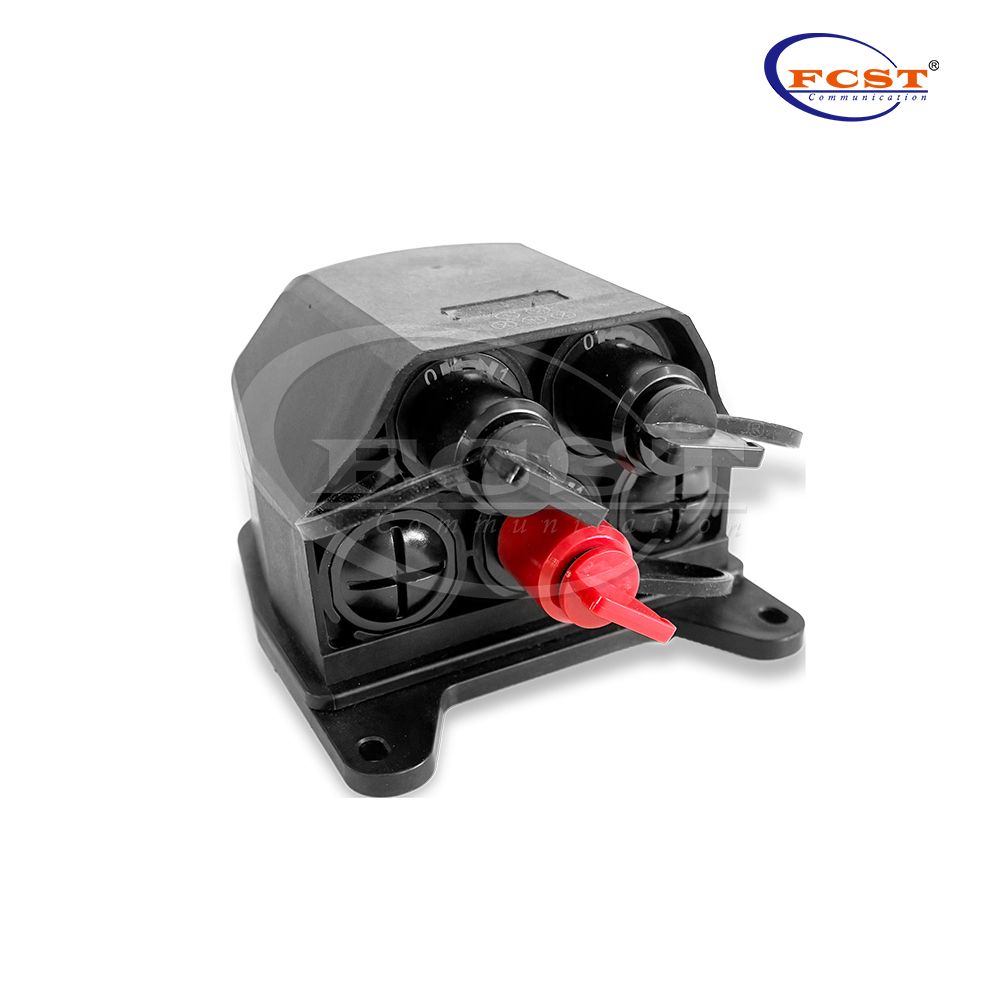

FCST022110-H Fiber Access Terminal as the most advanced FTTx network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
Product Advantages
Moisture proof, waterproof, dust-proof, anti-aging.
The interior is equipped with 1x4 PLC Splitter or 1x2 PLC splitter.
Advanced internal structure design, thus fiber suffering no attenuation.
The bottom shell and upper cover are welded by hot plate welding, which is not detachable.
Product Specifications
Construction | Description |
Max. Capacity | 1*1:4 | 1:2 |
Material | PP+GF |
Dimension (mm) | 136*100*69mm | 5.354*3.937*2.717in |
Sealing Type | Mechanical seal |
Reinforced Adapter | 5pcs |
Packaging Info. | 40PCS/CNT 10KG 0.07CBM (490*295*475mm) |
Operating Temperature | -45℃~+65℃ |
| Installation | Wall | Pole | Strand mounting |
