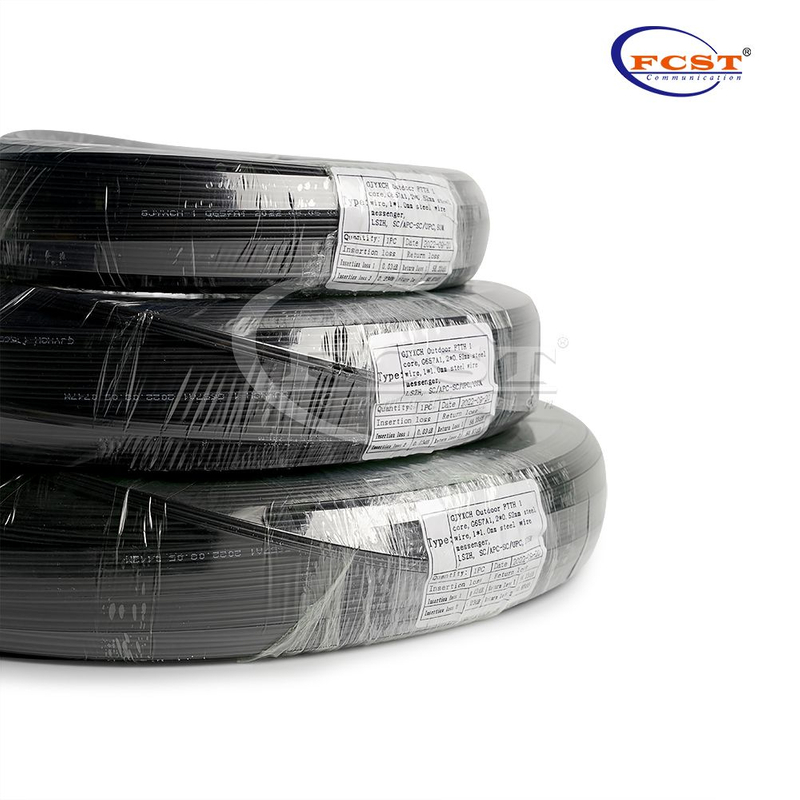

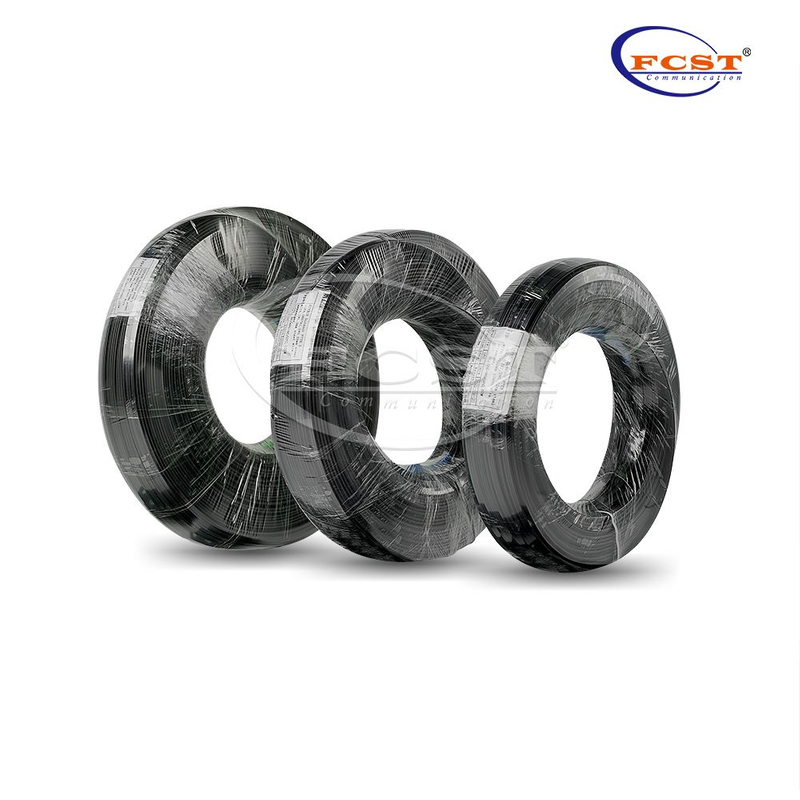

Pre-Connectorized Fiber Drop Cable(Pigtail&Patch Cord)

  •  Fiber Optic patch cord is available in dielectric or toneable.
  •  -20℃~60℃ operating temperature.
  •  Excellent Polished and 100% tested;
  •  Cable length 25m, 50m, 100m, 200m, 250m or customized.
Availability:
Quantity:
  • Pigtail&Patch Cord

  • FCST

Product Overview

Pre-Connectorized Fiber Drop Cable, refers to the drop cable ends with a connector plug, used to achieve optical active connection, also be made into a single head pigtails, and flexible splice, quick connect and other products combined application. For FTTH project corridor boxes, drop cable distribution boxes, FTTH fiber boxes and other forms of installation.


Product Advantages

lFiber Optic patch cord is available in dielectric or toneable.

l-20℃~60℃ operating temperature.

lExcellent Polished and 100% tested;

lCable length 25m, 50m, 100m, 200m, 250m or customized.

lComplying with Telcordia ,GR-326-Core, IEC and RoHS Standard.


Product Specifications

Construction

Description

Fiber Count

1

Fiber Type

G.657A/G.652D

Length

20/50/100/150m(Optional)

Insertion Loss

0.25 dB

Return Loss

60 dB

Outer Sheath

Material:LSZH/PVC
Color:black

Connector Type

SC

Cable Diameter

2.0*3.0mm/2.0*5.0mm

Storage Temperature

-20 ~ +60

Product Application

lCATV.

lLAN. (Local Area Network)

lFTTH (Fiber to The Home) Indoor Building.

lOptical fiber connected and transmitted equipment.

Cable Type

alt Pre-Connectorized Fiber Drop Cable(1)

alt Pre-Connectorized Fiber Drop Cable(2)

Ordering Information

alt Pre-Connectorized Fiber Drop Cable(3)
