FCST01131 Fiber Access Terminal Closure

  • Fiber routing is reasonable.
  • Suitable for indoor or outdoor ,wall-mounted , pole installation.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Availability:
Quantity:
  • FCST01131

  • FCST

  • FCST01131

FCST01131

Product Overview

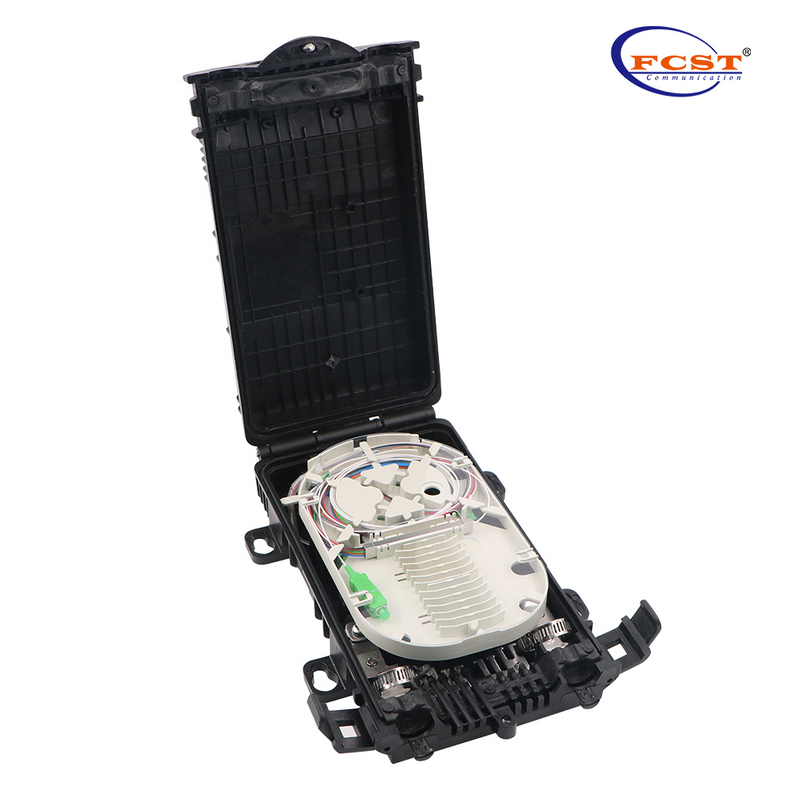

FCST01131 Fiber Access Terminal Closure is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for FTTx network building.

Product Advantages

Fiber routing is reasonable.

Suitable for indoor or outdoor ,wall-mounted , pole installation.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

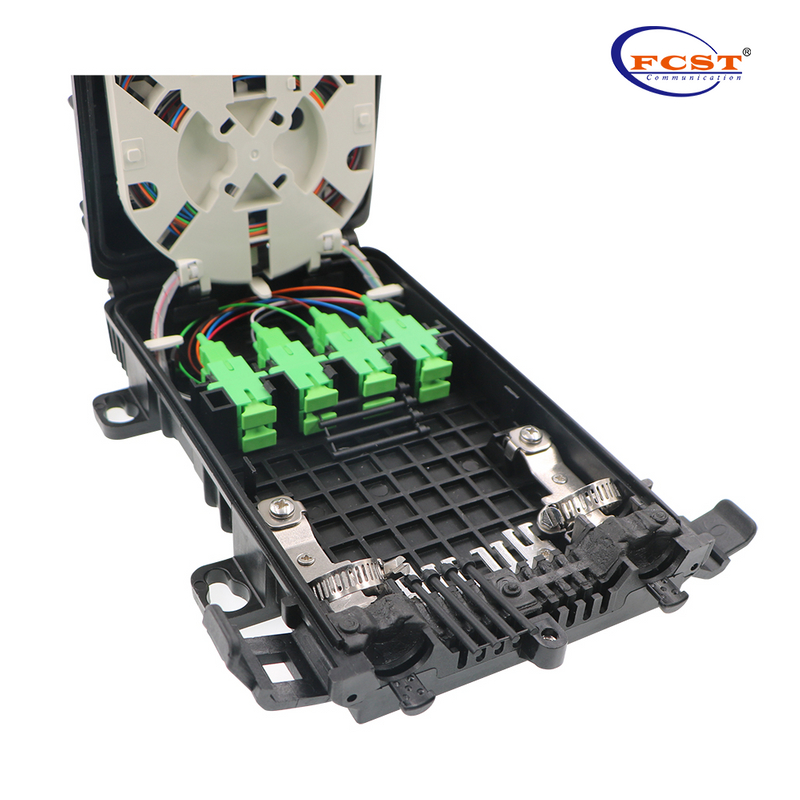

Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.

Made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance,sturdiness and durability.

Product Specifications

Construction

Description

Max. Capacity

FCST01131-A:8Cores

FCST01131-B:8Cores

FCST01131-C:8Cores

FCST01131-D:8Cores

Material

PP

Dimension (mm)

FCST01131-A:155*235*50

FCST01131-B:155*235*50

FCST01131-C:156*232*53.2

FCST01131-D:156*185*53.5

Inlets/Outlets

2/8

Installation

Pole-mounting/Wall-mounted

Net Weightg

470

Protection Level

IP65

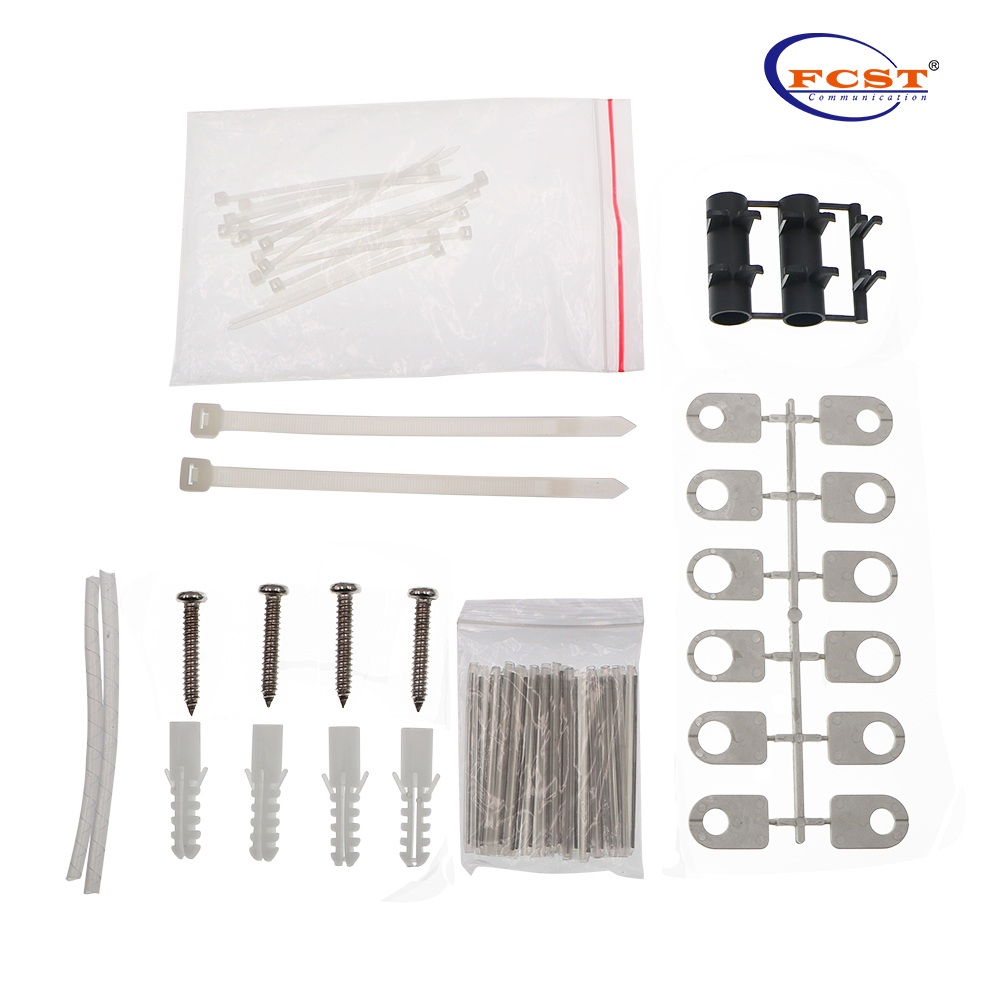

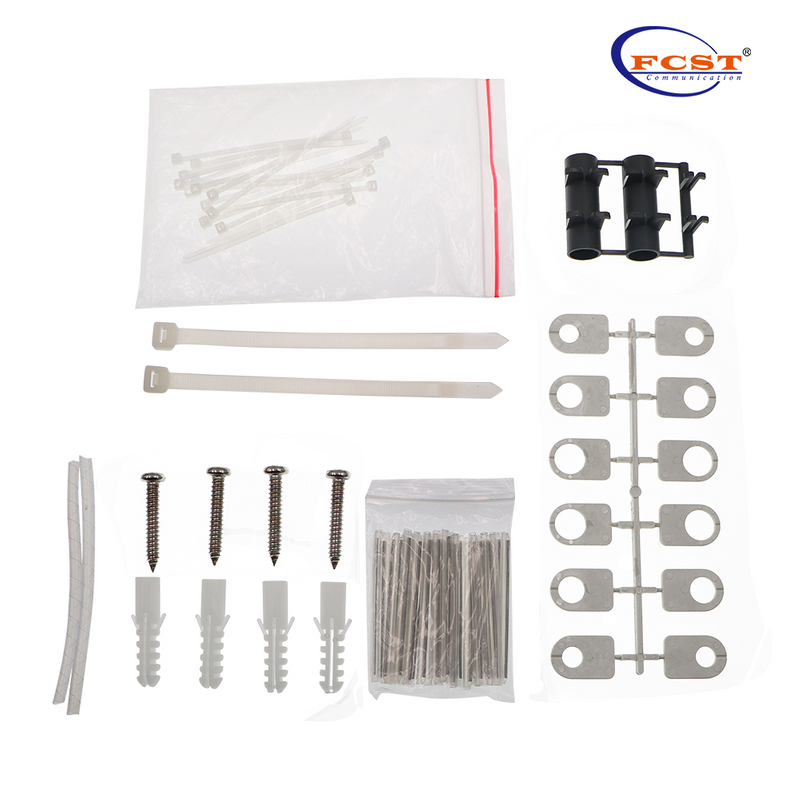

Optional Accessories

PigtailAdapter

Input Cable Method

Cutting

PLC Splitter Available

Yes

PLC Splitter Type

Tube splitter


Product Structure                                                                                       Fiber Routing Diagram

FCST01131 Fiber Access Terminal Closure (2)

Product Installation

Wall-mounted installation

Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten.

Pole-mounted installation

Fix 1 set of the pole ring to the telecom pole, as below.

FCST01131 Fiber Access Terminal Closure

Design And Customization Services

Provide service with whole process from blueprint to product to the customer.

Meet customers requirement to customize logo in suitable place for existing product.

Meet customers requirement to make reasonable modify and customization for existing product.

Provide free design according to the requirement of customer after signed cooperative agreement.

终端盒、接续盒通用图

Product Advantages

    Using high-strength PP engineering plastics, anti-aging and anti-oxidation, increase service life.

FCST01131-A (3)

    The gel made of special technology is used as the sealing strip, which is highly adhesive and resistant to high temperatures.

FCST01131-A (10)

    The accessory has a protective hose to prevent the optical fiber from breaking when the box is closed.

FCST01131-A (11)

通用图片-1
