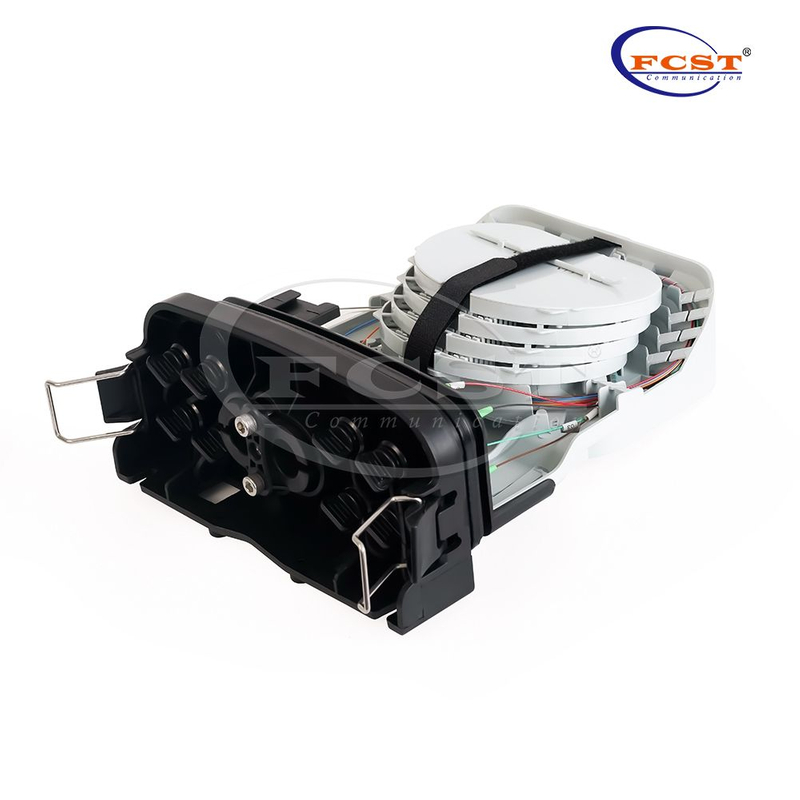

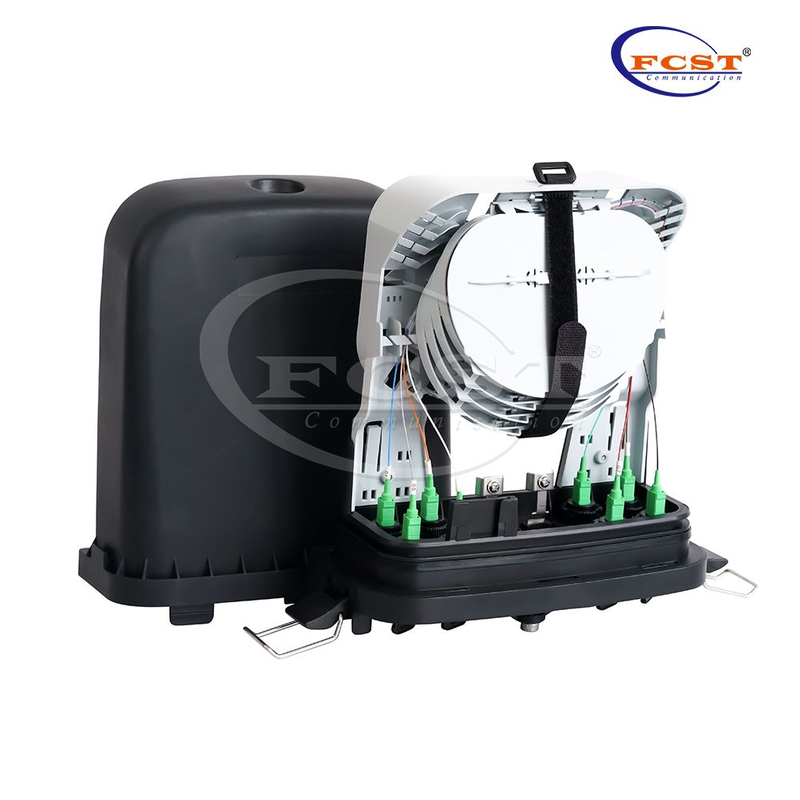

FCST02259-F Pre-connected Fat Box Outdoor Type for FTTx Network System

  •  Pre-connected fat box material: PP.
  •  Fiber access terminal protection level up to IP68.
  •  Moisture proof, waterproof, dust-proof, anti-aging.
  •  Advanced structure design, easy operation and reasonable routing.
Availability:
Quantity:
  • FCST02259-F

  • FCST

Product Overview

FCST02259-F Pre Connected Fiber Access Terminal as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.


Product Advantages

lPre-connected fat box material: PP.

lFiber access terminal protection level up to IP68.

lMoisture proof, waterproof, dust-proof, anti-aging.

lAdvanced structure design, easy operation and reasonable routing.

lInstallation method: pole-mounted, aerial-mounted, wall-mounted.

l1 oval optical cable entry, 8 pre-connected adapters, or 1 round optical cable entry, 9 pre-connected adapters.

l4 types of tray are optional, which can be configured according to requirements, and even 2 types of tray can be mixed installation.


Product Specifications

Construction

Description

Max. Capacity

8 cores(SC/APC)

Capacity of FOSC(Bunchy)

96 Cores

Material

PP

Inlets/Outlets

2/8

Installation

Pole mounting,Pedestal mounting

Strand mounting,Wall-mounting

Protection Level

IP68

Fiber Cable Diameter of the Port

Φ8~14mm

Number Of Trays

4

Capacity Of Tray

24F

Splitter Type

1*2 PLC Splitter,1*4 PLC Splitter,1*8 PLC Splitter,1*16 PLC Splitter

Length

270mm10.630in

Width

217mm8.543in

Height

95.5mm3.760in

Weight

1700 g

alt Pre-connected Fat Box Outdoor Type(2)

alt Pre-connected Fat Box Outdoor Type(3)

alt Pre-connected Fat Box Outdoor Type(4)

Note:Use HUAWEI Hardened adapter,The Seal adapter of FCST02259-F Fiber Access Terminal is used in conjunction with FastConnect Distribution Cable.

alt Pre-connected Fat Box Outdoor Type(5)

Ordering Information

alt Pre-connected Fat Box Outdoor Type(6)

alt Pre-connected Fat Box Outdoor Type(7)

Packing Information

alt Pre-connected Fat Box Outdoor Type(8)

Construction

Description

Outside Dimension (L*W*H) mm

280*220*105

Weight/PC (kgs)

1.7

Carton Size (L*W*H) mm

460*290*570

Qty/CTN (pcs)

10

Weight/CTN (kgs)

17.8

Accessories Optional

alt Pre-connected Fat Box Outdoor Type(9)

Design And Customization Services

lProvide service with whole process from blueprint to product to the customer.

lMeet customers requirement to customize logo in suitable place for existing product.

lMeet customers requirement to make reasonable modify and customization for existing product.

lProvide free design according to the requirement of customer after signed cooperative agreement.

alt Pre-connected Fat Box Outdoor Type(10)
