FCST02285-C 10-Port Pre-Connected Fiber Access Terminal

  • Advanced internal structure design, thus fiber suffering no attenuation.
  • Supports 1x2,1x4,1x5,1x8,1x9 PLC splitters,or customized unequal ratio micro splitter.
Availability:
  • FCST02285-C

  • FCST

  • FCST02285-C

  • 100

Product Overview

FCST02285-C Fiber Access Terminal as the most advanced FTTx network distribution node equipment, provide quick and reliable  connection, good protection and management for the FTTX network.


Product Advantages

  • Moisture proof, waterproof, dust-proof, anti-aging.

  • Advanced internal structure design, thus fiber suffering no attenuation.

  • Supports 1x2,1x4,1x5,1x8,1x9 PLC splitters,or customized unequal ratio micro splitter.

  • The bottom shell and upper cover are welded by hot plate welding, which is not detachable.

  • With AI scanning recognition function, quickly identify port number, optimize device  management.


Product Specifications

Construction

Description

Max. Capacity

10 cores(2/4/5/8/9)

Material

PP+GF

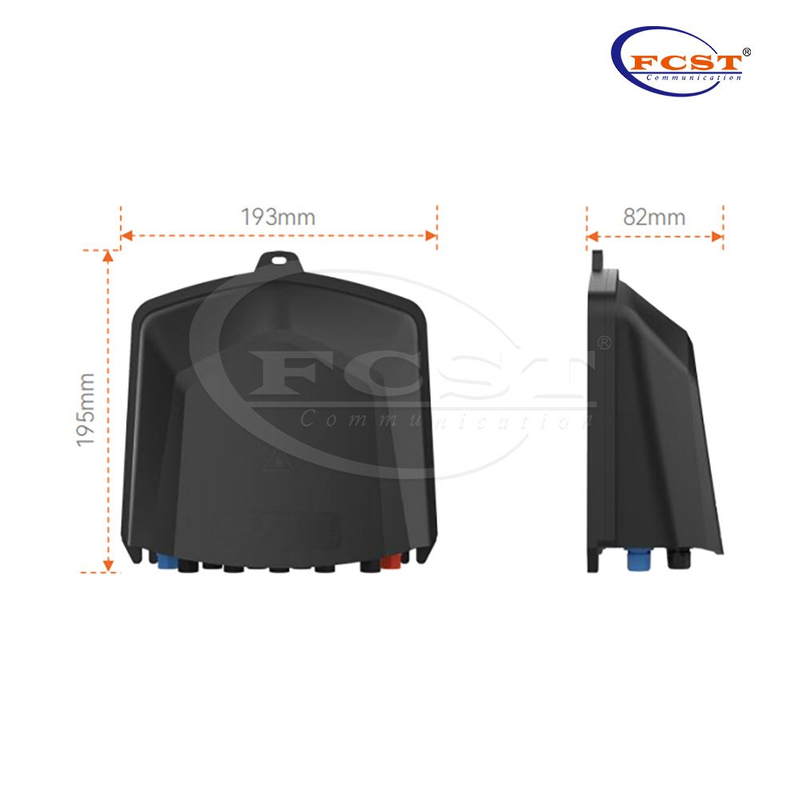

Dimension (mm)

            195*193*82mm | 7.677*7.598*3.228in

Sealing Type

Mechanical seal

Reinforced Adapter

11pcs

Packaging Info.

12PCS/CNT 24.5KG 0.06CBM

 (430*430*310mm)

Color

Black

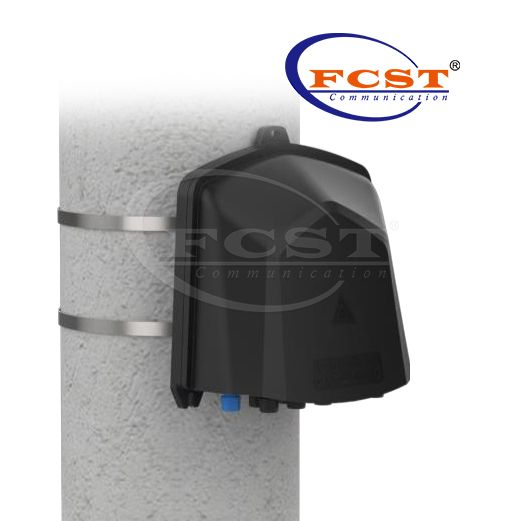

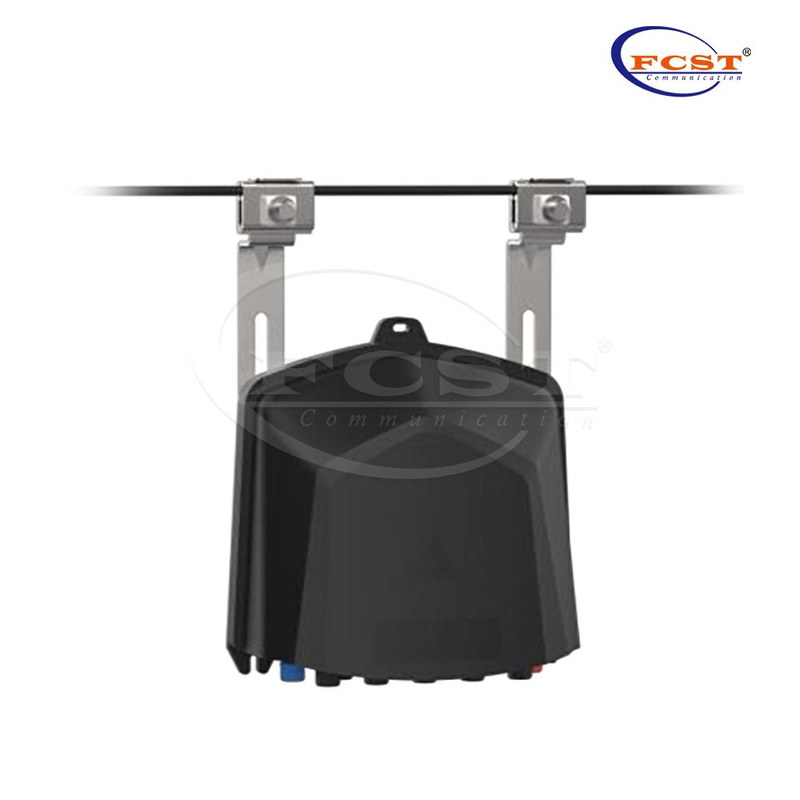

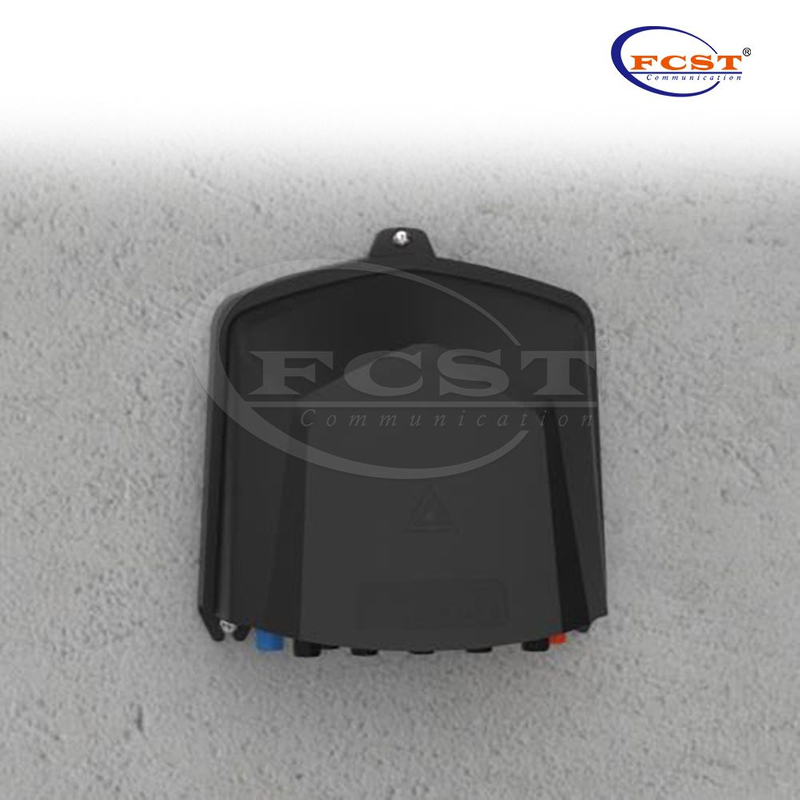

            Installation

Pole mounting,Strand mounting,Wall-mounting

FCST02285-C Fiber access terminal box

pre-terminated access terminal FCST02285-CFiber Access Termination FCST02285-CFtth Cajas Fiber Optic Distribution Box FCST02285-CFCST02285-C pre connected fiber access box通用图片-1
