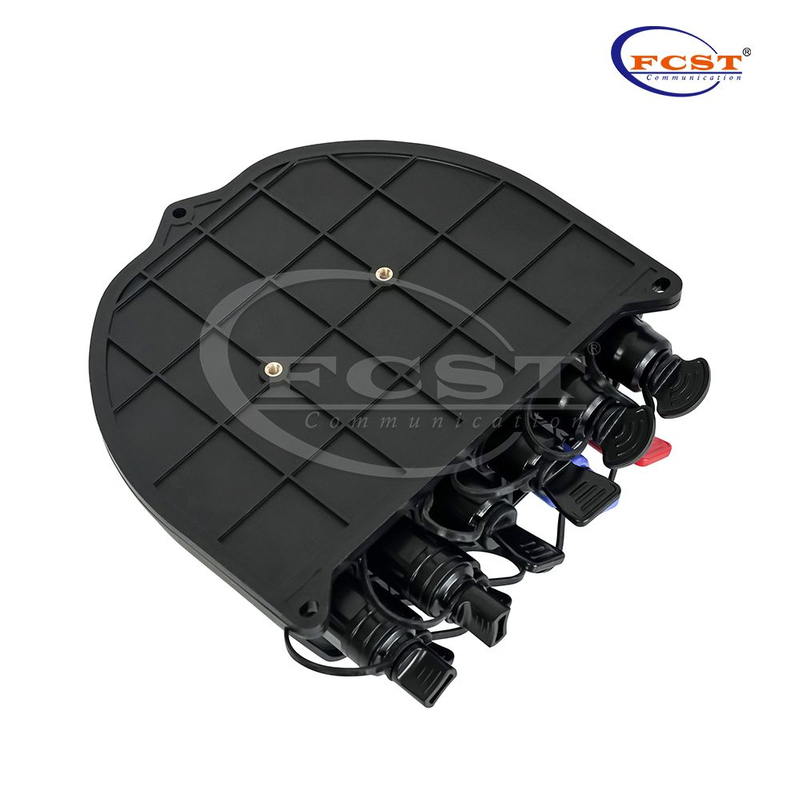

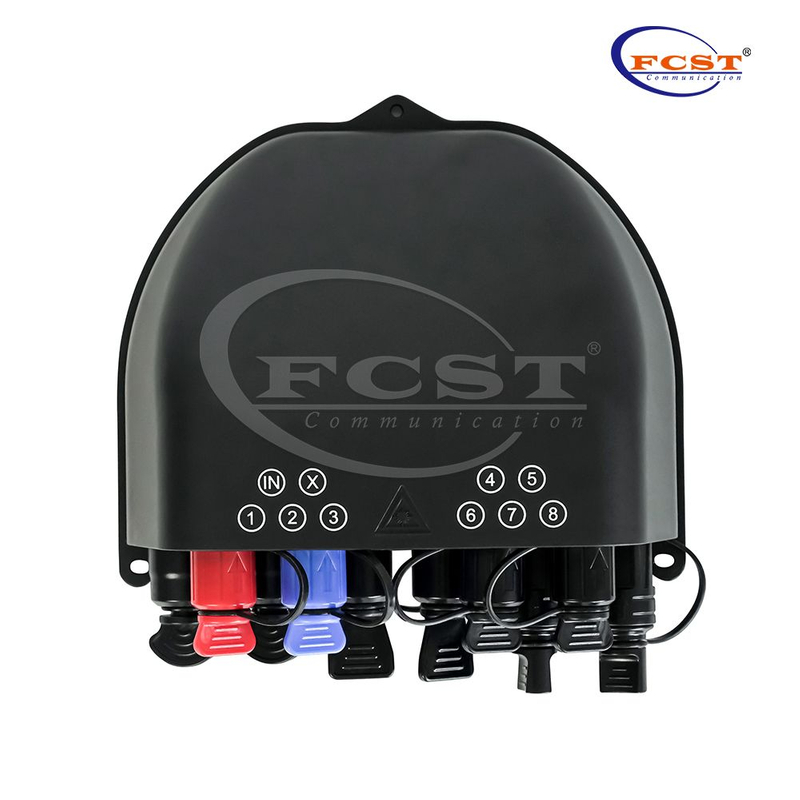

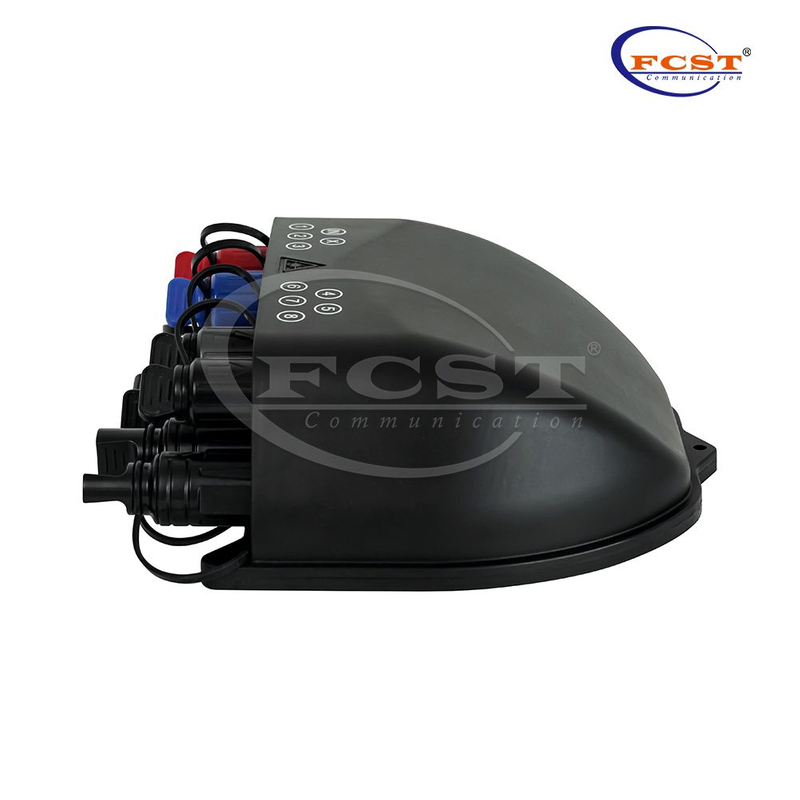

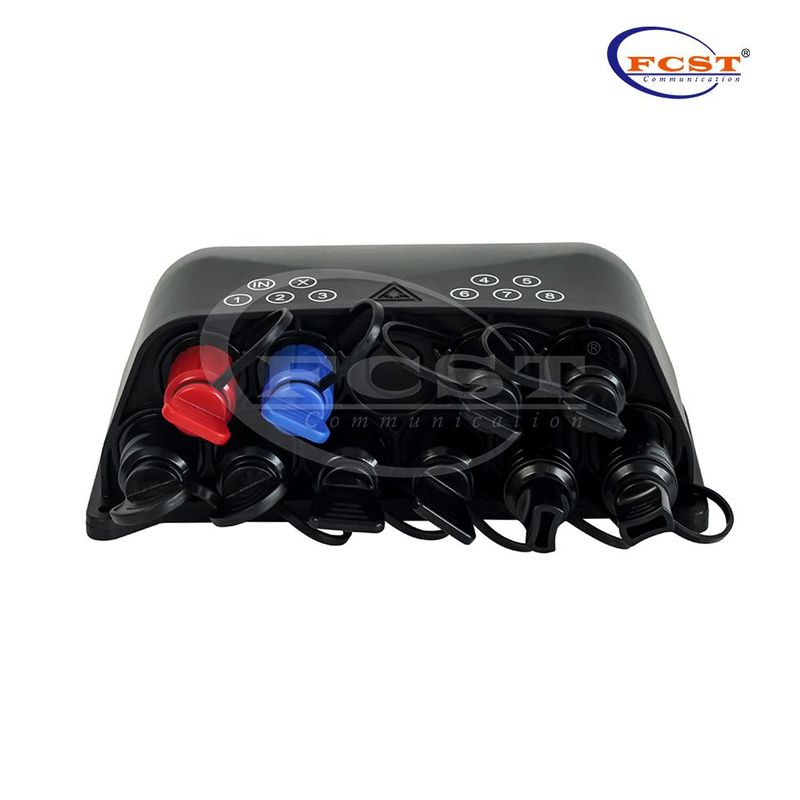

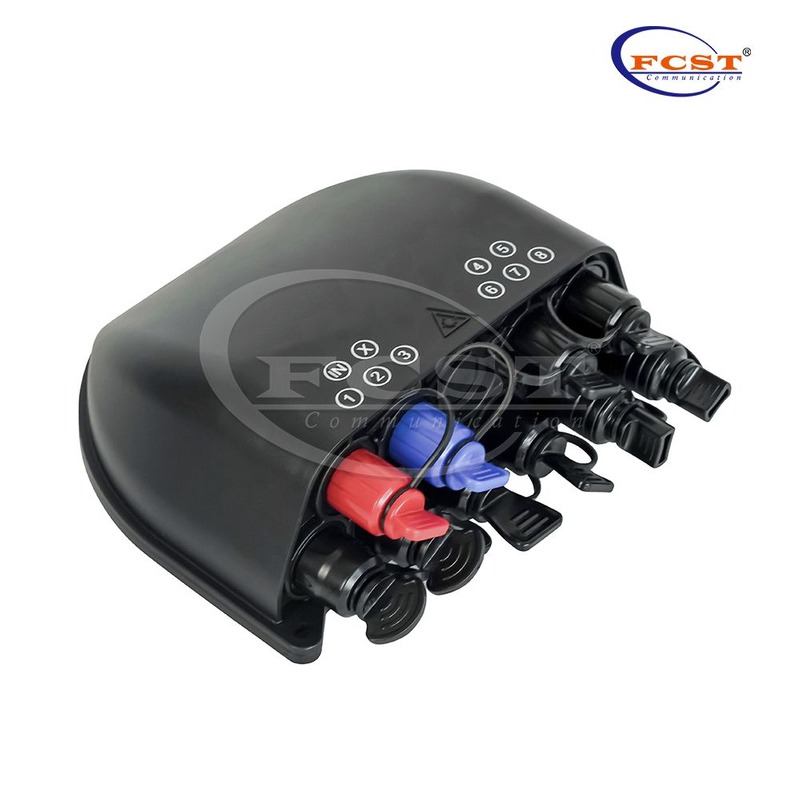

FCST02285-F Pre-terminated FTTH Box Outdoor Type IP68 Protection Level Closure

  •  Fast connect fiber access box material: PP.
  •  Protection level up to IP68.
  •  Moisture proof, waterproof, dust-proof, anti-aging.
  •  Advanced internal structure design, thus fiber suffering no attenuation.
Availability:
Quantity:
  • FCST02285-F

  • FCST

Product Overview

FCST02285-F Fiber Pre-connected Access Terminal as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.


Product Advantages

lFast connect fiber access box material: PP.

lProtection level up to IP68.

lMoisture proof, waterproof, dust-proof, anti-aging.

lAdvanced internal structure design, thus fiber suffering no attenuation.

lThe interior is equipped with 1x9 Unbalanced PLC Splitter or 1x8 PLC splitter.

lFiber pre-connected access terminal bottom shell and upper cover are welded by hot plate welding, which is not detachable.

lInstallation method: pole-mounted, aerial-mounted, wall-mounted. 2.7. It can be equipped with drop cable storage tray to meet the storage of 30 meters 5mm round cable.


Product Specifications

Construction

Description

Max. Capacity

8/9 Cores

Material

PP

Inlets/Outlets

2/9

Installation

Aerial mounted Pole mounting,Strand mounting,Wall-mounting

Protection Level

IP68

Splitter Type

1x8 PLC splitter

1x9 Unbalanced PLC Splitter

Length

171mm6.732in

Width

179mm7.047in

Height

66mm2.598in

Weight

700 g


alt fast connect fiber access box(1)

Product Structure

alt fast connect fiber access box(2)

alt fast connect fiber access box(3)

alt fast connect fiber access box(4)

Ordering Information

alt fast connect fiber access box(5)alt fast connect fiber access box(6)

Packing Information

alt fast connect fiber access box(7)

Construction

Description

Outside Dimension (L*W*H) mm

195*195*95

Weight/PC (kgs)

0.7

Carton Size (L*W*H) mm

810*410*510

Qty/CTN (pcs)

40

Weight/CTN (kgs)

28.3


Accessories Optional

alt fast connect fiber access box(8)

Design And Customization Services

lProvide service with whole process from blueprint to product to the customer.

lMeet customers requirement to customize logo in suitable place for existing product.

lMeet customers requirement to make reasonable modify and customization for existing product.

lProvide free design according to the requirement of customer after signed cooperative agreement.
