15J Impact Resistance allows the push-in microduct connector to resist accidental impacts and installation damage without cracking, maintaining the airtight seal required for efficient fiber blowing.
A failed telecom duct connector can result in:
Reduced blowing distance
Air leakage during cable jetting
Water ingress
Costly excavation and repair work
As a result, network operators increasingly focus on certified connector performance rather than simply selecting the lowest-cost fitting.
One specification is becoming particularly important:
15J certified impact resistance.
Not all underground installations experience the same mechanical stress.
For Direct Buried (DB) applications, connectors are exposed to:
Sharp rock impact during backfilling
Soil compaction pressure
Ground settlement
Construction equipment vibration
Long-term environmental loading
A microduct coupler that cracks during installation may not fail immediately.
Instead, it can gradually lose air-tightness, allowing moisture, sediment, and contaminants to enter the microduct system.
These hidden failures often lead to:
Reduced blowing performance
Increased maintenance costs
Premature network degradation
This is why many engineering specifications now require verified impact resistance testing.
15 Joules (15J) represents the ability of a connector to absorb significant impact energy without structural failure.
A properly certified connector should maintain:
Structural integrity
Seal performance
Pneumatic pressure resistance
even after impact testing.
For direct buried fiber networks, 15J resistance provides protection against accidental damage caused by rocks, tools, and installation activities.
Micro duct push fitting reliability begins with engineering design.
A telecom-grade microduct connector must withstand:
Pulling forces
Temperature cycling
Soil chemicals
Ground movement
Continuous pressure loading
Unlike generic industrial couplings, specialized telecom connectors incorporate:
Precision sealing systems
Anti-slip retention mechanisms
Zero-burr internal geometry
These features ensure uninterrupted cable blowing while protecting cable jackets from damage during installation.
Engineers typically evaluate three critical performance indicators:
Parameter | Engineering Significance |
Airflow Continuity | Maintains maximum blowing efficiency |
Axial Retention Force | Prevents duct pull-out under pressure |
Reusability | Simplifies maintenance and future upgrades |
Material selection directly determines connector durability.
While HDPE remains the preferred material for microducts themselves, connector bodies often require enhanced engineering polymers capable of withstanding greater mechanical loads.
Modern high-performance connectors may incorporate:
UV stabilizers
Impact modifiers
Flame-retardant additives
Chemical-resistant formulations
For harsh environments, a fully plastic, metal-free construction provides additional benefits:
No rust
No oxidation
No galvanic corrosion
Longer service life
This design is particularly advantageous in:
· Coastal regions
· Flood-prone areas
· High-salinity soil environments
Installation quality often determines long-term network reliability.
To reduce installation errors, advanced push-fit microduct connectors now incorporate:
These prevent accidental duct release during cable jetting.

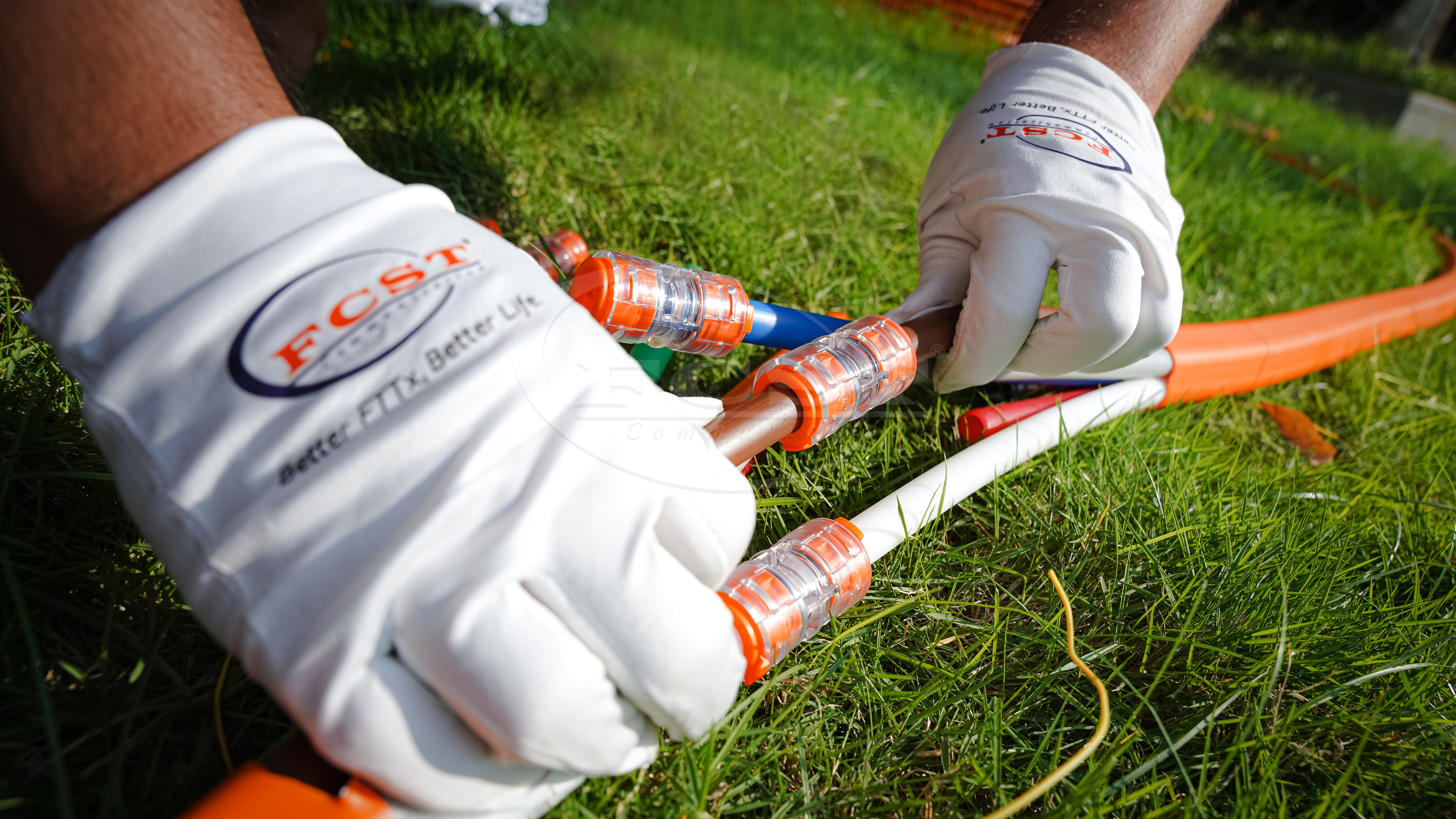

A crystal-clear body allows technicians to verify:
Correct insertion depth
Proper locking engagement
Cable passage through the connector
This visual confirmation significantly reduces installation mistakes.
Modern push-fit mechanisms allow rapid deployment while maintaining consistent sealing performance.
Many network operators focus solely on pressure ratings.
However, buried infrastructure faces additional challenges.
Fine soil particles can enter poorly designed connectors and interfere with release mechanisms.
Underground environments may contain:
Fertilizers
Hydrocarbons
Industrial contaminants
Groundwater minerals
A high-quality connector must resist both mechanical and chemical degradation throughout its service life.
Parameter Category | Critical Requirement | Verification Method |
Mechanical Impact | 15J certified impact resistance | Drop-weight impact testing |
Pneumatic Seal | Airtight performance up to 16 Bar | Pressure decay testing |
Environmental Protection | Anti-sediment sealing | Soil contamination testing |
Chemical Resistance | Resistance to underground contaminants | Immersion testing |
Corrosion Protection | Full plastic, metal-free design | Salt spray evaluation |
Inventory Optimization | Universal bore compatibility | Multi-duct fit testing |
One challenge for contractors is managing multiple connector variants.
Different microduct wall thicknesses often require different fittings.
Universal Bore technology solves this issue by allowing a single connector family to accommodate multiple duct types with the same outer diameter.
Benefits include:
Reduced SKU count
Lower inventory costs
Simplified procurement
Faster installation
This approach is particularly valuable for large FTTH and FTTx deployments.
In a direct buried FTTH deployment, several connector failures occurred shortly after trench backfilling.
Investigation revealed micro-cracks caused by rock impact during installation.
Although the connectors initially passed pressure checks, gradual leakage developed over time, reducing fiber blowing performance and requiring costly excavation.
After replacing the affected fittings with certified high-impact connectors, the network maintained pressure integrity throughout subsequent installation phases.
The case illustrates a key industry lesson:
A connector that survives installation is not necessarily a connector designed for long-term reliability.
15J refers to the connector's ability to withstand a 15-Joule impact without losing structural integrity or sealing performance.
For projects involving rocky soil, heavy backfilling, or harsh environmental conditions, 15J certification provides additional protection against installation damage.
A properly tested connector should retain its pneumatic sealing performance after completing impact testing.
Metal-free designs eliminate rust, corrosion, and galvanic reactions, improving long-term reliability in underground environments.
It allows technicians to visually confirm correct insertion depth and cable passage, reducing installation errors.
As fiber networks expand and infrastructure lifecycles extend beyond 30 years, connector reliability becomes increasingly important.
Modern network operators are no longer evaluating connectors solely by price. Instead, they prioritize measurable performance indicators such as:
15J impact resistance
16 Bar air-tightness
Anti-sediment protection
Universal bore compatibility
Metal-free corrosion resistance
By combining certified mechanical durability with installation-friendly design, modern microduct connectors help ensure that underground fiber pathways remain secure, efficient, and maintenance-free throughout their service life.
