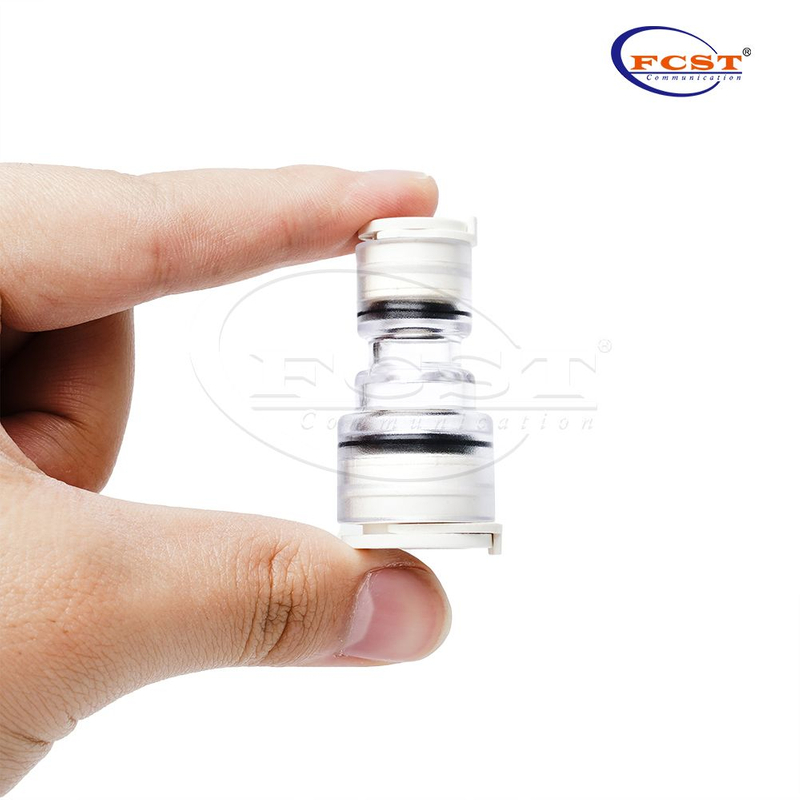

Product Overview

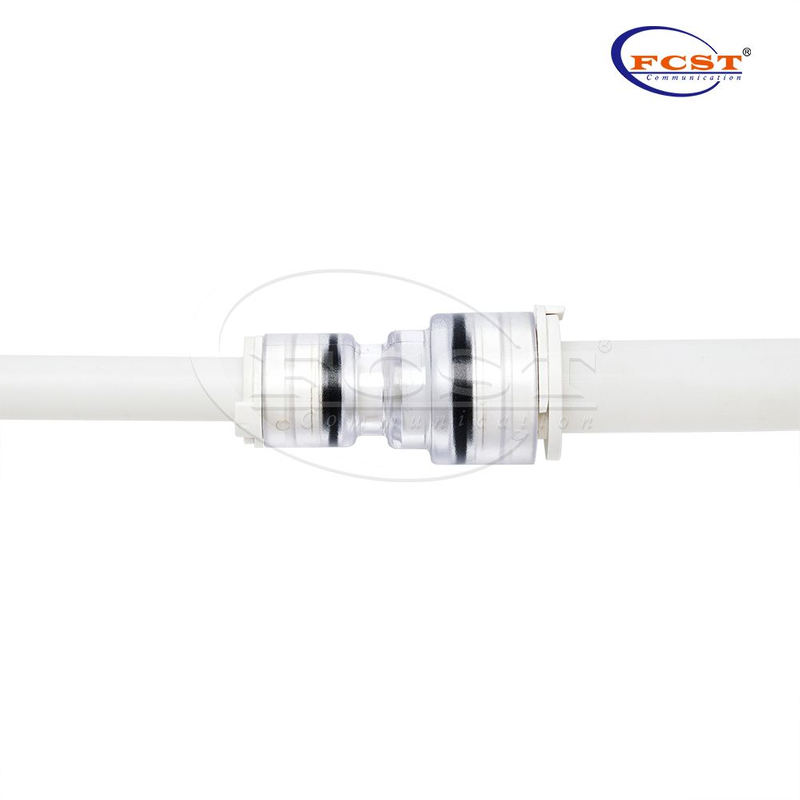

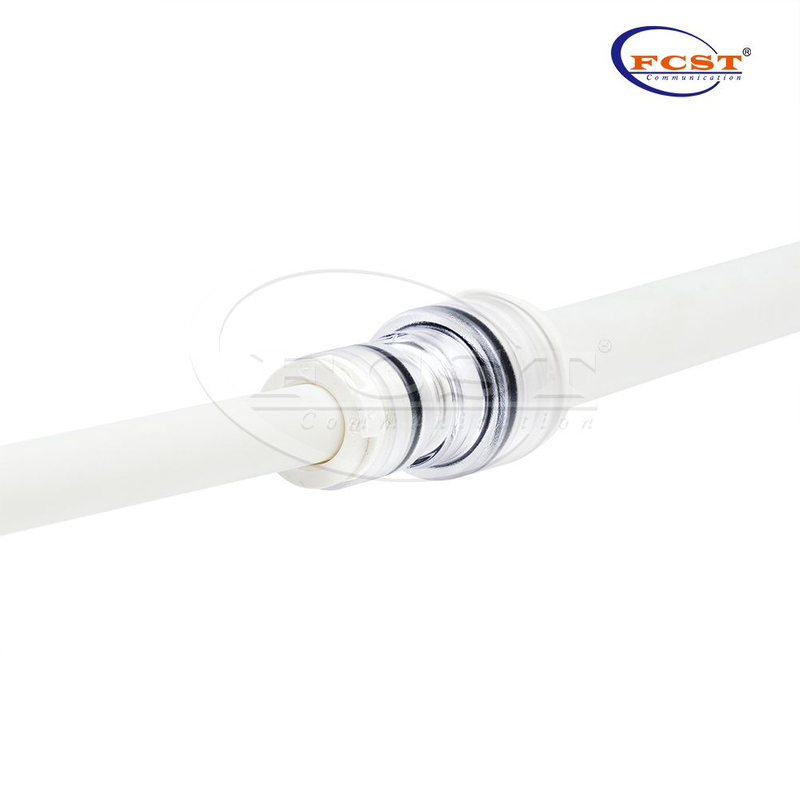

These connectors Make connections between Microducts quickly and easily in in-building applications, without the need for tools. Transparent design affords greater control when connecting Microducts and enables visual confirmation of the presence of a cable.
Product Advantages
For 5-14 mm Microducts.
Easy "push-in" installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.

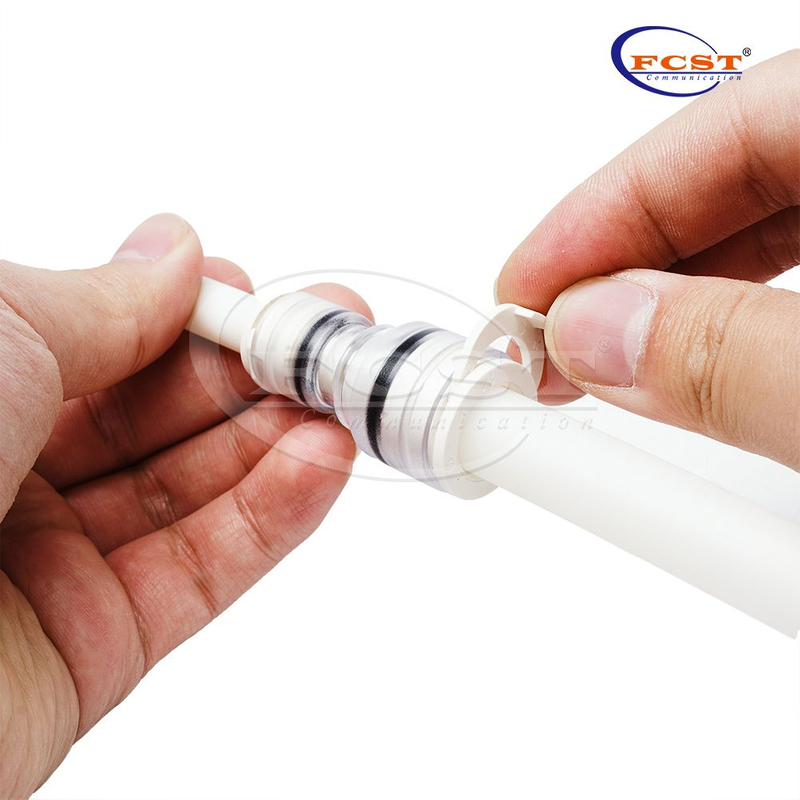

Locking rings to prevent accidental removal of connector.
Tested in accordance to UL94 V-0: flame resistance for in-building applications.
Made of eco-friendly materials, it has passed ROHS and REACH certifications.
Product Specifications
Construction | Description |
Tube To Connector | LSZH Microduct(Indoor) |
Fluid | Air with blowing system |
Working Pressure | 20 bar |
MAX. Pressure | 28 bar |
Userful Life | 25 years |
Water Ingress Test | 0.5 bar during 168 hours |
Installation Temperature | -15°C to +45°C |
Operation Temperature | -15°C to +45°C |
Transport and Storage Temperature | -15°C to +45°C |
Insertion Force | ≤ 50 N |
Impact Resistance | 1.5joule |
According To Standards | UL94 V-0,CEI EN 50411-2-8,EN 50411-2-5 |
Related Documents | EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
Related Documents | ISO 3601,ISO 4397:1993(2000), |

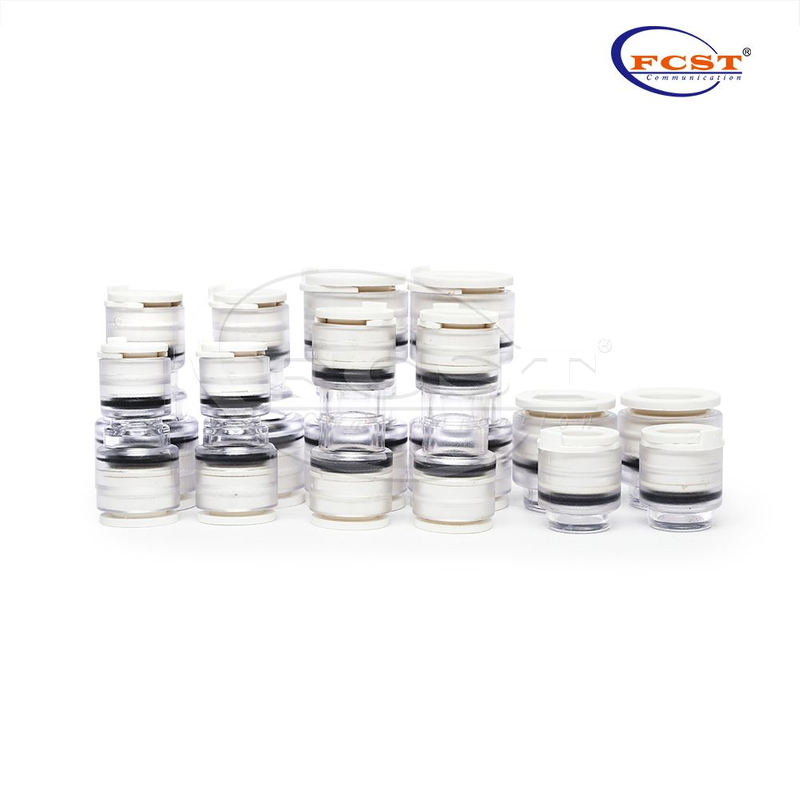

Ordering Information

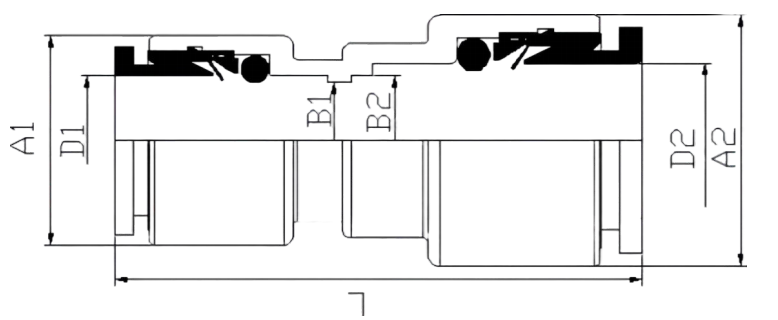

Model | D1 | D2 | A1 | A2 | B1 | B2 | L | Weight(g) |
L-ERPG7/4-5/3.5 | 5 | 7 | 15.2±0.2 | 15.2±0.2 | 3.5±0.12 | 4.0±0.12 | 41.2±0.5 | 5.6±5% |
L-ERPG8-6/5 | 8 | 6 | 13.5±0.2 | 15.2±0.2 | 5.0±0.12 | 5.0±0.12 | 35.0±0.5 | 4.5±5% |
L-ERPG10-7/5 | 7 | 10 | 15.2±0.2 | 17.5±0.2 | 5.0±0.12 | 5.0±0.12 | 38.0±0.5 | 5.5±5% |
L-ERPG10/5.5-8/5 | 8 | 10 | 15.2±0.2 | 17.5±0.2 | 5.0±0.12 | 5.5±0.12 | 38.0±0.5 | 5.4±5% |
L-ERPG12/8-8/5.5 | 8 | 12 | 15.2±0.2 | 21.5±0.2 | 5.5±0.12 | 8.0±0.12 | 45.0±0.5 | 8.5±5% |
L-ERPG12-10/8 | 10 | 12 | 17.5±0.2 | 21.5±0.2 | 8.0±0.12 | 8.0±0.12 | 44.4±0.5 | 8.8±5% |
L-ERPG12/10-10/8 | 10 | 12 | 17.5±0.2 | 21.5±0.2 | 8.0±0.12 | 10.0±0.12 | 44.4±0.5 | 8.8±5% |
L-ERPG14/10-10/8 | 10 | 14 | 17.5±0.2 | 23.5±0.2 | 8.0±0.12 | 10.0±0.12 | 48.5±0.5 | 10.1±5% |
L-ERPG14/10-12/10 | 12 | 14 | 21.5±0.2 | 23.5±0.2 | 10.0±0.12 | 10.0±0.12 | 48.5±0.5 | 12.1±5% |
*Note: Other size requirements can be contacted for docking sales.

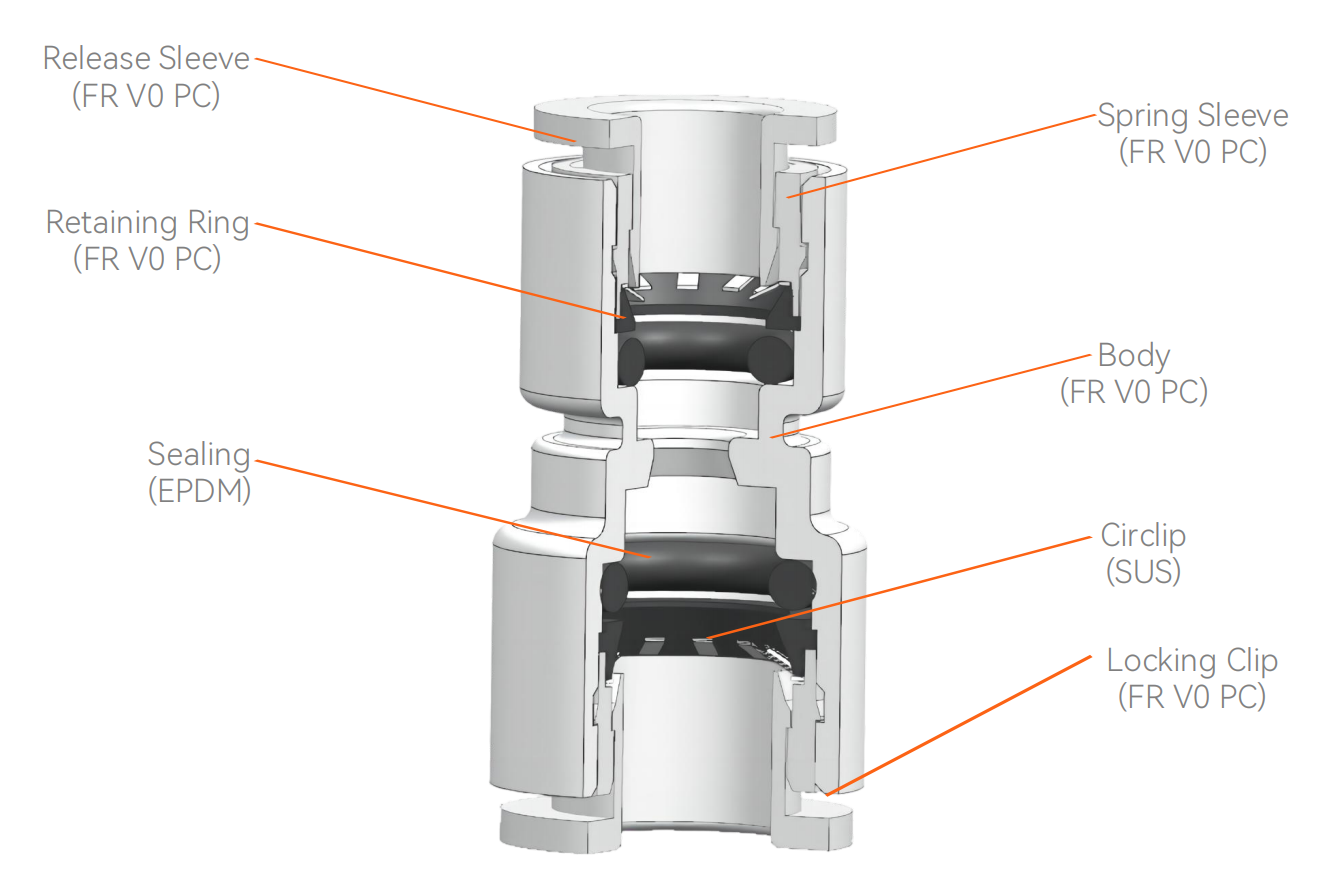

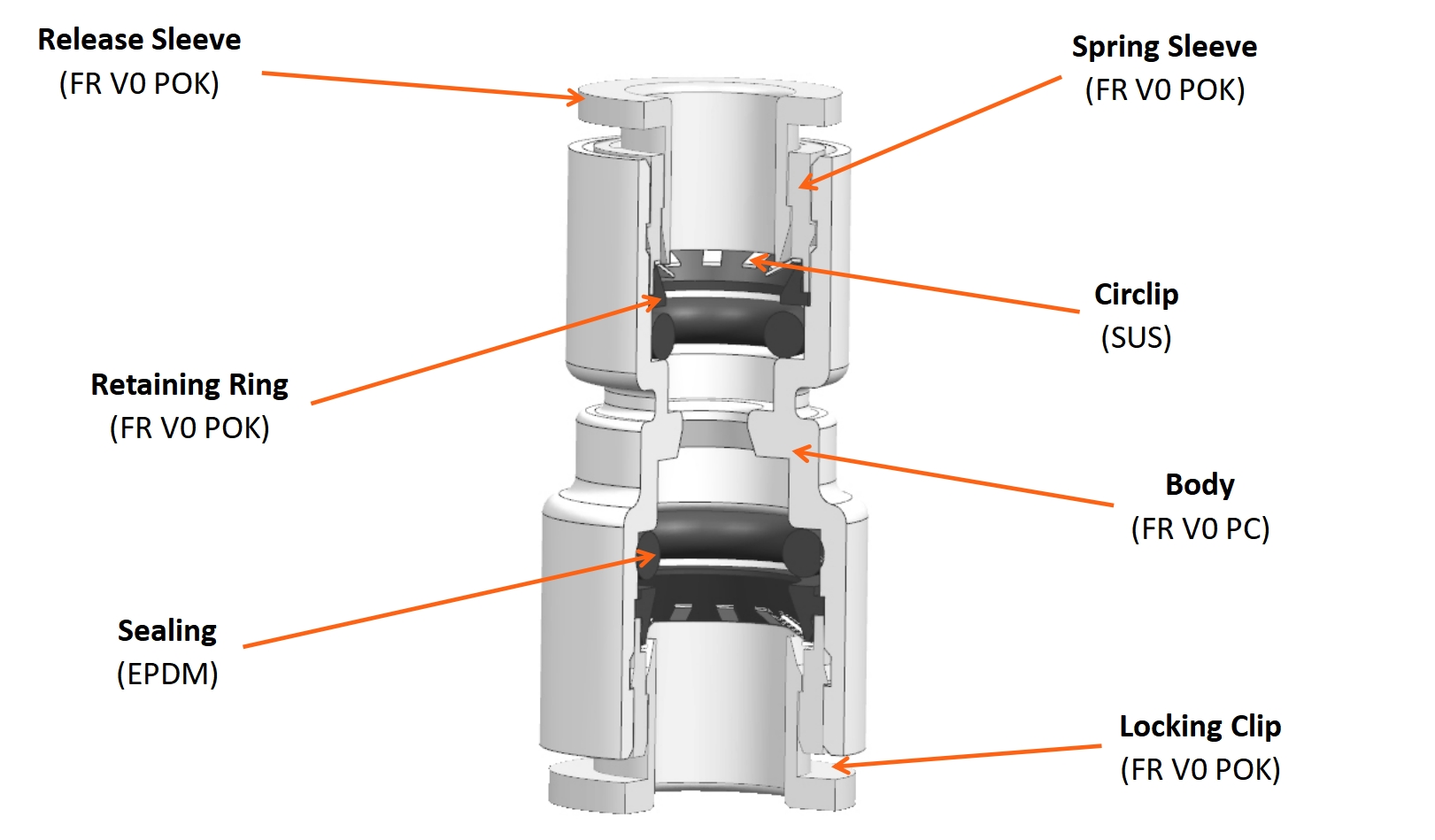

Product Material

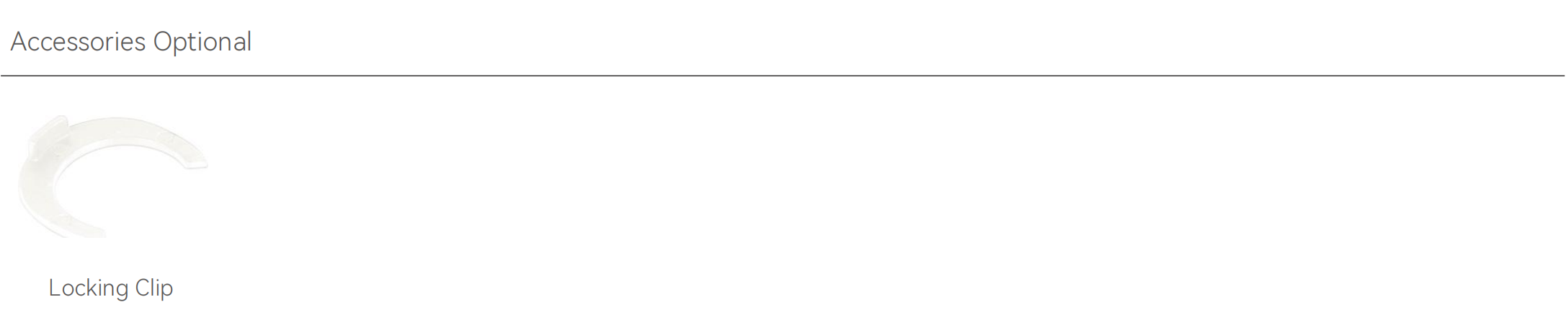

Accessories Optional
