Product Overview

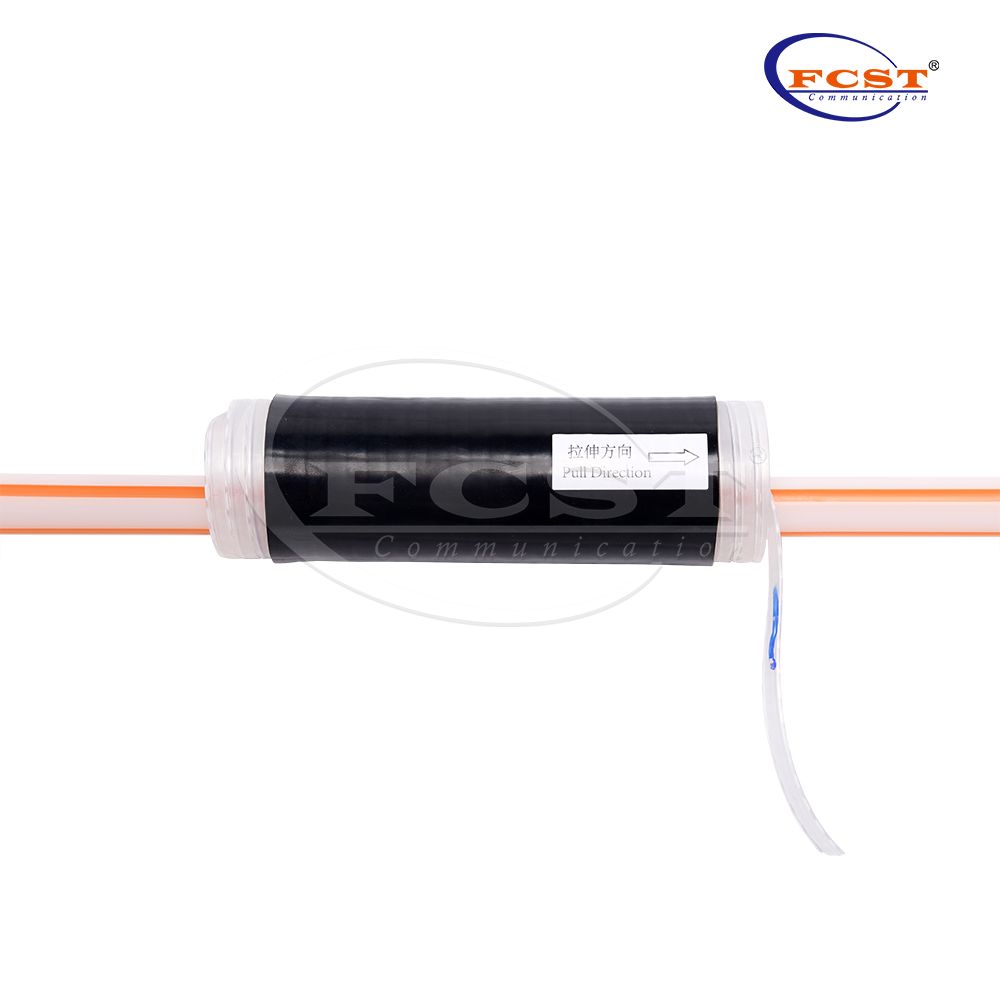

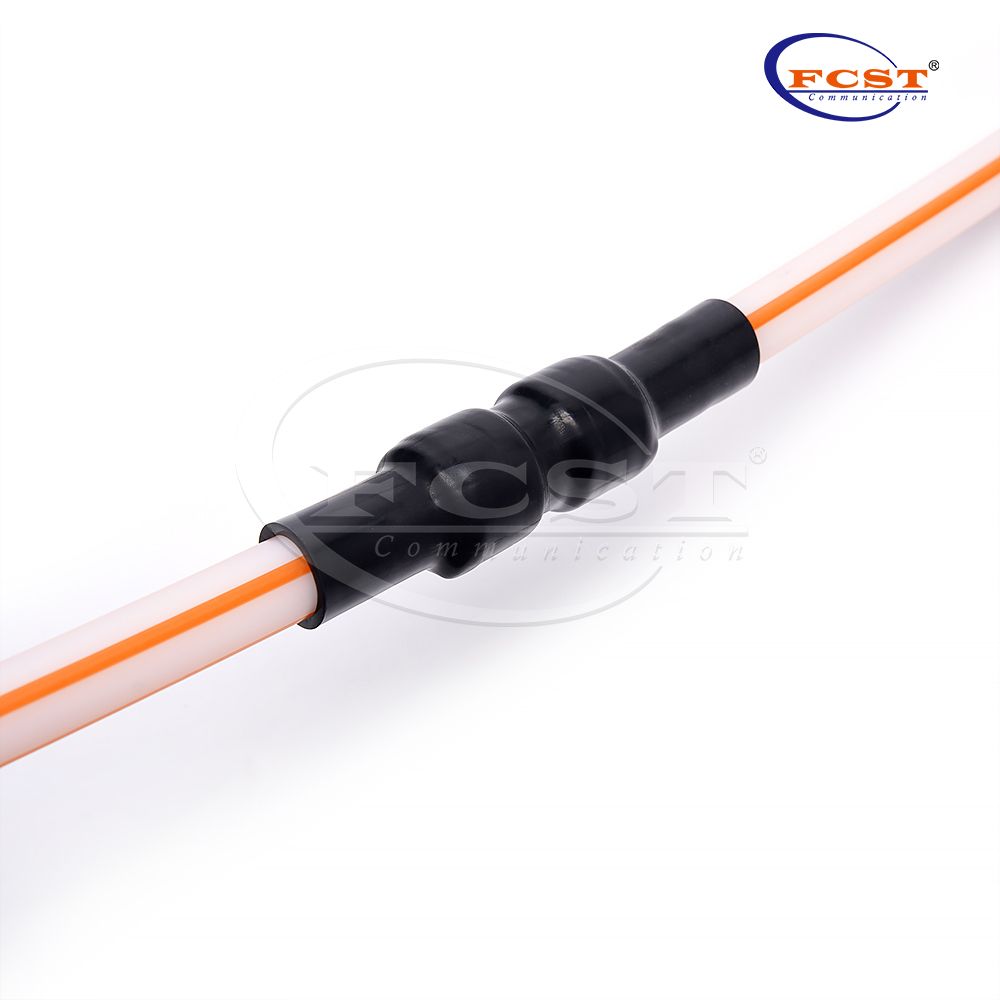

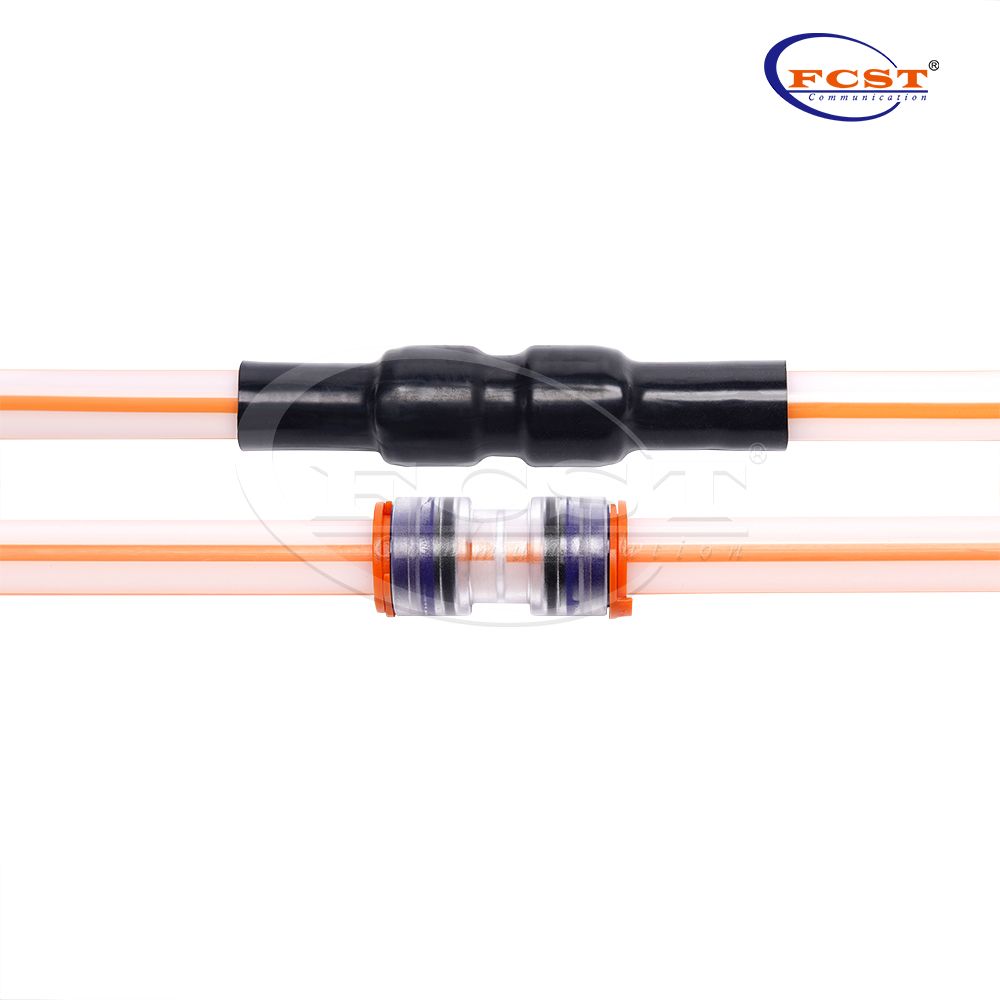

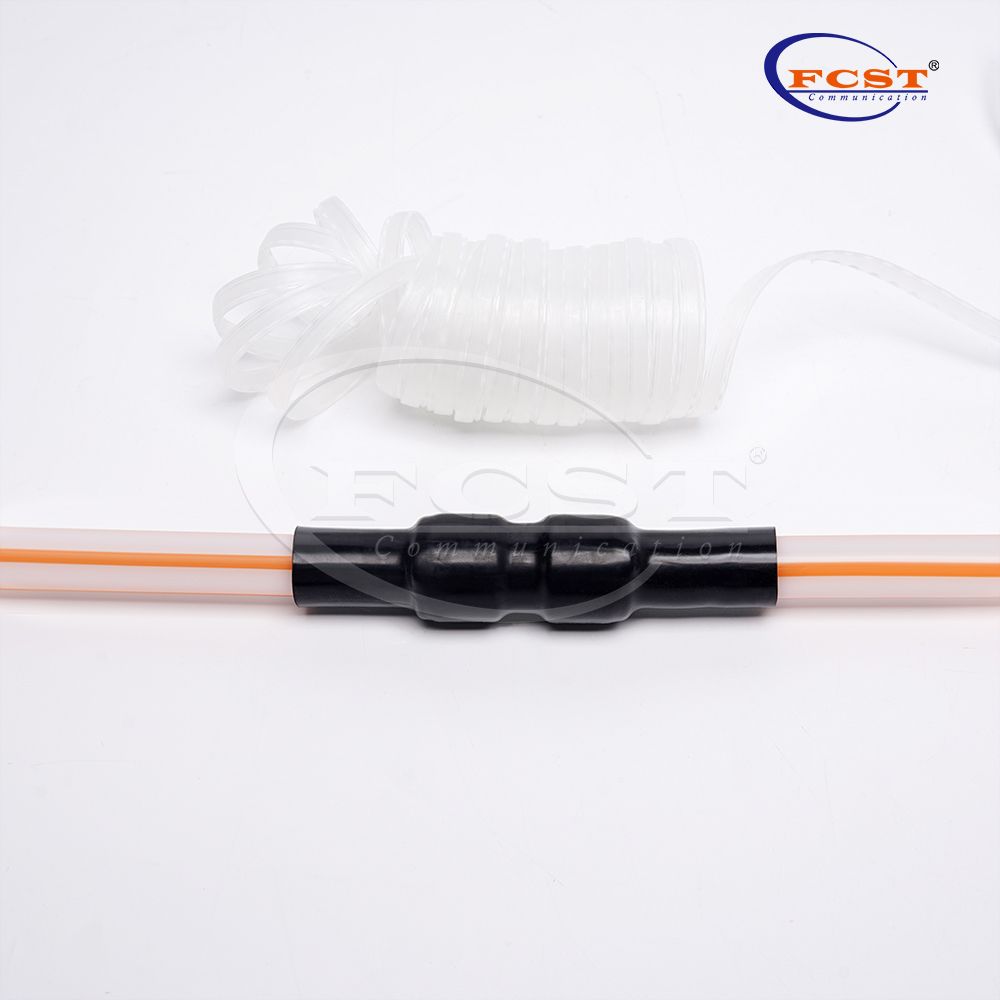

Silicone Rubber Cover For Microduct Connectors, althogh the Micro Duct Connector series can be directly buried, we recommend placing a protective cap on the connector before the microduct is inserted, especially in very challenging environmental conditions.
Product Specifications
Construction | Description |
Material | Silicone Rubber |
Protection Level | IP68 |
Product Advantages
Suitable for special use environment.
Silicone Rubber design for higher resistance and durability.

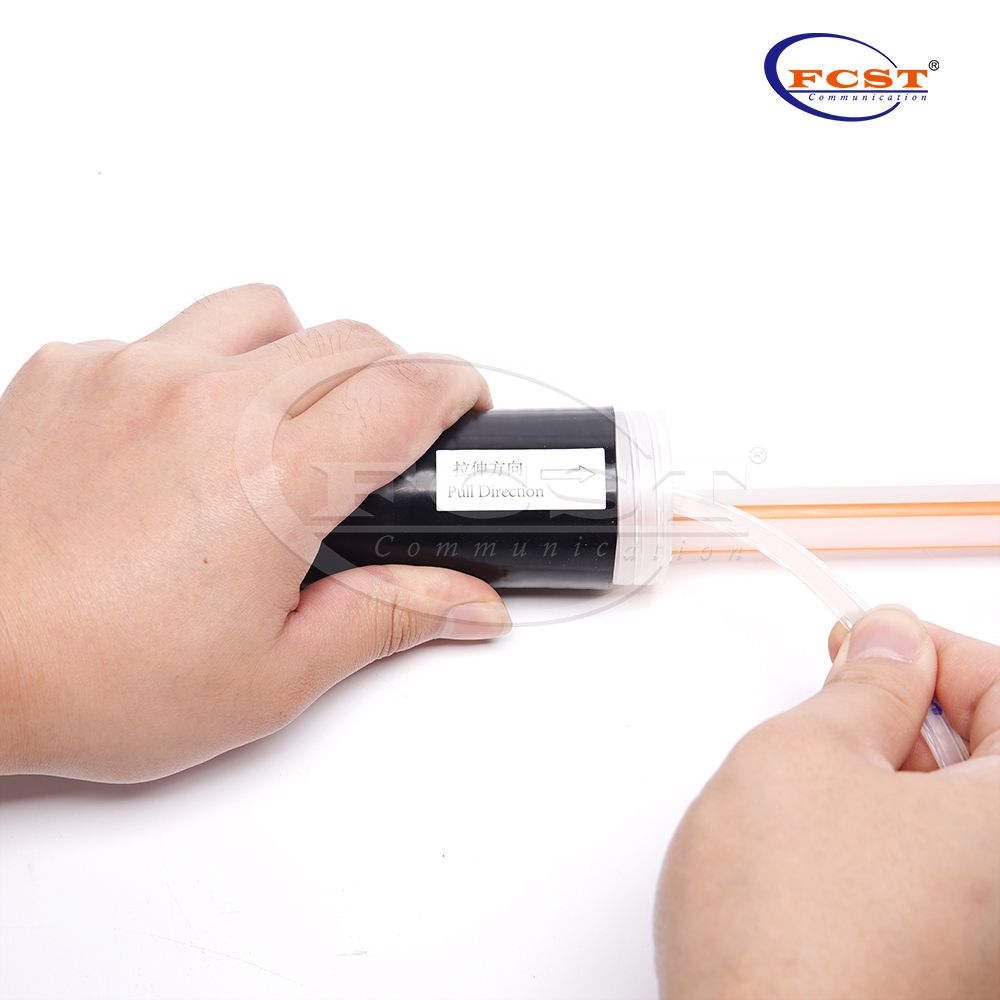

Easy to install, only three steps (Cover, pull and clench).
Fast installation, only 15-30 seconds needed to seal one connection.
While effectively prevent accidental removal of microducts,strengthen the protection of connectors.
Ordering Information
Specification | FCST-25*120 | FCST-28*110 | FCST-40*140 | FCST-45*140 |
Inner Diameter Before Shrink | 25mm(0.984'') | 28mm(1.102'') | 40mm(1.575'') | 45mm(1.772'') |
Inner Diameter After Shrink | 8.5mm(0.335'') | 9.0mm(0.354'') | 16mm(0.630'') | 17mm(0.669'') |
Unrelaxed Length | 110mm(4.331'') | 100mm(3.937'') | 130mm(5.118'') | 130mm(5.118'') |
Relaxed Length | 120mm(4.724'') | 110mm(4.331'') | 140mm(5.512'') | 140mm(5.512'') |
Relaxed Thickness | 2.5mm(0.098'') | 2.7mm(0.106'') | 3.0mm(0.118'') | 3.0mm(0.118'') |
Min. Connector External Dia. | 7.3mm(0.287'') | 8.5mm(0.335'') | 12mm(0.472'') | 12mm(0.472'') |
Max Connector External Dia. | 21mm(0.827'') | 24mm(0.945'') | 35mm(1.378'') | 40mm(1.575'') |
Mastic Width | 25mm(0.984'') | |||
Mastic Thickness | 1.1mm(0.043) | |||

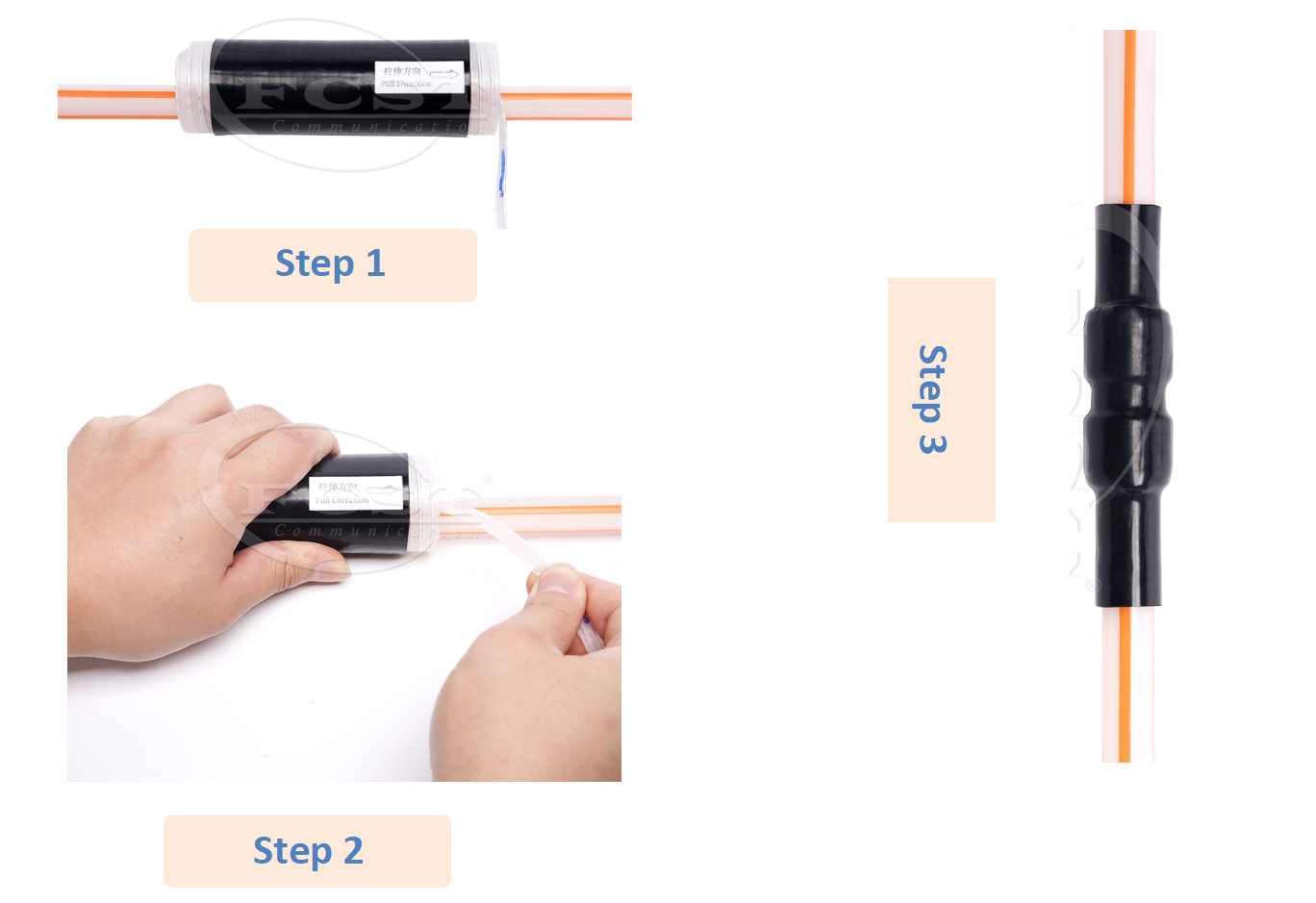

Product Installation
