FCST
Product Overview

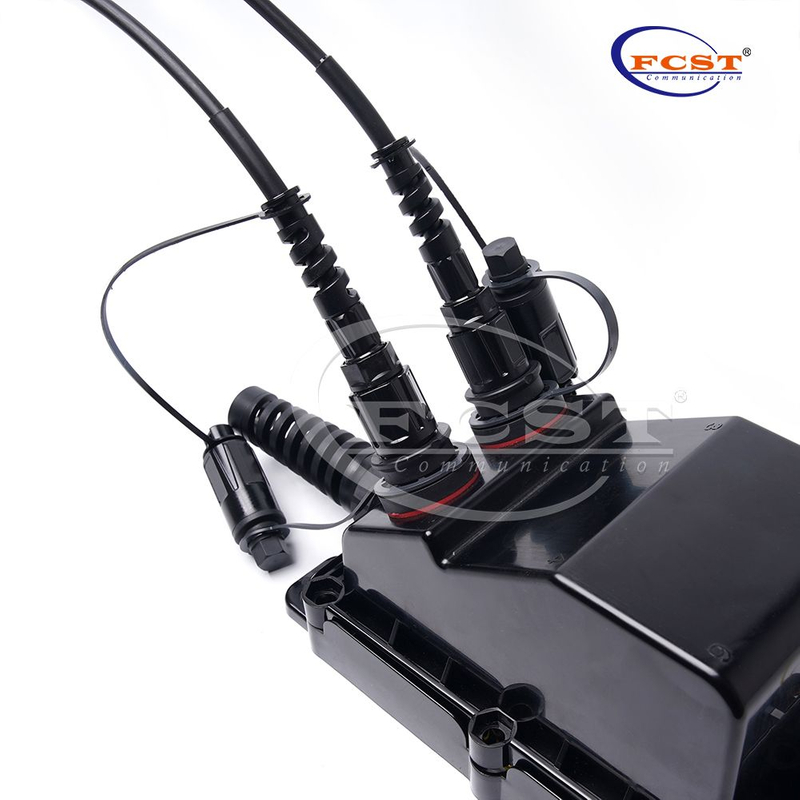

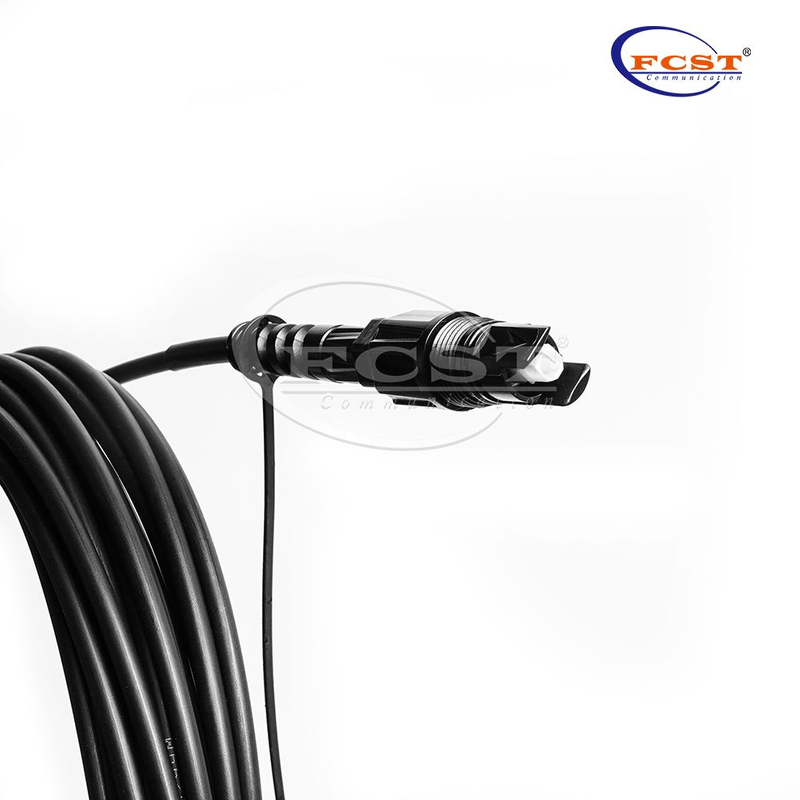

FCST's OptiTap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
Product Advantages
lAvailable in dielectric or toneable.
lIP-68 water and dust protection.
l-40℃~85℃ operating temperature.
lAvailable with one or both ends connectorized.
lCompatible with Corning-OptiTap and H-Connector.
lDesigned for aerial, direct-buried or duct installation.
lCable length 100ft, 200ft, 300ft, 500ft, 1000ft or customized.

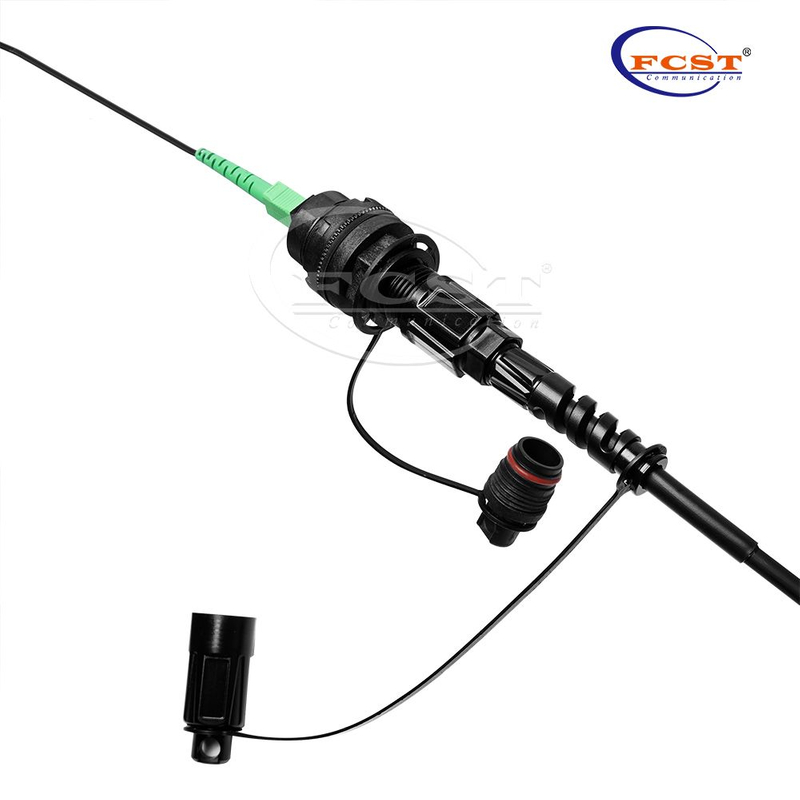

lHybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip.
Product Specifications
Construction | Description |
Fiber Count | 1 |
Fiber Type | G.657A/G.652D |
Length | 20/50/100/150m(Optional) |
Outer Sheath | Material:LSZH/TPU/PE |
Cable Type | Circular optical cable, Oval optical cable,Drop cable |
Cable Diameter | Circular optical cable:φ4.8mm/φ5.0mm |
Storage Temperature | -20ºC to +60ºC |
Dimensional Diagrams
Specifications-Connector A
Construction | Description |
Reflectance, Typical | -65dB |
Insertion Loss, Typical | ≤ 0.15 dB |
Connector Type | SC/APC OptiTap connector(H Connector) |
Specifications-Connector B
Construction | Description |
Reflectance, Typical | -65dB |
Insertion Loss, Typical | ≤ 0.15 dB |
Connector Type | SC/APC Connector (simplex) |
Product Advantages
lFTTA/FTTH.
lMulti-purpose Outdoor.
lFor connection between distribution box and RRH.
lDeployment in Remote Radio Head cell tower applications.
Cable Type
Construction | Description |
Cable Count | 1 |
Out sheath Diameter | 5.0±0.2mm |
Minimum Allowable Tensile Strength | Short Term:800N |
Minimum Allowable Crush Load (N/100mm) | Short Term:2000 |
Minimum Bending Radius | Short Term:20D |
Storage Temperature | -20 ~ +60℃ |
Construction | Description |
Cable Count | 1 |
Out sheath Diameter | (4.0±0.2)x(7.0±0.2)mm |
Minimum Allowable Tensile Strength | Short Term:1350N |
Minimum Allowable Crush Load (N/100mm) | Short Term:2200 |
Minimum Bending Radius | Short Term:20D |
Storage Temperature | -20 ~ +60℃ |
Construction | Description |
Cable Count | 1 |
Out sheath Diameter | 2.0*3.0mm |
Minimum Allowable Tensile Strength | Short Term:800N |
Minimum Allowable Crush Load (N/100mm) | Short Term:1500 |
Minimum Bending Radius | Short Term:20D |
Storage Temperature | -20 ~ +60℃ |
Construction | Description |
Cable Count | 1 |
Out sheath Diameter | 2.0*5.0mm |
Minimum Allowable Tensile Strength | Short Term:1000N |
Minimum Allowable Crush Load (N/100mm) | Short Term:2000 |
Minimum Bending Radius | Short Term:20D |
Storage Temperature | -20 ~ +60℃ |
