FCST-15JDB-SC
FCST
FCST-15JDB-SC

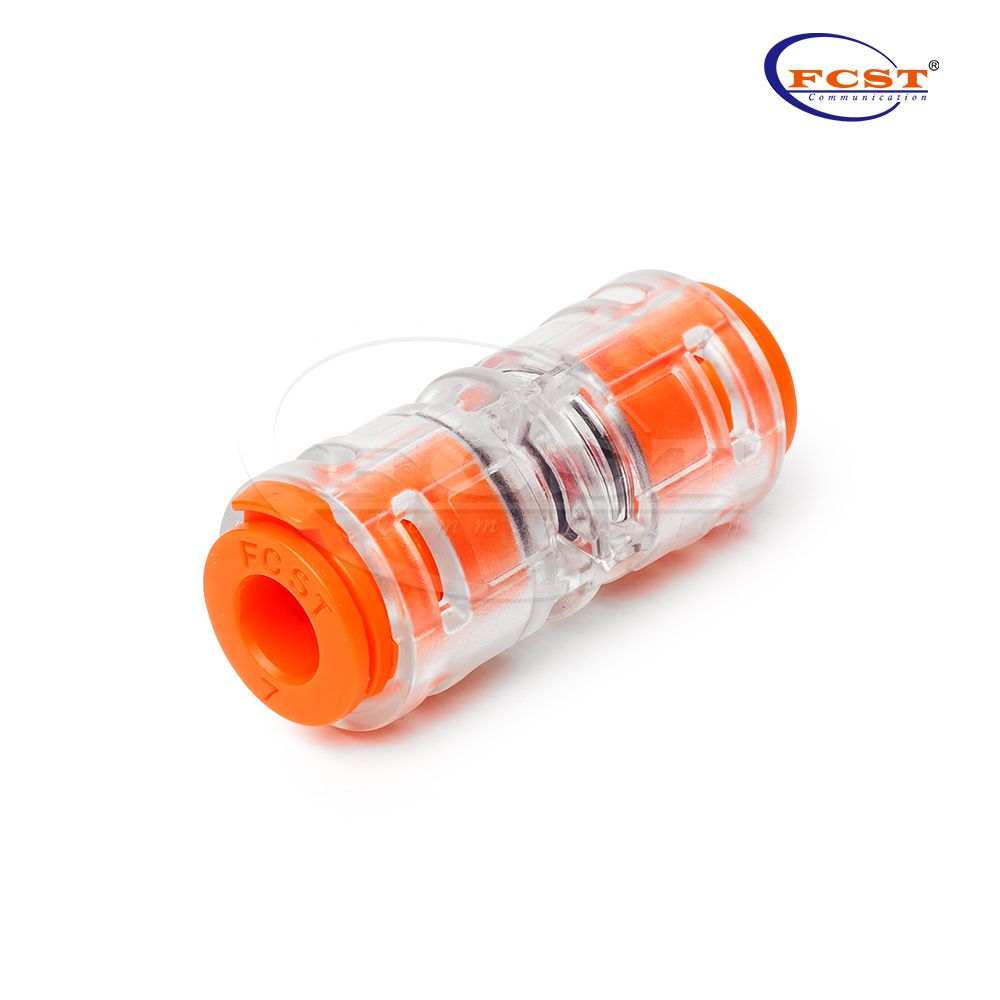

Product Overview

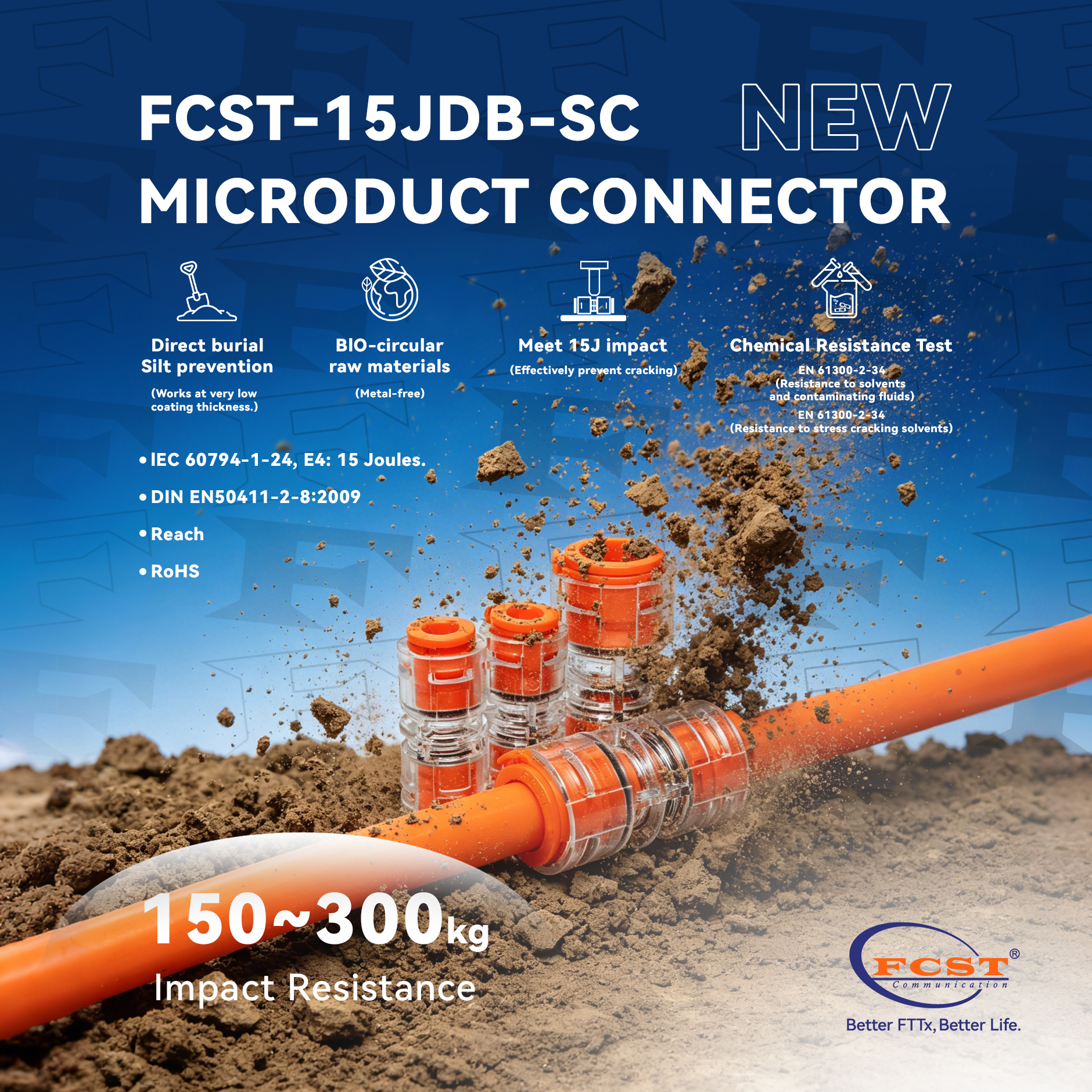

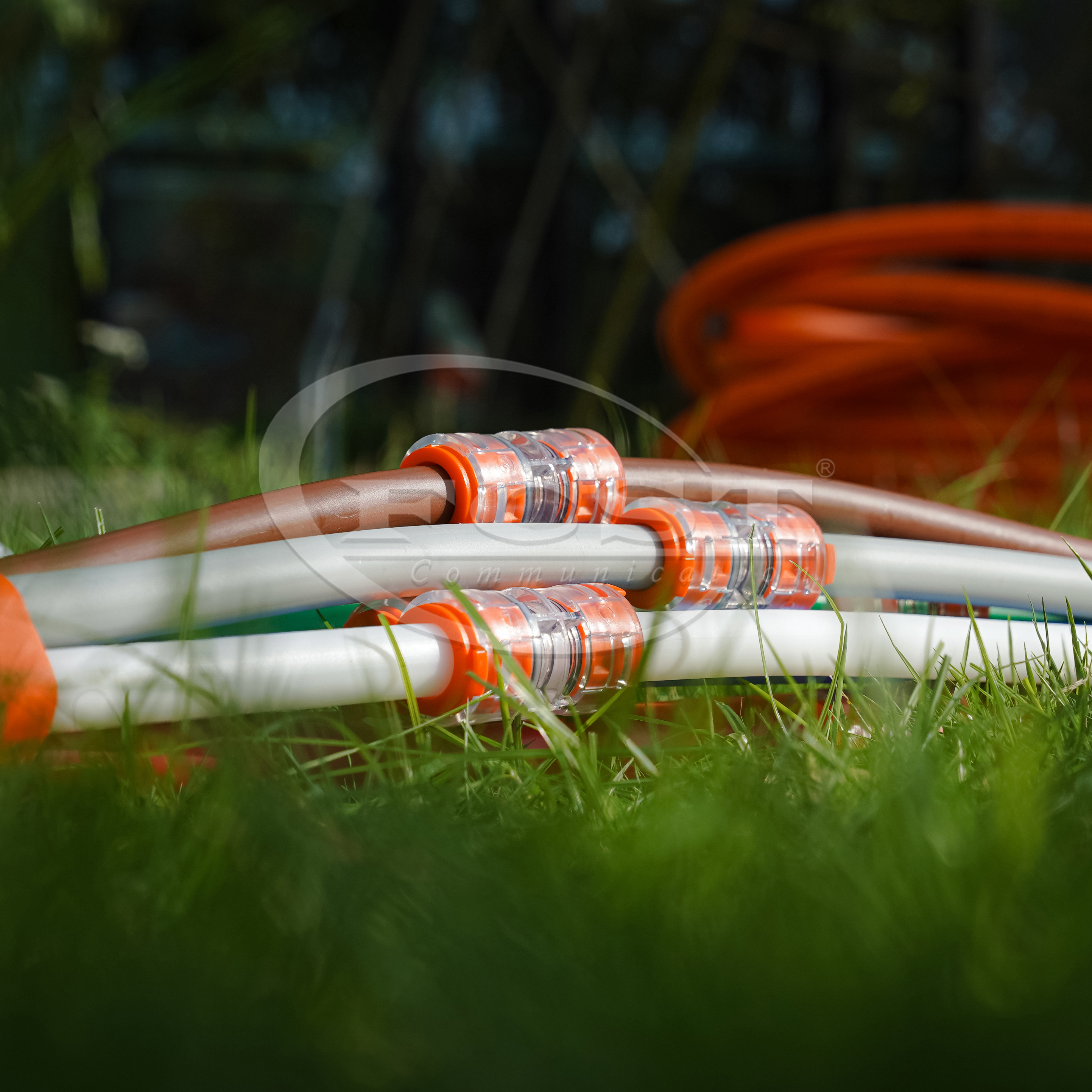

The FCST-15JDB-SC metal-free push-on connectors feature a clear polycarbonate housing that enhances thermal stability and provides excellent impact resistance. Their quick and easy connect and disconnect capabilities, combined with their rugged, compact design and use of durable materials, make them ideal for the harshest environments, including direct mount (DI) or direct burial (DB) applications in telecommunications network deployments.
Product Advantages
For 7 -16 mm microducts.

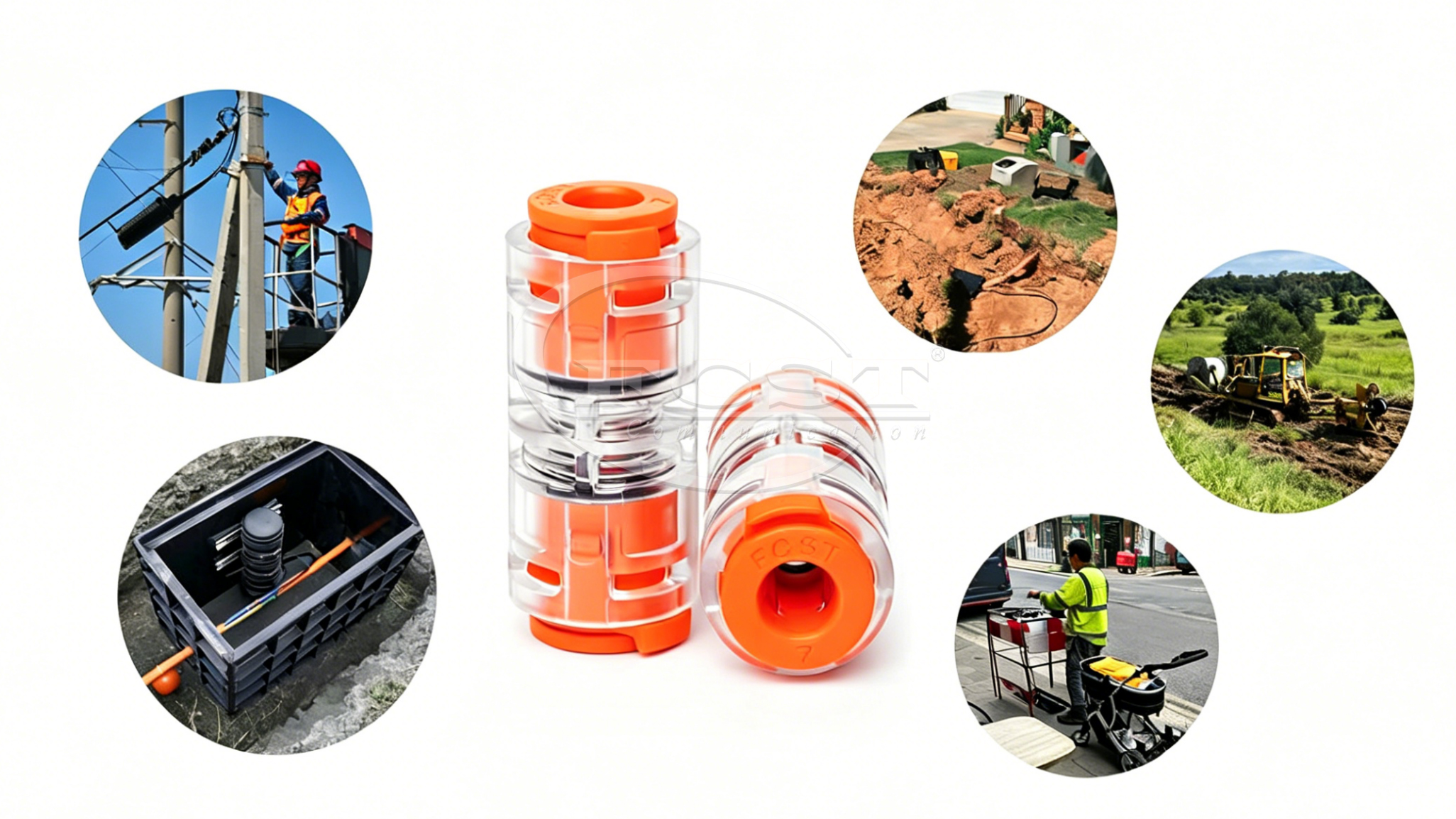

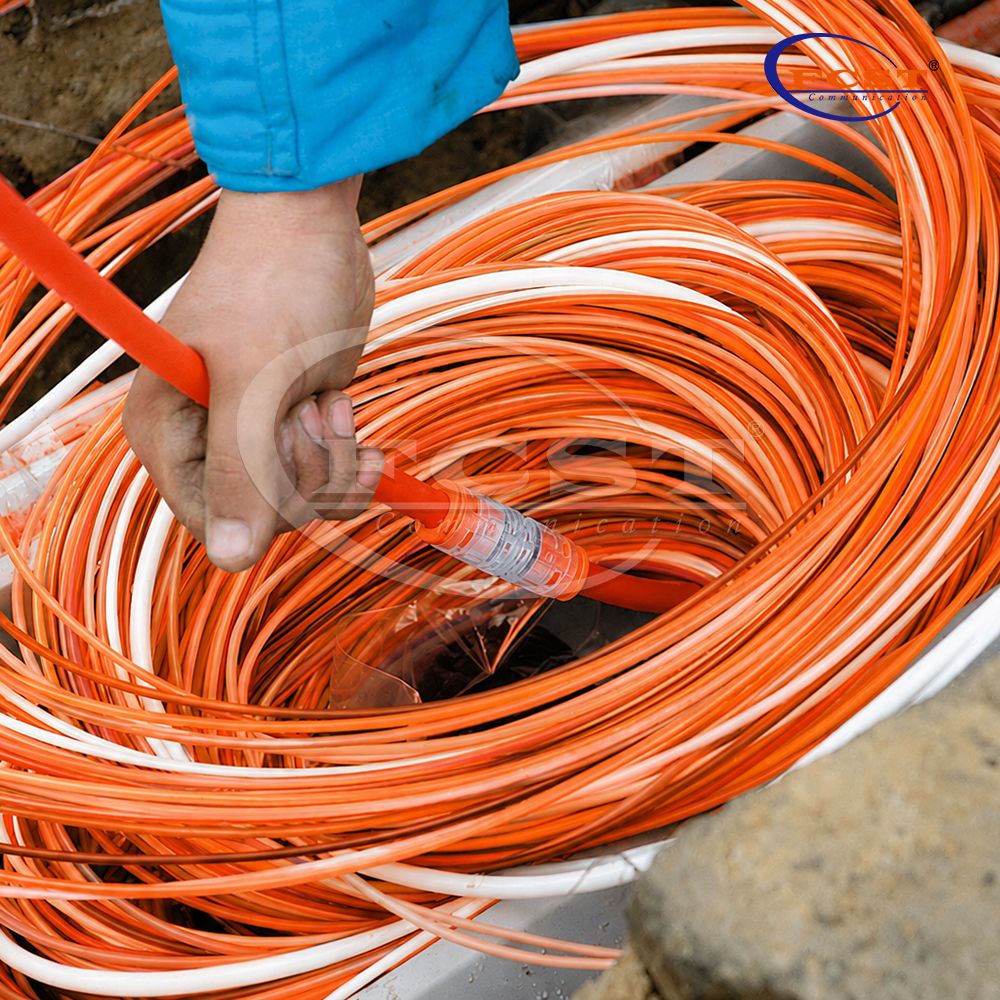

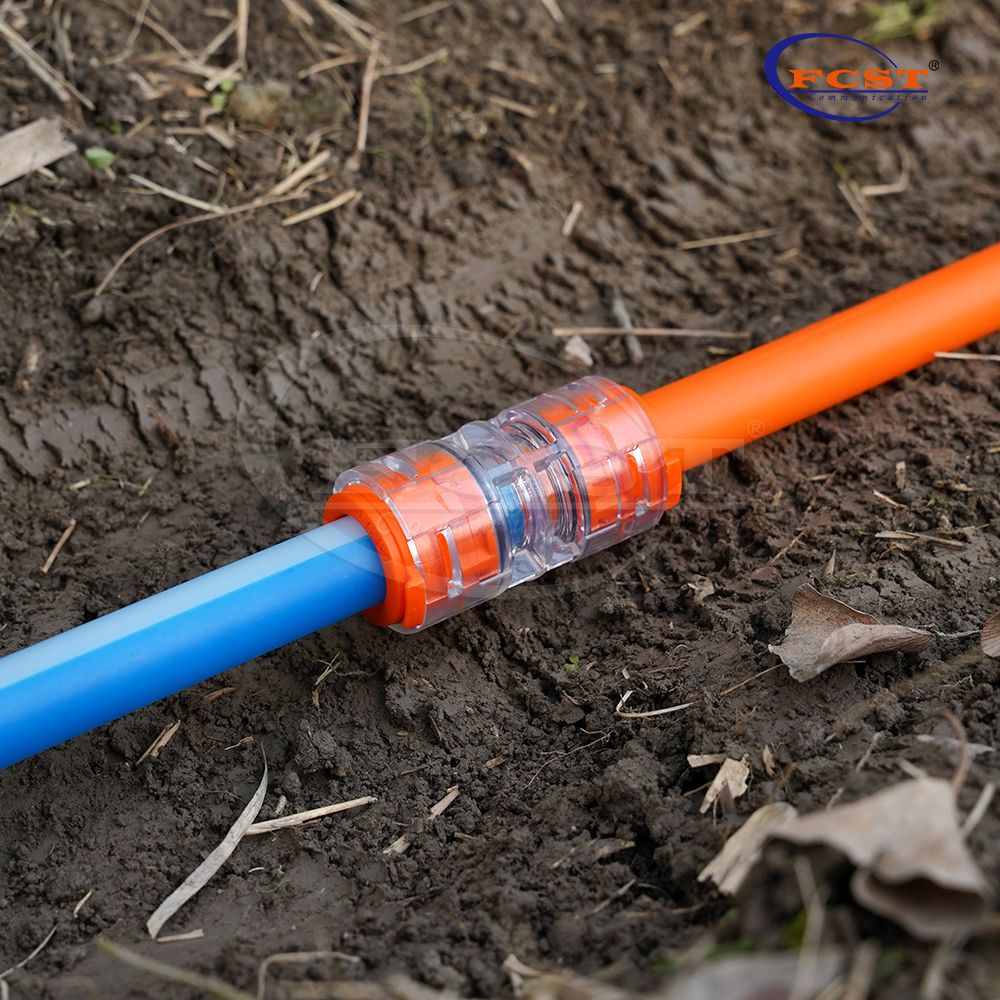

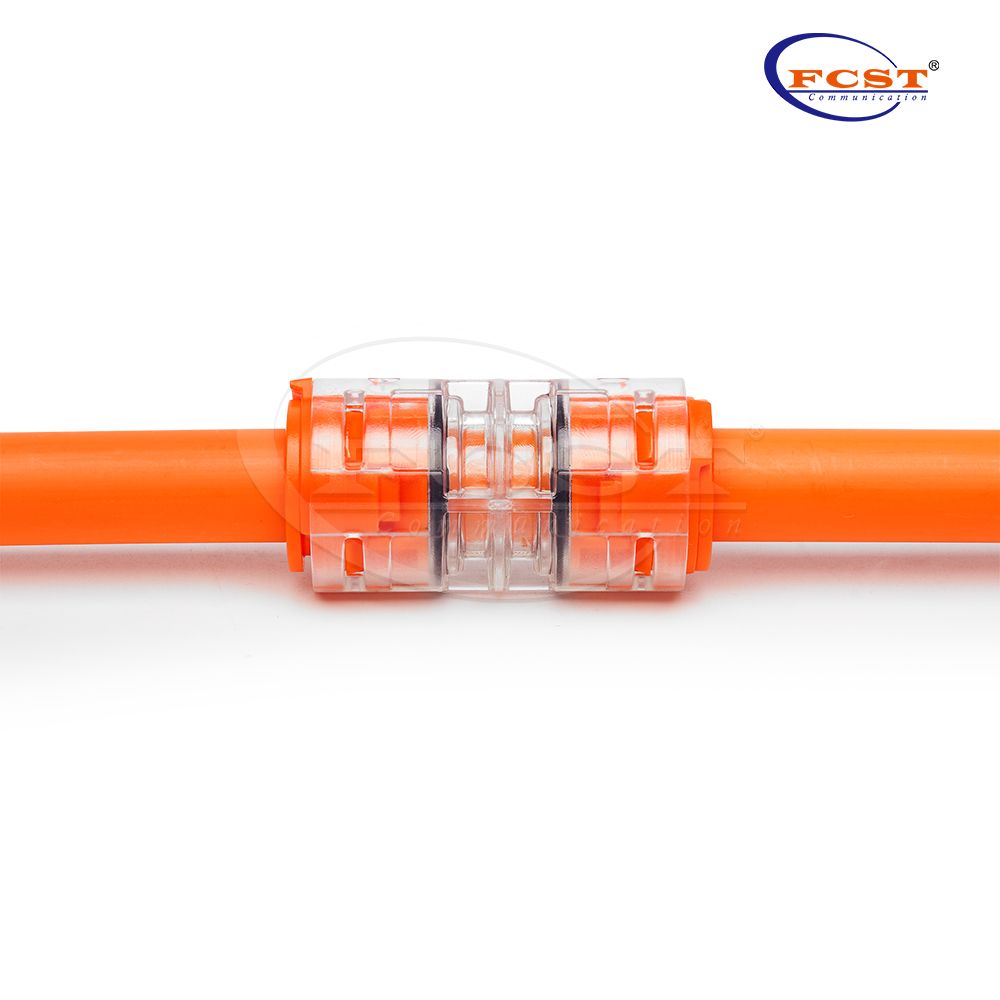

Easy "push-in" installation.
Full plastic design(metal-free).
Crystal clear transparent body.
Pre-assembled Safety Locking Clip.

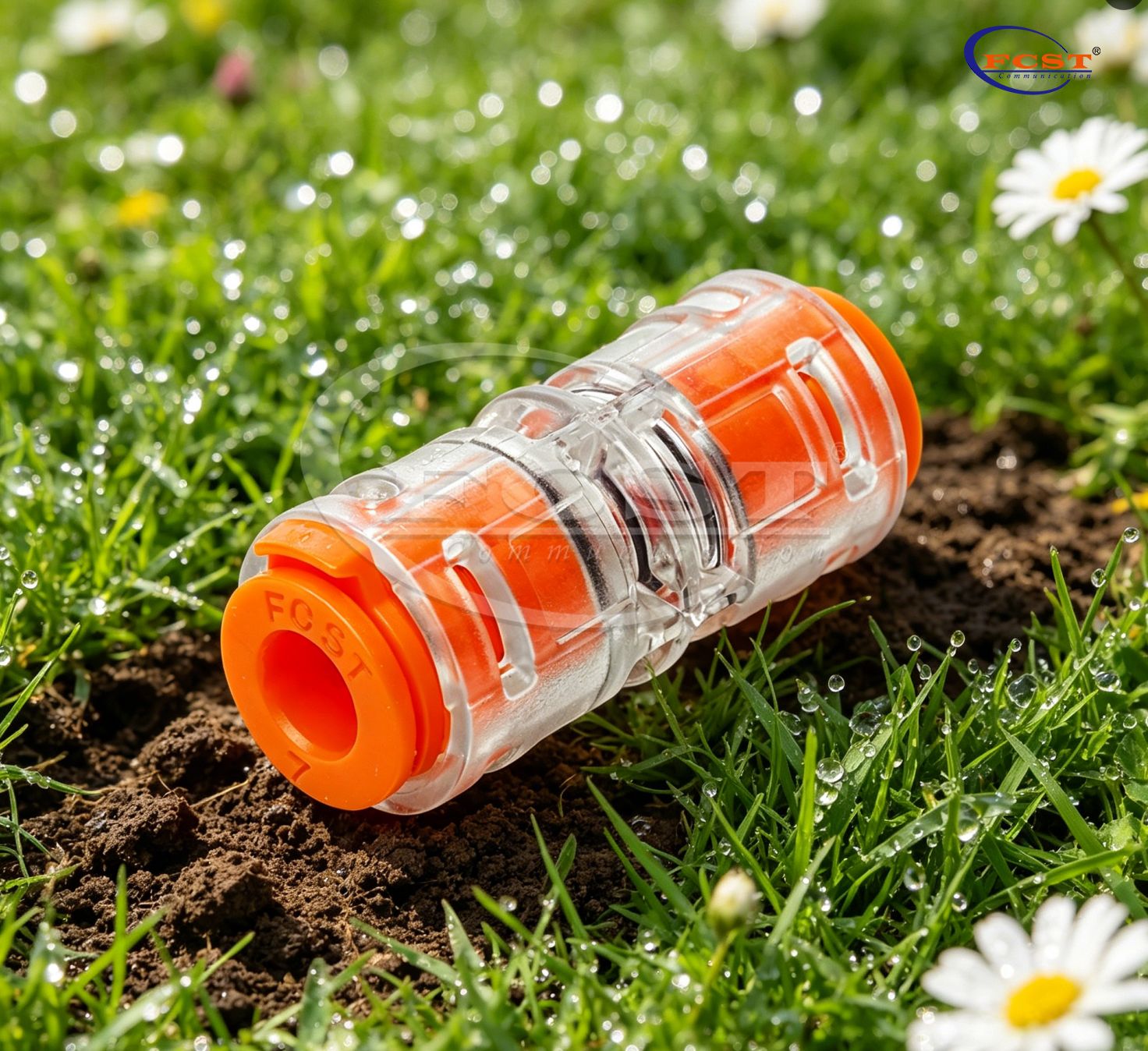

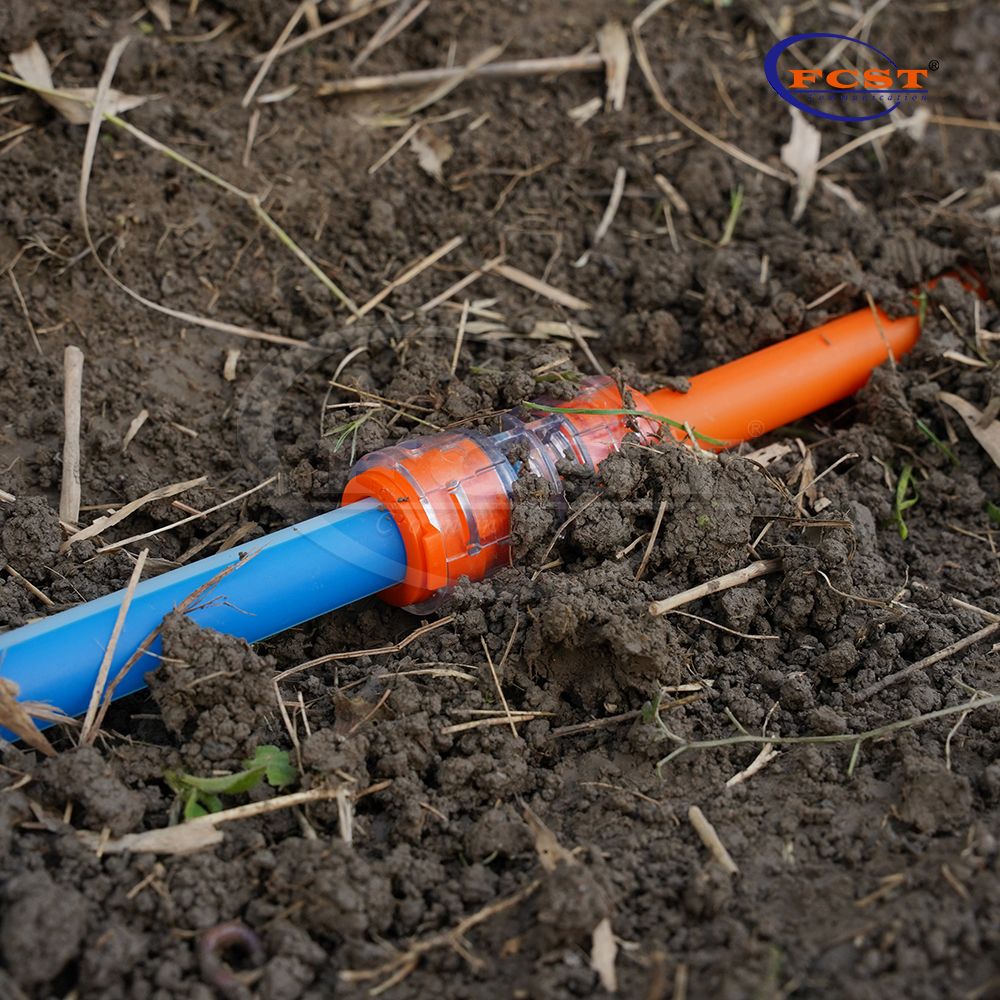

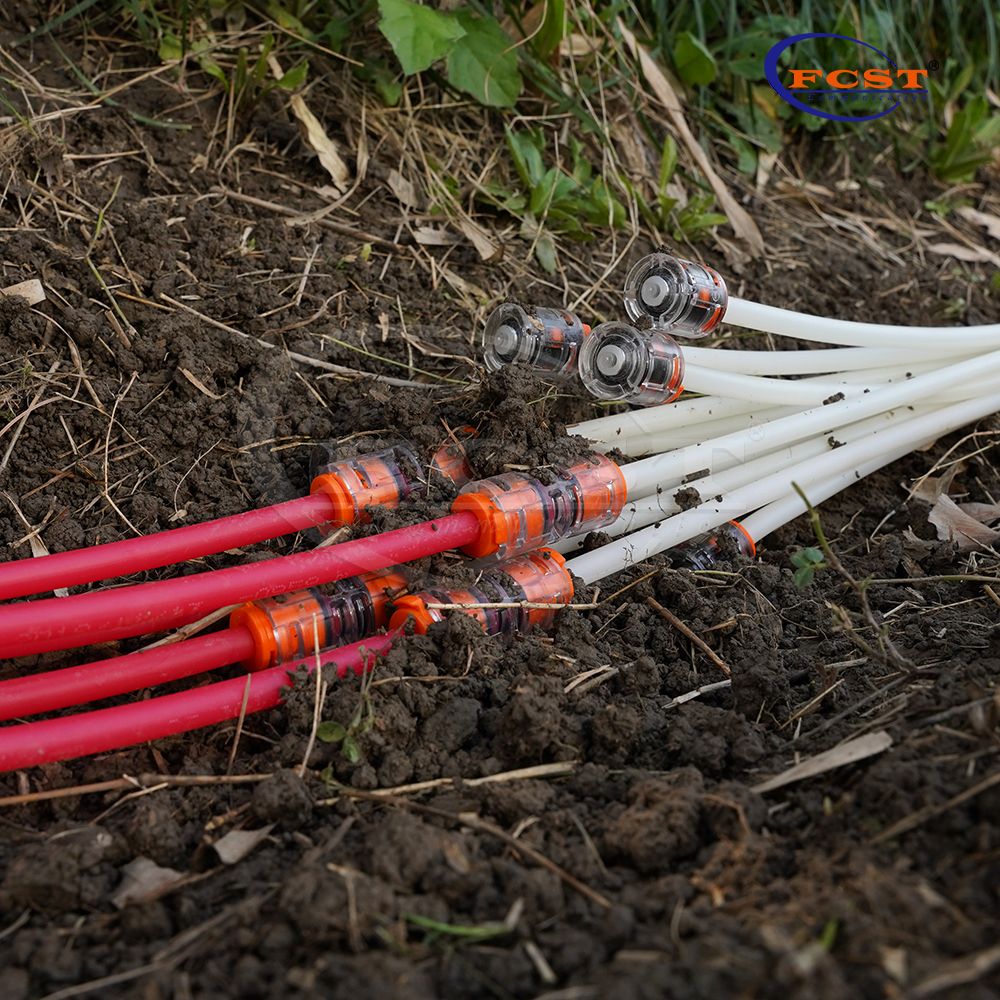

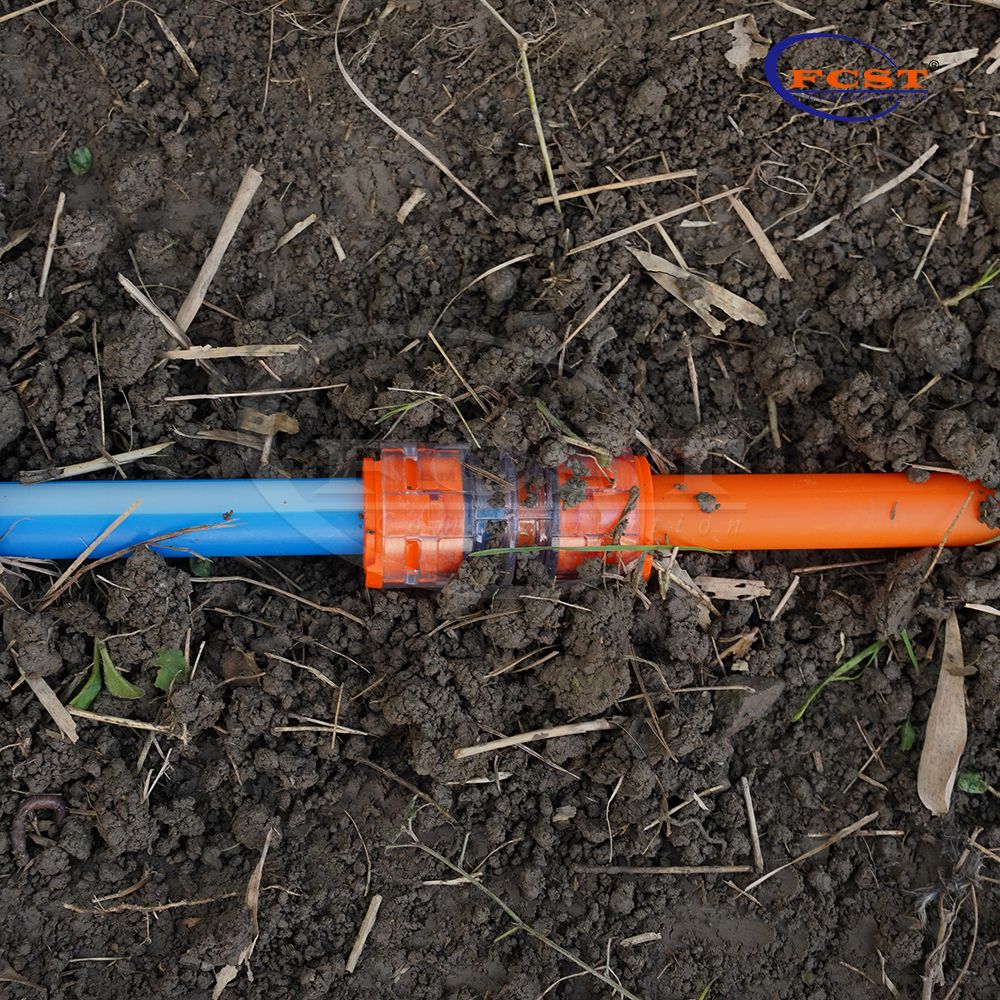

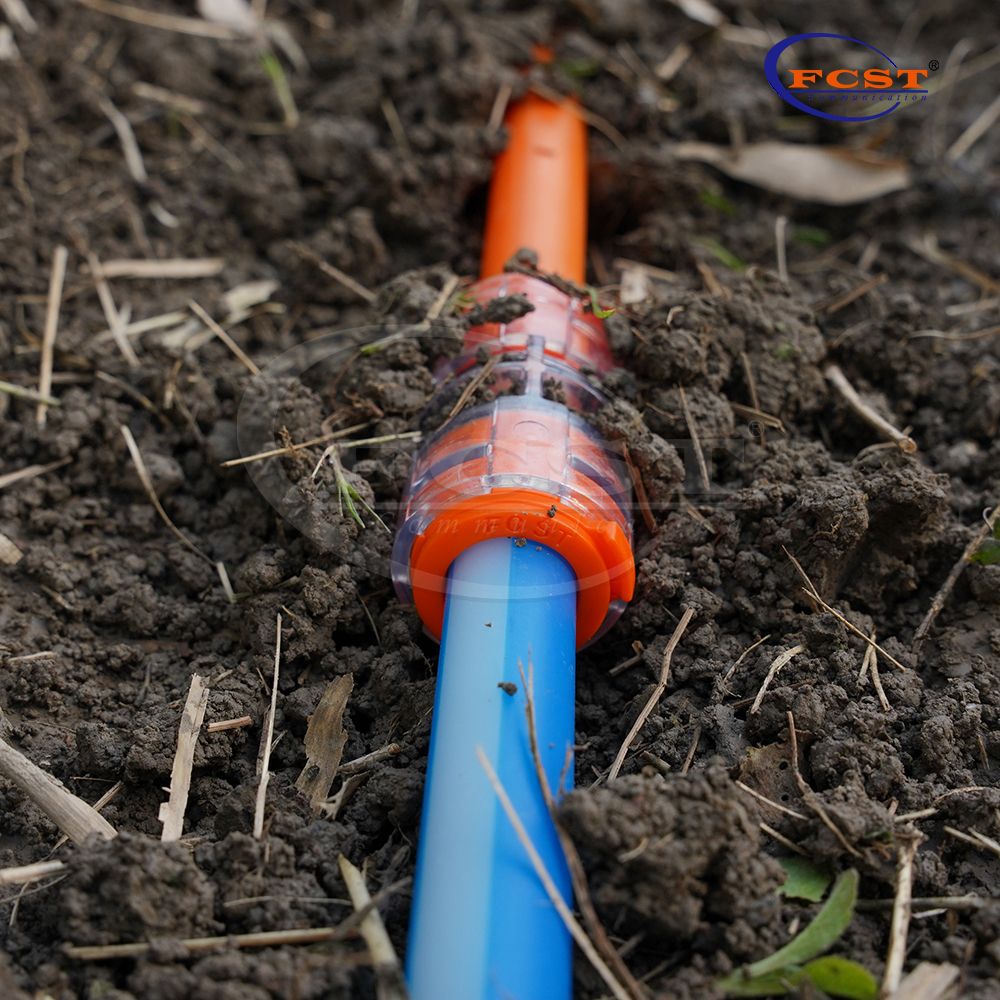

Suitable for use in Direct Buried (DB) applications.
Components are made of recyclable materials to reduce CO2 emissions.
Product Specifications
Construction | Description |
Tube To Connector | HDPEMicroduct( DB | DI | TW ) |
Fluid | Air with blowing system |
Working Pressure | 20 bar |
Burst Pressure | 25 bar |
Estimated Life | 25 years |
Protection Class | IP68 |
Water Ingress Test | 0.5 bar during 168 hours |
Installation Temperature | -15°C to +50°C |
Operation Temperature(after blowing) | -20°C to +70°C |
Transport and Storage Temperature | -15°C to +45°C |
Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
Impact Resistance | 15J |
According To Standards | DIN EN 50411-2-8,EN 50411-2-5,lEC 60794-1-24, E4: 15 Joules, |
standard |
EN 60529:IP68 |
EN 61300-2-26: Salt Mist |
EN 61300-2-33: Re-entries |
lEC 60794-1-24, E4: 15 Joules |
EN 61300-2-10: Crush Resistance |
EN 61300-3-1: Visual Appearance |
EN 61300-2-4: Microduct Retention |

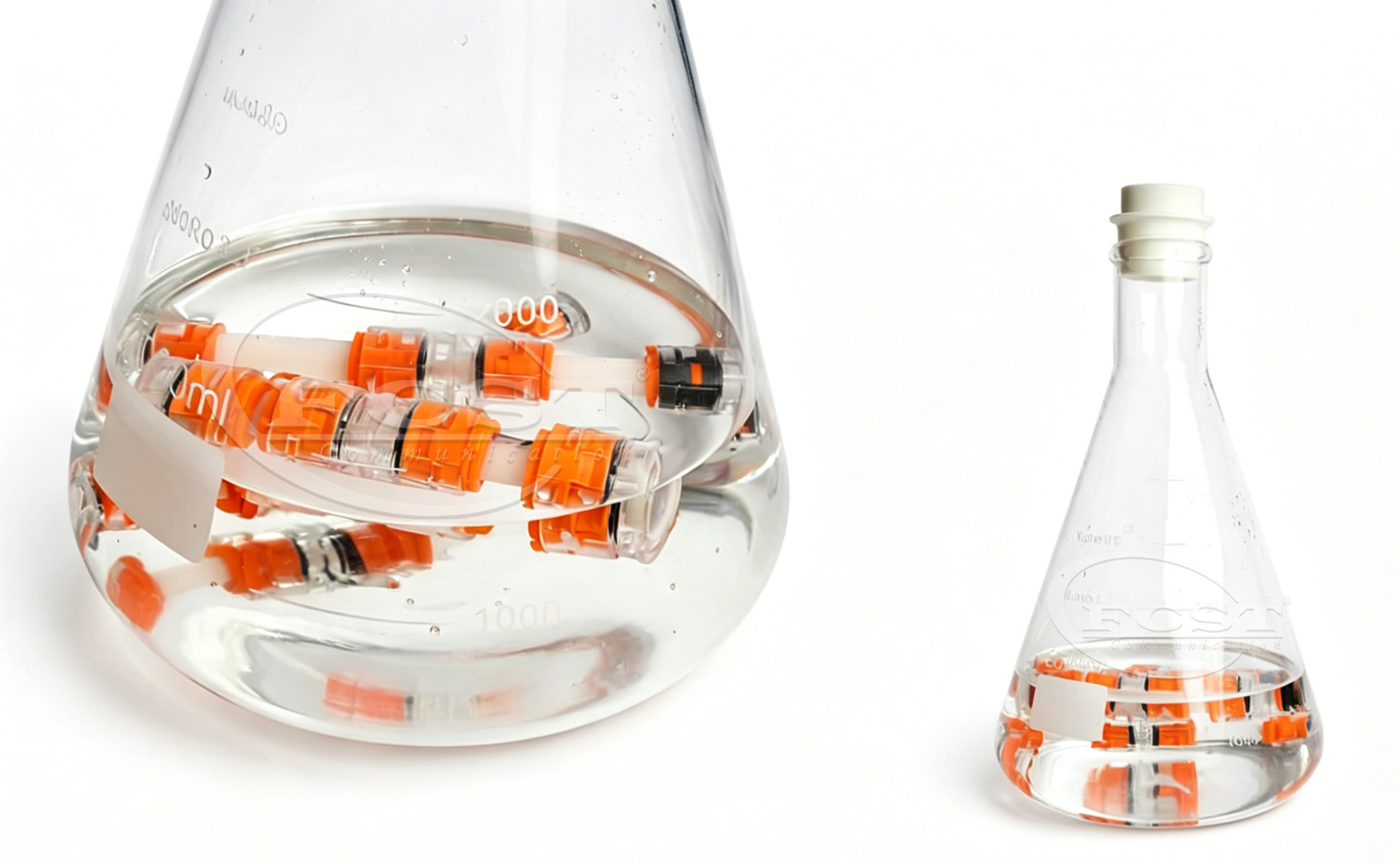

EN 61300- 2-34: Chemical Resistance |
EN 50411-2-8:Annex E:Insertion Force |
EN 61386-22: Glow Wire Test at 750°C |
EN 50411-2-8:Annex D:Installation Test |
EN 61300-2-22: Change of Temperature |
EN60794-1-2 Method E1. Tensile Strength |
EN 61300-2-38: 2006,Method B:Pressure Loss |
EN 50411-2-8:Annex C: High Pressure Resistance |
EN 61300-2-23: 1997,Method 2:Water Immersion |
EN 61386- 24: Conduit Systems Buried Underground |
EN 61300-2-38:2006, Method A:Sealing Performance |

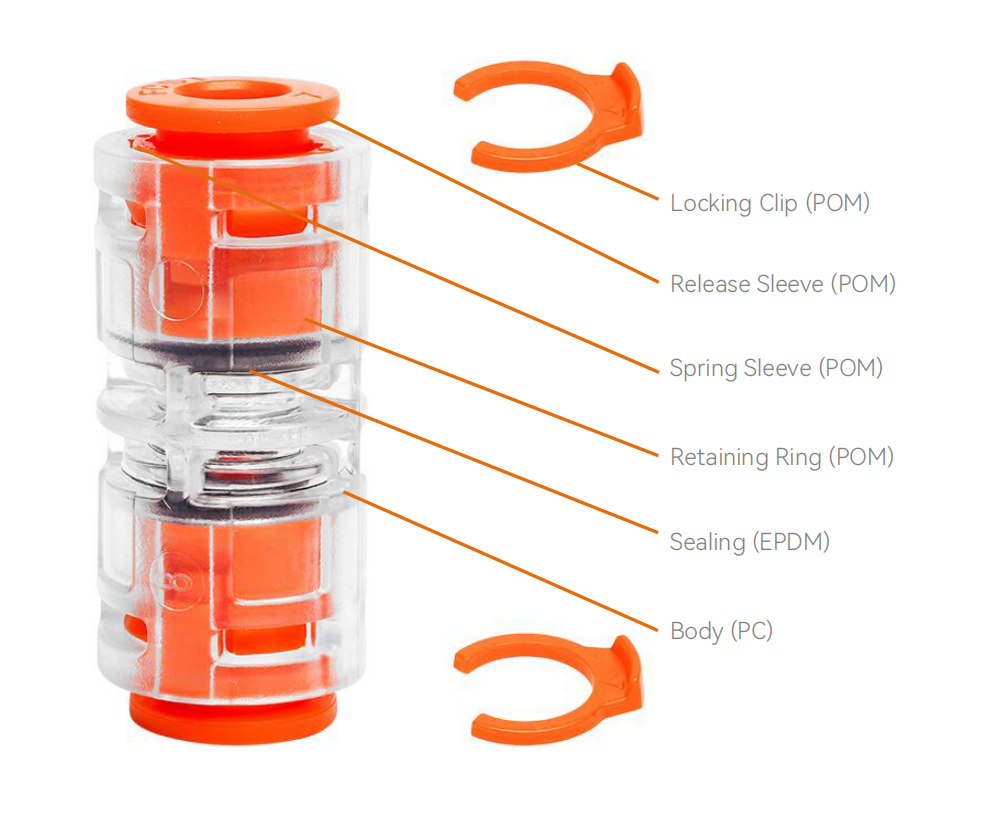

Product Material
Ordering Information

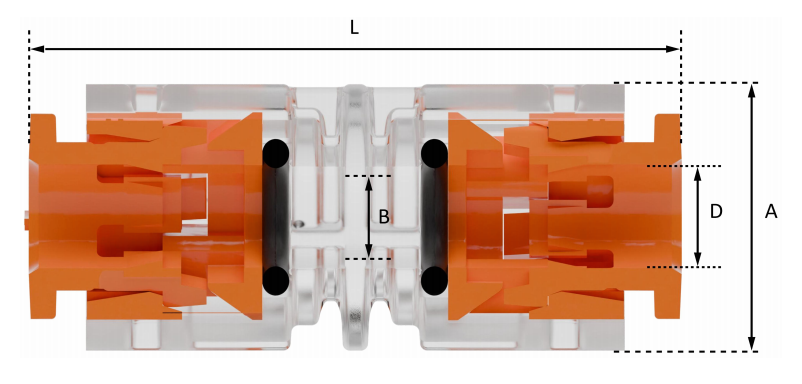

| Model | D (mm) | A (mm) | B (mm) | L (mm) | Weight (g) |
| FCST-15JDB-SC7 | 7+0.4 | 18.8+0.2 | 6.10±0.2 | 45.2±0.2 | 9-9.8 |
| FCST-15JDB-SC10 | 10+0.4 | 21.8+0.2 | 9.1±0.2 | 46.6±0.2 | 13-15 |
| FCST-15JDB-SC12 | 12+0.4 | 24.7+0.2 | 11.1±0.2 | 54.5±0.2 | 18-22 |
| FCST-15JDB-SC14 | 14+0.4 | 26.7+0.2 | 13.0±0.2 | 54.9±0.2 | 15-17.3 |
| FCST-15JDB-SC16 | 16+0.4 | 28.7+0.2 | 15.1±0.2 | 56.4±0.2 | 21-25 |
*Note: For other sizes, please contact the sales department.
