GSA-ERPG
FCST
GSA-ERPG
300
Product Overview

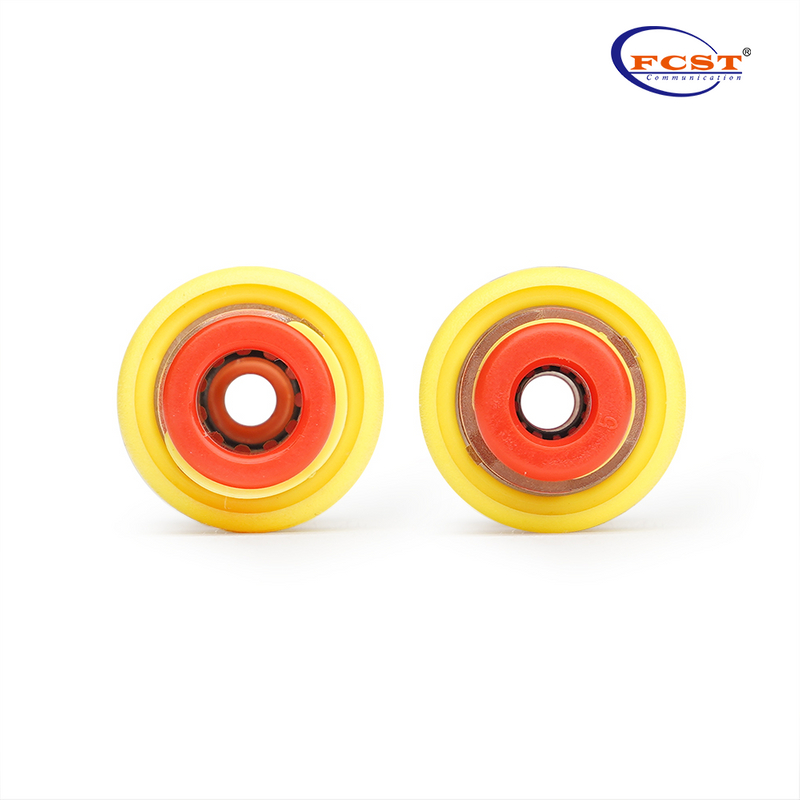

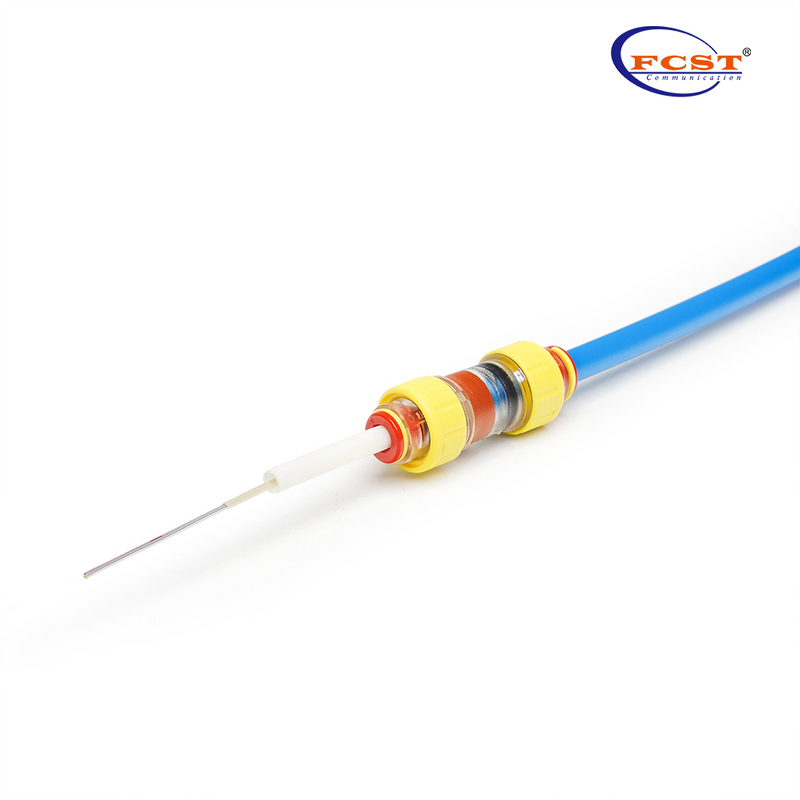

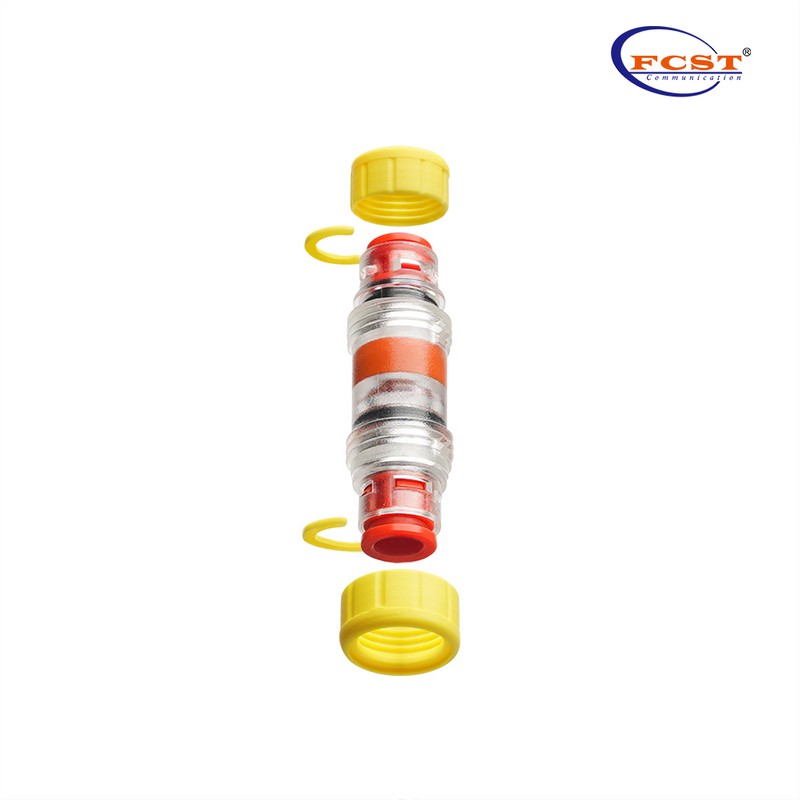

This Gas-Water Block Micro Duct Reducer is used to prevent the liquid flowing between the connected micro ducts at
transformation point. Thus, avoid fluid(gas) entering the micro ducts, and damage
Product Advantages
For 5-8 mm Microducts.

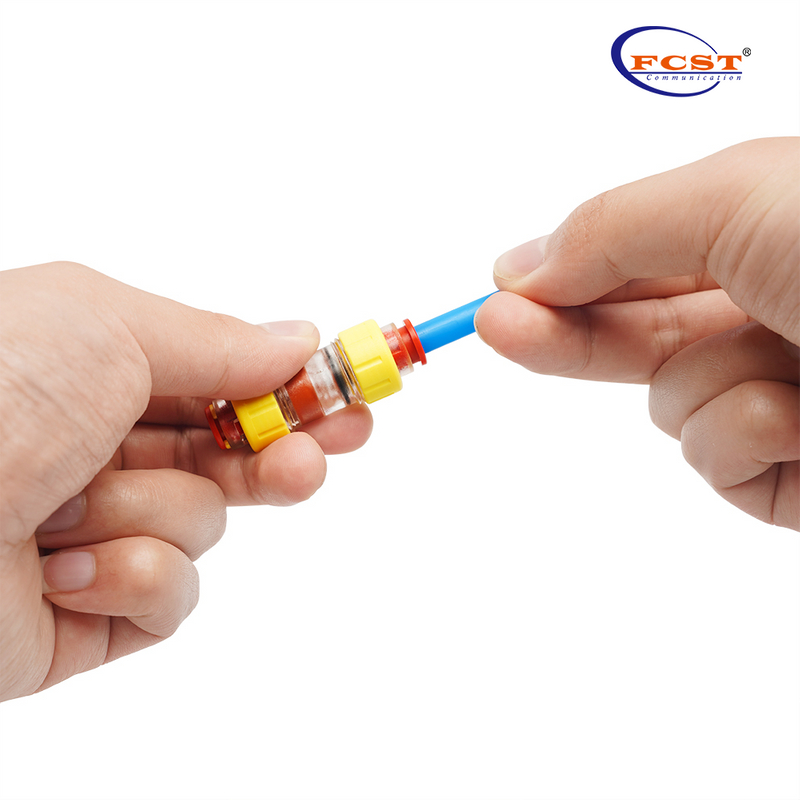

Easy “push-in” installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Locking rings to prevent accidental removal of connector.
Gas and watertight seal inside microducts with install.
Product Specifications
| Construction | Description |
| Tube To Connector | HDPE Microduct( DB | DI | TW ) |
| Fluid | Air with blowing system |
| Working Pressure | 20 bar |
| Burst Pressure | 25 bar |
| Estimated Life | 25 years |
| Protection Class | IP68 |
| Water Ingress Test | 0.5 bar during 168 hours |
| Installation Temperature | -15°C to +45°C |
| Operation Temperature | -15°C to +45°C |
| Transport and Storage Temperature | -15°C to +45°C |
| Insertion Force | Size≤12mm,≤ 50 N |
| Impact Resistance | 1.5 |
| According To Standards | CEI EN 50411-2-8,EN 50411-2-5,EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
| EN 60529 | IP68 |
| EN 61300-2-26 | Salt Mist |
| EN 61300-2-33 | Re-entries |
| EN 61300-2-10 | Crush Resistance |
| EN 61300-3-1 | Visual Appearance |
| EN 61300-2-4 | Microduct Retention |
| EN 61300- 2-34 | Chemical Resistance |
| EN 50411-2-8 | Annex E:Insertion Force |
| EN 61386-22 | Glow Wire Test at 750°C |
| EN 60794- 1-2 | 2003,Method E4:lmpact |
| EN 50411-2-8 | Annex D:Installation Test |
| EN 61300-2-22 | Change of Temperature |
| EN60794-1-2 | Method E1. Tensile Strength |
| EN 61300-2-38 | 2006,Method B:Pressure Loss |
| EN 50411-2-8 | Annex C: High Pressure Resistance |
| EN 61300-2-23 | 1997,Method 2:Water Immersion |
| EN 61386- 24 | Conduit Systems Buried Underground |
| EN 61300-2-38 | 2006, Method A:Sealing Performance |

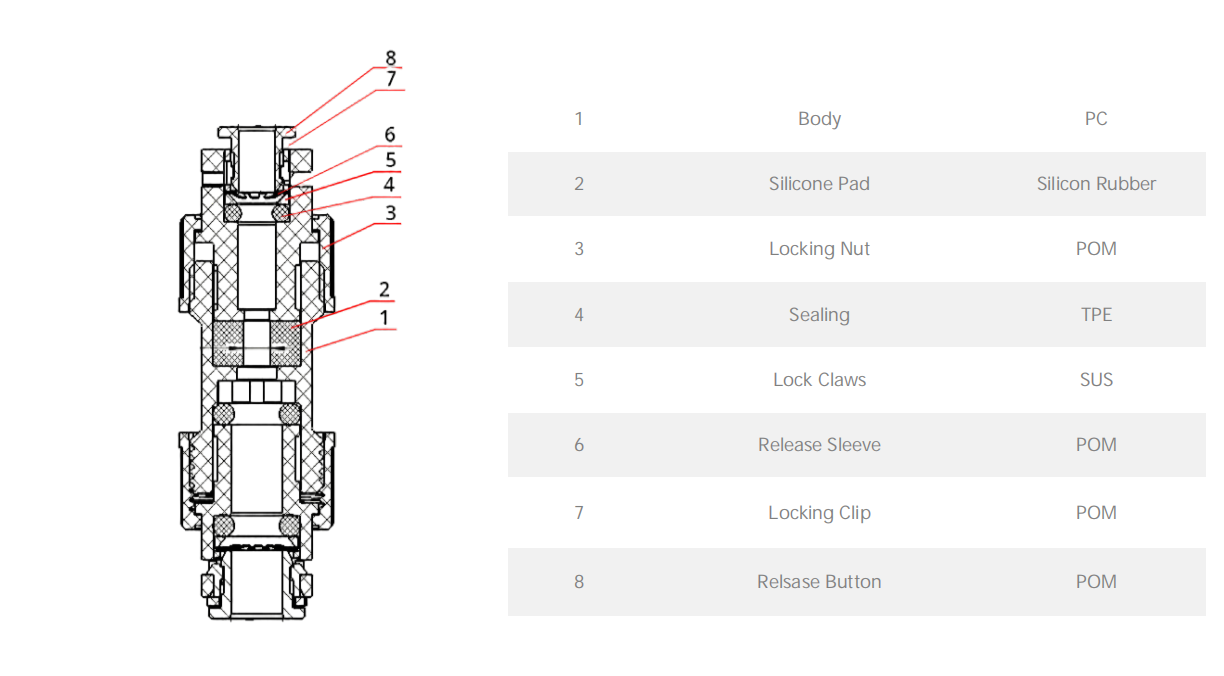

Product Materia

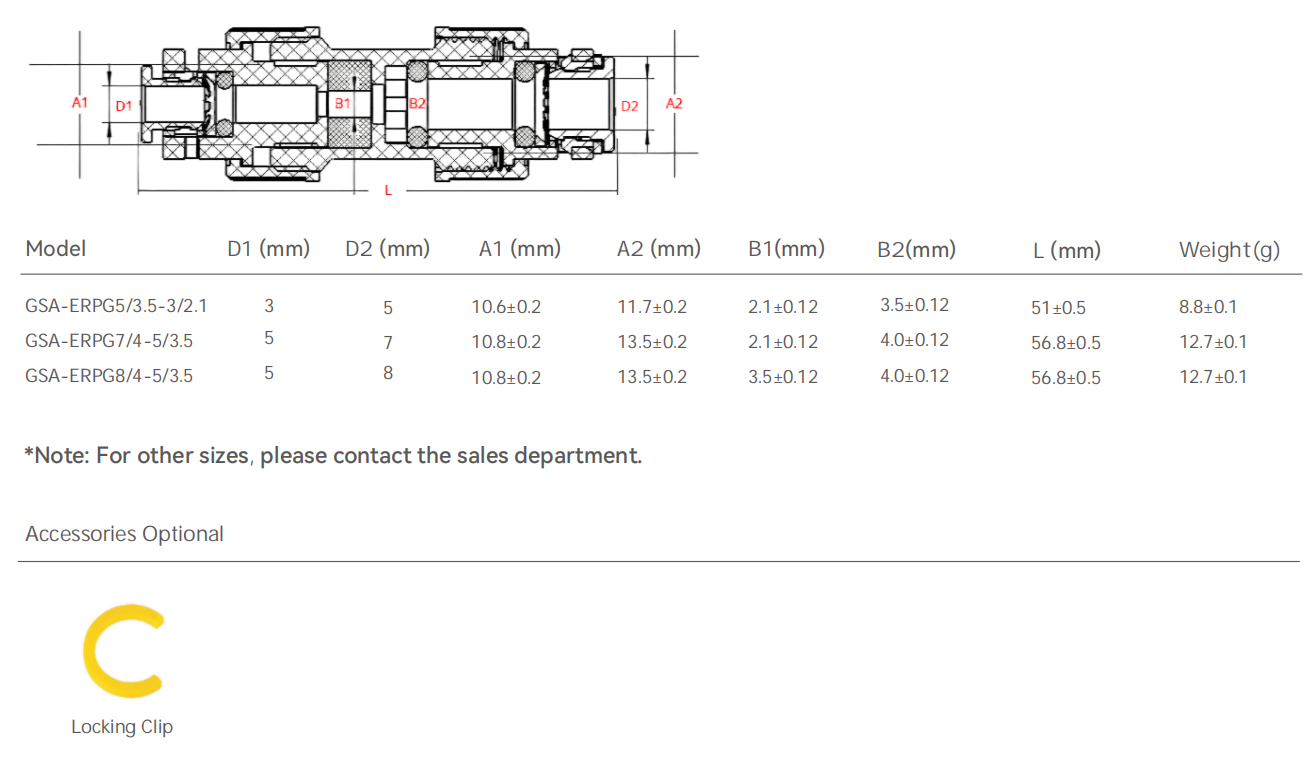

Ordering Information
