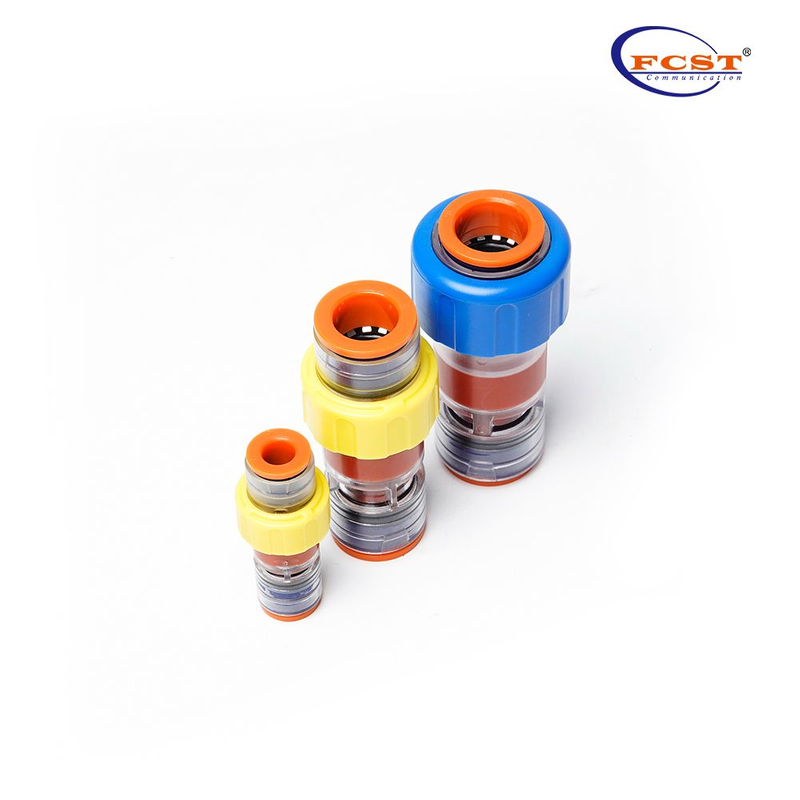

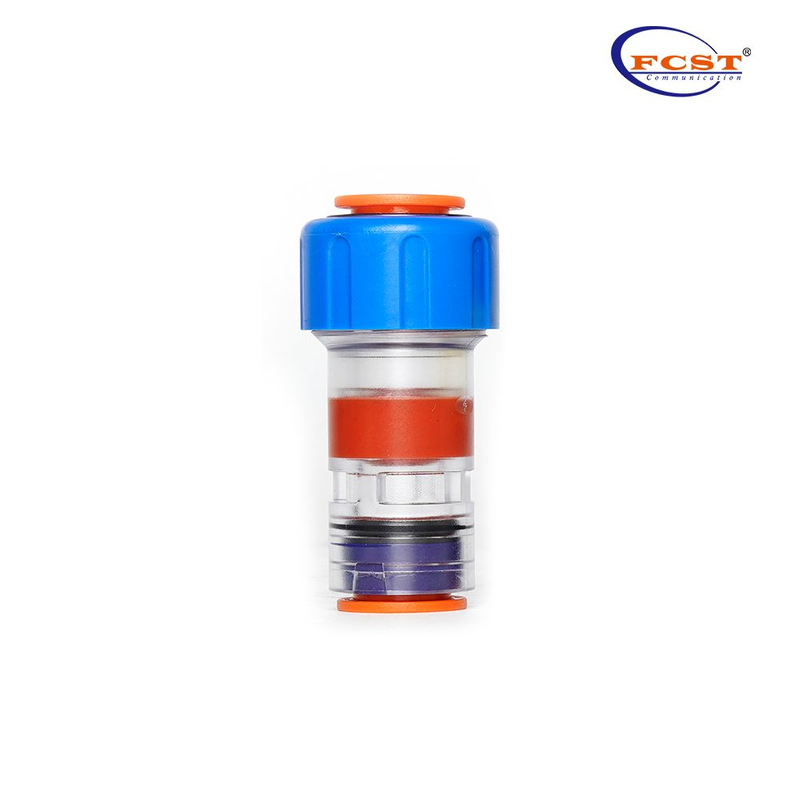

Product Overview
This Gas-Water Block Micro Duct Connector is used to prevent the liquid flowing between the connected micro ducts at transformation point. Thus, avoid fluid(gas) entering the micro ducts, and damage the equipment.
Product Advantages
For 5-20 mm Microducts.
Easy “push-in” installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Rugged design for direct buried and above ground use.
Product Specification
Construction | Description |
Tube To Connector | HDPEMicroduct( DB | DI | TW ) |
Fluid | Air with blowing system |
Working Pressure | 20 bar |
Burst Pressure | 25 bar |
Estimated Life | 25 years |
Protection Class | IP68 |
Water Ingress Test | 0.5 bar during 168 hours |
Installation Temperature | -15°C to +45°C |
Operation Temperature | -15°C to +45°C |
Transport and Storage Temperature | -15°C to +45°C |
Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
Impact Resistance | 1.5J |
According To Standards | CEI EN 50411-2-8,EN 50411-2-5,EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
Standards
Construction | Description |
EN 60529 | IP68 |
EN 61300-2-26 | Salt Mist |
EN 61300-2-33 | Re-entries |
EN 61300-2-10 | Crush Resistance |
EN 61300-3-1 | Visual Appearance |
EN 61300-2-4 | Microduct Retention |
EN 61300- 2-34 | Chemical Resistance |
EN 50411-2-8 | Annex E:Insertion Force |
EN 61386-22 | Glow Wire Test at 750°C |
EN 60794- 1-2 | 2003,Method E4:lmpact |
EN 50411-2-8 | Annex D:Installation Test |
EN 61300-2-22 | Change of Temperature |
EN60794-1-2 | Method E1. Tensile Strength |
EN 61300-2-38 | 2006,Method B:Pressure Loss |
EN 50411-2-8 | Annex C: High Pressure Resistance |
EN 61300-2-23 | 1997,Method 2:Water Immersion |
EN 61386- 24 | Conduit Systems Buried Underground |
EN 61300-2-38 | 2006, Method A:Sealing Performance |

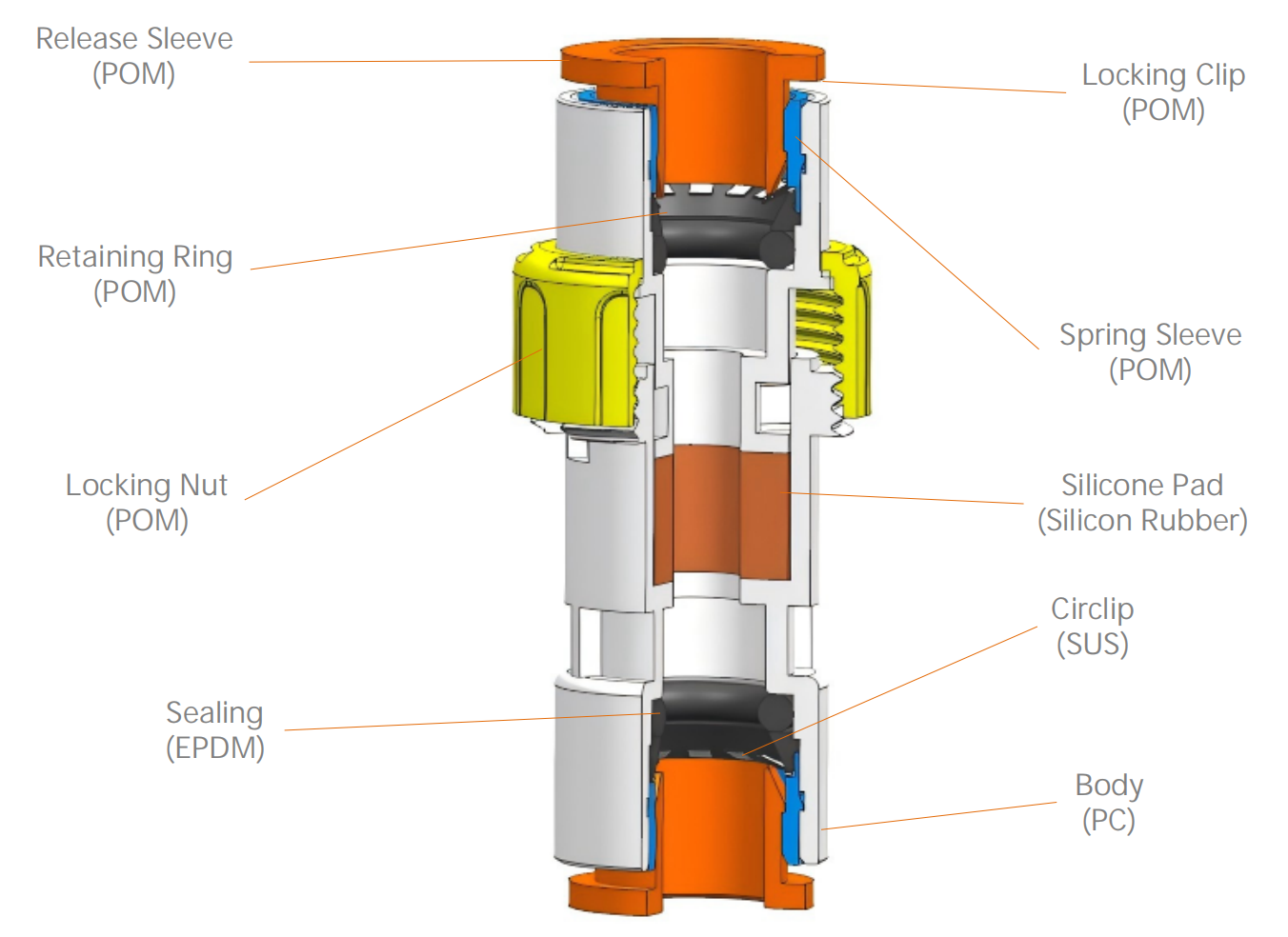

Product Material
Ordering Information
Model | D1 (mm) | D2 (mm) | A1 (mm) | A2(mm) | B (mm) | L (mm) | Weight (g) | Cable Blocking Range (mm) | |
GSA5 | 5 | 5 | 13.5±0.2 | 13.5±0.2 | 2.5±0.12 | 44.0±0.5 | - | 0.5~2.1 | |
GSA6 | 6 | 6 | 13.5±0.2 | 13.5±0.2 | 2.5±0.12 | 44.0±0.5 | - | 0.5~2.1 | |
GSA7 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 4.0±0.12 | 50.5±0.5 | 8.6±0.1 | 0.9~3.5 | |
GSA7 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 4.5±0.12 | 50.5±0.5 | 8.6±0.1 | 0.9~3.5 | |
GSA8 | 8 | 8 | 15.2±0.2 | 15.2±0.2 | 4.0±0.12 | 50.5±0.5 | 8.6±0.1 | 0.9~3.5 | |
GSA8 | 8 | 8 | 15.2±0.2 | 15.2±0.2 | 4.5±0.12 | 50.5±0.5 | 8.6±0.1 | 0.9~3.5 | |
GSA10 | 10 | 10 | 17.5±0.2 | 17.5±0.2 | 8.0±0.12 | 59.5±0.5 | 11.6±0.1 | 3~6/5~8 | |
GSA12 | 12 | 12 | 21.5±0.2 | 21.5±0.2 | 8.0±0.12 | 64.5±0.5 | 18.6±0.1 | 3~6/5~8 | |
GSA14 | 14 | 14 | 23.5±0.2 | 23.5±0.2 | 10.0±0.12 | 69.5±0.5 | 23.6±0.1 | 3~6/5~8/7~10 | |
GSA16 | 16 | 16 | 25.3±0.2 | 25.3±0.2 | 10.0±0.12 | 73.5±0.5 | 35.5±0.1 | 3~6/5~8/7~10 | |
GSA18 | 18 | 18 | 32.7±0.3 | 32.7±0.3 | 12.0±0.12 | 76.5±0.5 | 57.1±0.1 | 7~10/9~12 | |
GSA20 | 20 | 20 | 32.7±0.3 | 32.7±0.3 | 13.0±0.12 | 76.5±0.5 | 52.6±0.1 | 8~13/12~16 | |
*Note: For other sizes, please contact the sales department.

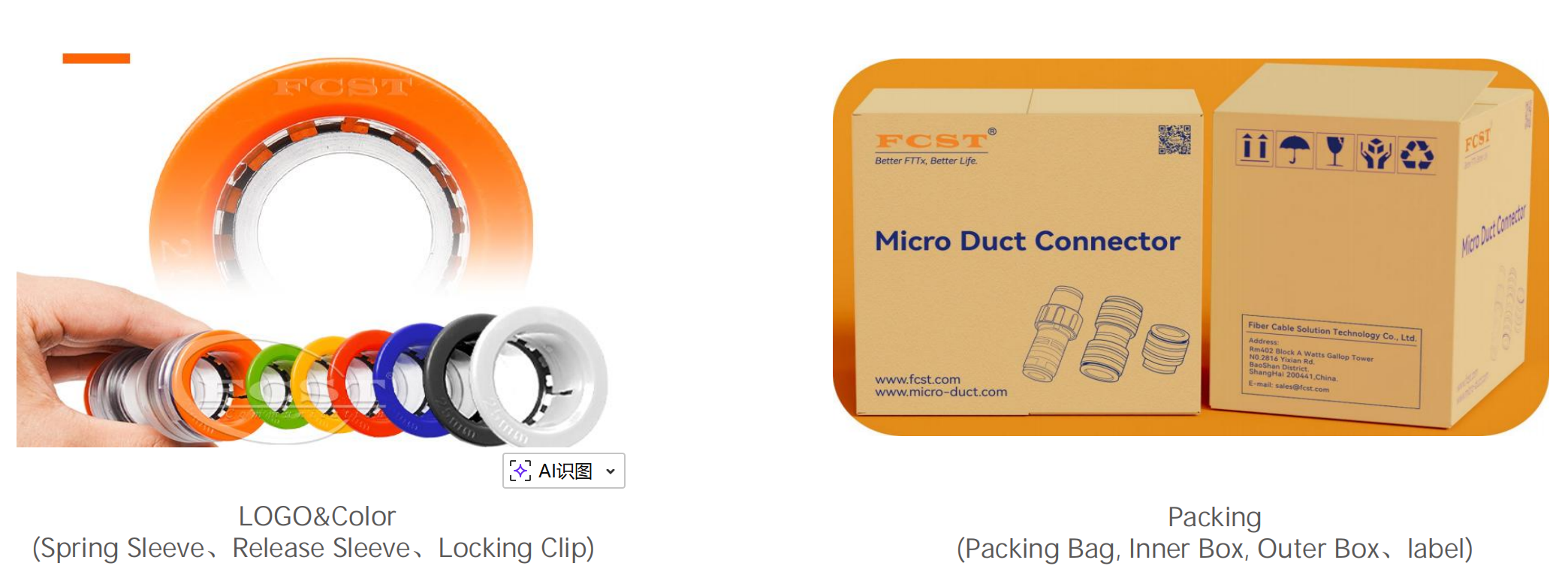

Accessories Optional
Ordering Information
Product Overview
This Gas-Water Block Micro Duct Connector is used to prevent the liquid flowing between the connected micro ducts at transformation point. Thus, avoid fluid(gas) entering the micro ducts, and damage the equipment.
Product Advantages
For 5-20 mm Microducts.
Easy “push-in” installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Rugged design for direct buried and above ground use.
Product Specification
Construction | Description |
Tube To Connector | HDPEMicroduct( DB | DI | TW ) |
Fluid | Air with blowing system |
Working Pressure | 20 bar |
Burst Pressure | 25 bar |
Estimated Life | 25 years |
Protection Class | IP68 |
Water Ingress Test | 0.5 bar during 168 hours |
Installation Temperature | -15°C to +45°C |
Operation Temperature | -15°C to +45°C |
Transport and Storage Temperature | -15°C to +45°C |
Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
Impact Resistance | 1.5J |
According To Standards | CEI EN 50411-2-8,EN 50411-2-5,EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
Standards
Construction | Description |
EN 60529 | IP68 |
EN 61300-2-26 | Salt Mist |
EN 61300-2-33 | Re-entries |
EN 61300-2-10 | Crush Resistance |
EN 61300-3-1 | Visual Appearance |
EN 61300-2-4 | Microduct Retention |
EN 61300- 2-34 | Chemical Resistance |
EN 50411-2-8 | Annex E:Insertion Force |
EN 61386-22 | Glow Wire Test at 750°C |
EN 60794- 1-2 | 2003,Method E4:lmpact |
EN 50411-2-8 | Annex D:Installation Test |
EN 61300-2-22 | Change of Temperature |
EN60794-1-2 | Method E1. Tensile Strength |
EN 61300-2-38 | 2006,Method B:Pressure Loss |
EN 50411-2-8 | Annex C: High Pressure Resistance |
EN 61300-2-23 | 1997,Method 2:Water Immersion |
EN 61386- 24 | Conduit Systems Buried Underground |
EN 61300-2-38 | 2006, Method A:Sealing Performance |
Product Material
Ordering Information
Model | D1 (mm) | D2 (mm) | A1 (mm) | A2(mm) | B (mm) | L (mm) | Weight (g) | Cable Blocking Range (mm) | |
GSA5 | 5 | 5 | 13.5±0.2 | 13.5±0.2 | 2.5±0.12 | 44.0±0.5 | - | 0.5~2.1 | |
GSA6 | 6 | 6 | 13.5±0.2 | 13.5±0.2 | 2.5±0.12 | 44.0±0.5 | - | 0.5~2.1 | |
GSA7 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 4.0±0.12 | 50.5±0.5 | 8.6±0.1 | 0.9~3.5 | |
GSA7 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 4.5±0.12 | 50.5±0.5 | 8.6±0.1 | 0.9~3.5 | |
GSA8 | 8 | 8 | 15.2±0.2 | 15.2±0.2 | 4.0±0.12 | 50.5±0.5 | 8.6±0.1 | 0.9~3.5 | |
GSA8 | 8 | 8 | 15.2±0.2 | 15.2±0.2 | 4.5±0.12 | 50.5±0.5 | 8.6±0.1 | 0.9~3.5 | |
GSA10 | 10 | 10 | 17.5±0.2 | 17.5±0.2 | 8.0±0.12 | 59.5±0.5 | 11.6±0.1 | 3~6/5~8 | |
GSA12 | 12 | 12 | 21.5±0.2 | 21.5±0.2 | 8.0±0.12 | 64.5±0.5 | 18.6±0.1 | 3~6/5~8 | |
GSA14 | 14 | 14 | 23.5±0.2 | 23.5±0.2 | 10.0±0.12 | 69.5±0.5 | 23.6±0.1 | 3~6/5~8/7~10 | |
GSA16 | 16 | 16 | 25.3±0.2 | 25.3±0.2 | 10.0±0.12 | 73.5±0.5 | 35.5±0.1 | 3~6/5~8/7~10 | |
GSA18 | 18 | 18 | 32.7±0.3 | 32.7±0.3 | 12.0±0.12 | 76.5±0.5 | 57.1±0.1 | 7~10/9~12 | |
GSA20 | 20 | 20 | 32.7±0.3 | 32.7±0.3 | 13.0±0.12 | 76.5±0.5 | 52.6±0.1 | 8~13/12~16 | |
*Note: For other sizes, please contact the sales department.

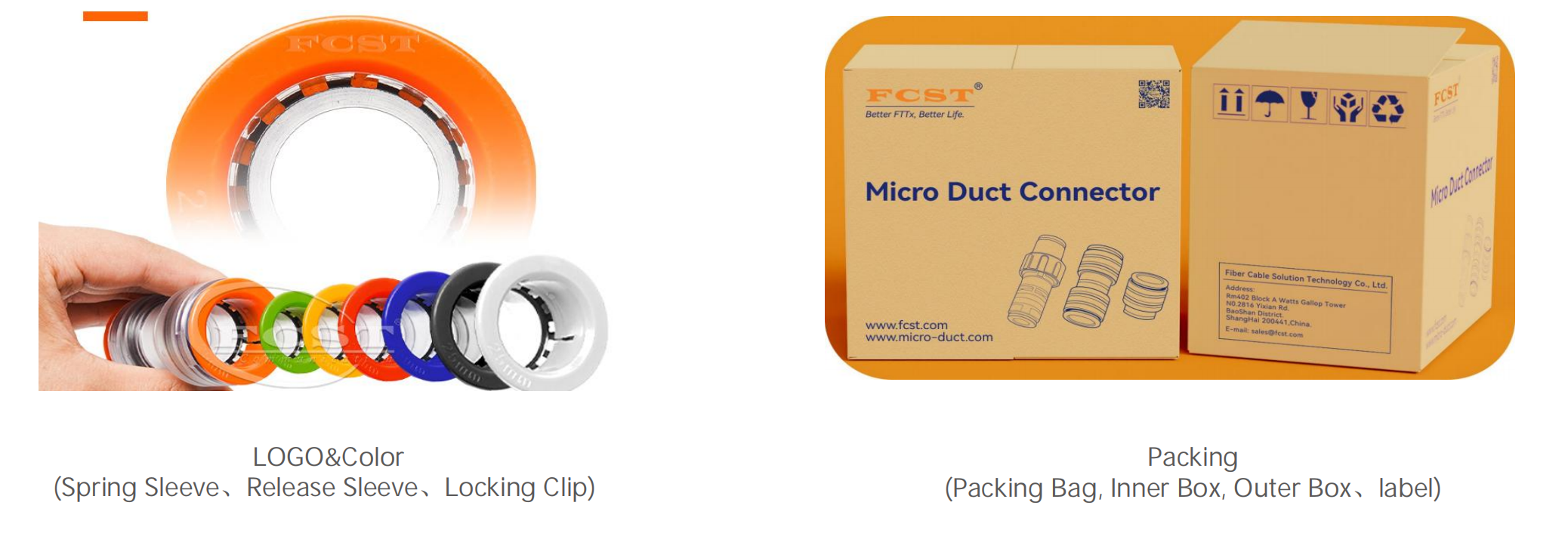

Accessories Optional
