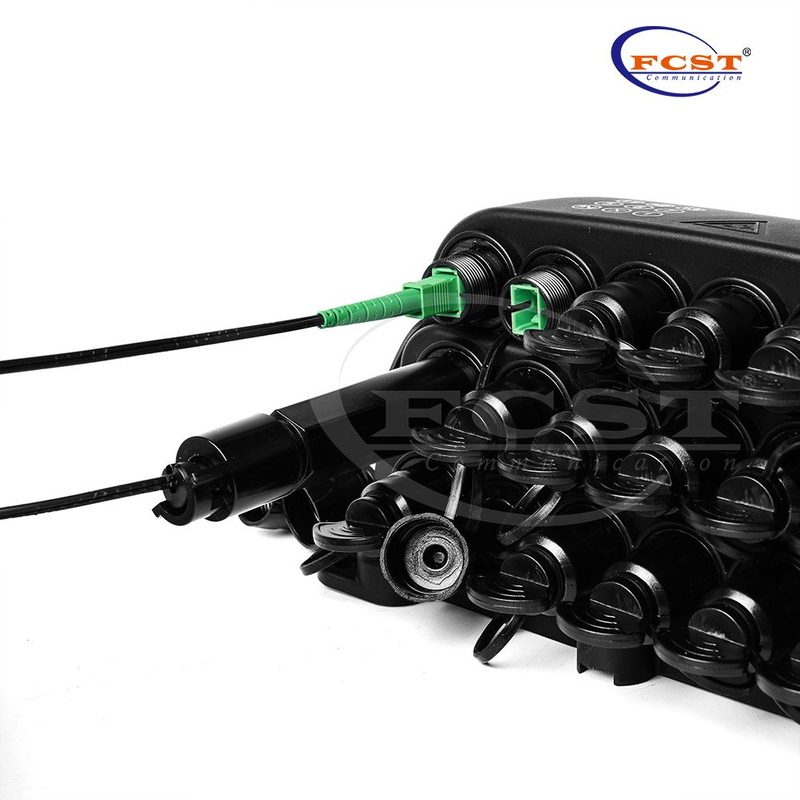

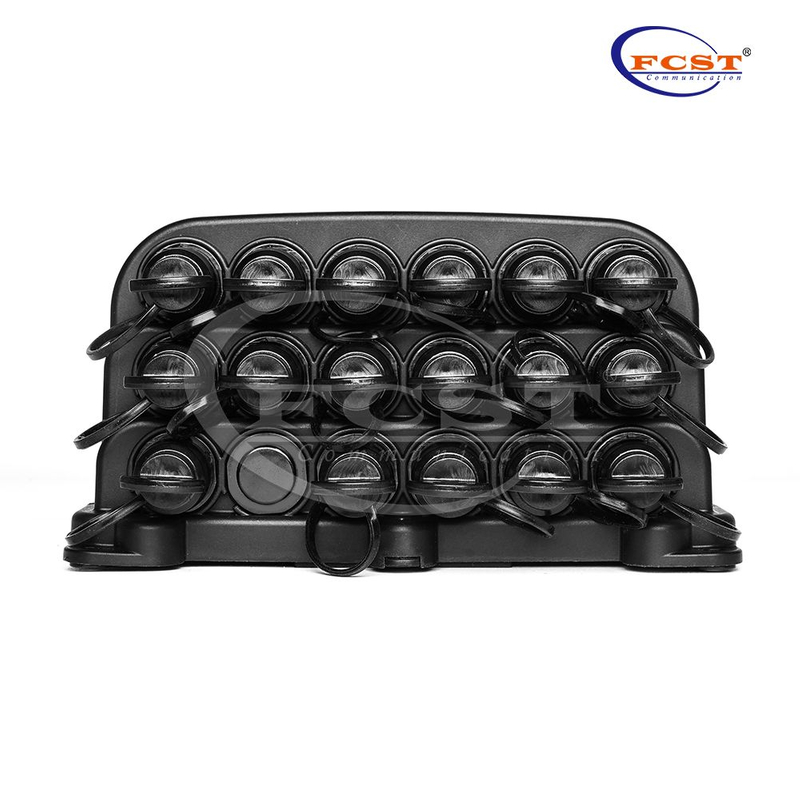

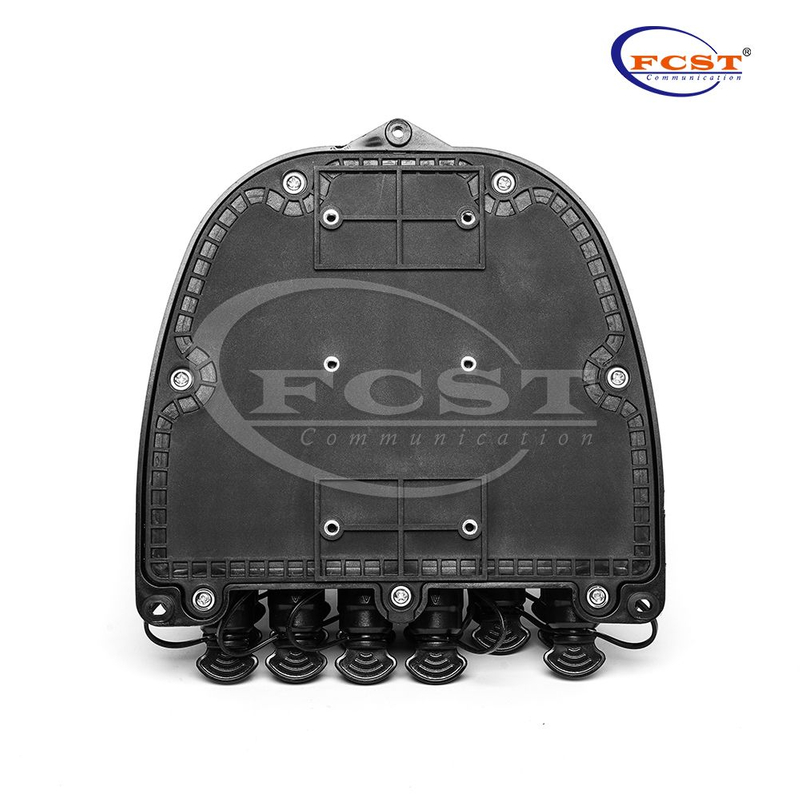

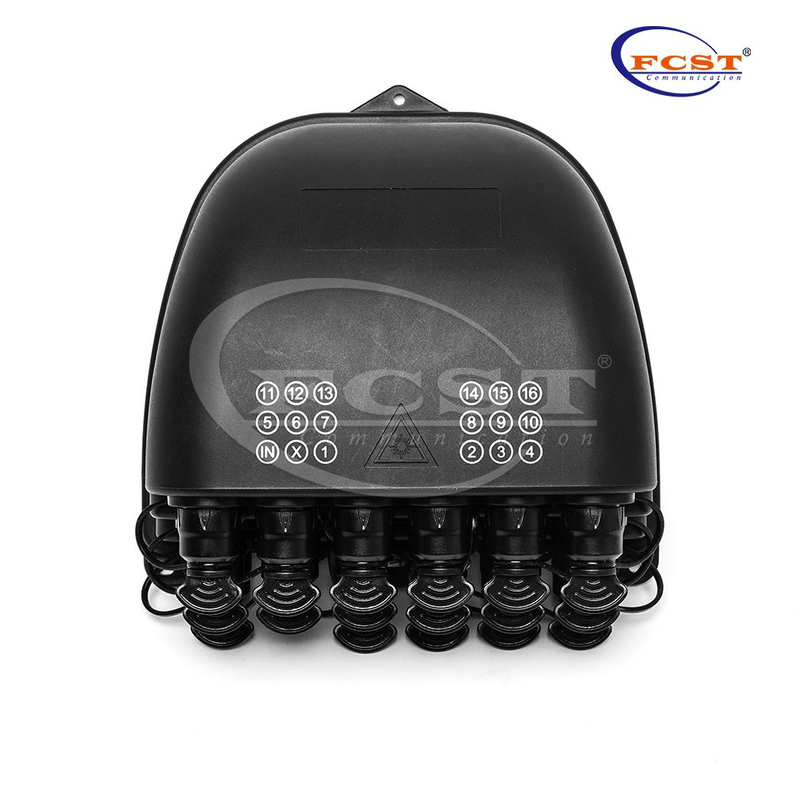

FCST022109-17 Ports Pre-connecterized FAT Protection Level IP68

  • Pre-connected ftth box protection level up to IP68.
  • Onsite plug and play, rapid deployment.

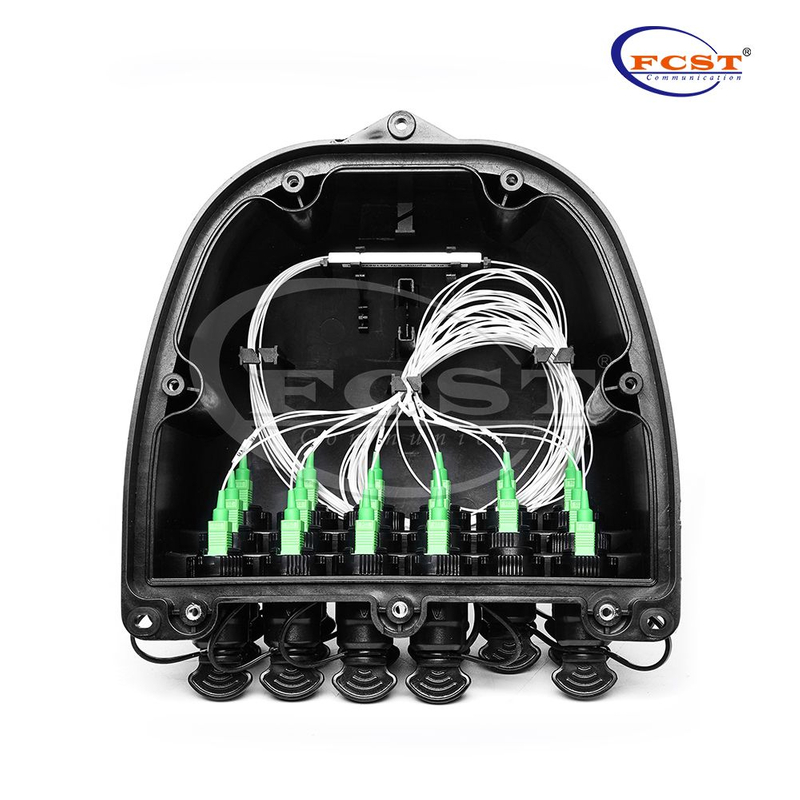

  • The interior is equipped with 1*16 PLC splitter.
  • FAT does not need to be opened for site construction.
  • Fully pre-connected design increases FAT installation efficiency by 80%+.
Availability:
Quantity:
  • FCST022109-17 Ports

  • FCST

Product Overview

FCST022109-17 Ports Pre-connected Fiber Access Terminal as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.


Product Advantages

lProtection level up to IP68.

lOnsite plug and play, rapid deployment.

lThe interior is equipped with 1*16 PLC splitter.

lPre-Connect Fiber Terminal does not need to be opened for site construction.

lFully pre-connected design increases FAT installation efficiency by 80%+.

Product Specifications

Construction

Description

Max. Capacity

16 Cores

Material

PP&PC+ABS

Inlets/Outlets

1/16

Installation

Pole mounting,Aerial mounted ,Wall-mounting

Protection Level

IP68

Splitter Type

1x16 PLC Splitter

Length

199mm7.835in

Width

193mm7.598in

Height

107mm4.213in

Weight

900 g

Storage Temperature

-40ºC+65 ºC

Product Size

alt Pre-Connect Fiber Terminal Box size

Ordering Information

alt Pre-Connect Fiber Terminal ordering information

Product Installation

alt Pre-Connect Fiber Terminal installation diagram

Pre-connecterized Cables Option

alt pre-connectorized ftth terminalcables option

Packing Information

alt pre-connectorized ftth terminal packing information

Construction

Description

Outside Dimension (L*W*H) mm

220*210*120

Weight/PC (kgs)

1

Carton Size (L*W*H) mm

460*440*635

Qty/CTN (pcs)

20

Weight/CTN (kgs)

20.1

Design And Customization Services

lProvide service with whole process from blueprint to product to the customer.

lMeet customers requirement to customize logo in suitable place for existing product.

lMeet customers requirement to make reasonable modify and customization for existing product.

lProvide free design according to the requirement of customer after signed cooperative agreement.

alt pre-connectorized ftth box design and customization services
