FCST01184
FCST
FCST01184
Product Overview

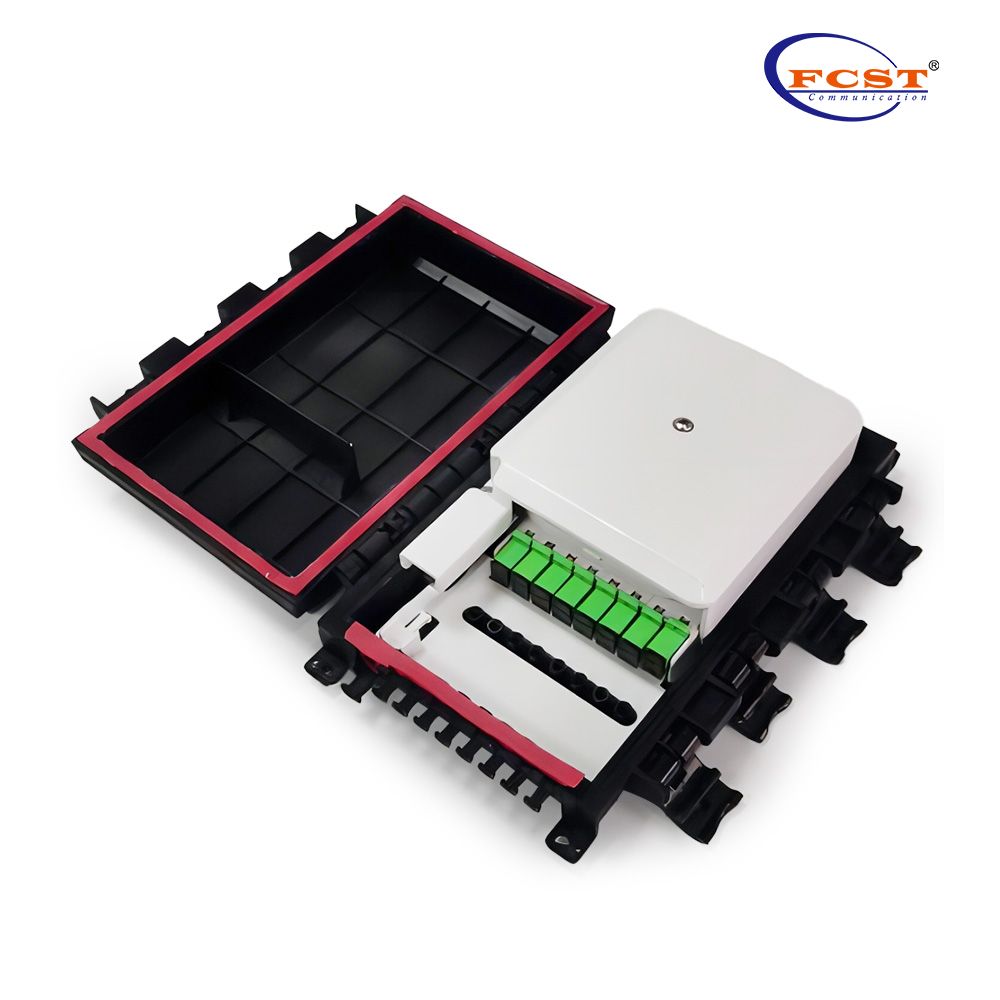

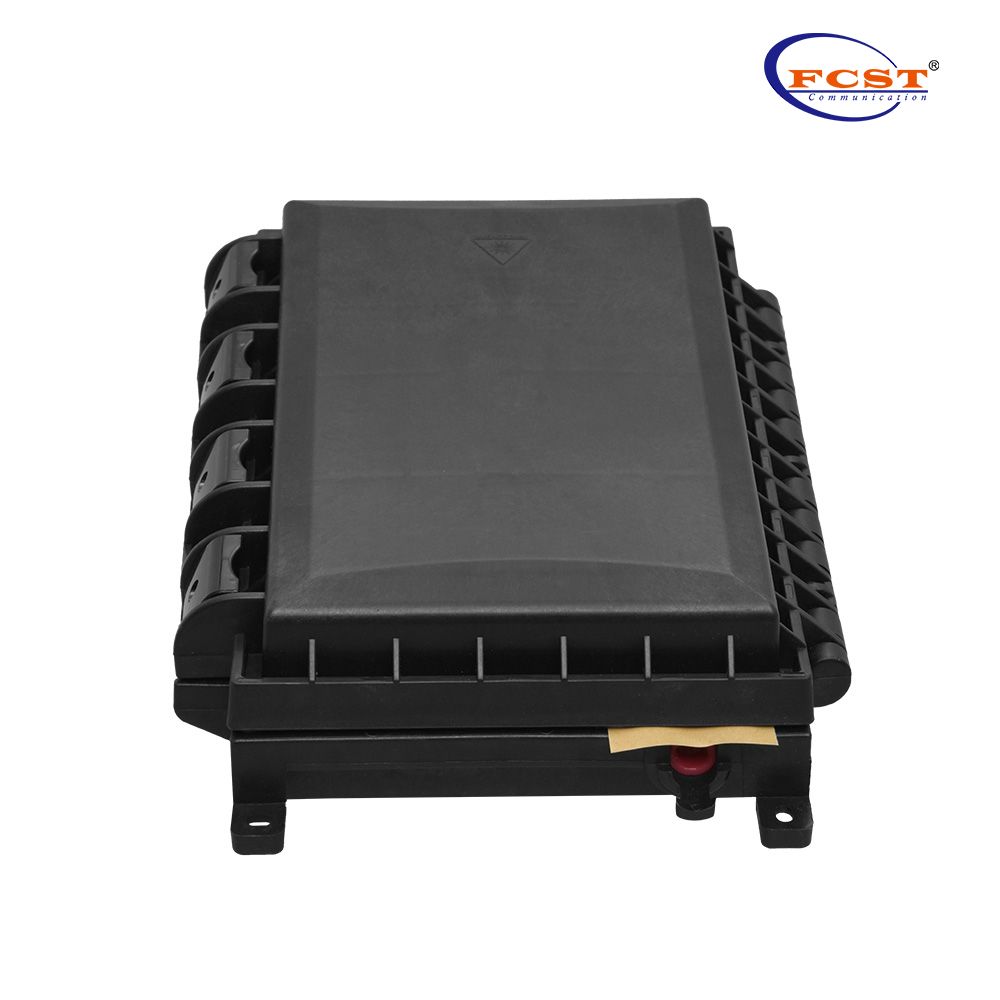

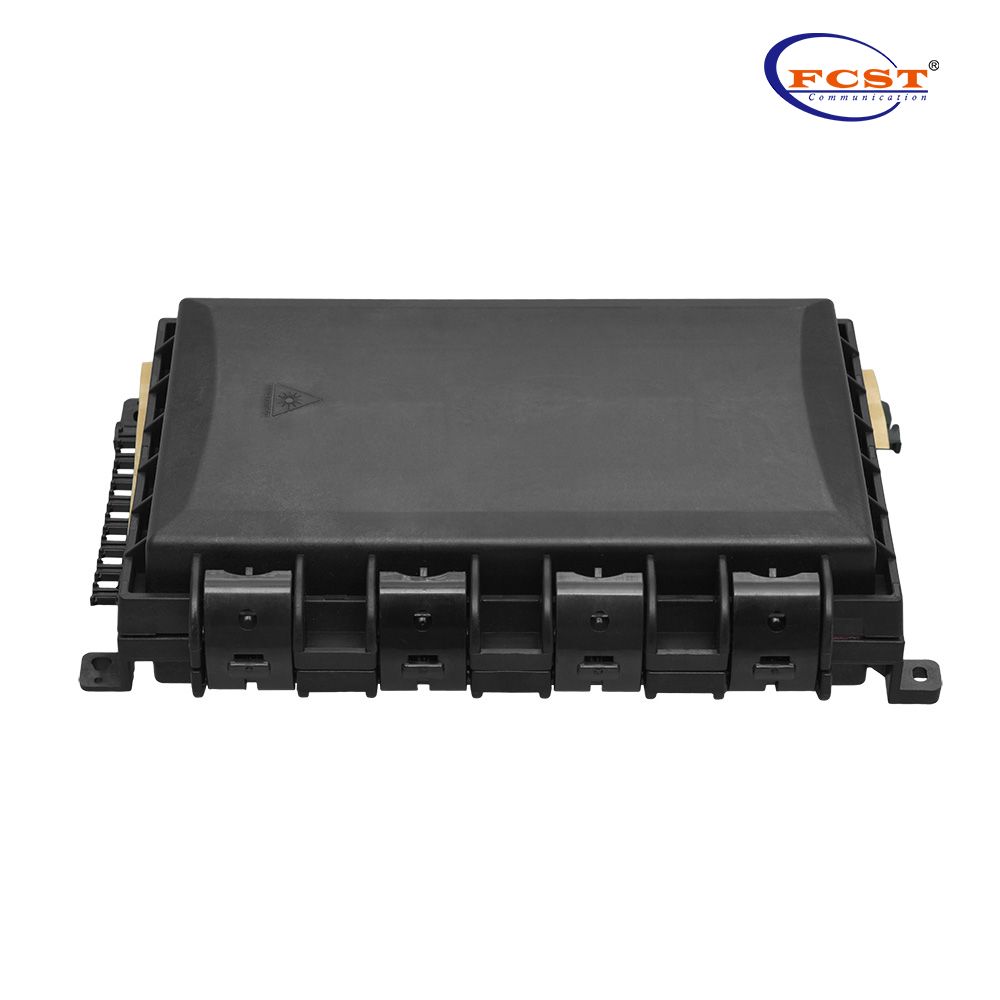

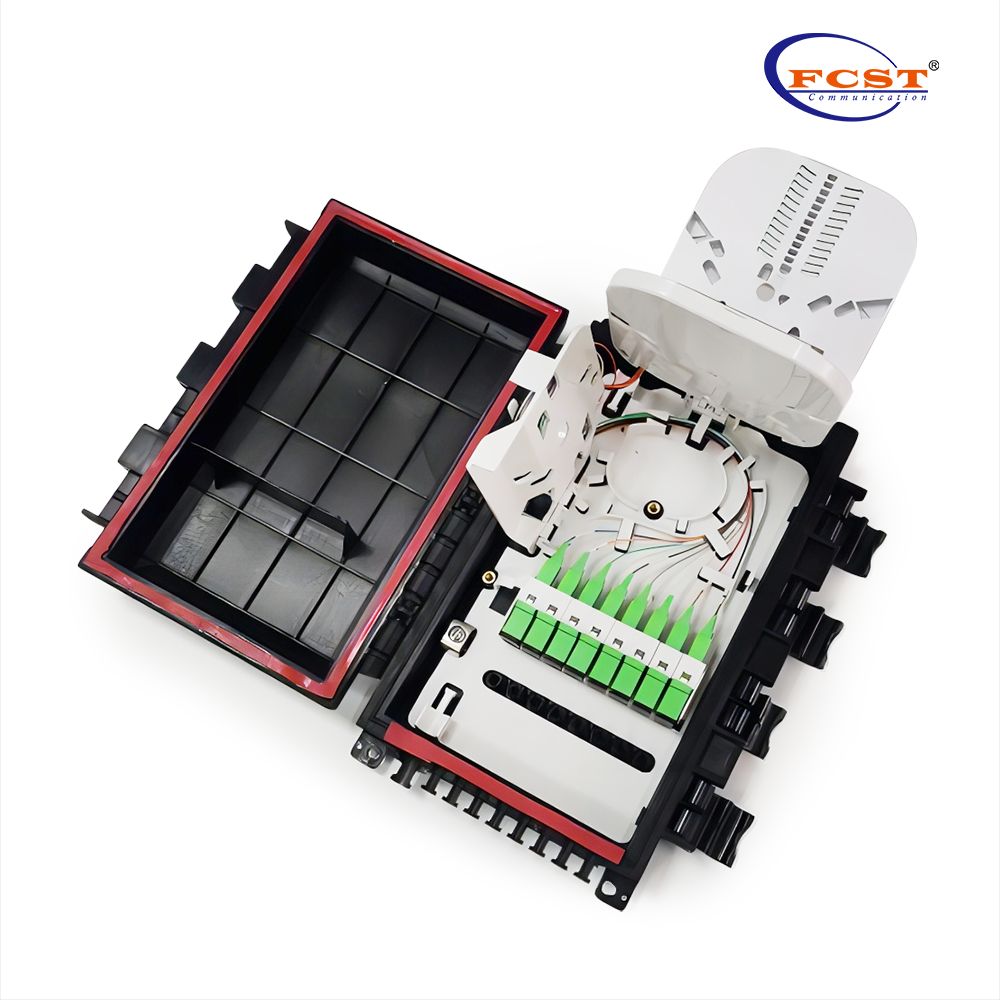

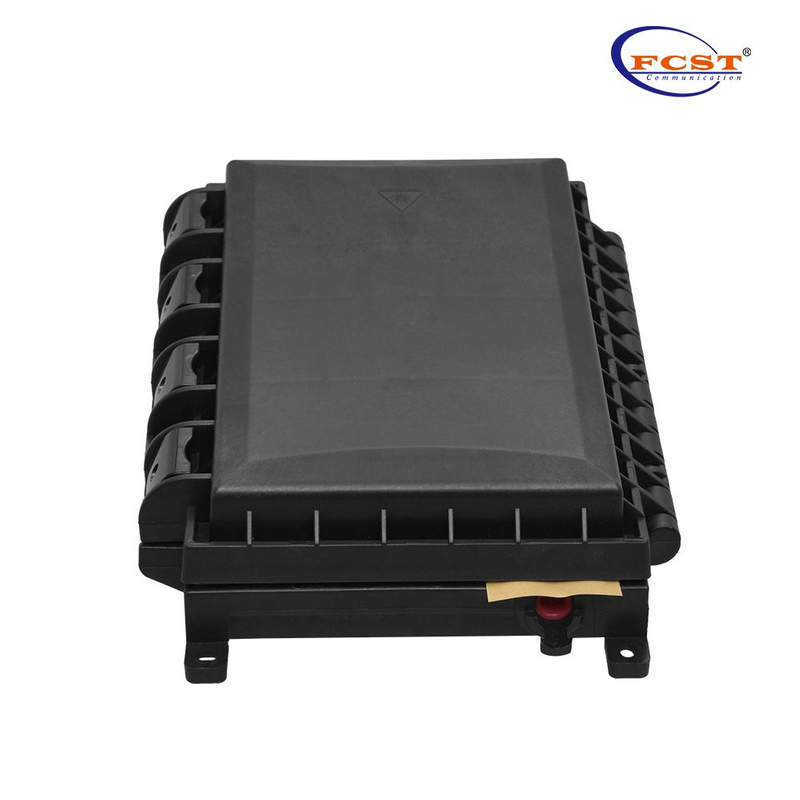

FCST01184 Fiber Access Terminal Closure is able to hold up to 8 subscribers. FTTA fiber optic box is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.
Product Advantages
l Protection degree:IP55.
l Efficient cable management.
l 8 ports cable entrance for drop cable.
l 1*8 Splitter can be installed as an option.
l Easy to maintain and extend the capacity.
l Manage fibers in a reasonable fiber radius condition.
l Integrated with splice cassette and cable management rods.
l Suitable for the fusion splice or mechanical splice. Fiber bend radius control more than 40mm.
Product Specifications
Construction | Description |
Max. Capacity | 8 Cores |
Material | PC+ABS |
Length | 254.3mm丨10.012in |
Width | 168.5mm丨6.634in |
Height | 59mm丨2.323in |
Inlets/Outlets | 2/8 |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Protection Level | IP55 |
Diameter Of Fiber Cable | Exist cable (8 ports on one side):2~5mm Entrance cable(2 ports on up and down side):5~11mm |
Splitter Type | 1 set 1:8 SC/LC/FC splitter |

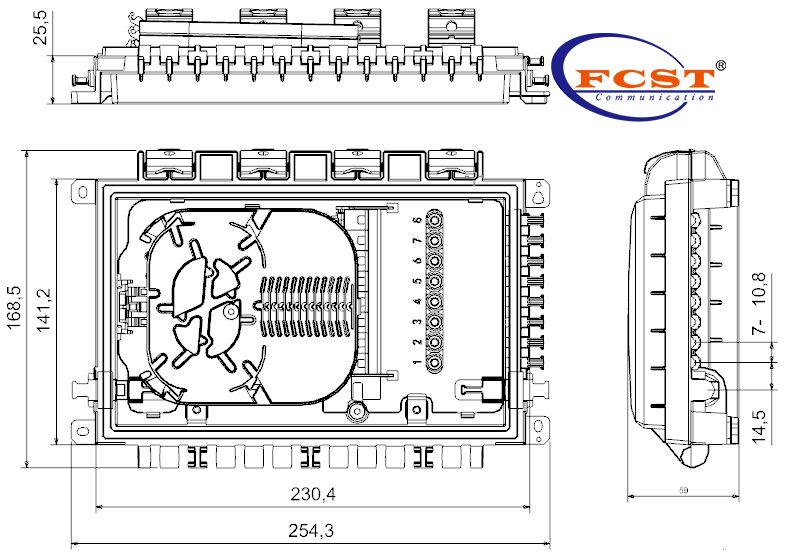

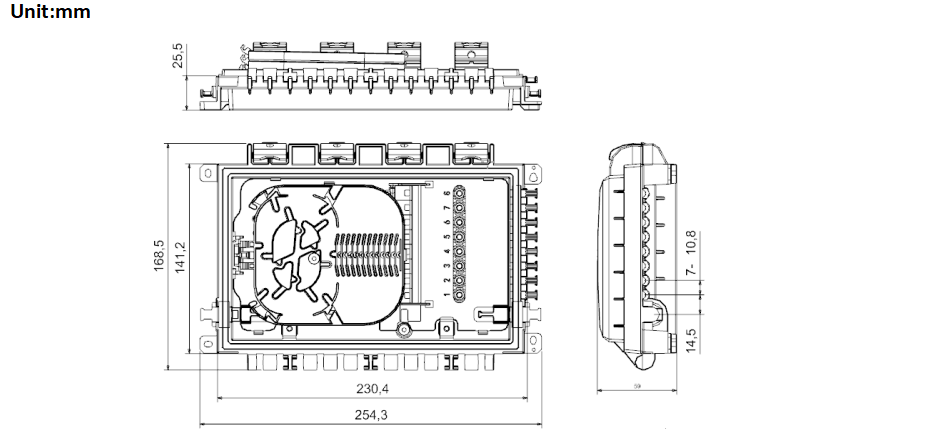

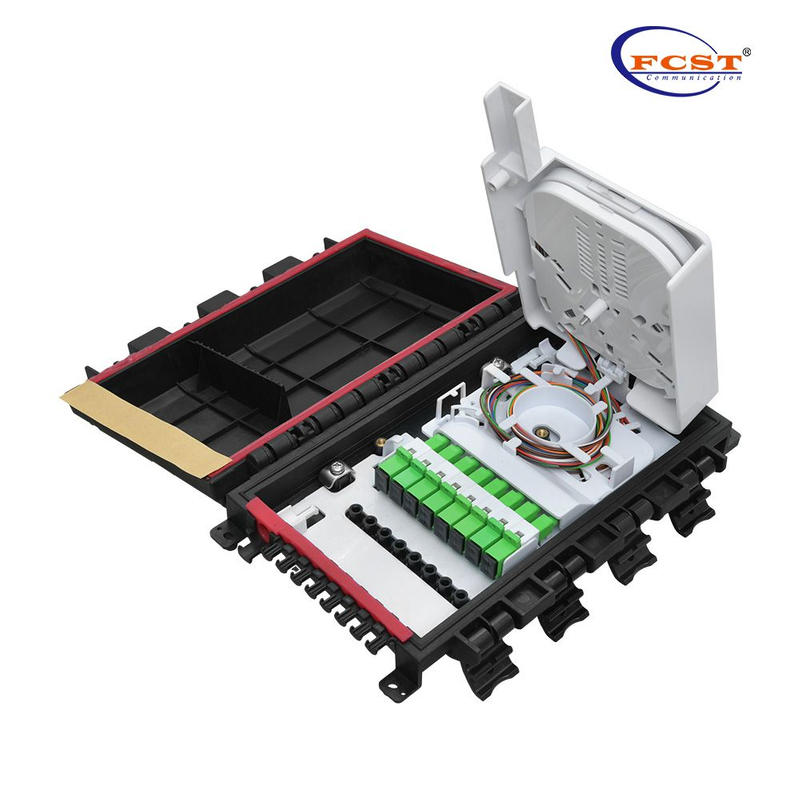

Product Structure
Standard Accessories
Name | Quantity |
Fiber Protector 60MM | 24 pcs |
Wall Mount Expansion Screw | 4 pcs |
Cable Tie | 12 pcs |

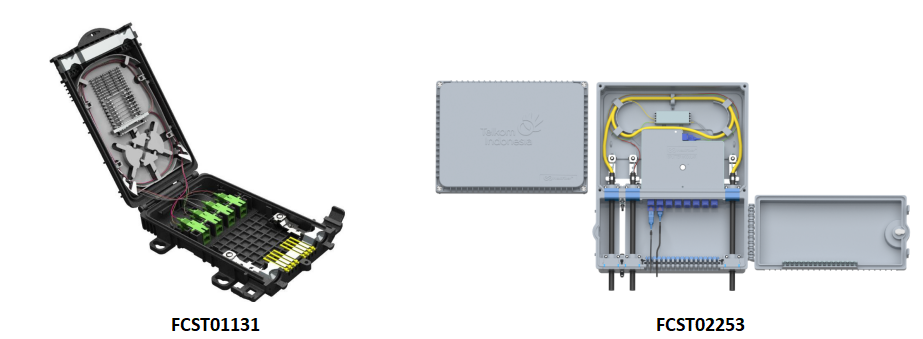

Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
