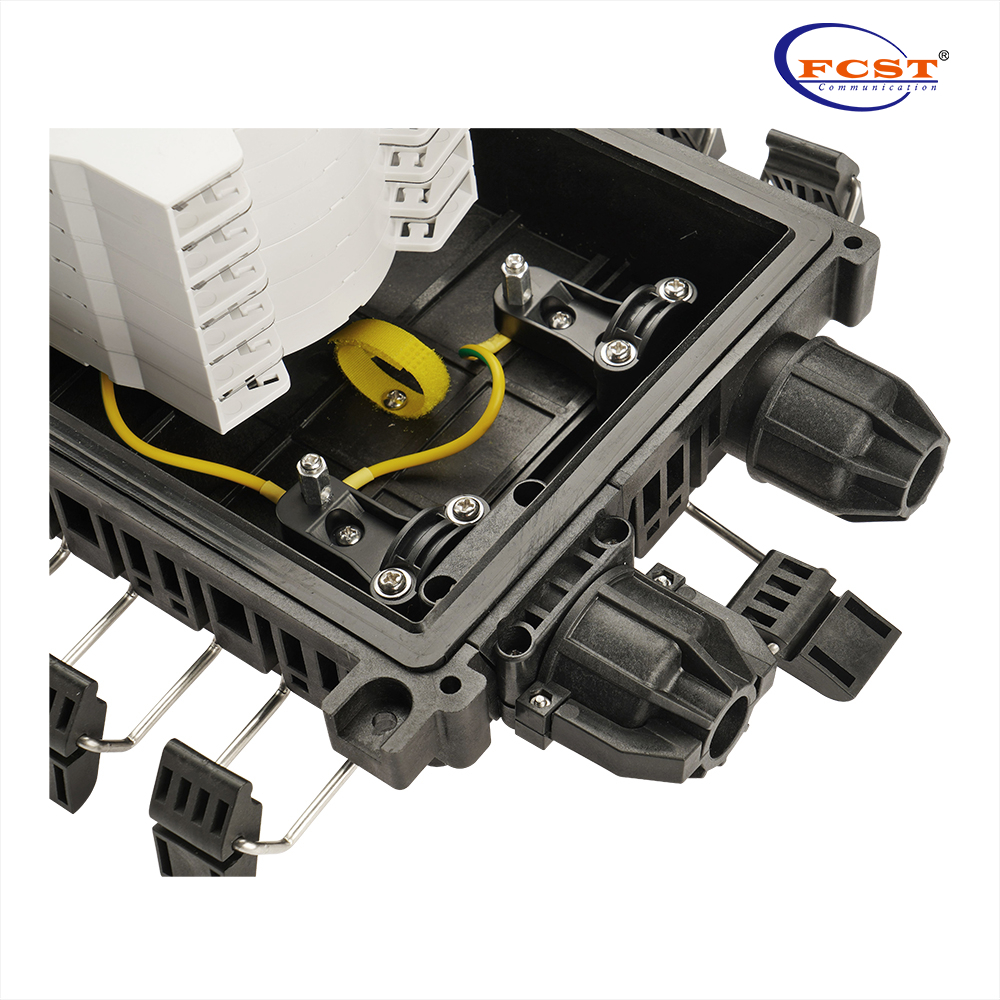

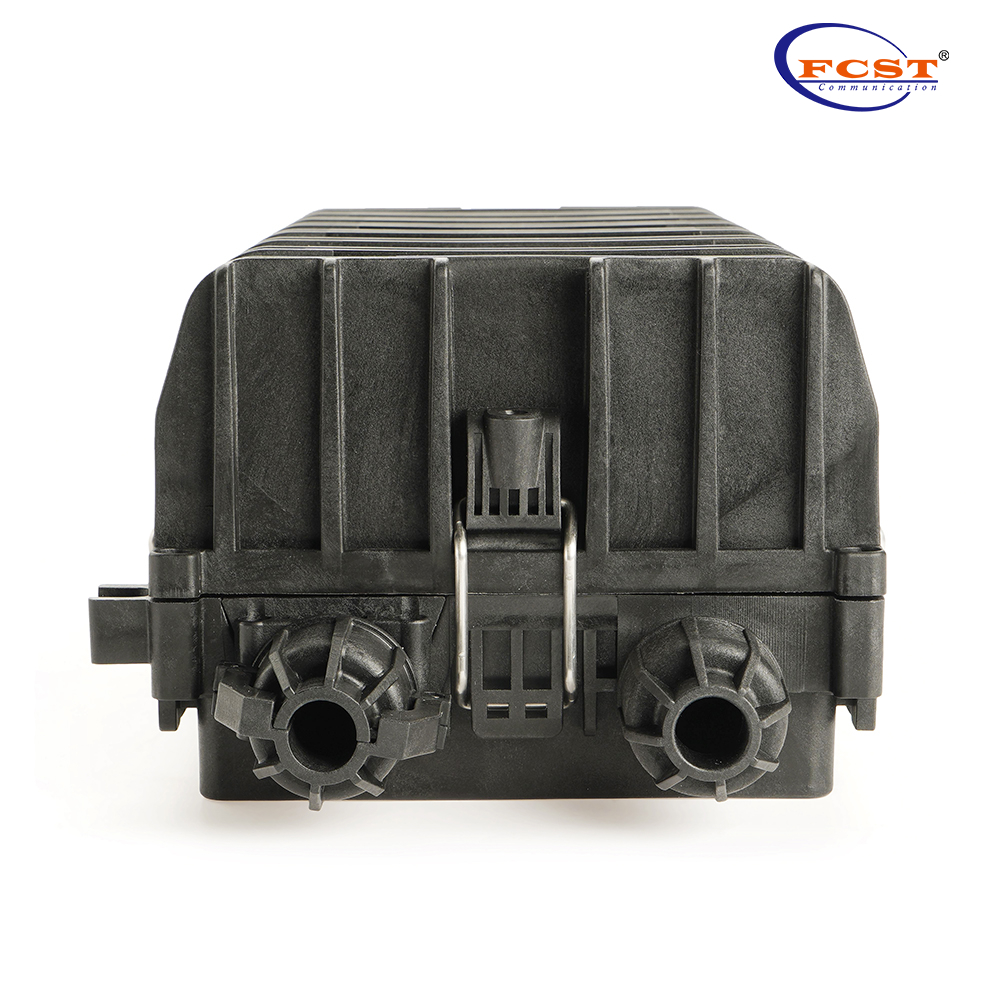

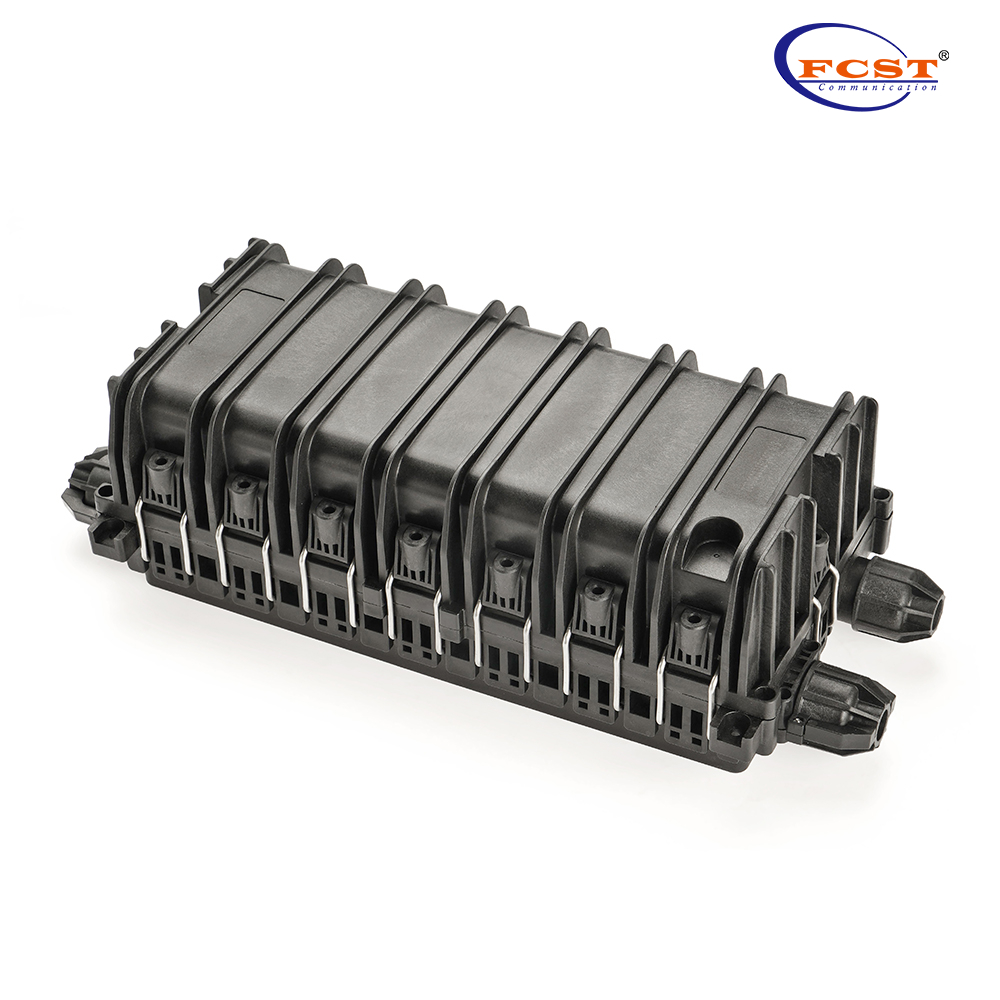

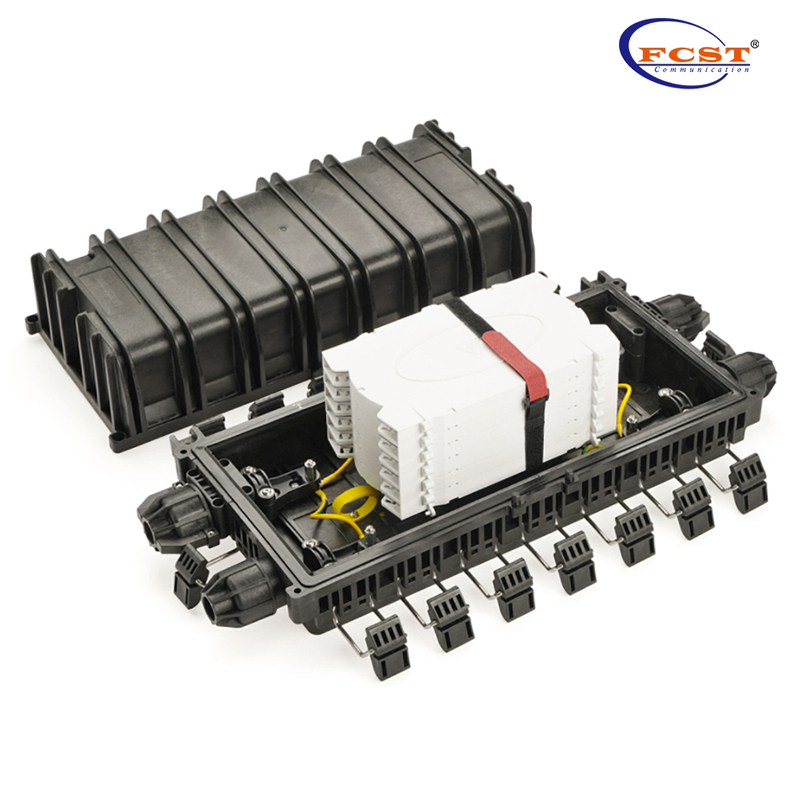

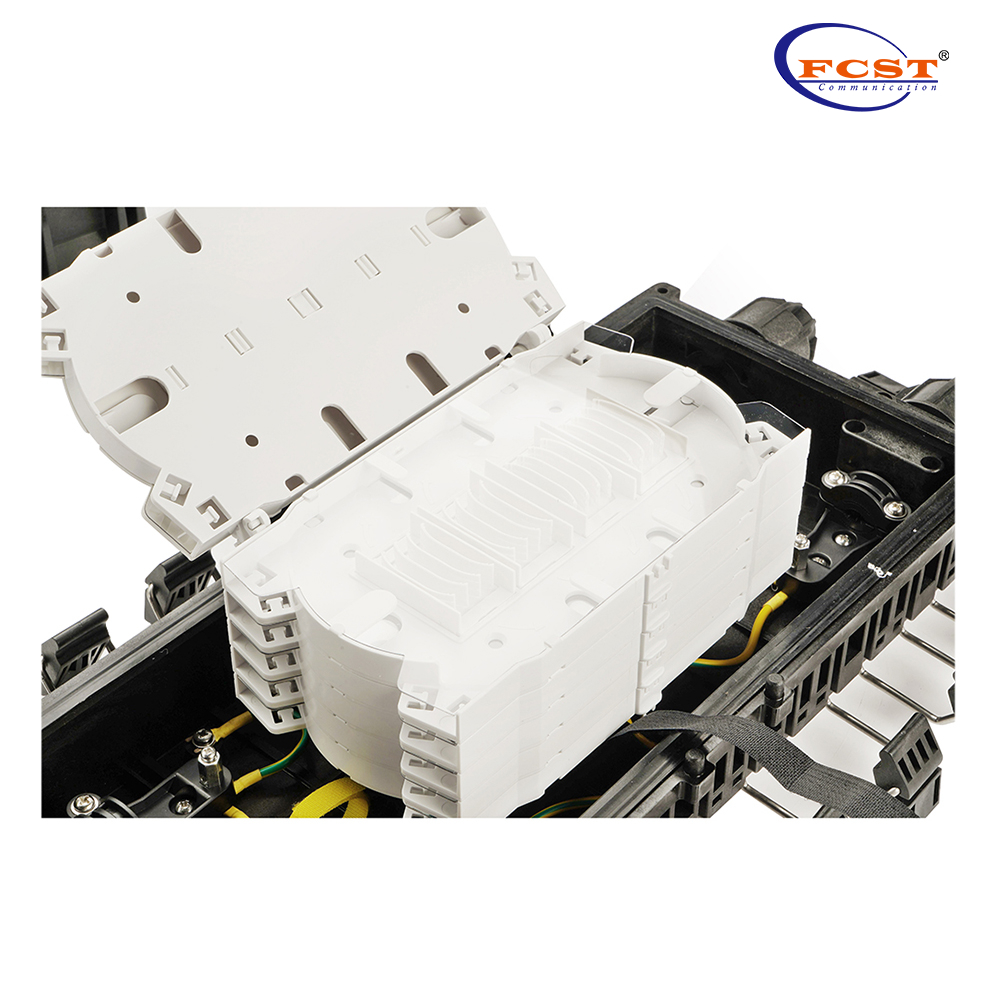

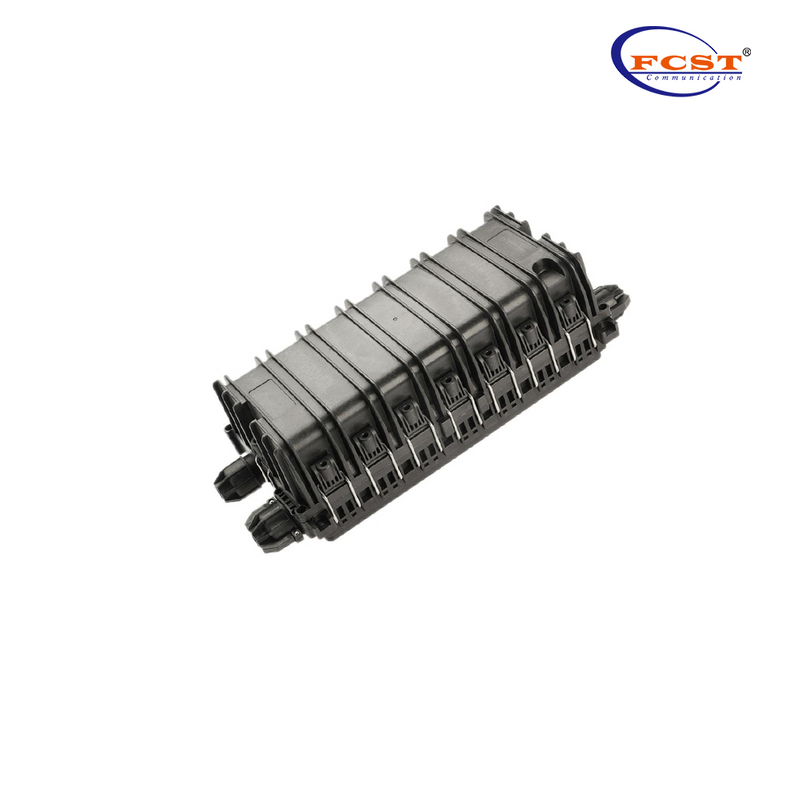

FCST01157 Fiber Optic Splice Closure

5 0 Reviews
FCST01157 Fiber Optic Splice Closure is a series of joint boxes, divided into two types, namely FCST01157 and FCST01157-B, the biggest difference is the capacity, and this joint box can be used for the installation of cable without cutting, flexibility is also strong, the sealing method adopts a unique way, the effect is good, and it is easy to repeat the operation.
Availability:
Quantity:
  • FCST01157
  • FCST
  • FCST01157

Product Overview

FCST01157 Fiber Optic Splice Closure is a series of joint boxes, divided into two types, namely FCST01157 and FCST01157-B, the biggest difference is the capacity, and this joint box can be used for the installation of cable without cutting, flexibility is also strong, the sealing method adopts a unique way, the effect is good, and it is easy to repeat the operation.

Product Advantages

A total of 4 ports ( 2 in 2 out ), and suitable for Φ 10 to 18 mm cable.

This product main body uses the mechanical seal, is suitable for the Aerial and the pipeline installation.

The box body is designed with buckles around it, which can be opened and used repeatedly without screws.

Cable sealed by nuts, cable application range and meet the sealing requirements.

Detachable nut design, more practical.

        FCST01157can support up to 72 cores ,with 3 *24F available. FCST01157-B can support up to 144 cores,which can be installed with 6 core or 12 core ribbon cable,so FCST01157-B can support up to 432 cores with ribbon.

ELJ_KZ17HHPUFWOJFKDPUH

Product Specifications

Construction

Description

Max Splicing Capacity

72Fibers(FCST01157)

144Fibers(FCST01157-B)

Material

PP+GF

Dimension

W*H*D(mm)

490*200*120(FCST01157)

520*200*159(FCST01157-B)

Inlets/Outlets

2/2

Installation

Pole/Aerial/Manhole

Suitable Cable Diameter

(mm)

Φ10mm18mm

Protection Level

IP68

Splice Tray

Single fiber:24F

Maximum Number Of Trays

3

Net Weightg

3500

Sealing Mode

Mechanical

Packing Information

K(N32NHJG1W00U63PA0PYH

Construction

Description

Outside Dimension

L*M*Hmm

510*220*150(FCST01157)

540*220*180(FCST01157-B)

Weight/PCkgs

4.0

Carton size

L*W*Hmm

530*460*480(FCST01157)

560*460*570(FCST01157-B)

Qty/CTNpcs

6

Weight/CTNkgs

16.9

Design And Customization Services

Provide service with whole process from blueprint to product to the customer.

Meet customers requirement to customize logo in suitable place for existing product.

Meet customers requirement to make reasonable modify and customization for existing product.

Provide free design according to the requirement of customer after signed cooperative agreement.
