FCST01159
FCST
FCST01159
Product Overview

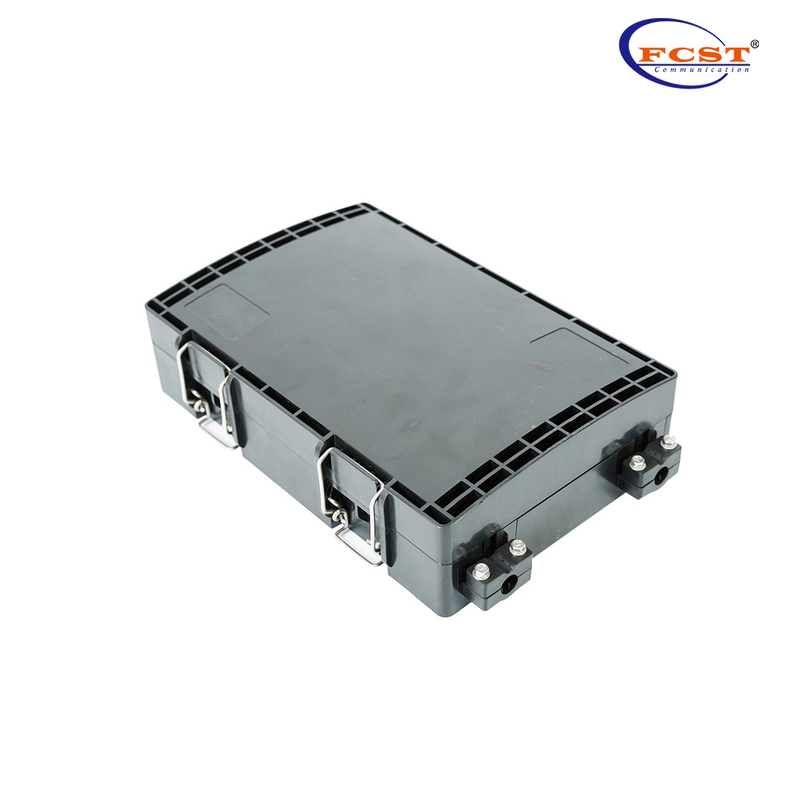

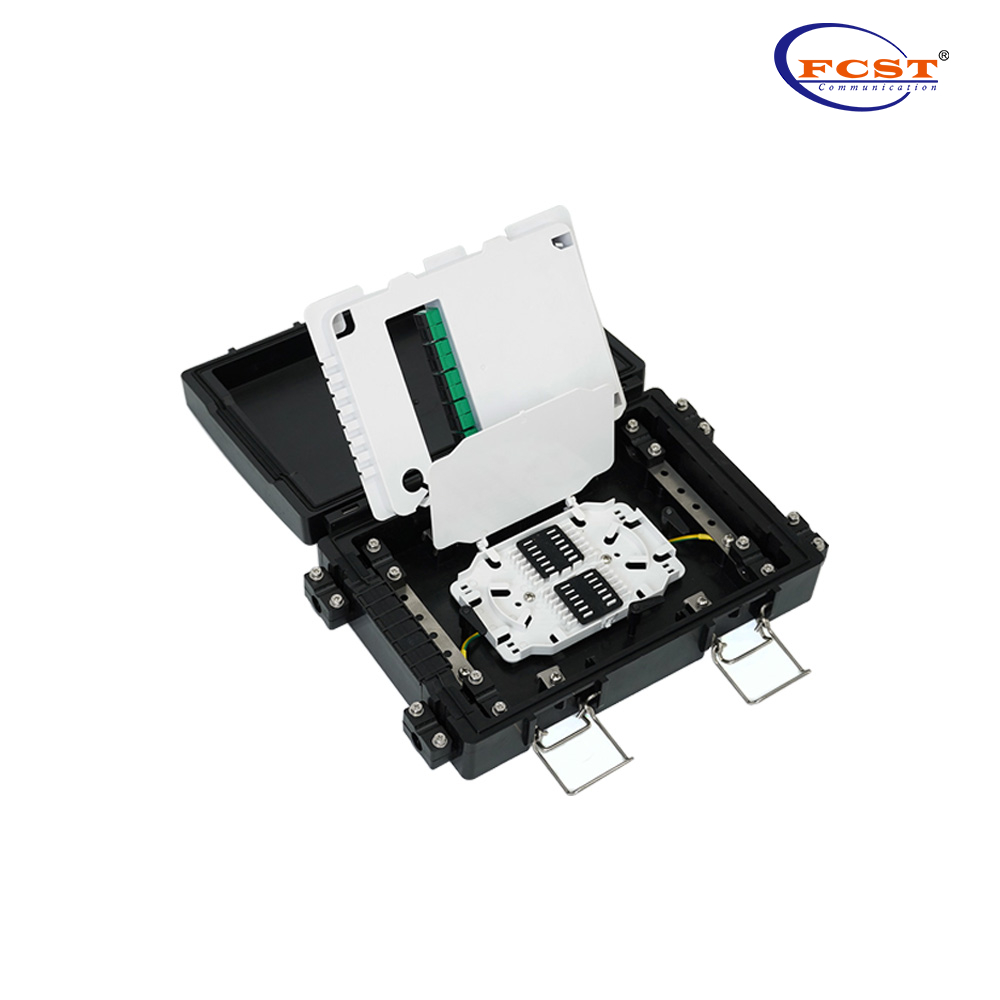

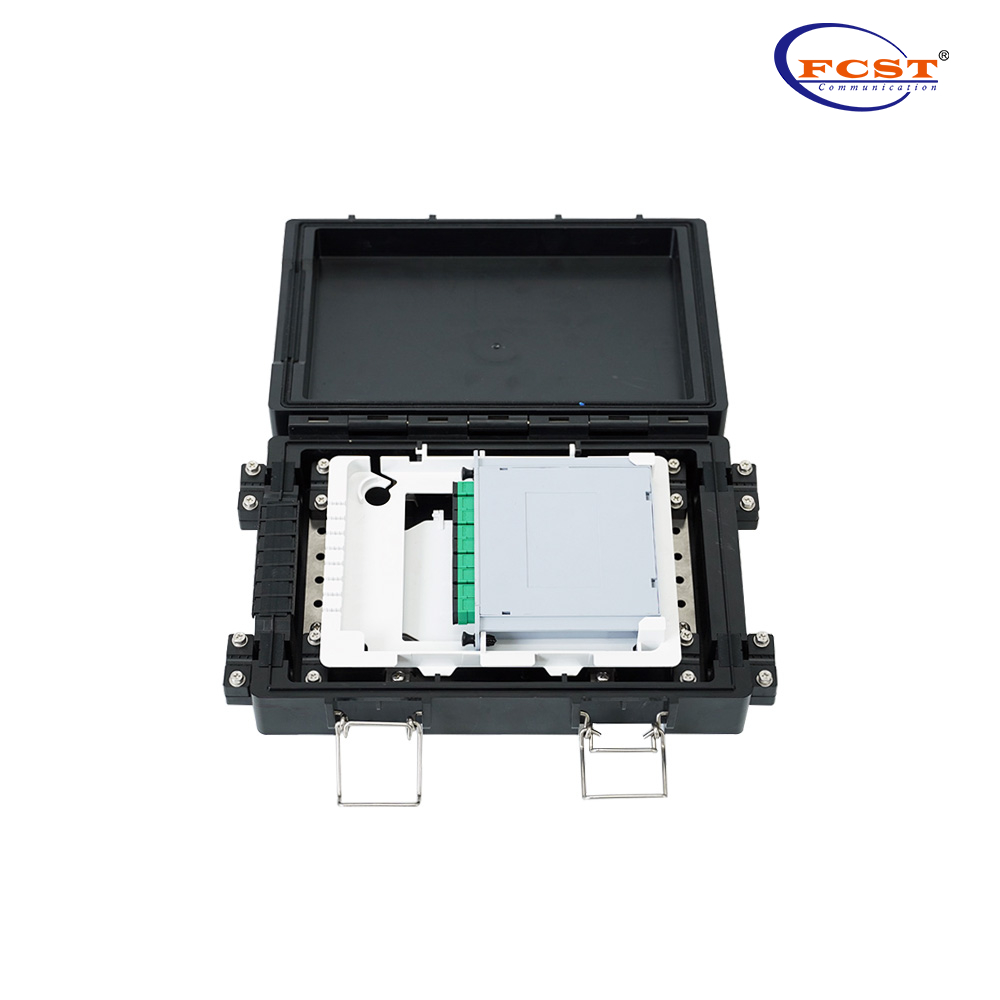

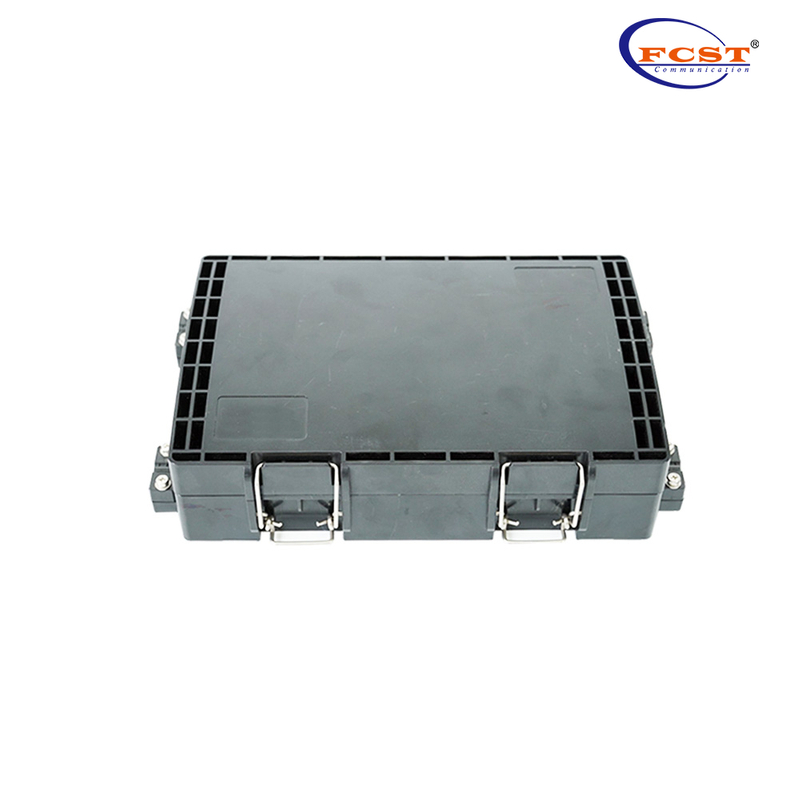

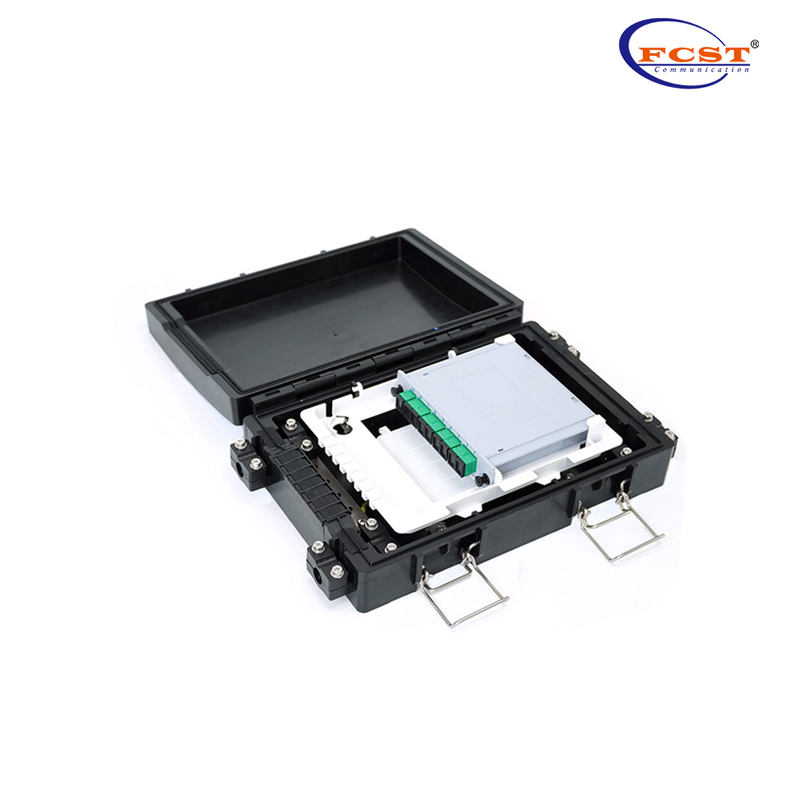

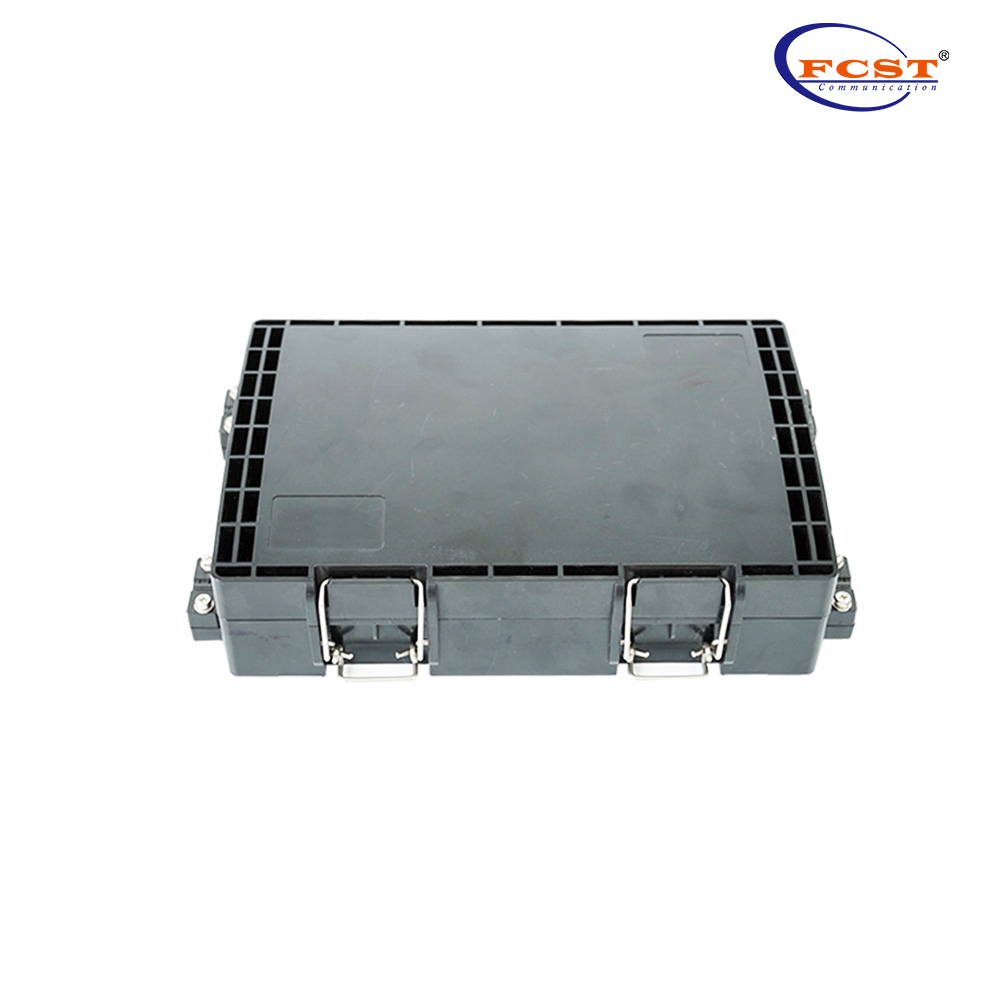

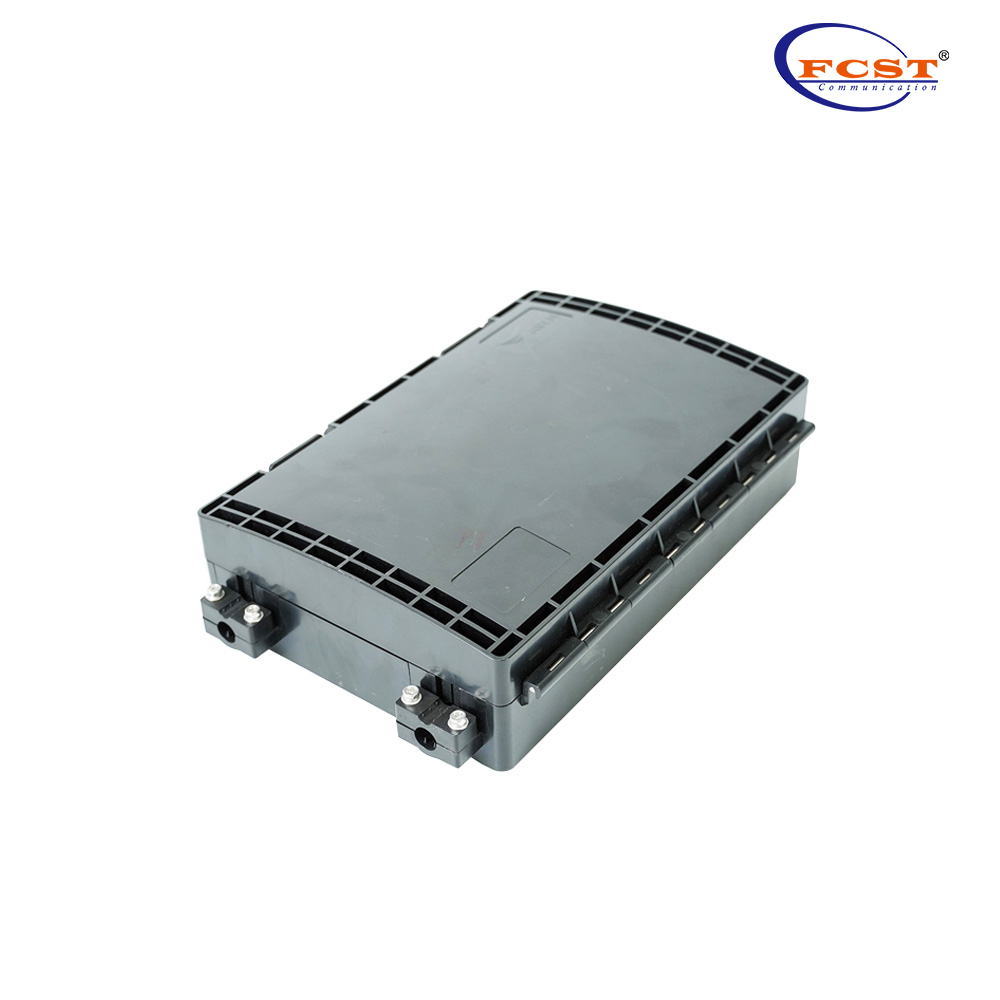

FCST01159 Fiber Optic Splice Closure. The main function of FCST01159 is to provide protection for direct connection, splicing and wiring connection of various types of optical cables in the optical transmission line. It adopts the breathable structure and is mostly used for Aerial installation.
Product Advantages
l Ports: 4 inlets/outlets, applicable to φ7-11.5 mm cables,8 drop cable ports, applicable to 2*3 mm drop cables.
l Capacity: 12F tray capacity (12F/layer, 2 layers) and 1 splice tray, max 24F.
l Fusion Splice Capacity: minimum 12F, maximum 24F.
l Sealing: hinged structure, buckles and non-vulcanized rubber for seal, IP55.
l Performance: meets IEC standards.
l Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment.
Product Specifications
Construction | Description |
Max Splicing Capacity | Single fiber:48F |
Material | PP+ABS |
Dimension W*H*D(mm) | 182*272*72 |
No Of Entry cable | Main cable: 4 ports Drop cable: 8 ports |
Installation | Pole/Aerial |
Cable Diameter | Main port: Φ7mm~11.5mm Drop port : Φ2.0*3.0mm |
Protection Level | IP55 |
Splice Tray | Single fiber:12F |
Splitter | 1:8 cassette SC/APC |
Net Weight(g) | 1000 |
Product Structure(mm)
Packing Information
Construction | Description |
Outside Dimension(L*M*H)mm | 320*220*90 |
Weight/PC(kgs) | 2.0 |
Carton size (L*W*H)mm | 600*460*300 |
Qty/CTN(pcs) | 12 |
Weight/CTN(kgs) | 24.1 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
